• Your new unit was manufactured and assembled under

strict ROADSTAR quality control.

Thank-you for purchasing our product for your music

enjoyment.

Before operating the unit, please read this instruction

manual carefully. Keep it also handy for further future

references.

• Ihr neues Gerät wurde unter Beachtung der strengen

ROADSTAR-Qualitätsvorschriften gefertigt.

Wir danken Ihnen für den Kauf unseres Produktes und

wünschen Ihnen optimalen Hörgenuss. Bitte lesen Sie

diese Bedienungsanleitung durch, und heben Sie sie auf,

um jederzeit darin nachschlagen zu können.

• Votre nouvel appareil a été fabriqué et monté en étant

soumis aux nombreaux tests ROADSTAR. Nous

espérons que cet appareil vous donnera entière satis-

faction.

Avant de vous adonner à ces activités, veuillez lire

attentivement ce manuel d’instructions. Conservezle à

portée de main à fin de référence ultérieure.

• Il vostro nuovo apparecchio è stato prodotto ed

assemblato sotto lo stretto controllo di qualità

ROADSTAR.

Vi ringraziamo di aver acquistato un nostro prodotto per

il vostro piacere d’ascolto.

Prima di procedere all'utilizzo dell'apparecchio, leggete

attentamente il manuale d’istruzioni e tenetelo sempre a

portata di mano per futuri riferimenti.

• Vuestro nuevo sistema ha sido construido según las

normas estrictas de control de calidad ROADSTAR.

Le felicitamos y le damos las gracias por su elección de

este aparado. Por favor leer el manual antes de poner

en funcionamiento el equipo y guardar esta

documentación en case de que se necesite nuevamente.

• Seu novo aparelho foi construido e montado sob o estrito

controle de qualidade da ROADSTAR.

Agradecemos por ter comprado nosso produto para a

sua diversão.

Antes de usar esta unidade é necessário ler com atençâo

este manual de instruçâes pare que possa ser usada

apropriadamente; mantenha o manual ao seu alcance

para outras informaçâes.

RESET

SCN DSP

A/PS

MD PTY

CD/MP3CD-R/CD-RW PLAYER 4x40WATTS

TA AF 1 PAU 2 INT 3 RPT 4 RDM 5 6

REL

B BAND

17 16

(1-6)

111 13 8 2 3 10 14 2615

97 6 5 18 19 20 21 22 23 2512

CD-853USMP/FM

English

The exclamation point within the triangle is a warning sign alerting the

user of important instructions accompanying the product.

The lightening flash with arrowhead symbol within the triangle is a

warning sign alerting the user of “dangerous voltage” inside the unit.

To reduce the risk of electric shock, do not remove the cover. No user

serviceable parts inside the unit. Refer all servicing to qualified

personnel.

Invisible laser radiation when the unit is opened or interlocks defeated.

Avoid exposure to laser beam. Use of controls, adjustments or

procedures other than those specified herein may result in hazardous

radiation exposure.

This unit must not be exposed to moisture or rain.

This unit should be positioned so that it is properly ventilated.

Do not expose this unit to direct sunlight or heat radiating sources.

WARNINGS

2English

CD-853USMP/FM

Car Stereo Compact Disc CD/CD-R/CD-RW/MP3 Player with PLL FM Stereo Radio

Radio Data System with PTY

USB Port and SD/MMC Card Input

Flip Down/Detachable Front Panel System

INSTRUCTION MANUAL

Please read this instruction manual carefully and familiarize yourself with your new Radio CD

before using it for the first time. Please retain this manual for future reference.

TABLE OF CONTENTS

• Location of Controls

• Features

• Installation

• Precautions and Maintenance

• Operating Instructions

• Specifications

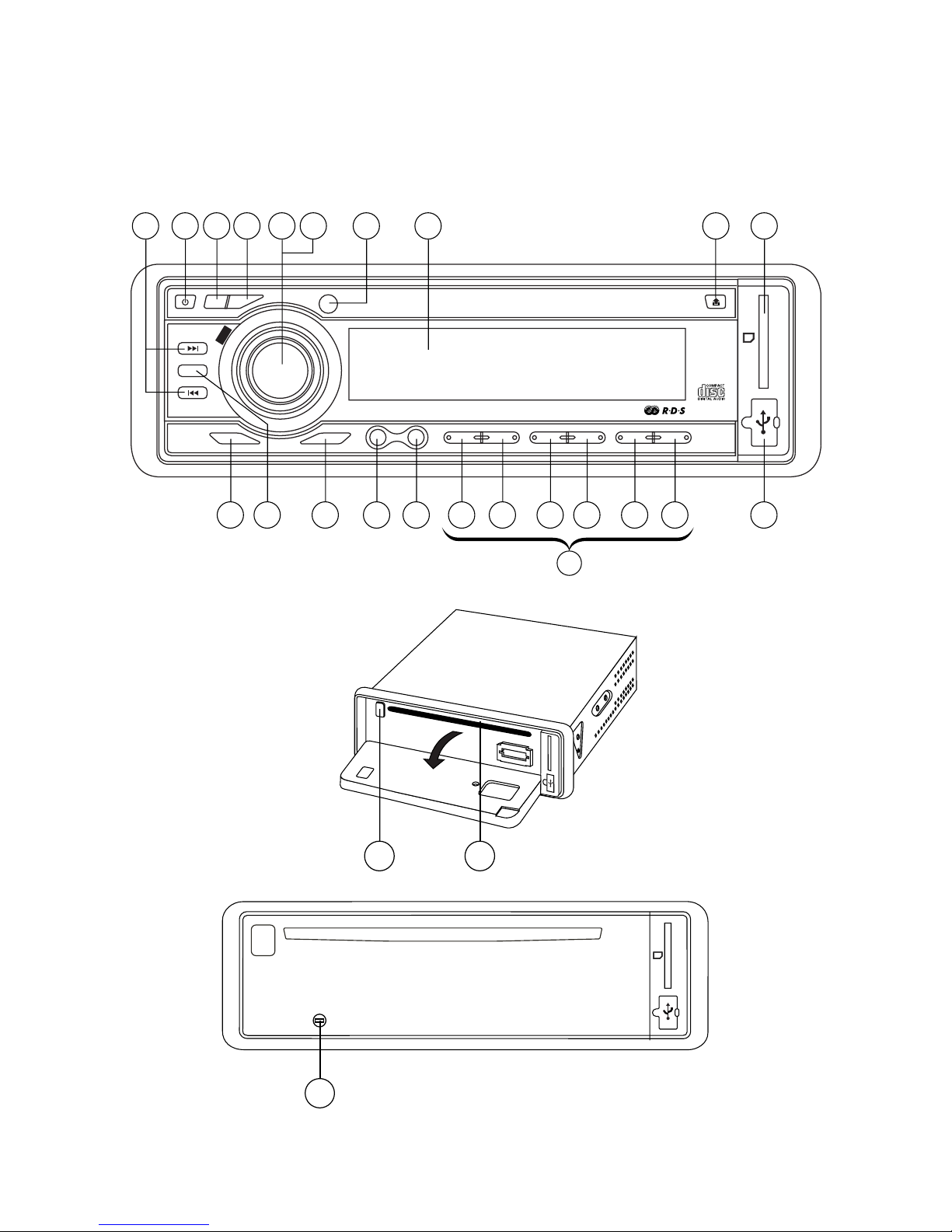

LOCATIONS OF CONTROLS

1. POWER ON/OFF ( )

2. FUNCTION SELECT BUTTON: BASS/TREBLE/BALANCE/FADER / TA SEEK/MASK DPI/

RETUNE/AUDIO DSP/LOUDNESS/ESP/CD MULTI/BEEP/SEEK/STEREO/LOCAL (SEL)

3. VOL UP/VOL DOWN FOR BASS/TREBLE/BALANCE/FADER

4. PRESET STATIONS (1,2,3,4,5,6)

5. 'AF' function (ALTERNATIVE FREQUENCIES)

6. 'TA' function (TRAFFIC ANNOUNCEMENT)

7. 'PTY' function (PROGRAM TYPE)

8. DISPLAY BUTTON (DSP)

9. MODE BUTTON (MD)

10. BAND BUTTON (BAND)

11. AUTOMATIC OR MANUAL TUNING (FREQ UP OR FREQ DOWN /

CD TRACK/SEARCH BUTTON

12. AUTO SEEK SEARCH TUNING (A/PS)

13. ‘SCAN’ AUTOMATIC TUNING CONTROL (SCN)

14. LCD DISPLAY

15. PANEL RELEASE BUTTON ( )

16. CD SLOT

17. CD EJECT BUTTON ( )

18. PAUSE BUTTON

19. INTRO BUTTON (Preview all Tracks)

20. REPEAT BUTTON 'RPT'

21. RANDOM BUTTON 'RDM'

22, 23. + 10 TRACK SEARCH UP/DOWN

24. RESET BUTTON

25. USB PORT

26. MULTI-MEDIA CARD (MMC) / SD CARD SLOT

English

FEATURES

The unit features a detachable front control panel, FM/FM stereo, CD/MP3 player the follow-

ing features:

• The best stations memory automatically memorizes the best (strongest) station in the or-

der of their strength (AS).

• Electronic Volume, Bass, Treble, Fader and Balance control.

• Precision electronic tuning with phase-lock loop (P.L.L.) circuitry.

• Programmable 18 preset memory tuning (6 each for FM1/ FM2 / FM3)

• Loudness control

• Manual / Auto (Seek) / up and down tuning control

• Band selector for FM1/ FM2 / FM3

• Display control (Frequency, Station Name, Program Type, Clock)

• Clock Function in RDS

• CD Repeat Function

• CD and MP3 files on CD/CD-R/CD-RW player function

• Preamplified Line-out

• Detachable front panel protects against theft

• Lighting system

• USB Port and SD/MMC Input

• RDS Function: PI (Program Identification) TA (Traffic Announcement)

PS (Program Service Name) PTY (Program Type)

AF (List of Alternative Frequencies)

TP (Traffic Program)

INSTALLATION

PRECAUTIONS

• Choose the mounting location carefully so that the unit will not interfere with the normal

driving functions of the driver.

• Avoid installing the unit where it would be subject to high temperatures, such as from direct

sunlight or hot air from the heater, or where it would be subject to dust, dirt or excessive

vibration.

• Use only the supplied mounting hardware for a safe and secure installation.

• Be sure to remove the front panel before installing the unit.

Mounting angle adjustment

Adjust the mounting angle to less than 20°.

MOUNTING EXAMPLE

Installation in the dashboard

Note: Keep the release key in the safe place as you may need it in future to remove the unit

from the car.

Bend these

claws, if necessary

Release screw and

bracket 2182mm

53mm

TAP

4English

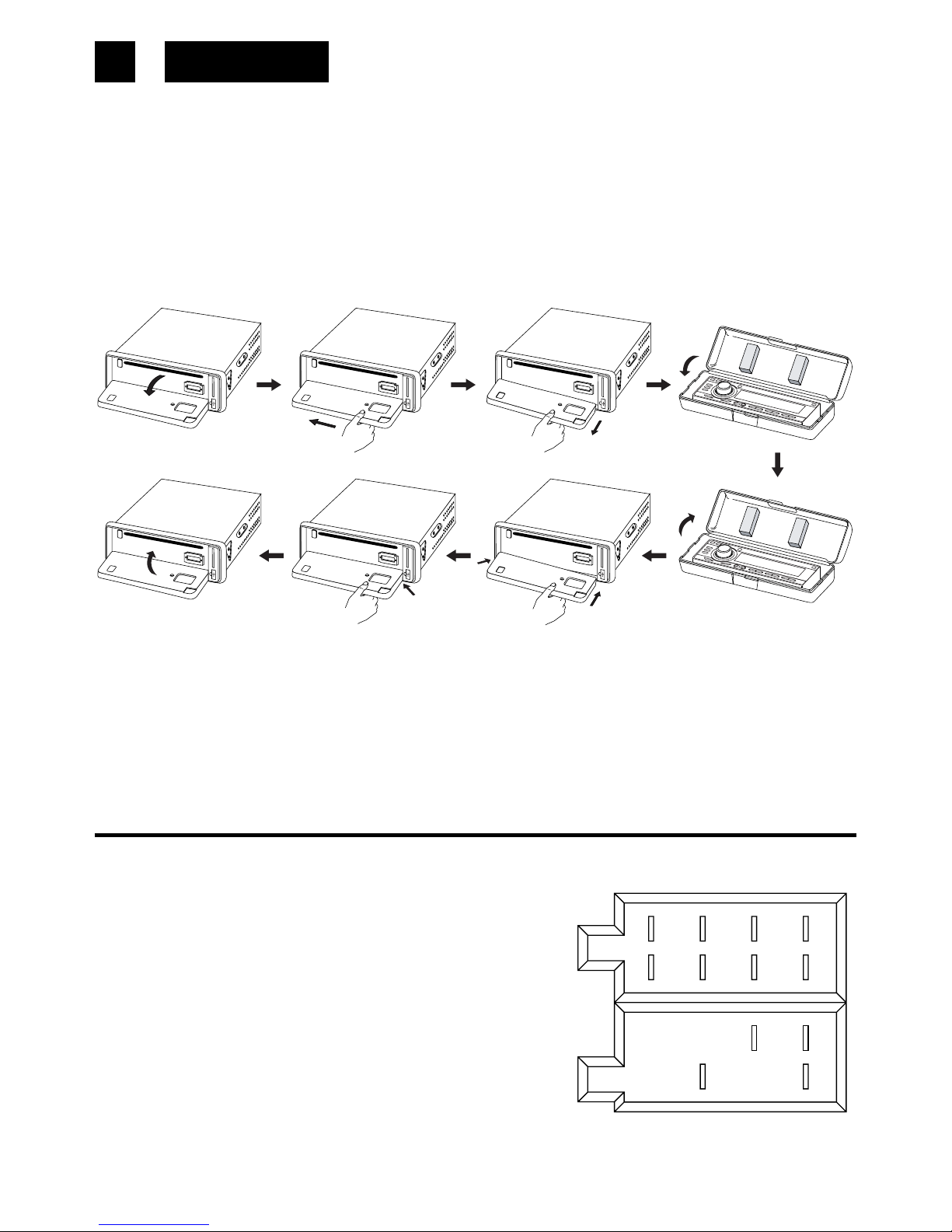

Detaching and attaching the front panel

The front panel of this unit can be detached in order to prevent the unit from being stolen.

FOLDING DOWN AND DETACHING/ATTACHING THE FRONT PANEL

Before detaching the front panel, be sure to press the PWR button (1) OFF first.

Then press the REL button (15), let the Front Panel arrive in horizontal position and detach the

panel by pulling it towards you as illustrated.

Notes:

• Do not press the front panel hard against the unit when attaching it. It can be easily attached

by pressing it lightly against the unit.

• When you carry the front panel with you, put it in the supplied front panel case.

• Do not press hard or give excessive pressure to the display window of the front panel when

attaching it to the unit.

ISO CONNECTOR

RCA Jack Line Out (Rear) Line In

: Red (right) : Red (right)

: White (left) : White (left)

CONNECTOR A

4. MEMORY +12V

5. AUTO ANTENNA OUTPUT

7. +12V (TO IGNITION KEY)

8. GROUND

Note:

(connector A no. 7) must be connected by car ignition key in order to avoid that car battery

becomes weak when the car will be not used for long period.

B1 3 5 7

2 4 6 8

5 7

4 8

English

CONNECTOR B

1. REAR RIGHT SPEAKER (+)

2. REAR RIGHT SPEAKER (-)

3. FRONT RIGHT SPEAKER (+)

4. FRONT RIGHT SPEAKER (-)

5. FRONT LEFT SPEAKER (+)

6. FRONT LEFT SPEAKER (-)

7. REAR LEFT SPEAKER (+)

8. REAR LEFT SPEAKER (-)

Maintenance

FUSE REPLACEMENT

If the fuse blows, check the power connection and replace the fuse. If the fuse blows again

after the replacement, there may be an internal malfunction. In this case, consult your nearest

repairing center.

Warning

Use the specified amperage fuse for each lead. Use of a higher amperage fuse may cause

serious damage.

OPERATING INSTRUCTIONS

1. POWER ON/OFF

By pressing this key, the unit is switched on and off.

This unit is turned on by pressing any key.

2. SELECT

3. VOLUME UP/DOWN

Rotating these knob, you can adjust VOL/BASS/TREB/BAL/FAD. To select other functions,

press the SEL (2) button shortly until the desired functions is shown on the display. Figure

1 shows how control functions are selected using the SEL button.

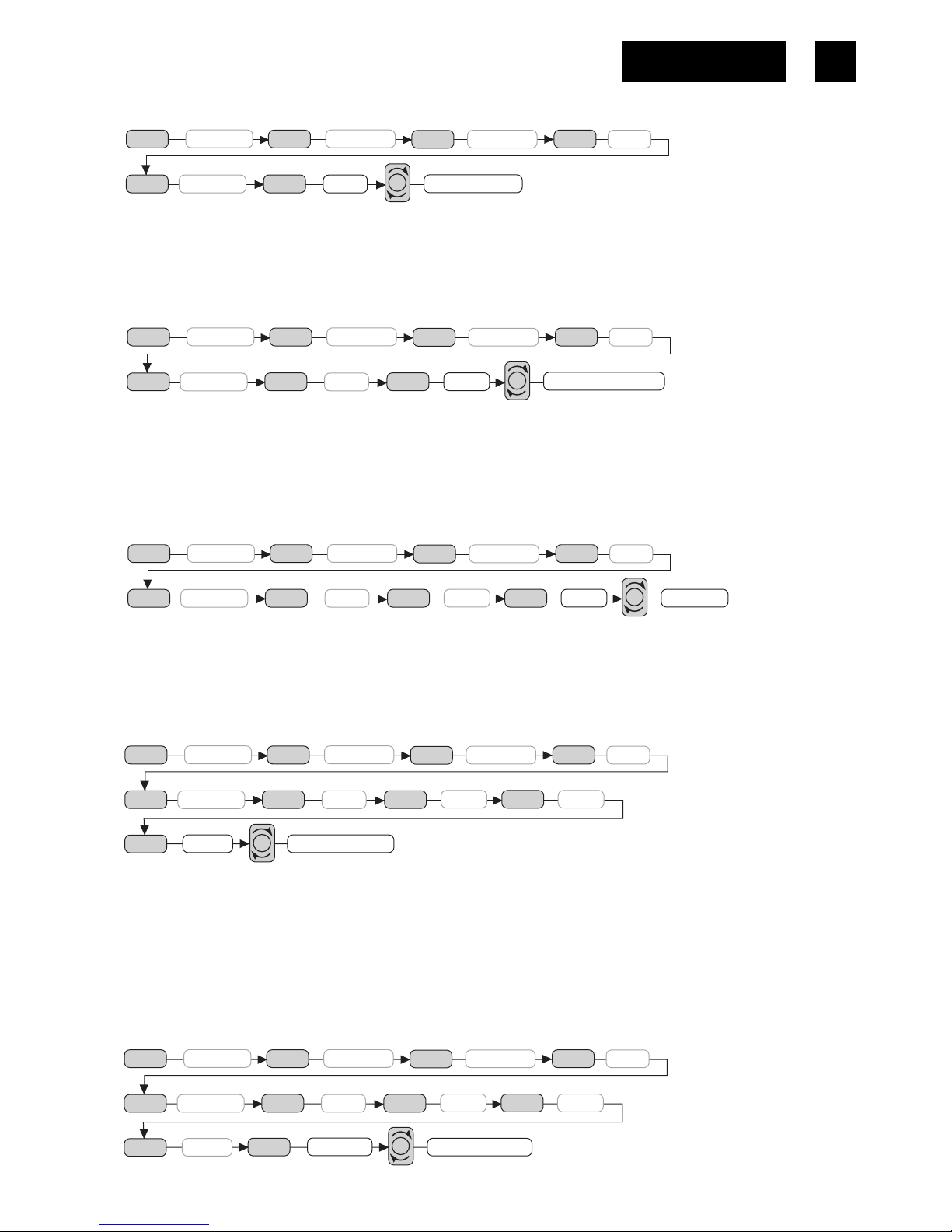

Fig. 1 Selection of sound control functions

1. VOL 2. SEL 3. BAS 4. TRE 5. BAL 6. FAD

Increase or decrease the volme by

VOL

. These buttons can be used to adjust

the BASS, TREBLE, BALANCE and FADER.

TA SEEK/TA ALARM (2)

When press the SEL button for more than 2 seconds, it is activated as selecting mode of

these function.

TA SEEK Mode or TA ALARM mode is selected by

VOL

1 3

TA SEEK

SEL

2 sec.

TA SEEK / TA ALARM

VOL

6English

- TA SEEK mode:

When newly turned station does not receive TP information for 5 sec., the radio retunes to

next station which has not the same station (PI) as the last station, but has the TP informa-

tion.

In TA seek mode, the current station can be changed to the completely different station

because the unit searches TP station when the field strength of the current station is very

weak, or the current station has no TP signal.

- TA ALARM mode:

Any automatic retune mode is not activated, just can hear Beep sound.

MASK DPI (2)

When press the SEL button for more than 2 seconds, it is activated as selecting mode of

these function.

MASK DPI: masked only the AF which has different PI.

MASK ALL: masked the AF which has different PI and NO RDS signal with field strength.

RETUNE L / S CONTROLS (2)

When press the SEL button for more than 2 seconds, it is activated as selecting Retune

mode.

RETUNE L: Select 90 seconds as the initial time of automatic TA search.

RETUNE S: Select 30 seconds as initial time.

AUDIO DSP CONTROLS (2)

When press the SEL button for more than 2 seconds, it is activated as selecting mode of

these function.

LOUDNESS CONTROLS (2)

When press the SEL button for more than 2 seconds, it is activated as selecting mode of

these function.

LOUD ON/OFF mode is selected by

VOL

key. The bass and treble response will

be boosted.

ESP MODE (2)

When press the SEL button for more than 2 seconds, it is activated as 12 sec. or 45 sec. for

CD of ESP mode can be selected.

TA SEEK

SEL MASK DPI

SEL

2 sec.

MASK DPI / MASK ALL

VOL

TA SEEK

SEL RETUNE

SEL

MASK DPI

SEL

2 sec.

RETUNE L / RETUNE S

VOL

TA SEEK

SEL

2 sec.

SEL DSP ONMASK DPI

SEL RETUNE

SEL

POP M --- ROCK M --- CLASS M --- FLAT M --- DSP OFF

TA SEEK

SEL

2 sec.

SEL

LOUD ON/OFF

SEL

MASK DPI

SEL

VOL

RETUNE DSP

SEL

English

Note: 12 sec./45 sec. for CD, 120 sec. for MP3 automatically works.

MULTI CD SECTION MODE (2)

When press the SEL button for more than 2 seconds, it is activated as selecting mode of

these function.

CD MULTI ON/OFF mode is selected by “VOL knob”. CD MULTI ON: Read multi section

CD. CD MULTI OFF: Read first section only.

BEEP MODE (2)

When press the SEL button for more than 2 seconds, it is activated as selecting mode of

these function.

BEEP ON: BEEP sound can be heard from speaker when the buttons are pressed.

SEEK MODE (2)

When press the SEL button for more than 2 seconds, it is activated as selecting mode of

these function.

SEEK 1: When SEEK 1 mode is activated, AUTO SEEK SCAN is stopped when station is

detected even user still push SEEK button.

SEEK 2: Auto SEEK SCAN is not stopped even station is detected if user push SEEK

button. When release this SEEK button, then stop when station is detected.

STEREO/MONO (2)

When press the SEL button for more than 2 seconds, it is activated as selecting mode of

these function.

When FM stations are weak and are disturbed, listening can be improved by selecting MONO.

TA SEEK

SEL

2 sec.

SEL

LOUD

SEL

MASK DPI

SEL RETUNE DSP

SEL

ESP12 / ESP 45

SEL

VOL

ESP

TA SEEK

SEL

2 sec.

SEL

LOUD

SEL

MASK DPI

SEL RETUNE DSP

SEL

SEL ESP MULTI

SEL

VOL

CD MULTI ON/OFF

TA SEEK

SEL

2 sec.

SEL

LOUD

SEL

MASK DPI

SEL RETUNE DSP

SEL

SEL ESP SEL MULTI SEL ON/OFFBEEP

VOL

TA SEEK

SEL

2 sec.

SEL

LOUD

SEL

MASK DPI

SEL RETUNE DSP

SEL

SEL ESP SEL

SEEK

SEL SEEK1 / SEEK 2

VOL

MULTI SEL BEEP

STEREO/MONO

STEREO

SEL

VOL

TA SEEK

SEL

2 sec.

SEL

LOUD

SEL

MASK DPI

SEL RETUNE DSP

SEL

SEL ESP SEL

SEEK

SEL

MULTI SEL BEEP

Inhaltsverzeichnis

Andere Roadstar Autoempfänger Handbücher

Roadstar

Roadstar CD-200DABMP Bedienungsanleitung

Roadstar

Roadstar CD-770BT Bedienungsanleitung

Roadstar

Roadstar RU-330MP Bedienungsanleitung

Roadstar

Roadstar RU-695D+BT Bedienungsanleitung

Roadstar

Roadstar RC-831RD Bedienungsanleitung

Roadstar

Roadstar RU-400BT Bedienungsanleitung

Roadstar

Roadstar CD-484 Bedienungsanleitung

Roadstar

Roadstar CD-306MPFM Bedienungsanleitung

Roadstar

Roadstar CD-804MPBT Bedienungsanleitung

Roadstar

Roadstar RU-375BT Bedienungsanleitung

Roadstar

Roadstar CD801MP/FM Bedienungsanleitung

Roadstar

Roadstar CD-910DVD Bedienungsanleitung

Roadstar

Roadstar RU-285RD Bedienungsanleitung

Roadstar

Roadstar CD-770RD Bedienungsanleitung

Roadstar

Roadstar CD-357MP/FM Bedienungsanleitung

Roadstar

Roadstar CD-258US/512 Bedienungsanleitung

Roadstar

Roadstar RU-375BT Bedienungsanleitung

Roadstar

Roadstar RU-280BT Bedienungsanleitung

Roadstar

Roadstar CD-810UMP Bedienungsanleitung

Roadstar

Roadstar CD-852USMP Bedienungsanleitung

Roadstar

Roadstar RU-285BT Bedienungsanleitung

Roadstar

Roadstar CD-810MP/FM Bedienungsanleitung

Roadstar

Roadstar RC-631G Bedienungsanleitung

Roadstar

Roadstar CD-801RD/FM Bedienungsanleitung

Beliebte Autoempfänger Handbücher anderer Marken

Motorola

Motorola VWA63 Bedienungsanleitung

Nextar

Nextar D3201 Bedienungsanleitung

Alpine

Alpine CDE-163BT Bedienungsanleitung

Pioneer

Pioneer DEH-P645R Bedienungsanleitung

Axxera

Axxera XDMA7600 Betriebsanleitung

XM OnyX Bedienungsanleitung

Sound Storm

Sound Storm STM93R Bedienungsanleitung

Soundstream

Soundstream VIR-5000 Bedienungsanleitung

Avson

Avson MKT Platform Bedienungsanleitung

Sony

Sony MEX-1HD - Audio Library System Bedienungsanleitung

Pioneer

Pioneer DVH-P500UB Bedienungsanleitung

JVC

JVC KD-AHD69 Bedienungsanleitung

Blaupunkt

Blaupunkt SANTIAGO CR 87 Bedienungsanleitung

Sony

Sony CDX-4160 - Cd Receiver Bedienungsanleitung

XFIRE AUDIO

XFIRE AUDIO BMW42S Bedienungsanleitung

VDO

VDO CD 2253 Bedienungsanleitung

Volvo

Volvo 13 84 580 Bedienungsanleitung

ZENEC

ZENEC ZE-160DVD Bedienungsanleitung
