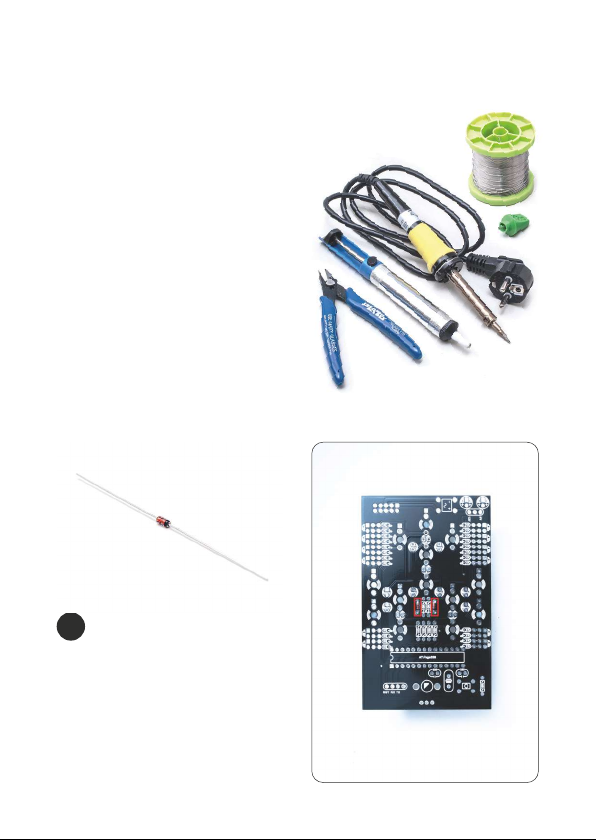

Diodes
Begin by soldering two diodes
to the board as depicted in
the picture. Be mindful of the
polarity; match the stripe on the
printed diode symbol with the
black mark on the diode.
1
Assembly Guide
With this kit, you can swiftly
build your DCSN3 using the
provided assembly instructions
and all necessary components.
You‘ll need a soldering iron,
wire cutter, solder, desoldering
pump, and nut driver. Follow
the instructions carefully in the
correct order for a successful
build.
Robaux wishes you an enjoya-
ble DCSN3 building experience!

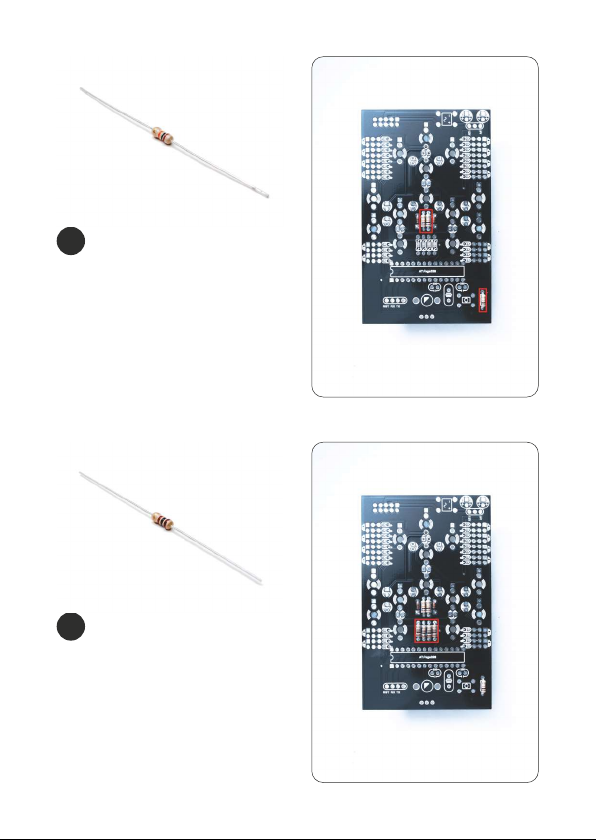

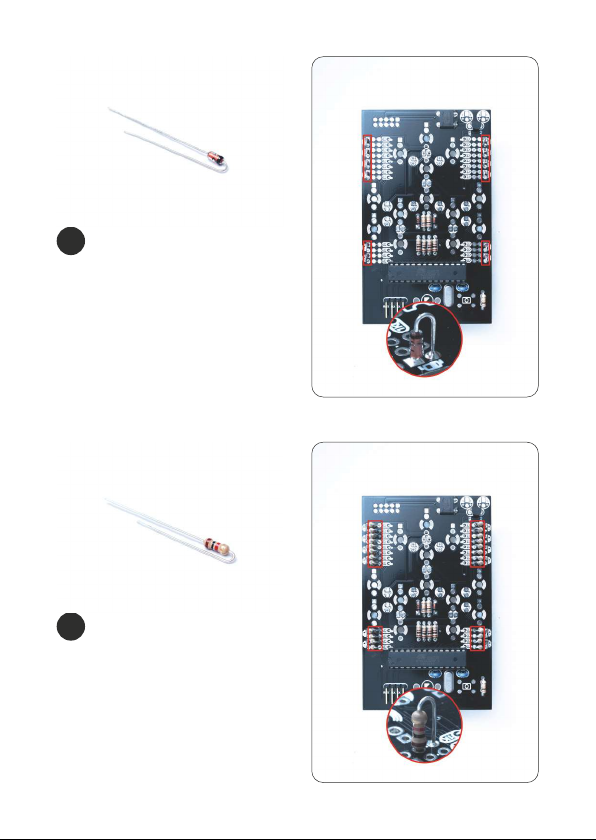

Resistor 10K
Next, solder the three 10K
resistors to the board. Iden-
tify them by their color code:
brown, black, orange, gold.
2
Resistor 100
Now, solder the four 100-ohm
resistors to the board. Iden-
tify them by their color code:
brown, black, brown, gold.
3

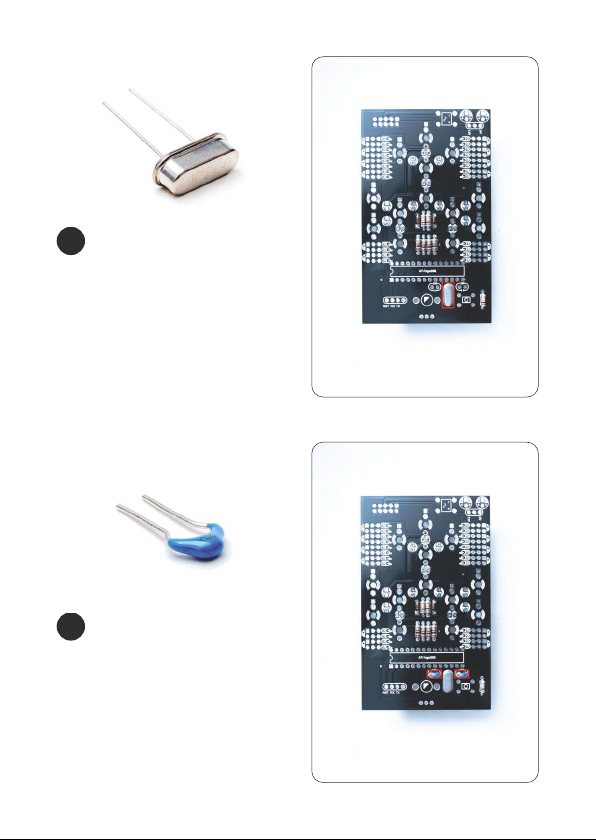

Crystal
Solder the 16MHz crystal
as shown in the picture.
4
Capacitor 220
Solder the two 220 capacitors
to the board as indicated in the
picture.
5

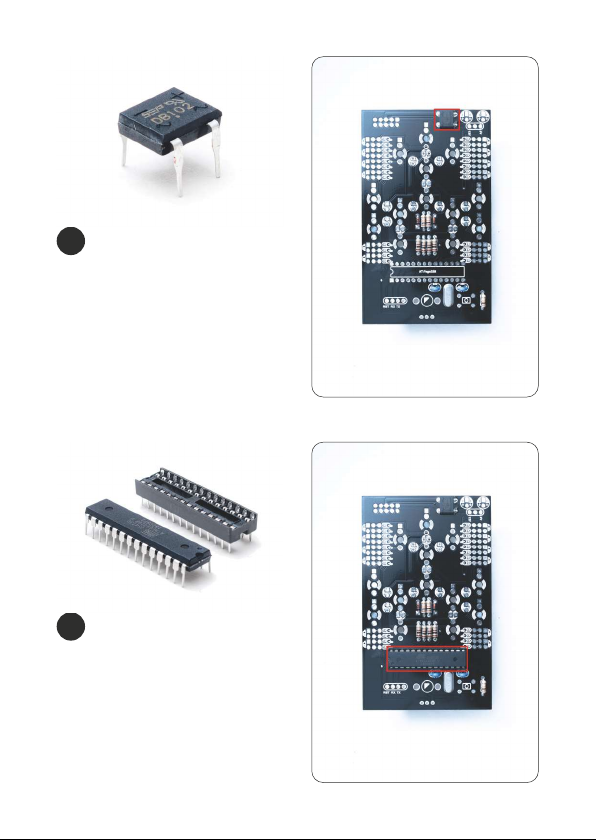

Rectier
Now, solder the rectier to the
PCB according to the arrange-
ment displayed in the picture.
Ensure that the - and + symbols
on the board align with the
corresponding symbols on the
rectier.
6
Socket and IC
Solder the IC sockets to the
board, starting with the outer
pins and then the remaining
ones. Once done, you can
directly install the IC, ensuring
that its nose points to the left.
7

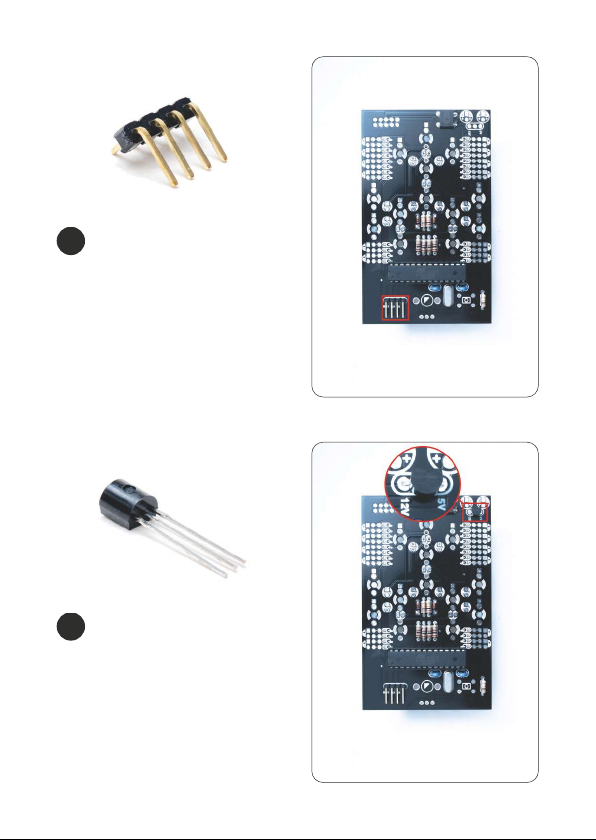

Pin Header
Place the pin header as shown
in the picture. It is the shorter
pins of the header that you
solder in.
8
Voltage regulator
Solder the voltage regulator fol-
lowing the arrangement shown
in the picture. Ensure the at
side faces up and the round
side faces down.
9
Diodes
Solder the remaining 12 diodes
upright on the board as shown
in the picture. Pay attention to
the polarity, aligning the stripe
on the printed diode symbol
with the black mark on the
diode.
10
Resistor 1K
Solder the 1K resistors upright
to the board following the arran-
gement in the picture. Identify
the resistors by their color code:
brown, black, red, gold.
11

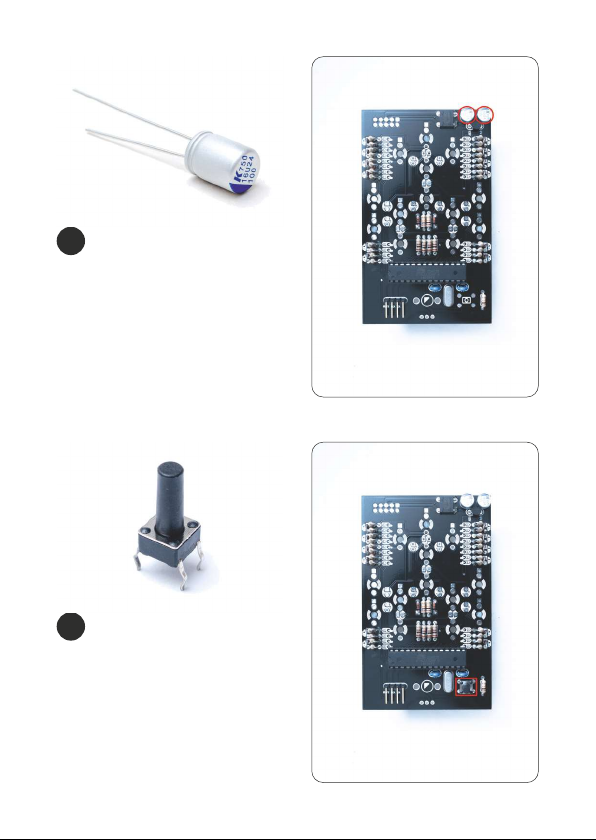

Capacitors
Solder the two Electrolytic Ca-
pacitors to the board following
the picture. Pay attention to the
Capacitors‘ polarity, ensuring
that the blue mark aligns with
the mark on the PCB.
12
Tact Switch
Insert the tact switch and solder
it directly onto the board. Ensu-
re there is no space between
the board and the switch when
soldering.
13

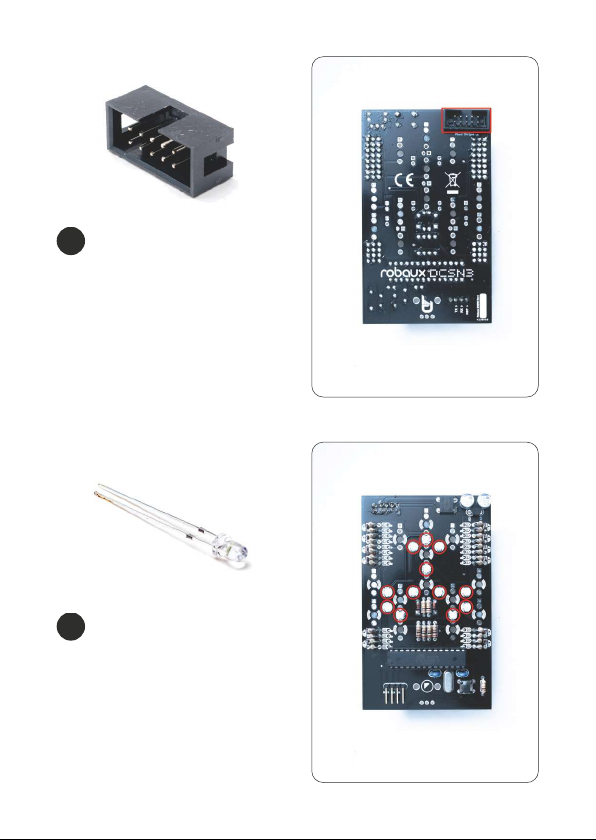

Power Socket
Flip the board over and solder
the power connector onto the
other side.
14
LEDs
Plug the 12 LEDs into the
board according to the picture.
Don‘t soldering them for now.
Double-check and pay attention
to the polarity of the LEDs: the
long leg should be inserted into
the + hole, while the short leg
should go into the - hole.
15

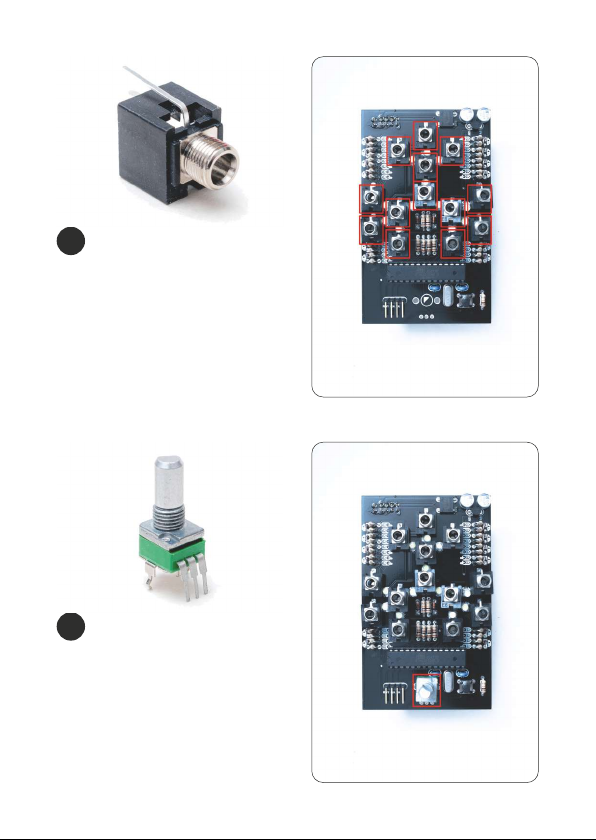

Thonkiconns
Take the 13 Thonkiconn Jacks
and position them on the PCB.
Avoid soldering the jacks at
this stage. For jacks with an
LED attached at the upper end,
cut off the ground leg. The jacks
will still be connected to the
ground via the front panel.
16
Potentiometer
Insert the potentiometer into
the designated location as indi-
cated in the picture. However,
refrain from soldering the
potentiometer for now.
17
