Robe Tarrnatula Bedienungsanleitung

Version 1.1

CAUTION!

Disconnect the Robin Tarrantula from mains before installing the beam shaper kit!

Instructions stated on the following pages describe remodelling the Robin Tarrantula to the Robin Tarrantula

with the beam shaper.

The Tarrantula Beam Shaper Kit includes:

1 x Beam shaper 2 x Head cover

1 x Connecting cable 1 x Tilt Stop

2 x Self-tapping screw 3x8 3 x Allen head bolt M4x35 with washers

2 x Cable holder 1 x Blank cap

2 x Self-tapping screw 2.2 x 6.5 2 x Self-tapping at head screw 3x8

1 x PCB RB3135

1. Remove both head covers (1), the rear cover (2) and the arm cover (3) (arm without tilt lock).

3 2

2. Unscrew the screw (4) which secures the zoom module (5) in the head.

3. Slide the zoom module (5) up to remove it from the head.

2. Unscrew the screw (4) which secures the zoom module (5) in the head.

3. Slide the zoom module (5) up to remove it from the head.

4. Remove PCB covers (6) and (7) by unscrewing 10 fastening screws (screws in red circles on the picture

below)..

5. Pass the connecting cable (8) through the pivot (9).

6. Screw the new head cover (11) with the aperture (10) for connector on the head.

810 11

7. Pass the connecting cable (8) with the connector (13) through the aperture in the new cover and screw it by

means of two self-tapping screws 3x8 (14). .

8. Arrange the shape of the connecting cable (8) as shown on the picture below, check especially bending of

the cable (15) that it will not restrict movement of the zoom module. Fasten the connecting cable to the white

conductors by means of the cable binder (16) as shown on the picture below.

9. Connect the connecting cable to connectors (17) in PCB. Fasten the connecting cable to bundled conductors

by means of two cable binders (18).

10. Unscrew the connector (13) from the head cover (11) and pull it out of the head cover. Remove the head

cover (11) from head and screw the PCB covers (6) and (7) by means of 10 fastening screws to the head.

11. Connect the Tarrantula to mains and wait for its reset. Take care of free connecting cable during the

Tarrantula reset.

12. Use the display menu Manual E󰀨ect Control to set the head to the horizontal position. Dimmer and Shutter

have to be closed (0 DMX).

13. Set the Zoom at 255 DMX, put and hold the zoom module horizontally on the head and slowly change

the zoom value at 0 DMX (the zoom module is pulling to the head).

Zoom=255

Zoom=0

14. Check the zoom movement.

15. Disconnect the Tarrantula from mains

16. Secure the zoom module to the head by screwing the screw (4).

17. Pass again the connecting cable (8) with the connector (13) through the aperture in the head cover (11)

and screw it by means of two self-tapping screws 3x8. Secure the connecting cable (8) to the cover by means

of the two cable holders (26) with self-tapping screws 2.2 x 6.5 (27) Screw the cover (11) on the head (check

the connecting cable does not obstruct in movement of the zoom module). Screw the second part of

the head cover and the rear cover of the head (2). .

1113

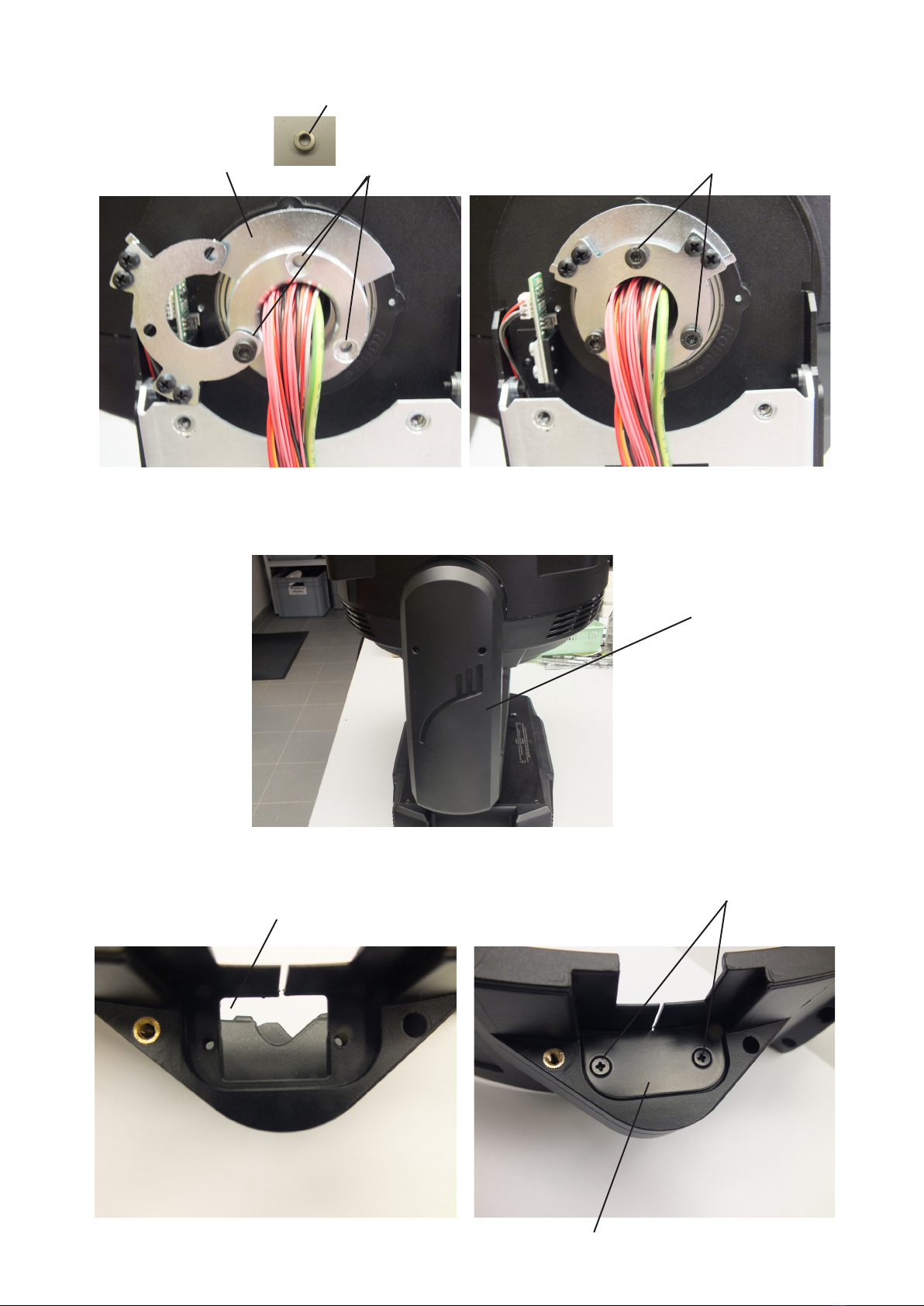

18. Unscrew the left Allen head bolt (19) fastening the original tilt stop (20) and screw the new tilt stop (21) on

the original tilt stop by means of the new Allen head bolt M4x35 (22). The washer (28) has to be inserted

to the hole in the original tilt stop (20). Do not tighten this bolt.

19. Unscrew the rest of original Allen head bolts, insert washers (28) to holes (29) and place the new tilt stop to the

position shown on the pictures below and screw it by means of the two Allen head bolts M4x35 (22). Fully

tighten all three Allen head bolts.

19 21 22

26 27

Important: the washers (28) has to be inserted in all holes (29) of the original tilt stop (20).

20 29

20. Place and screw the arm cover (23) on the arm.

21. Screw the blank cap (25) to the free opening (24) in the head cover by means of two self-tapping at head

screws 3x8 (26).
