ROC PH/ORP-5500 Series Bedienungsanleitung

pH/ORP-5500 Series

pH/ORP Transmitting Controller

Instruction Manual

Notes before Operation

1. Notice before operation:

（1） Carefully read the relevant parts of this manual before installation and operation to prevent wrong

operation, measurement error and damage of instrument.

（2） Improper installation and unsuitable flow speed will cause big measurement error, so please read the

installation passage in detail.

（3） This instrument is precise electrochemical measurement, and its installation and operation should be

performed by technicians with relevant professional knowledge.

（4） If for some special conditions, please consult our Technical Department for further details.

2. Maintenance items:

（1） The indicators’ quality guarantee is one year from the date of purchasing. During this period, if the

meter has quality problems, manufacturer is responsible for maintenance work for free or changes it.

（2） pH and ORP probes are consumer goods which without quality guarantee. Because, the lifespan is based

on the medium and working conditions.

（3） Manufacturer offers the maintenance service for whole life of the sold meters.

（4） If the damage of the meter is caused by the following reasons, it is out of the maintenance service:

A、The meter is burned or foundered caused by improper usage and maintenance.

B、The meter is refitted or misused without permit.

C、The meter is destroyed under the condition out of company’s regulation.

D、The relevant damage caused by choosing the wrong type.

E、The cable damage and rupture caused by improper installation and usage.

F、The incorrect measurement of the probe caused by disconnecting or connecting wires personally.

G、The measurement inaccurate caused by privately cutting the probe cable.

H、

The inner broken wire caused by indiscreetly disassembling.

I、The consumptive materials are not within the scope the warranty.

CATALOG

ⅠCONCEPTION ..................................................................................................................................1

1.1 MAIN FEATURES..........................................................................................................................1

1.2 APPLICATION ...............................................................................................................................1

1.3 NOTE：...........................................................................................................................................1

1.4 TECHNICAL FEATURES..............................................................................................................2

Ⅱ.INSTRUMENT DIMENSION AND TERMINAL DEFINITION ..................................................3

2.1. INSTRUMENT DIMENSION .......................................................................................................3

2.2. INSTRUMENT REAR TERMINALS DEFINATION ..................................................................4

Ⅲ. EQUIPMENT LAYOUT REFERENCE DIAGRAM .....................................................................5

3.1 MILLIAMPERE TRANSMITTING CONNECTION LAYOUT...................................................5

3.2 ELECTRICAL CONNECTION LAYOUT.....................................................................................5

Ⅳ.OPERATE SETTING.......................................................................................................................6

4.1 PANEL AND MAIN INTERFACE DISPLAY...............................................................................6

4.2 KEY BOARD FUNCTION .............................................................................................................7

4.3 SETTING INTERFACE ..................................................................................................................7

4.4 PROBE CALIBRATION.................................................................................................................8

4.4.1 CALIBRATION ...........................................................................................................................8

ⅤINTRUMENT MATING PROBE INSTALLATION GUIDE..........................................................9

5.1 PROBE OUTLINE DIMENSION...................................................................................................9

5.2 PROBE INSTALLATION ........................................................................................................10

5.3 PROBE INSTALLATION REQUEST..........................................................................................11

Ⅵ、MAINTAINING ..........................................................................................................................12

6.1 PROBE MAINTAINING ..............................................................................................................12

6.2 PROBE USING ATTENTION......................................................................................................12

Ⅶ、INSTRUMENT AND PROBE FAULT COMMON TROUBLE SHOOTING ..........................13

ⅧUNIT ..............................................................................................................................................13

Ⅸ、PURCHARSE INSTRUCTION ..................................................................................................14

ⅠCONCEPTION

pH/ORP-5500 series pH/ORP Transmitting Controller is a popular type,high Cost performance

instrument, mating pH/ORP probe,the entire instrument have high measurement accuracy,

anti-interference,easy installation,simple operate features.

1.1 Main Features

1. LCD screen with prompt code, make every step operating get the presentation and guide;

2. Programming pH＆ORP function can be switched,suit any type of pH＆ORP probe;

3. Support six types of buffer calibration which can free combination，greatly broaden the

application scope;

4. Innovative manual input calibration method provide the biggest convinence for site

calibration

5. Selectable manual/automatic temperature compensation measurement type,providing the

largest flexibility.

6. Independent external automatic temperature compensation probe provide high measurement

accuracy.

7. Isolated/transferable /Reverse /instrument/Transmitter mode current output，compatible all

the transmitting receive modes.

8. Double relay’s high/low limit and delay control satisfied pH or ORP region control and

dosing；

9. Mating split style、double combination probe easy change，one time wiring，permanent using

（see the pH/ORP1220Aseries instruction）；

10. Industrial standard terminals，EMC electromagnetic compatibility measurement，platform

design and development, series grouping；

11. Satisfy world electric power supply standard，DC/AC power input nonpolarity connection，

site operation will not worry about wrong connect;

12. SMT Automatically Surface Mount Technology,AOI Automated Optical Inspection,ICT,

FCT Full Computer Test,quality control means make, reliable quality；

13. Every instrument make aging test，surface processing treatment，Full equipped electrical

productive technology，high quality level；

14. Calibrate the probe one before leave factory；

1.2 Application

This instrument is used for pH/ORP online monitor in environmental protection of water

treatment, purified water treatment, industry process, aquaculture and etc

1.3 Note：

1. The instrument should place in dry environment or control box to avoid the sputtering or

condensation water causing leakage or measurement error

2. This series instrument is platform develop result, various power supply can select, pls pay

attention to the voltage class when install the wiring；

3. long time ultraviolet rays shining will burn the screen，result the gray scale reduce，so avoid installing

direct sunlight place.

1.4 Technical features

Model 5500 5510 5520

Power supply DC24V AC110 AC220V

Supply frequency ---------- 50/60 50/60

pH 0.00~ 14.00

ORP -1000mV~ +1000mV

Measurement range

Temp. 0.0 ~99.9℃

pH 0.01

ORP 1mV

Resolution

Temp 0.1℃

pH ≤±0.05

ORP ≤±5 mV

Indication error

Temp ≤±0.5℃

Input impedance cause value

error pH ±0.03

Approx equivalent input impedance 5×1012Ω

PH buffer solution 10.0；9.18；7.00；6.86；4.00；4.01

Temp. compensation error pH ≤±0.05

Entire instrument error pH ≤±0.1

pH 0.05

Entire instrument

repeatability error ORP ±2mV

Compensation range Temp. 0 ~ 50℃

Temp. 0 ~ 50℃

Working environment Humidity ≤85% RH

Cable length ≤20m（standard 10m）

Control output double relay（single contact ON/OFF），hysteresis can be set

3A(max), AC220V/AC110V 3A(max), DC24V

Contact capacity

Power consumption <2.5W

Channels One channel

Isolated, transferable, adjustable,

instrument/transmitter mode

Technical features

(4~20)mA current loop

Loop ≤500Ω（max），DC24V

Accuracy ±0.1mA

Protection grade level IP65（with rear cover）

Installation Panel mounted, fast installation clamp

Dimension 96 mm×96mm×103 mm (H×W×D)

hole dimension 91mm×91mm

Ⅱ.INSTRUMENT DIMENSION AND TERMINAL DEFINITION

2.1. Instrument dimension

Shell front view

Shell top view Shell side view

2.2. Instrument rear terminals defination

Wire instruction：

0V/220V AC 220V input terminal (pH/ORP-5520)

0V/110V AC 110V input terminal (pH/ORP-5510)

DC 24V input terminal (pH/ORP-5500)

（Internal automatic recognition of polarity）

24VA/B

EARTH Electromagnetic compatibility earth protection terminal

Hi High limit alarm control terminal blocks

Low Low limit alarm control terminal blocks

T+ （T+、T-）external feed under transmitting mode

T-/I+ public terminal under Transmitter /Instrument Mode

I- (I+、I-) mA output terminal under Instrument mode

INPUT Connect pH/ORP measurement electrode（Clear line）

REF Connect pH/ORP reference electrode（shielding）

CELL-T Connect temp. probe collect terminal（red line）

GND Connect temp. probe earth terminal（black line）

NC Empty terminal

Ⅲ. EQUIPMENT LAYOUT REFERENCE DIAGRAM

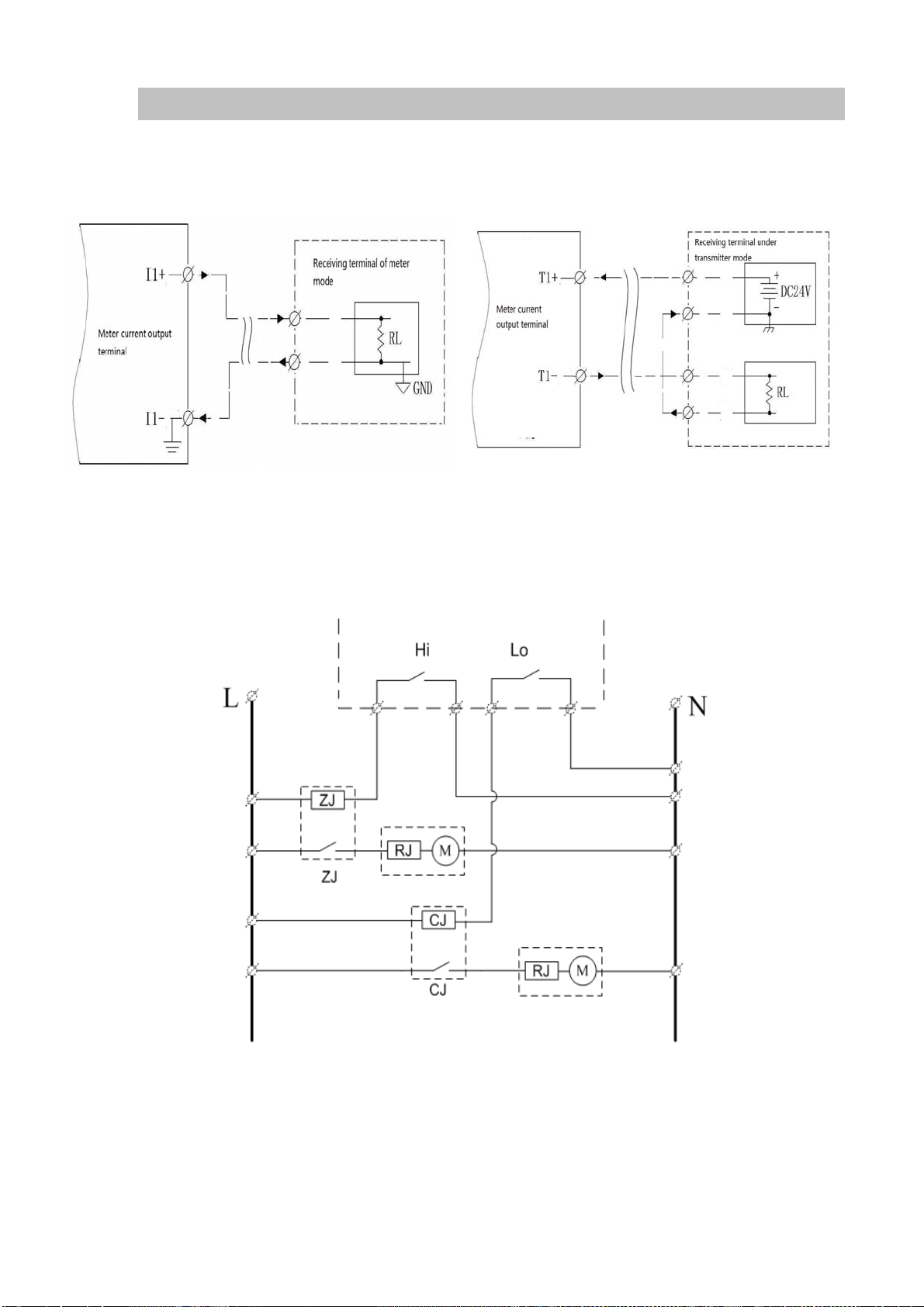

3.1 Milliampere transmitting connection layout

Instrument mode current loop wiring Transmitter mode current loop wiring

3.2 Electrical connection layout

Relay ON/OFF contact component control wiring diagram

3.3 ControlMode

alarm high low limit

setting identification

Units show

identification

pH show

identification

mAmigrate setting

identification

Ⅳ.OPERATE SETTING

4.1 Panel and main interface display

4.2 Key board function

Keyboard Name Function

1. pH automatic temperature compensation measurement

mode；

2. Ph measurement status to check temperature

compensation value

Return

3. Return or skip the revised item

4. Parameter setting status circulate of thousand hundred

ten one bit symbol

Select 5. pH measurement mode long time press this key，enter

into pH manual mV calibration interface

6. Processing 0~9 setting under parameters setting status.

7. Long time press this key under pH measurement mode,

enter into standard buffer solution calibration interface

Add

8. Check mV value under pH measurement status

9. enter into function setting menu；

Enter 10. confirm the modification item and save

4.3 Setting interface

Under main measurement interface，press“ ”key enter into parameter setting

order Name Function

“pH” or “ORP” flashing，select “Add” key, processing pH、

ORP function selection，press “enter” to save，enter into

next parameter setting。

1 Function selection

4mAflashing，operate “select” & “Add” key set 4mA

4mA corresponding pH

setting

2 corresponding pH value；press“ enter” key save，enter into

next parameter setting（the same below）

20mA corresponding

pH setting

20mAflashing，set 20mA corresponding pH value；confirm

3 and save，enter into next parameter setting

High limit alarm pH

setting

Hi flashing，setting high limit alarm pH value；confirm and

4 save，enter into next parameter setting

Low limit alarm pH

setting

Lo flashing，setting low limit alarm pH value；confirm and

5 save，enter into next parameter setting

Hi & Lo flashing，setting hysteresis pH value；confirm and

Alarm return back lash

pH setting

6 save，enter into next parameter setting（note：min value of

hysteresis setting 0.1pH or 10mV）

pH & ℃flashing，operate “Add” key, processing manual

temp. compensation（H25.0）and automatic

compensation(A25.0) selection，confirm and save，return to

measuring status.

7 Temperature setting

NOTE：This item setting is factory default setting，no

need to change

Note：ORP function setting the same as 1.2.3.4.5.6

Andere Handbücher für pH/ORP-5500 Series

Dieses Handbuch passt für folgende Modelle

Inhaltsverzeichnis

Andere ROC Controller Handbücher

ROC

ROC pH/ORP-5500 Series Bedienungsanleitung

Beliebte Controller Handbücher anderer Marken

Digiplex

Digiplex DGP-848 Betriebsanleitung

YASKAWA

YASKAWA SGM series Bedienungsanleitung

Sinope

Sinope Calypso RM3500ZB Bedienungsanleitung

Isimet

Isimet DLA Series Style 2 Installationshandbuch

LSIS

LSIS sv-ip5a Bedienungsanleitung

Rockwell Automation

Rockwell Automation 1769-L31 Bedienungsanleitung

Airflow

Airflow Uno hab Bedienungsanleitung

ABB

ABB ACS580-01 drives Bedienungsanleitung

Panasonic

Panasonic GM1 Series Bedienungsanleitung

Emerson

Emerson SW93 Bedienungsanleitung

AutoAqua

AutoAqua Smart ATO micro SATO-120P Bedienungsanleitung

Panasonic

Panasonic FP? Positioning Unit RTEX Bedienungsanleitung

Samson

Samson Type 5824 Service-Handbuch

Alpha IP

Alpha IP MIOB 21001 Bedienungsanleitung

Siemens

Siemens OpenAir GMA 1 Series Bedienungsanleitung

Surecom

Surecom SR-629 Bedienungsanleitung

Fishman

Fishman TriplePlay Bedienungsanleitung

Regulus

Regulus SRS1 T Bedienungsanleitung
