Rointe ZOCCA CABLE Bedienungsanleitung
MANUAL DE INSTALACIÓN Y USO
Página 16
MANUAL DE INSTALAÇÃO E DE UTILIZAÇÃO
Página 30
INSTALLATION AND USER MANUAL
Page 03
ES
EN
PT
ZOCCA CABLE Electric towel rail / secatoallas eléctrico / seca-
toalhas eléctrico
GUARANTEE / GARANTÍA
/ GARANTIA
ON THE BODY
EN EL CUERPO
NO CORPO
YEARS / AÑOS
/ ANOS
YEARS / AÑOS
/ ANOS
ON ELECTRONICS
EN ELECTRÓNICA
NA ELECTRÓNICA
2
EN
ZOCCA CABLE ELECTRIC TOWEL RAIL
3
SYMBOLS
DANGER. This symbol indicates a medium-high risk hazard which can result in
serious injury or even death.
HOT SURFACE. This symbol indicates that product surfaces are hot during and
immediately after use. These must not be touched: danger of burns.
OBSERVE THE INSTRUCTIONS IN THE MANUAL. Please read this manual
carefully before installing and using the product. Keep it for later use. Read all
instructions and safety warnings. Failure to follow these can result in electric
shock, re or serious injuries.
4
INDEX
1. General Warnings ........................................................................................................... 5
2. Technical information ..................................................................................................... 8
3. Installation ....................................................................................................................... 9
4. Maintenance and cleaning .......................................................................................... .11
5. European Regulation (WEEE) 2012/19/EU ............................................................... .11
6. Guarantee ..................................................................................................................... .12
7. How to register your product guarantee .................................................................... .14
EU declaration of conformity............................................................................................42
EN
ZOCCA CABLE ELECTRIC TOWEL RAIL
5
1. GENERAL WARNINGS
WARNINGS
This product may be used by children over 8 years of age
and by persons with reduced physical, sensory, or mental
capabilities, or lack of experience and knowledge under strict
supervision or instruction in the safe use of the product and
if they understand the hazards involved. Children should not
plug, adjust, clean, play with, or perform maintenance on this
product. Children under 3 years of age should be kept away
from this product unless supervised.
DO NOT use the product in enclosed spaces if the persons
present cannot leave the room independently and are not
under constant supervision.
DO NOT place spray cans, volatile substances, or similar
objects within 250mm of the product. DO NOT use
insecticides, paints, or chemicals on or near the product.
Some parts of this product could reach high temperatures
and cause burns. DO NOT touch the external parts of the
product when in operation.
DO NOT install near curtains or other ammable materials.
Particular attention should be paid when children and
vulnerable people are present.
When using electrical appliances, precautions should be
taken to reduce the risk of re, electric shock and injury.
Never insert ngers, body parts or objects inside the product.
6
Make sure that the voltage indicated on the product’s
technical information corresponds to the voltage output you
have at your socket.
Any repair or maintenance that requires the product to
be opened the product must be carried out by personnel
authorised by ROINTE, who must also be notied if a leak
is observed. Only ocial spare parts approved by ROINTE
should be used. Please observe the current and relevant
regulations when disposing of this product and its thermal
uid.
Si el cable de alimentación está dañado, debe ser sustituido
por ROINTE o por su personal autorizado para evitar
cualquier daño.
If the power cable is damaged, it must be replaced by
personnel authorised by ROINTE to prevent any damage.
The product has an IP55 degree of protection and can be used
in bathrooms, but not in the vicinity of bathtubs, taps, showers,
water connections, toilets, swimming pools or other masses
of water. The product must never be installed where it, the
switches or the control panel are within the reach of people in
water. Never use the product with wet hands. Do not place any
water containers (glasses, vases, etc.) on or near the product.
EN
ZOCCA CABLE ELECTRIC TOWEL RAIL
7
IMPORTANT
Disconnect the product from the power supply and make
sure the product is at room temperature before any cleaning
or maintenance. Do not use any abrasive substances on
the product, such as (but not limited to) chemicals, coarse
cloths, brushes, hard bristle, or wire/steel wool.
To disconnect the product from the power source, remove
the mains plug from the socket. Do not pull on the cable.
ROINTE cannot be held responsible for incorrect sizing of
the product unless it has been followed by an ocial ROINTE
technical study.
Before the rst start-up, or before the start of winter, or when
the product has not been used for many days, the appliance
should be cleaned (follow the steps in the “maintenance”
section of this manual).
Do not sit or lean on the product.
Temperature contrasts can generate “clicks” or noises in
the device. This is not a fault of the product, but due to the
expansion/contraction of the materials.
When disposing of the product, the requirements set out in
the legislation for the waste treatment and recycling must be
followed. See WEEE in section 5.
!
8
2. TECHNICAL INFORMATION
MODEL WIDTH 500
WHITE TZOCN50B078 TZOCN50B110 TZOCN50B142 TZOCN50B174
CHROME TZOCN50C078 TZOCN50C110 TZOCN50C142 TZOCN50C174
GRAPHITE TZOCN50N078 TZOCN50N110 TZOCN50N142 TZOCN50N174
DIMENSIONS & WEIGHTS
Width (mm) 500 500 500 500
Height without control panel (mm) 788 1.106 1.424 1.742
Height with control panel (mm) 828 1.146 1.464 1.782
Depth (mm) 62 62 62 62
Installed depth (mm) 97 97 97 97
Weight (kg.) 14.0 19.1 23.0 26.8
MECHANICAL CHARACTERISTICS
Armoured steel resistance
Thermal uid
Finishes
White RAL 9016
Chrome
Graphite textured
ELECTRICAL CHARACTERISTICS
Nominal power (W)
White /
Graphite 300 500 750 1.000
Chrome 300 300 500 750
Voltage (V) 230 V ~ 230 V ~ 230 V ~ 230 V ~
Current (A)
White /
Graphite 1.3 2.2 3.3 4.4
Chrome 1.3 1.3 2.2 3.3
Class II
SAFETY & INSTALLATION
Template & installation Kit
Protection grade IP 55 IP 55 IP 55 IP 55
EAN code 8435556135180
8435556135227
8435556135265
8435556135197
8435556135234
8435556135272
8435556135203
8435556135241
8435556135289
8435556135210
8435556135258
8435556135296
EN
ZOCCA CABLE ELECTRIC TOWEL RAIL
9
3. INSTALLATION
We recommend using a trusted Rointe supplier for installation of the product. Find the
nearest one by calling us on 0203 321 5928 or using the locator on www.rointe.co.uk.
IMPORTANT: Prior to installation, please locate the metal tag located at the back
of the product and note the product reference and serial number. You will need this
information to register your guarantee. See section 7 for help on how to register the
guarantee.
WARNING: Do not install the product directly over an electrical outlet or junction box.
Do not install the product or use it outdoors. Do not install directly under a shelf. This
product is designed to be installed on an interior wall using the ROINTE template, the
installation kit and the xings supplied. Do not install the product in such a way that it
encounters the power cable.
IMPORTANT: This product must never be installed with its control box in a raised
position. The vertical product must not be used horizontally. During installation, use
shims to prevent the control box from resting on the oor.
The mains connection must be made in compliance with the voltage indicated on the
product’s technical data label. This product is intended to be permanently connected to a
xed installation. The supply circuit of theproduct must be tted with a single-pole circuit
breaker with a contact separation of at least 3 mm. The product should be installed, if
possible, away from draughts (windows, doors) or anything else that could interfere with its
OK
10
control. This will provide the best thermal comfort. Place any object that could impede air
circulation (furniture, armchairs) 50 cm from the front of the appliance. The product must
not be placed in front of or directly below a xed socket. The bottom of the control panel
must be at least 15 cm above the oor.
For any prodcut, if the power supply cable is damaged, it must be replaced with a specic
cable. The replacement of the cable must be carried out by ROINTE, our after-sales service
or qualied personnel. The technical characteristics of your product are indicated on the
technical characteristics label.

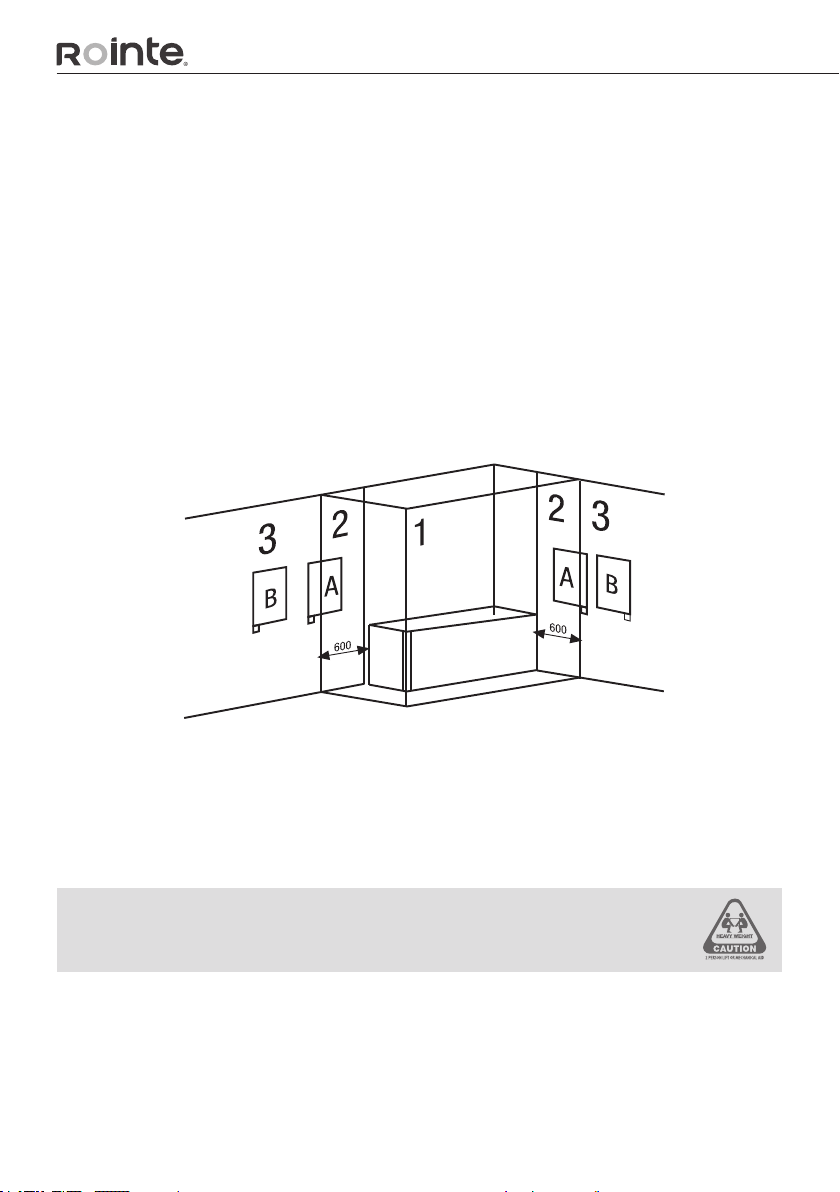

This product complies with CLASS II safety standards (double insulation). It can be installed
in Zones 2 and 3, positions A and B provided that the following rules are observed:
In bathrooms, the product must never be installed in such a way that the control panel can be
reached by a person in the bath or shower. The control panel must be located at a minimum
distance of 600 mm from any wet areas. The body of the product can be placed in Zone 2
if the control panel is located within Zone 3.
WARNING: The weight of some of the products may be heavy. The installation
may require two people.
IMPORTANT: Please follow these instructions carefully.
An installation kit is included in the packaging. Follow the instructions below:
1. Choose the right part of the wall.
2. Place the product to see where the brackets should be located and mark the holes.
3. Make the holes in the wall.
4. Insert the rawl plugs in the holes made.
