Rokit G3 POWERED SERIES Bedienungsanleitung



ROKIT G3 POWERED SERIES

NEAR FIELD STUDIO MONITORS

USER GUIDE ∙ GUIDE DE L'UTILISATEUR ∙ GUÍA DEL USUARIO



SAFETY INSTRUCTIONS

1. Read instructions - All the safety and operating instructions should be

read before the product is operated.

2. Retain instructions - The safety and operating instructions should be

retained for future reference.

3. Heed Warnings - All warnings on the product and in the operating

instructions should be adhered to.

4. Follow Instructions - All operating and use instructions should be

followed.

5. Cleaning - Unplug this product from the wall outlet before cleaning. Do

not use liquid cleaners or aerosol cleaners. Use a damp cloth for cleaning.

6. Attachments - Do not use attachments not recommended by the

product manufacturer as they may cause hazards.

7. Water and Moisture - Do not use this product near water-for example,

near a bath tub, wash bowl, kitchen sink, or laundry tub; in a wet basement;

or near a swimming pool; and the like.

8. Accessories - Do not place this product on an unstable cart, stand,

tripod, bracket, or table. The product may fall, causing serious injury to a

child or adult and serious damage to the product. Use only with a cart,

stand, tripod, bracket, or table recommended by the manufacturer, or sold

with the product. Any mounting of the product should follow the

manufacturer’s instructions, and should use a mounting accessory

recommended by the manufacturer.

9. Cart - A product and cart combination should be

moved with care. Quick stops, excessive force, and

uneven surfaces may cause the product and cart

combination to overturn.

10. Ventilation - Slots and openings in the cabinet

are provided for ventilation to ensure reliable

operation of the product and to protect it from overheating. These

openings must not be blocked or covered. The openings should never be

blocked by placing the product on a bed, sofa, rug, or other similar surface.

This product should not be placed in a built-in installation such as a

bookcase or rack unless proper ventilation is provided or the

manufacturer’s instructions have been adhered to.

11. Power Sources - This product should be operated only from the type of

power source indicated on the marking label and connected to a MAINS

socket outlet with a protective earthing connection. If you are not sure of

the type of power supply to your home, consult your product dealer or local

power company.

12. Power-Cord Protection - Power-supply cords should be routed so that

they are not likely to be walked on or pinched by items placed upon or

against them, paying particular attention to cords at plugs, convenience

receptacles, and the point where they exit from the product.

13. Mains Plug - Where the mains plug or an appliance coupler is used as

the disconnect device, the disconnect device shall remain readily operable.

14. Lightning - For added protection for this product during a lightning

storm, or when it is left unattended and unused for long periods of time,

unplug it from the wall outlet and disconnect the antenna or cable system.

This will prevent damage to the product due to lightning and power-line

surges.

15. Overloading - Do not overload wall outlets, extension cords, or integral

convenience receptacles as this can result in a risk of fire or electric shock.

16. Flame Sources - No naked flame sources, such as lighted candles,

should be placed on the product.

17. Object and Liquid Entry - Never push objects of any kind into this

product through openings as they may touch dangerous voltage points or

short-out parts that could result in a fire or electric shock. Never spill liquid

of any kind on the product.

18. Loudspeakers - Excessive sound pressure from loudspeakers can cause

hearing loss.

19. Damage Requiring Service - Unplug this product from the wall outlet

and refer servicing to qualified service personnel under the following

conditions:

a. When the power-supply cord or plug is damaged.

b. If liquid has been spilled, or objects have fallen into the product.

c. If the product has been exposed to rain or water.

d. If the product does not operate normally by following the operating

instructions. Adjust only those controls that are covered by the operating

instructions as an improper adjustment of other controls may result in

damage and will often require extensive work by a qualified technician to

restore the product to its normal operation.

e. If the product has been dropped or damaged in any way.

f. When the product exhibits a distinct change in performance-this

indicates a need for service.

20. Replacement Parts - When replacement parts are required, be sure the

service technician has used replacement parts specified by the

manufacturer or have the same characteristics as the original part.

Unauthorized substitutions may result in fire, electric shock, or other

hazards.

21. Safety Check - Upon completion of any service or repairs to this

product, ask the service technician to perform safety checks to determine

that the product is in proper operating condition.

WARNING

The lightning flash with arrowhead symbol, within an

equilateral triangle, is intended to alert the user to the

presence of uninsulated “dangerous voltage” within the

product’s enclosure that may be of sufficient magnitude to

constitute a risk of electric shock to persons

The exclamation point within an equilateral triangle is

intended to alert the user to the presence of important

operating and maintenance (servicing) instructions in the

literature accompanying the appliance.

THE EQUIPMENT MUST BE CONNECTED TO AN EARTHED MAINS SOCKET-

OUTLET.

CAUTION REGARDING PLACEMENT

To maintain proper ventilation, be sure to leave a space around the unit

(from the largest outer dimensions including projections) than is equal to,

or greater than shown below.

Top,Bottom, Front, Rear, Left, Right Sides: 10 cm

CAUTION

Changes or modifications to this equipment not expressly approved by KRK

SYSTEMS for compliance could void the user’s authority to operate this

equipment.

CAUTION

To prevent electric shock, match wide blade of plug to wide slot, fully insert.

CAUTION

Marking and rating plate can be found at the rear panel of the apparatus.

WARNING

To reduce the risk of fire or electric shock, do not expose this apparatus to

rain or moisture.

The apparatus shall not be exposed to dripping or splashing and that no

objects filled with liquids, such as vases, shall be placed on apparatus.

Mains plug is used as disconnect device and it should remain readily

operable during intended use. In order to disconnect the apparatus from

the mains completely, the mains plug should be disconnected from the

mains socket outlet completely.

Battery shall not be exposed to excessive heat such as sunshine, fire or the

like.

CAUTION

An appliance with a protective earth terminal should be connected to a

mains outlet with a protective earth connection.

IF IN DOUBT CONSULT A COMPETENT ELECTRICIAN.

NOTES ON ENVIRONMENTAL PROTECTION

At the end of its useful life, this product must not be disposed of with

regular household waste but must be returned to a collection point for the

recycling of electrical and electronic equipment. The symbol on the

product, user’s manual and packaging point this out.

The materials can be reused in accordance with their markings. Through re-

use, recycling of raw materials, or other forms of recycling of old products,

you are making an important contribution to the protection of our

environment.

Your local administrative office can advise you of the responsible waste

disposalpoint.



QUICK SETUP

Determine the audio input signal

that will be used with the studio monitors

and connect the audio cable (not included) to

the appropriate input. Typical connections

direct to a computer or DJ gear will use the

unbalanced RCA input. Connection to an

audio interface or mixer will use either a

balanced ¼” TRS or XLR input.

Set the volume on the input device (mixer,

audio interface or computer) to minimum

level.

The HF and LF LEVEL ADJUST are set at “0dB”

(factory setting). The VOLUME is set at “+6dB”

(factory setting).

Set the POWER switch to ‘ON’ position. Play

an audio track and slowly bring up the volume on

the input device (mixer, audio interface or

computer) to an acceptable listening level.

Set the POWER switch to ‘OFF’. Connect the AC power cord

(provided) to the AC inlet socket on the studio monitor and power outlet.

Warning: Incorrect AC voltage may damage the studio

monitor. Make sure the AC power outlet matches the studio

monitor (should state 100V~, 110-120V~ or 220-240V~.

STEP 1

STEP 2

STEP 3



INTRODUCTION

Welcome to the new KRK Systems Generation 3 ROKIT studio monitor, the world’s most

respected manufacturer of studio reference monitors. In our state of the art design facility,

we create products that deliver a natural and balanced spectral response with low

distortion and superior imaging. With KRK Systems studio monitors, recording engineers

and artists hear every nuance of the audio being reproduced.

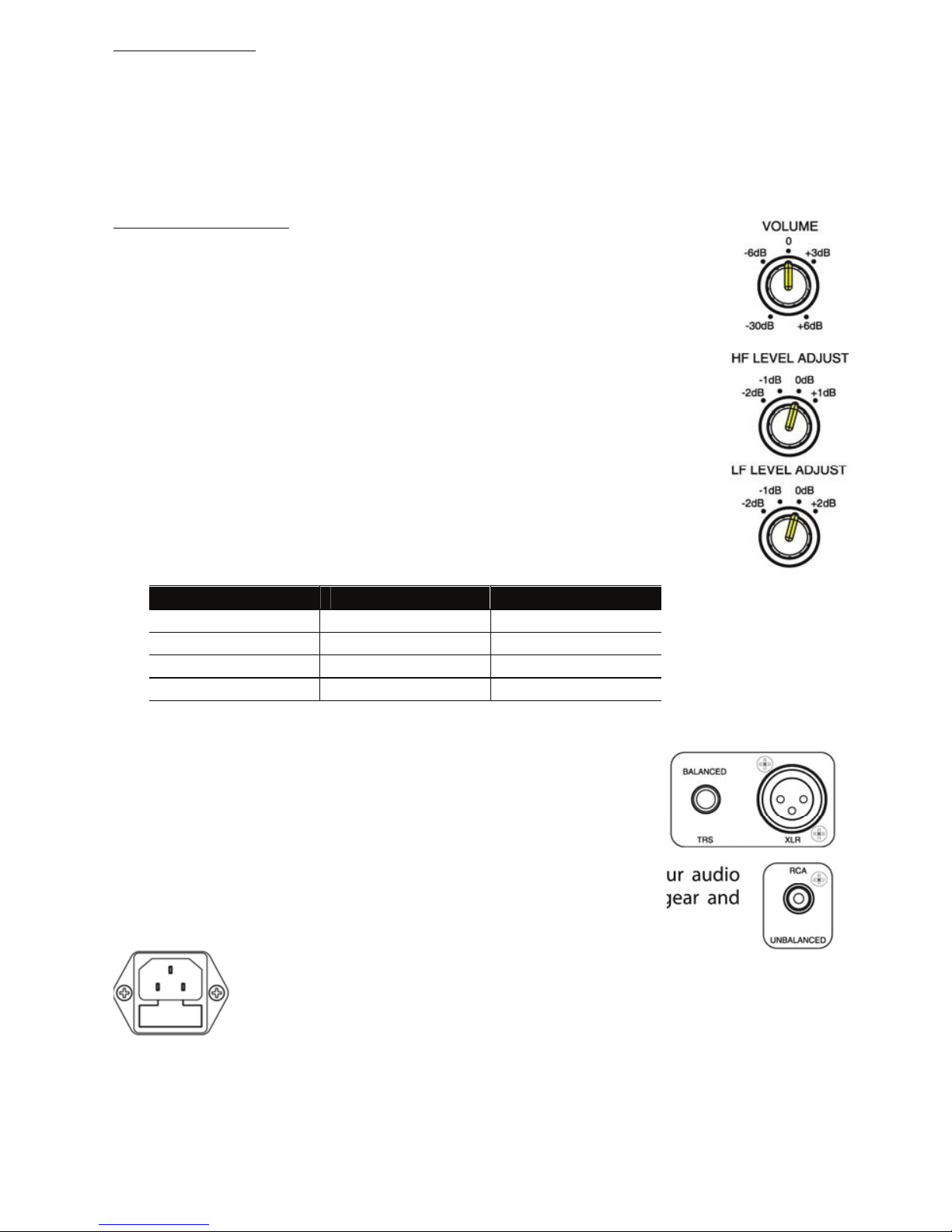

SYSTEM CONTROLS

VOLUME - Volume knob sets the input system gain. The usual scenario

is to set the knob at the maximum setting (+6dB as shipped from the

factory) and adjust the input level from your audio source. Use the

volume knob to match the left and right studio monitors.

HF ADJUSTMENT - The High Frequency adjustment may be used to

tailor a listening style preference. The factory setting is flat (knob is in

the 0dB position).

LF ADJUSTMENT – The Low Frequency adjustment may be used to

adjust for the room acoustics and personal preference. Room acoustics

may dictate which type of adjustment you need to make to retain the

proper frequency response from the studio monitor. For example,

placement near a wall or corner will boost the low frequencies.

Location LF Setting Technical Term

Large Room +2dB Open Space

Normal 0dB (flat) Full-Room

Against the Wall -1dB Half-Room

Corner of a Room -2dB Quarter-Room

Note that results may vary. The factory setting is flat (knob is in the 0dB position).

BALANCED INPUT - The XLR & TRS input jack is connected to

your audio equipment outputs, such as a mixing console or

audio interface. Only connect one input source at a time.

UNBALANCED INPUT - The RCA input jack is connected to your audio

equipment outputs, such as an audio interface, computer, DJ gear and

mobile device. Only connect one input source at a time.

AC INPUT INLET SOCKET & FUSE HOLDER - A standard IEC-type AC

Inlet Socket is used to provide power to the studio monitor. Below the

socket is a fuse holder that contains two fuses (one spare).

NOTE - The studio monitors will take break-in time to achieve optimum sonic

performance. Under moderate use, play a favorite album between 15 to 25 hours.



SYSTEM SETUP

Overall system setup is crucial to avoid unnecessary room acoustic interaction. A

room’s natural acoustics may alter the sound level at various frequencies due to

abnormal dampening or reflections. Follow the checklist below for more details.

The system setup (studio monitors and work table) should be placed within the

front 1/3 of the room. Doing so will reduce reflection buildup of peak frequencies.

The left and right sides of the system setup should be centered an equal distance

from the left and right walls. This will produce even mid and low frequency

response and preserve stereo imaging.

Avoid a listening position (your ears) that is closer than 1 meter (3 feet) from any

wall. Also avoid large objects (such as lamps or decorations) near the studio

monitor and listening position.

Diffusers and absorption material in the corners and back of a room will help

remove room interaction by preventing reflections.

Carpeting will help prevent reflections from hard floor surfaces.

Studio monitor isolators (foam or rubber pads) will help remove low frequency

coupling between the stands and desk. Low frequency coupling will cause the

stand or desk to vibrate causing unwanted sounds.

A low noise floor (no outside interference from refrigerators or fans) is important

to prevent the masking of low frequency detail. Rattles due to studio monitor

playback should be removed as well.

ithin the system setup, the studio monitors and listening placement should be

positioned in a near field configuration as follows:

The left and right studio monitors should be

approximately 1 to 1.5 meters (3 to 5 feet) apart and

directed at a 60 degree angle towards the listening

location. Measure the distance between the left and

right studio monitors and note the listening position is

equal distance to both sides. This will form an

equilateral triangle. It is important that both left and

right studio monitors are level matched.

The ROKIT is a two-way studio monitor with a tweeter

(producing high frequencies) and a woofer (producing

mid and low frequencies) in one enclosure. In between

the tweeter and woofer is the acoustic axis point

where the full frequency range comes together. The

ideal location for the acoustic axis point is located at

ear level in the listening position. It is acceptable to

angle the studio monitors so the acoustic axis is in the

correct direction.



Check another input on the ROKIT. This will require a different cable. For example, if you

have a mixer connected to a ROKIT with a XLR or ¼” TRS cable, try another route and

connect the mixer to the ROKIT with an RCA cable. If there is still no sound, please contact

customer service.

Check that the cable used between the audio source and ROKIT is being used in the correct

application and that it is fully inserted into the socket. For additional information on signal

cables and connections, visit www.krksys.com. Inspect the cable for any frays or visible

damage. Often a bend near the plug end will cause damage to the cable and has to be

replaced. The ROKIT’s XLR and TRS will accept a balanced signal. If you are connected with a

unbalanced signal to the ROKIT through the XLR and TRS, be sure that PIN2 is the signal and

PIN1 & 3 are tied together at the source end.

Check that the audio source is indeed playing an audio signal to both left and right channels

and the sound is not bad. For example, verify audio is heard on the built-in speakers of a

laptop. Or connect headphones to the headphone jack of the mixer or audio interface. If

there is still no sound, than the audio source is the problem. Consult the audio source’s

literature for more information.

Check the audio source. The audio source can range from a laptop computer to a mixer or

audio interface. On all audio source devices, verify if there is a mute feature and confirm it is

not active. Also check if there is a balance control and that it is set to middle. Play a

continuous audio signal, such as a loop or song, and slowly increase the volume on the

audio source. If the ROKIT still has no sound or bad sound, follow the checklist:

A ROKIT pair contains a left and right side. Confirm which ROKIT produces no sound. Verify

that both left and right ROKIT’s have identical knob settings. Then simply move the audio

signal cable from the working ROKIT to the non-working ROKIT. If the non-working ROKIT

now produces sound, the previously used cable is the problem and needs to be replaced. If

there is still no sound, proceed with the next step.

Verify there is power to the ROKIT. The power switch needs to be in the ‘on’ position. The

power cord should be firmly placed into the IEC socket on the rear of the ROKIT and into the

AC outlet. The KRK logo on the front of the ROKIT will illuminate when the power switch is

‘on’. The ROKIT can be in an auto-mute condition. The auto-mute engages after 30 minutes

of no activity. To take the ROKIT out of the mute condition, simply play audio to the input of

the ROKIT. If the KRK logo does not illuminate, see box on the right. Or proceed with the

box below.

Basic Trouble Shooting – If you have a problem and are using a pair of ROKITs, check

whether both ROKITs have the problem. If both ROKITs have the problem it is likely not the

speakers. Focus on your setup.



Verify the ROKIT is the correct model for

the AC power outlet. The ROKIT is

available in different models for regions

that have 100VAC, 110-120VAC, and

220-240VAC power outlets. A mismatch

can cause damage to the ROKIT and

should be replaced with the correct

model.

A ROKIT pair contains a left and right

side. Confirm which ROKIT has no

power. Move the power cable from the

working ROKIT to the ROKIT with no

power. If the no power ROKIT is now

‘on’, the previously used power cable is

the problem and needs to be replaced.

If there is still no power, follow the

checklist.

Check to see if the AC outlet is

operating. Remove the power cord and

replace with a known functional

electronic device such as a lamp or

charger for a mobile device.

Check that the rear panel of the ROKIT is

not hot. Usage in direct sunlight, a hot

room with poor airflow or excessive use

at maximum levels may cause the unit

to overheat and go into thermal

protection. Turn off the power and

allow the ROKIT to cool down. If this is

not the problem, contact customer

service.

Check that the fuse has not blown.

Remove all power cords and signal

cables from the ROKIT. With a flat-head

screwdriver, remove the fuse cover and

inspect the fuse (the filament wire

should not be broken). If the fuse is

blown, replace it with the spare fuse

located in the fuse holder. If the fuse

blows again, contact customer service.

…there is sound and it is bad (excessive

hum and terrible hiss).

A ROKIT pair contains a left and right side.

Confirm which ROKIT has the bad sound.

Verify that both left and right ROKIT’s have

identical knob settings. Then simply move

the audio signal cable from the working

ROKIT to the bad sound ROKIT. If the bad

sound ROKIT produces good sound, the

previously used cable is the problem and

needs to be replaced. If there is still bad

sound, proceed with the next step.

Disconnect the audio signal cable from the

rear panel of the ROKIT. With the ROKIT

powered on, listen for the bad sound (i.e. a

slight hiss or hum). If the bad sound is no

longer there, the problem is not the ROKIT

and the audio source should be checked.

Signal cables should not be mixed with

power cables. If the ROKIT still has bad

sound, follow the checklist below and

review the “Check the audio source” box.:

Check that all audio equipment is

connected to the same ground point. This

means both studio monitors and audio

source (laptop, mixer, audio interface) are

connected to the same AC outlet ground

point.

Check that the AC outlet is not connected

to any electronics that can induce noise

into the power line (such as light dimmers,

neon signs, motors or climate control

devices such as heaters, air conditioners or

humidifiers). These devices should not be

using the same AC circuit as the audio

equipment. If the problem persists, look

into adding AC conditioning equipment to

clean the noise from the AC outlet or

contact customer service.



WARRANTY

Thank you for choosing one of KRK Systems (a Gibson family of brands) product.

Your satisfaction is extremely important to us. We proudly stand behind the quality of our work and appreciate that you put your trust in us.

Registering your merchandise will help us guarantee that you are kept up to date on our latest advances.

FOR MERCHANDISE PURCHASED FROM AN AUTHORIZED GIBSON PRO AUDIO DISTRIBUTOR OUTSIDE OF THE US, PLEASE CONTACT THE

DISTRIBUTOR FROM WHOM YOU PURCHASED YOUR MERCHANDISE FOR TO REGISTER YOUR WARRANTY AND FOR HANDLING AND

RESOLUTION OF ALL WARRANTY-RELATED ISSUES.

Gibson Pro Audio Warranty - If at any time your Gibson Pro Audio product malfunctions as a result of faulty materials or workmanship, Gibson

Pro Audio or one of Gibson Pro Audio’s Authorized Service Centers in the US will repair the defect(s) or replace the merchandise, as it deems

appropriate at its sole discretion.

Warranty Period (from date of Purchase as listed on the Bill of Sale):

Three (3) years from all studio monitors. One (1) year all headphones, computer audio devices, including room correction devices.

Gibson will warrant all replacement parts and repairs for ninety (90) days from the date of original shipment. In the unlikely event that your

merchandise is destroyed, lost or damaged beyond repair while in the possession of Gibson or one of Gibson Pro Audio’s Authorized Service

Centers for repair, Gibson will replace that merchandise with one of the same or most similar style of a value not in excess of the original

purchase price of your merchandise. Any insurance covering the merchandise, including but not limited to collector's value insurance, must be

carried by owner at owner's expense. For the fastest and safest merchandise return, please use the original shipping carton and packaging

materials. Gibson cannot be responsible for any damages incurred during the shipping process due to poor or inadequate packing.

THIS WARRANTY IS EXTENDED TO THE ORIGINAL RETAIL PURCHASER ONLY AND MAY NOT BE TRANSFERRED OR ASSIGNED TO SUBSEQUENT

OWNERS. IN ORDER TO VALIDATE YOUR WARRANTY, AND AS A CONDITION PRECEDENT TO WARRANTY COVERAGE HEREUNDER, YOU MUST

RECEIPT MUST ACCOMPANY ALL REQUESTS FOR WARRANTY COVERAGE.

This warranty is subject to the following limitations: THIS WARRANTY DOES NOT COVER: 1. Any merchandise that has been altered or modified

in any way or upon which the serial number has been tampered with or altered. 2. Any merchandise whose warranty card has been altered or

upon which false information has been given. 3. Any merchandise that has been damaged due to misuse, negligence, or improper operation.

4. Any merchandise that has been damaged by accident, flood, fire, lightening, or other acts of God. 5. Shipping damage of any kind.

6. Any merchandise that has been subjected to extremes of humidity or temperature.7. Any merchandise that has been purchased from an

unauthorized dealer, or upon which unauthorized repair or service has been performed.

GIBSON MAKES NO OTHER EXPRESS WARRANTY OF ANY KIND WHATSOEVER. ALL IMPLIED WARRANTIES, INCLUDING WARRANTIES OF

MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE, EXCEEDING THE SPECIFIC PROVISIONS OF THIS WARRANTY ARE HEREBY

DISCLAIMED AND EXCLUDED FROM THIS WARRANTY. SOME STATES AND/OR COUNTRIES DO NOT ALLOW THE EXCLUSION OR LIMITATION OF

IMPLIED WARRANTIES SO THAT THE ABOVE MAY NOT APPLY TO YOU.

GIBSON SHALL NOT BE LIABLE FOR ANY SPECIAL, INDIRECT CONSEQUENTIAL, INCIDENTAL OR OTHER SIMILAR DAMAGES SUFFERED BY THE

PURCHASER OR ANY THIRD PARTY, INCLUDING WITHOUT LIMITATION, DAMAGES FOR LOSS OF PROFITS OR BUSINESS OR DAMAGES RESULTING

FROM USE OR PERFORMANCE OF THE MERCHANDISE, WHETHER IN CONTRACT OR IN TORT, EVEN IF GIBSON OR ITS AUTHORIZED

REPRESENTATIVE HAS BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES, AND GIBSON SHALL NOT BE LIABLE FOR ANY EXPENSES, CLAIMS,

OR SUITS ARISING OUT OF OR RELATING TO ANY OF THE FOREGOING.

FOR MERCHANDISE PURCHASED FROM AN AUTHORIZED GIBSON PRO AUDIO DISTRIBUTOR OUTSIDE OF THE US, PLEASE CONTACT THE

DISTRIBUTOR FROM WHOM YOU PURCHASED YOUR MERCHANDISE FOR THE HANDLING AND RESOLUTION OF ALL WARRANTY ISSUES. FOR

THESE PURCHASES, THE ABOVE-DESCRIBED WARRANTY IS NOT APPLICABLE.

Warranty Service outside the United States: To initiate a warranty repair, please contact the Authorized Gibson Pro Audio distributor from whom

you purchased your merchandise, and follow the distributor’s return/warranty policy.

Warranty Service for Merchandise Purchased from an Authorized Gibson Pro Audio Dealer in the U.S: In the event of malfunction of your Gibson

Pro Audio merchandise, the Dealer or Owner must call Customer Service @ 1-800-4GIBSON (1-800-444-2766) and obtain a Return Authorization

number from the customer service agent. No merchandise may be returned to Gibson without such prior Return Authorization, and the Return

Authorization number must be written on the outside of the shipping package. The Customer Service agent will provide the address and

additional shipping instructions. Owner must ship the merchandise, freight, and insurance pre-paid to the address provided by the customer

service representative. Only Authorized Gibson Pro Audio Service Centers may perform warranty service and any service performed by

unauthorized persons will void this warranty. Gibson disclaims liability for defects or damage caused by services performed by unauthorized

persons or non-warranty service not performed by Gibson or an Authorized Gibson Pro Audio Service Center.

When contacting Gibson, you must include a complete written description of the malfunction of the merchandise. Following its inspection of

merchandise upon its arrival, Gibson or the Authorized Gibson Pro Audio Service Center will advise you or your dealer of the approximate date

of completion. The repaired merchandise or part will be returned to you or your dealer, freight collect insured. No representative or other

person is authorized to assume for Gibson any liability except as stated in this warranty. This warranty gives you specific rights which vary from

state to state or from country to country.

For further information, write: Customer Service Dept., Gibson Customer Service 309 Plus Park Blvd. Nashville, TN 37217

Or call: 1-800-4GIBSON (1-800-444-2766), e-mail: [email protected]



This document is copyright protected. No part of this manual may be copied or reproduced in

any form without prior written consent from GIBSON BRANDS, INC.. GIBSON BRANDS, INC. shall

not be liable for operational, technical, or editorial errors/omissions made in this document.



Andere Handbücher für G3 POWERED SERIES

Inhaltsverzeichnis

Andere Rokit Sprecher Handbücher

Rokit

Rokit G3 POWERED SERIES Bedienungsanleitung

Beliebte Sprecher Handbücher anderer Marken

argon audio

argon audio IE20 Bedienungsanleitung

Denon

Denon SC-N7 Bedienungsanleitung

Gemline

Gemline Ace 3952 Bedienungsanleitung

Focal

Focal ON WALL 300 Bedienungsanleitung

HEADRUSH

HEADRUSH Maximus HRSP 5024 Bedienungsanleitung

SoundLogic

SoundLogic BCCS-6/6395 Bedienungsanleitung

Peavey

Peavey DTH 218 Bedienungsanleitung

Avantree

Avantree Pluto Air Bedienungsanleitung

Morel

Morel Integra Series INTEGRA OVATION 4 Bedienungsanleitung

Oppo

Oppo SONICA Bedienungsanleitung

Bose

Bose SoundLink Wireless Music System Bedienungsanleitung

Rocksteady

Rocksteady Stadium Bedienungsanleitung

Bowers & Wilkins

Bowers & Wilkins 4 Bedienungsanleitung

Sonance

Sonance SONOS OUTDOOR Series Bedienungsanleitung

Electro-Voice

Electro-Voice EVID FM4.2 Bedienungsanleitung

Pioneer

Pioneer XW-HTD630 Bedienungsanleitung

Onn

Onn BWA16AA002 Bedienungsanleitung

HP GL313AA - USB Speakers PC Multimedia Bedienungsanleitung
