Exploring the Fantom-Xa

®ÂØÒÅˆÎ™

Workshop

any form without the written permission of Roland Corporation U.S.

About the Fantom-Xa Workshop Booklets

Roland’s Fantom-Xa workstation keyboard provides lots of

creative power at an affordable price. It shares many of the

features of its more expensive siblings—the Fantom X6, X7,

and X8—including killer sounds, 128-note polyphony, a full-

featured 16-track sequencer, sampling capabilities, and so

much more.

The Fantom-Xa Workshop booklets discuss some of the

things you can do with your Fantom-Xa. Each booklet

focuses on one topic, and is intended as a companion to your

Fantom-Xa Owner’s Manual.

About This Booklet

One of the best things about the Fantom-Xa is the inspiring

way in which all of its elements come together to make the

creative process such a complete musical experience.

















 

This booklet provides a beginner’s tour of the Fantom-Xa,

giving you a quick introduction to some of the things it can

do.

Understanding the Symbols in This Booklet

Throughout this booklet, you’ll come across information that

deserves special attention—that’s the reason it’s labeled with

one of the following symbols.

A note is something that adds information about the topic at hand.

A tip offers suggestions for using the feature being discussed.

Warnings contain important information that can help you avoid possible

damage to your equipment, your data, or yourself.

Getting Ready

You’ll want to listen to the Fantom-Xa as you go through this

booklet, so plug a pair of headphones into the Fantom-Xa

PHONES jack—you’ll need headphones with a 1/4” plug—or

connect the Fantom-Xa‘s A (MIX) L (MONO) and R outputs to

the left and right inputs, respectively, of your mixer or other

monitoring system.

For more about connecting the Fantom-Xa to headphones or your audio

system, see your Fantom-Xa Owner’s Manual.

You’ll also need to connect the Fantom-Xa to a grounded AC

power source using the supplied power cord, and then turn

the Fantom-Xa on, of course.

Patch Mode

Immediately after power-up, the Fantom-Xa display looks like

this:

You can also get to this screen by pressing PATCH/RHYTHM.

When you’re viewing this screen, the Fantom-Xa is in Patch

mode, where you can select and play single patches. A patch

is a Fantom-Xa sound.

We’re referring to a patch as simply a “sound” here so as not to get too

caught up in tech details for now. However, a patch can actually be an

amazingly complex, multi-faceted thing. To learn more about patches,

check the Fantom-Xa Owner’s Manual.

The Fantom-Xa also has a Performance mode, designed for working with

multiple patches at the same time, and for recording.

If you’ve already stored some of your own patches in the Fantom-Xa, the

patch name you see may be different that the one shown here.

The Basic Fantom-Xa Tools

Let’s take a moment to introduce the Fantom-Xa display and

the controls you’ll use to get around on the Fantom-Xa.

The Fantom-Xa Display

The display is your window into all Fantom-Xa operations,

providing information and constant visual feedback.

The F Buttons

Beneath the display are six “F buttons,” labeled “F1-F6.” The

buttons interact with what’s on the display, so their functions

change depending on what you’re doing. Each F button’s

current job is shown on the display directly above the button.

In the Workshop booklets, when we refer to an F button, we

put its current function in parentheses, as in “F1 (KBD).”

The CURSOR Buttons and the VALUE Dial

The VALUE dial

Many Fantom-Xa displays contain multiple settings, each of

which is called a “parameter.” To change a parameter’s value,

you must first select it. When a parameter’s selected, it’s

highlighted, as shown at the top of Page 4.

Right now, the patch number “001” is

highlighted, and therefore selected.

To select a parameter and change its value:

1. Press the appropriate CURSOR 3, 4, 5 and/or 6 button

until the parameter is highlighted.

2. Turn the VALUE dial to choose the desired setting.

The Keyboard and Pads

In a sense, the Fantom-Xa is like two instruments in one: a

synthesizer and a drum machine. Both of these instruments

are always available. At any time you can:

• play a patch on the keys.

• play a rhythm set on the drum pads.

(If you’ve had your Fantom-Xa for much more than a few

seconds, you’ve probably already discovered this.)

In Patch mode, the keyboard typically plays a single patch

up and down its entire length. The pads, on the other hand,

typically play a “rhythm set.” A rhythm set is a special type of

patch in which each pad plays its own sound.

If you want, you can play a rhythm set on the keyboard—so that each key

plays a different drum or percussion sound—or play a normal patch on the

pads—so that the same sound plays on all pads, at different pitches.

Square One

This booklet’s text and screenshots assume you’ve just turned

on your Fantom-Xa.

Selecting Patches and Rhythm Sets

Selecting a Patch for the Fantom-Xa Keyboard

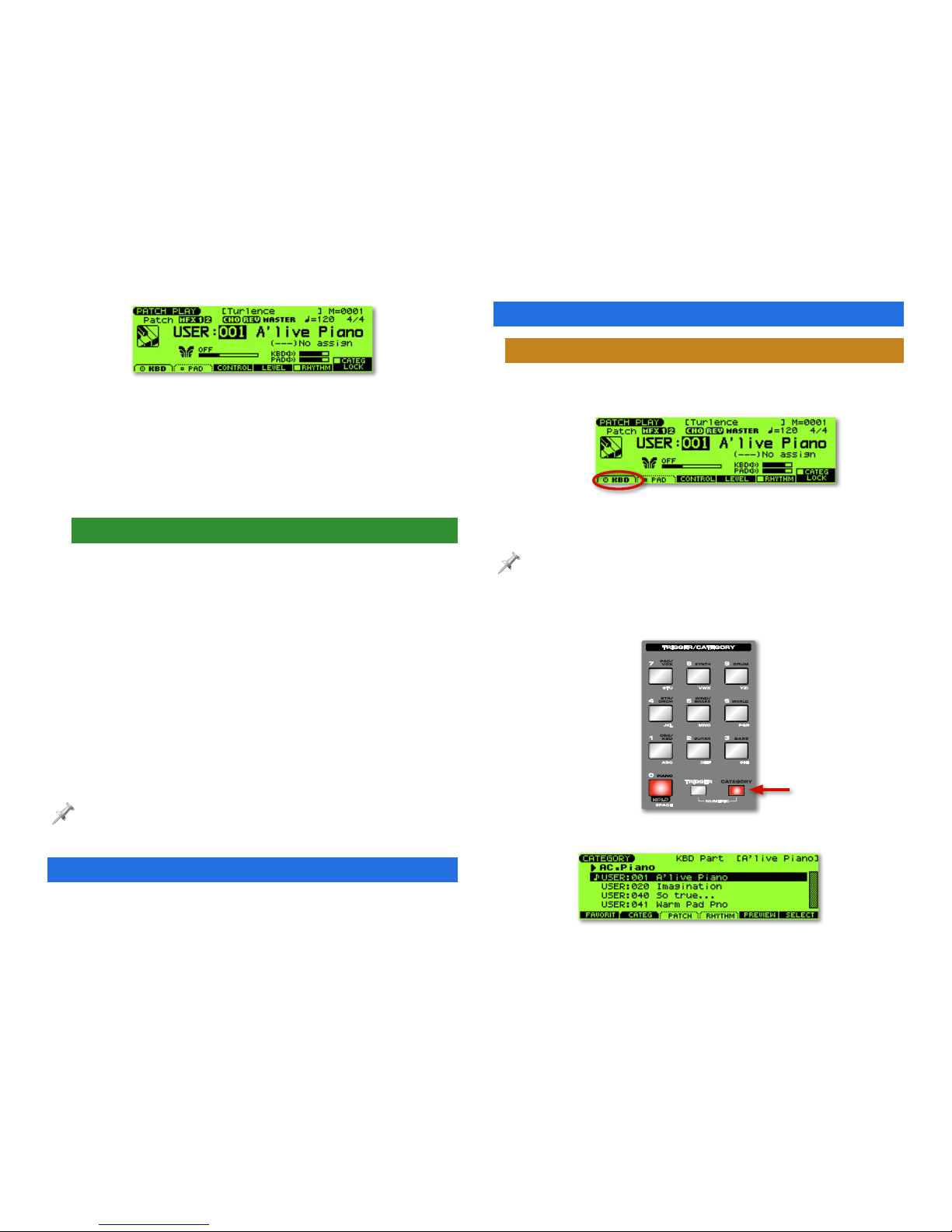

1. Press PATCH/RHYTHM to display the PATCH PLAY screen.

(By default, this is the screen you see after power-up.)

2. Press F1 (KBD) so the F button’s onscreen “KBD” label is

solidly outlined, as circled in red above.

If the keyboard part is already selected, nothing changes when you press

F1 (KBD).

3. Press the CATEGORY button in the TRIGGER/CATEGORY

area so it lights, as shown here.

The CATEGORY screen appears.

The Fantom-Xa patches are organized into categories that

make them easy to find. You can quickly jump between

categories by pressing any of the Fantom-Xa’s Pads 0-9

whenever the CATEGORY button is lit.

Each pad is labeled for the group of patch categories it

displays.

The PIANO pad is now lit, and the first of the Piano categories—Ac. Piano,

for “Acoustic Piano”—is displayed.

4. Press any pad, and then view its patch categories by

pressing 4 and 3.

5. Turn the VALUE dial to select the desired patch in the

displayed category.

You can audition the selected patch set by holding down F5 (PREVIEW), or

by playing the keyboard.

6. Press F6 (SELECT) to confirm your choice.

You can also select patches according to the memory locations—called

“banks”—in which they’re stored. See the Fantom-Xa Owner’s Manual to

learn more about banks.

For the purposes of this booklet, press the PAD/VOX pad to select the Bright

Pad category, turn VALUE to highlight USER :218 Strangers, and then press

F6 (Select) before proceeding.

Selecting a Rhythm Set for the Fantom-Xa Pads

1. Press PATCH/RHYTHM to display the PATCH PLAY screen.

2. Press F2 (PAD) so the F button’s onscreen “PAD” label is

solidly outlined, as circled in red below.

3. Press the PATCH SELECT button to display the

RHYTHM SELECT PAD screen.

On this screen you can select any of the onboard rhythm

sets for playing on the pads. They’re stored in banks.

4. To select a bank of rhythm sets, press F1 (BANK↓) or F2

(BANK↑).

5. To navigate within the selected bank, use the F3 (←) and

F4 (→) buttons.

6. To select the desired rhythm set within the selected bank,

use 6 and 5 or turn the VALUE dial to highlight the

rhythm set you want to use.

You can audition the selected rhythm set by holding down F6 (PREVIEW),

or by playing it on the pads.

For the purposes of this booklet, select the User bank and Rhythm Set

USER :001 StandardKit3, before proceeding.

7. Press EXIT when you’ve selected the desired rhythm set.

A Brief Realtime Detour

The current patch, Strangers, responds in interesting ways to

the Fantom-Xa’s realtime controllers. Press F1 (KBD) and play

the keyboard:

• Push the modulation lever located to the left of the

keyboard forward, and then release it to hear how vibrato

can be added to the sound, and then removed.

• Press ASSIGNABLE beneath the D Beam so it lights, and

move your hand up and down over the D Beam to hear

what it does to the pitch of the patch’s various elements.

• In the REALTIME CONTROLLERS area, press the button

beneath “ARP/RHY” repeatedly until its ASSIGNABLE LED

lights. Turn the four REALTIME CONTROL knobs as you

play—hear how each changes the sound in some way.

The Fantom-Xa offers extensive realtime manipulation of its sounds. For

more, see your Fantom-Xa Owner’s Manual.

Meet the Beats

The Fantom-Xa contains a full-featured drum

machine that’s perfect for jamming and

songwriting.

1. Take a look at the TRIGGER/

CATEGORY area. The TRIGGER

button’s lit, as are Pads 1-9.

If the TRIGGER button isn’t lit, press it so it

is. When TRIGGER’s lit, the pads play rhythm

set sounds, or rhythms, as we’ll see.

2. Hit each lit pad to hear how it

plays a sound from the currently

selected pad rhythm set.

When one of the pads is playing a sustained sound, lighting HOLD—next

to the TRIGGER button—causes the sound to continue playing after you’ve

struck and released its pad. This is especially handy when a pad plays a

sampled loop. Right now, it has no effect because the pads’ sounds are

quick percussion sounds.

3. Press the ARP/RHY RHYTHM button so it

lights—the pad lights go out because, when

RHYTHM’s lit, the pads play rhythms.

4. Hit Pad 1—its pattern plays and the pad flashes.

5. Now strike other unlit pads to hear different patterns.

Rhythm groups allow you to assemble collections of rhythm patterns.

There are built-in rhythm groups and you can create your own, as described

in the Owner’s Manual.

6. Note how the Fantom-Xa switches between patterns

without losing the beat. You can mix and match patterns

to create your own rhythm arrangements.

7. Find a pattern you like and let it play.

You can press the TEMPO button and turn the VALUE dial to change the

rhythm pattern’s tempo if you like. Press F6 (Close) when you’re done.

8. Play along with the pattern on the keyboard. This isn’t just

fun—it’s also often a great way to start writing a song.

9. Jam a bit to find something you’d like to record.

If you’d like to select a different keyboard patch, press F1 (KBD) and do so,

as described back on Page 4.

10. When you’re done, stop the rhythm by pressing the

flashing pad or by pressing the RHYTHM button so it’s

unlit.

Clearing the Demo Song

When you first purchase the Fantom-Xa, its demo song loads

automatically. To clear it from song memory so you can record

your own song in the next section of this booklet:

1. Press SONG EDIT↔LIST to display the SNG EDIT (TRK)

screen.

If the SNG LIST screen appears when you press SONG EDIT↔LIST, press the

button again. The button toggles between the two screens.

2. Press F3 (UTILITY) to display the Song Utility Menu.

3. Press F2 (SONG CLEAR).

4. When the Fantom-Xa asks if you’re sure you’d like to

proceed, press F6 (EXEC)—”Song Clear Completed!”

appears, and the Fantom-Xa is ready for a new song.

You can set the Fantom-Xa so it doesn’t automatically load the demo at

startup. See the Fantom-Xa Owner’s Manual for details.

Recording a New Idea

The Fantom-Xa is always ready to record when inspiration

strikes. It’s designed to let you record a new idea fast.

1. Press the Record button.

All of the recording-related buttons are grouped together on the Fantom-Xa panel.

PlayStop RecordReset

The Realtime Rec Standby window pops open and the

Fantom-Xa metronome starts playing.

It’s not important in our tutorial, but the metronome’s handy when you’re

not playing along with a rhythm. (You can also disable it if you prefer, as

described in the Fantom-Xa Owner’s Manual.)

The parameters in the Realtime Rec Standby window allow you to

customize your recording session in a variety of ways.

The Count In parameter is set by default to 1 MEAS, for

“one measure,” meaning that you’d hear four beats go by

before you’d start playing.

When you’re recording with a rhythm, though, it’s a better

idea to use the WAIT NOTE setting, so the recorder waits

for the rhythm before recording starts. This ensures that

the rhythm and metronome are in perfect time.

2. Set Count In to WAIT NOTE.

3. Strike a pad so its rhythm plays—recording begins and the

Realtime Rec Control window opens.

4. Let four beats go by so you can get used to the groove,

and then play your idea on the Fantom-Xa keyboard.

You won’t need to do this for our tutorial, but you can remove extra

measures at the front or end of a recording using the Delete editing tool,

described in the Fantom-Xa Owner’s Manual.

5. Once you’ve played the idea, press Stop. That’s it—you’ve

recorded your playing.

6. Press RHYTHM to turn off the rhythm pattern.

7. Press Reset, and then Play to hear your idea.

We didn’t want to distract you earlier, but when the Realtime Rec Control

window is open, you can rehearse without recording.

Undoing Your Work

If you’d like to start over again, you can “undo” your recording.

1. Press the UNDO button—a window pops open and asks

if you’re sure you want to undo your last recording (or

editing action, by the way).

2. Press F6 (EXEC) to complete the Undo procedure.

3. Now that you’re back to Square One, you can press

RHYTHM and hit the desired pad to resume playback of

your rhythm pattern, and then repeat the steps in the

previous section of this booklet if you like.

About Recording on the Fantom-Xa

The Fantom-Xa’s recorder is a MIDI “sequencer” that captures

MIDI data that the keyboard and rhythm section produce.

When it plays it back, your performance is reproduced.

You can do all sorts of things to refine your music by editing

the captured MIDI data, such as correct its timing, add or

remove notes, change its sounds, and much more.

While the Fantom-Xa sequencer doesn’t actually record audio, its sampler

certainly does, as we’ll see later.

Once you’ve recorded something, you can move over to the

sequencing area to add more instruments, or even sampled

vocals. See the Fantom-Xa Owner’s Manual to learn more.

The Arpeggiator

The Fantom-Xa’s arpeggiator produces repeating note patterns

called “arpeggios.” These patterns can provide dance grooves

or add texturing to any kind of music. The arpeggiator can also

automatically generate a bass line for any chord.

Before we check out the arpeggiator, press PATCH/RHYTHM,

and then turn VALUE to select User :001 A’Live Piano again.

1. Press ARPEGGIO so it lights.

2. Hold down a handful of notes on the

keyboard—listen to how the arpeggiator

takes the notes you’re playing and uses them

in the currently selected arpeggio.

3. Let go of the keys.

4. Hold down SHIFT and press ARPEGGIO to

display the Arpeggiator editing screen.

Style parameter

On this screen, you can select a different arpeggio—

referred to as a “style”—or even create your own.

5. If the Style parameter isn’t highlighted, press 5 until it is.

6. Hold down some notes on the keyboard with one hand.

7. While you’re holding down the notes, turn the VALUE dial

to select different arpeggio styles. Listen to how they can

do many different things with the same notes.

8. For even more fun, set the Motif parameter to Phrase, hold

down some notes, and try out some more styles—Phrase

can do very interesting things with the notes you play.

9. When you’re done experimenting, press ARPEGGIO once

more to turn off the arpeggiator.

The arpeggiator uses the same tempo as the Fantom-Xa rhythm patterns

and sequencer, so when you use the sequencer, rhythms and the arpeggiator

together, they stay perfectly in time with each other.

Skip Back Sampling

As you probably know, the Fantom-Xa contains a powerful

sampler. What you may not know is that it’s always listening to

what you do on the Fantom-Xa.

This means that when you’ve just played something unexpected

and great, the Fantom-Xa’s powerful Skip Back Sampling can

easily retrieve it for you as a new sample.

1. Select a patch you’d like to play.

2. Play anything you like on the keyboard, for about five

seconds.

3. Press the blue SKIP BACK button.

If the SKIP BACK button isn’t lit, you don’t have enough

free sample memory available for Skip Back Sampling.

See “If the SKIP BACK Button Isn’t Lit” on Page 10 in this

booklet.

The Fantom-Xa goes back in time and creates a new

sample from the last five seconds of your playing.

Skip Back Sampling can be pre-set to grab anywhere from the last five to

40 seconds of music. Five seconds is the default setting.

4. When the Fantom-Xa has captured your sample, it displays

the ASSIGN TO PAD screen on which you can select a pad

for playing the newly captured sample.

If you know the sample’s tempo, you can automatically keep the sample

in time with rhythms, arpeggios and the sequencer. To do this, press F1

(SYNC) so it’s checkmarked.

5. You can select any pad from 1-9 by striking it or by pressing

3, 4, 5, or 6 to highlight the pad onscreen—the

currently selected pad turns black on the display.

Strike a pad to preview what’s currently assigned to it—this’ll help you

quickly find the pad you want to use.

6. Once you’ve picked out a pad, press F6 (EXEC)—the

Fantom-Xa asks if you’re sure you want to proceed.

7. Press F6 (EXEC) again to finish assigning the new sample

to the selected pad. Once the process is complete, the

Fantom-Xa takes you to the Sample Edit screen in case you

want to refine the sample by editing it.

If you’ve turned on Tempo Sync, press 6 to display the Tempo parameter,

and then set it to the sample’s tempo, or “BPM,” so the Fantom-Xa knows

how to keep it in sync with the sequencer and/or arpeggiator.

8. Strike and hold down the pad you selected in Step 5 to

listen the new sample.

You can work with the sample just as you would any other

Fantom-Xa sample: playing it, or even using it as the basis for

a song.

Check out the Fantom-Xa Owner’s Manual to learn more about sampling.

Skip Back Sampling captures not only the sound produced by

keyboard, but your rhythms and arpeggios as well.

To avoid losing a sample when you turn off the Fantom-Xa, you must save

it. To learn how to save a sample, see your Fantom-Xa Owner’s Manual.

If the SKIP BACK Button Isn’t Lit

When your Fantom-Xa’s sample memory—or “sample RAM”—

is full, the SKIP BACK button remains unlit and Skip Back

Sampling isn’t available. You can run out of room if you’ve

loaded a lot of samples or if you haven’t expanded your

Fantom-Xa’s sample RAM and you’ve automatically loaded the

Fantom-Xa demo samples at startup.

You can always unload unnecessary samples to make room—

see “Unloading Samples” in the Fantom-Xa Owner’s Manual.

In addition, you may want to turn off the Load Preset Samples

at Startup parameter described on Page 193 in the Fantom-Xa

Owner’s Manual.

The End

We hope you’ve enjoyed this quick tour of your Fantom-Xa.

Keep an eye out for other Fantom-Xa Workshop booklets, all

available for downloading at www.RolandUS.com.

For the latest Fantom-Xa updates and support tools, visit the Roland U.S.

Web site at www.RolandUS.com. If you need personal assistance, call our

amazing Product Support team at 323-890-3745.

Andere Handbücher für Fantom-Xa

Inhaltsverzeichnis

Andere Roland Elektronische Tastatur Handbücher

Roland

Roland VIMA RK-100 Bedienungsanleitung

Roland

Roland A-70 Bedienungs- und Wartungshandbuch

Roland

Roland JUPITER-X Bedienungsanleitung

Roland

Roland DP-990F Bedienungsanleitung

Roland

Roland S-50 Bedienungs- und Wartungshandbuch

Roland

Roland VP-550 Bedienungsanleitung

Roland

Roland V-Combo VR-09 Bedienungsanleitung

Roland

Roland V-Synth Bedienungsanleitung

Roland

Roland Juno-6 Bedienungsanleitung

Roland

Roland EM-2000 Bedienungs- und Wartungshandbuch

Roland

Roland VP-770 Bedienungsanleitung

Roland

Roland Edirol PCR-80 Bedienungsanleitung

Roland

Roland BK-5 Bedienungsanleitung

Roland

Roland Prelude Bedienungsanleitung

Roland

Roland KR-55 Bedienungsanleitung

Roland

Roland MUSIC ATELIER Series Bedienungsanleitung

Roland

Roland Juno-Stage Bedienungsanleitung

Roland

Roland Interactive Arranger EXR-46 OR Bedienungsanleitung

Roland

Roland E-X10 Bedienungsanleitung

Roland

Roland RD-800 Bedienungsanleitung

Roland

Roland Fantom-Xa Bedienungsanleitung

Roland

Roland SK-50 Bedienungsanleitung

Roland

Roland Fantom-X Bedienungsanleitung

Roland

Roland VP-770 Bedienungsanleitung

Beliebte Elektronische Tastatur Handbücher anderer Marken

Casio

Casio LK-50 Konfigurationshandbuch

Casio

Casio VZ-1 Fehlerbehebungshandbuch

Casio

Casio Privia PX-100 Bedienungsanleitung

Yamaha

Yamaha PortaTone PSR-225GM Bedienungsanleitung

Behringer

Behringer U-CONTROL UMX49 Bedienungsanleitung

Yamaha

Yamaha Portatone X2500 Bedienungsanleitung

Yamaha

Yamaha Portatone PSR-100 Bedienungsanleitung

Casio

Casio WK-1600 Bedienungsanleitung

Keith McMillen Instruments

Keith McMillen Instruments K-Board Pro 4 Technisches Datenblatt

Yamaha

Yamaha PortaSound PCS-30 Bedienungsanleitung

McGrey

McGrey 6170 Bedienungsanleitung

Yamaha

Yamaha PortaTone PSR-41 Bedienungsanleitung

HDC

HDC Kurzweil KP300X Bedienungsanleitung

Casio

Casio Celviano AP-45 Bedienungsanleitung

Akai

Akai MPK88 Bedienungsanleitung

Waldorf

Waldorf IRIDIUM Bedienungsanleitung

Yamaha

Yamaha NP-30 Montageanleitung

Yamaha

Yamaha Portatone PSR-38 Bedienungsanleitung
