Thank you, and congratulations on your choice of the Roland PC-300.

The PC-300 is an easy-to-operate, dedicated keyboard controller for GS compatible sound

modules fitted with a USB connector. This connection offers the advantage that the PC-300

can also be powered via USB, while ensuring compatibility with the new connection stan-

dard for both IBM PC compatible and Macintosh® computers.

Please take the time to read through this Owner’s Manual. That way you can feel assured

that you understand every feature the unit offers, and will enjoy many years of trouble-free

operation.

Owner’s Manual

written permission of Roland Europe Spa - Acquaviva Picena (AP) - Italy.

ENGLISH

1. Contents

PC-300

2. About the PC-300 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3

What is the GS Format (g)? . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3

3. Main features of the PC-300 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4

4. Important notes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5

5. Panel descriptions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6

6. Connecting & setting up the PC-300 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7

Power supply . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7

Setting up the PC-300 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8

Powering up . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .10

Setting the MIDI transmit channel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .11

Selecting sounds . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .11

Selecting Drum Sets on a GS sound module . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .12

7. Various useful functions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .13

Temporarily changing the pitch of a note (Pitch Bend) . . . . . . . . . . . . . . . . . . . . . . .13

Adding vibrato (Modulation) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .13

Holding the notes your play (Sustain) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .13

8. Changing octaves . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .14

9. Controlling a sound module with the DATA ENTRY slider . . . . . . . . . . . . . . . . . .15

Altering the timbre (Channel Aftertouch) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .15

Changing the velocity sensitivity . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .16

Reverb level . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .16

Chorus level . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .16

Setting the sound location: Panpot . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .17

Changing the volume . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .17

If notes are stuck: Panic . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .17

Assigning other control changes to the DATA ENTRY slider . . . . . . . . . . . . . . . . . . .18

10. Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .19

11. Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .20

2. About the PC-300

Owner’s Manual

The Roland PC-300 is a MIDI keyboard

controller designed to provide for the con-

venient transmission of Program Change

and Bank Select messages, as well as a vari-

ety of other MIDI messages (such as

Reverb and Chorus information) to an

external sound module. It contains no

internal sound source. It is particularly

suited for controlling sound modules that

comply with the GS Format. (Called sim-

ply “GS sound modules”in the following.)

What is the GS Format (

The GS Format is a standardized set of

specifications for Roland’s sound sources

which defines the manner in which multi-

timbral sound generating units will

respond to MIDI messages. All devices

compatible with the GS Format bear the

GS logo. Every module or device with the

GS logo will respond in the same way to

the MIDI messages sent from the PC-300.

Note: All Roland GS sound modules also fully

support Level 1 of the General MIDI System

(m).

In 1990, the MIDI standard incorporated

the Program Change/Bank Select message

cluster (selection of sounds using both

program numbers and control change

numbers CC00 and CC32). The GS

Format accommodates this form of sound

selection, which allows for a much larger

number of sounds to be selected.

About the sounds contained in a GS

sound module

A GS sound module contains 128 basic

sounds (“Capital Tones”) and a number of

Variation Tones. The mapping for the

Capital Tones is compatible with Level 1 of

the General MIDI System. Capital Tones

are stored in bank 0, while the Variations

are stored in banks 1 through 127. The

number of available Variation Tones

depends on the sound module you are

using. Please see the manual of the sound

module(s) your are using to find out how

may sounds there are and how to access

them.

About the Drum Sets Provided by a GS

Sound Module

The MIDI channel used for the Rhythm

Set/Drum Set/Drum Part of a GM/GS

module (MIDI channel 10) provides for

the use of several Variation Sets in addi-

tion to the basic Drum Set (Standard Set:

program change number PC01). Though

most Drum Sets can be selected using pro-

gram change messages, the module your

are using may also contain a number of

Variation Sets. Please see its manual for

details.

Note: If a Variation Tone or Variation Drum

Set you have requested is not available in the

GS module you are using, the module may not

sound at all, or use a Drum Set with different

sounds.

ENGLISH

3. Main features of the PC-300

PC-300

USB connector

The PC-300 comes with a USB connector

that allows you to connect it to an IBM

compatible PC or a Macintosh®computer

fitted with USB connectors (iMac®, G4,

etc.). This connector allows for high-speed

data transfer and supplying power to the

connected devices.

USB drivers

The PC-300 is supplied with various USB

drivers for both IBM compatible and

Macintosh®computers. See the included

booklet for details.

Superb playability and expres-

siveness

This standard 49-key keyboard velocity

sensitive and therefore allows you to

express even the finest nuances. In addi-

tion, an Octave Shift feature allows you to

conveniently shift the soundable range up

or down. Moreover, the PC-300 is

equipped with a Pitch Bend/Modulation

lever, and provides a SUSTAIN SWITCH

jack for connecting a Sustain/Hold pedal.

Complete range of control

features

Since the keyboard provides for sound

selection that uses combinations of

Program Change and Bank Select mes-

sages (CC 00 and CC 32), you can also

select any of the Variation Tones that may

be available on a GS sound module.

In addition, a variety of continuous con-

trollers (Control Changes) can be assigned

to the DATA ENTRY slider. The slider can

then be used for controlling the desired

parameter (Reverb or Chorus Depth, for

example) of a GS sound module.

Makes Desk Top Music (DTM)

more enjoyable

The PC-300 is very compact, so it requires

only a minimal amount of desktop space.

The PC-300 is sure to become an invalu-

able part of any DTM setup, since it can

be used for real-time or step recording, as

well as for practice while listening to

“minus-one”playback.

4. Important notes

Owner’s Manual

Be sure to only use the supplied Roland

ACA series adapter. Use of any other AC

adapter could result in damage, malfunc-

tion or electric shock.

Power supply

•Before connecting this unit to other devices,

turn off the power to all units; this will help

prevent damage or malfunction.

•Be sure to set the POWER switch on the rear

panel according to the power source you are

using (adapter or USB).

•Do not use this unit on the same power circuit

with any device that will generate line noise,

such as an electric motor or variable lighting

system.

•The power requirement for this unit is indicated

next to the DC IN connector (rear panel) as

well as on the adapter’s nameplate. Be sure that

the outlet you choose meets this requirement.

•Avoid damaging the adapter’s power cord: do

not step on it, place heavy objects on it, etc.

•When disconnecting the AC adapter from the

power outlet, grasp the plug itself; never pull on

the cord.

•If the unit is to remain unused for an extended

period of time, unplug the adapter.

Placement

•Do not subject the unit to temperature

extremes (e.g., direct sunlight in an enclosed

vehicle). Avoid using or storing the unit in

dusty or humid areas, or areas that are subject

to high levels of vibration.

•Using the unit near power amplifiers (or other

equipment containing large power transform-

ers) may induce hum.

•This device may interfere with radio and televi-

sion reception. Do not use it in the vicinity of

such receivers.

Maintenance

•For everyday cleaning wipe the unit with a soft,

dry cloth or one that has been slightly damp-

ened with water. To remove stubborn dirt, use a

mild, non-abrasive detergent. Afterwards, be

sure to wipe the unit thoroughly with a soft, dry

cloth.

•Never use benzene, thinners, alcohol or solvents

of any kind, to avoid the possibility of discol-

oration and/or deformation.

Additional precautions

•Protect the unit from strong impact.

•Do not allow objects or liquids of any kind to

penetrate the unit. In the event of such an

occurrence, discontinue use immediately.

Contact qualified service personnel as soon as

possible.

•A small amount of heat will radiate from the

unit during normal operation.

•Before using the unit in a foreign country, con-

sult with qualified service personnel.

•Should the unit malfunction, or if you suspect

there is a problem, discontinue use immediately.

Contact qualified service personnel as soon as

possible.

•To avoid the risk of electric shock, do not open

the unit.

ENGLISH

5. Panel descriptions

PC-300

[1] BENDER/MODULATION lever

[2] DATA ENTRY slider

[3] MIDI SELECT button & indicator

[5] OCTAVE [–]/[+] buttons

[6] MIDI CHANNELS keys

[7] DATA ENTRY ASSIGNMENT keys

SUSTAIN SWITCH

connector

MIDI OUT

connector

[8] CC SELECT key

[9] BANK SELECT [L] & [H] keys

[10] PROGRAM CHANGE key

[11] PANIC keys

[12] NUMERIC ENTRY keys

[13] CANCEL key

[14] ENTER key

KEYBOARD/PC

select switch

USB connector

DC IN

connector

POWER DC IN/USB

switch

[4] POWER indicator

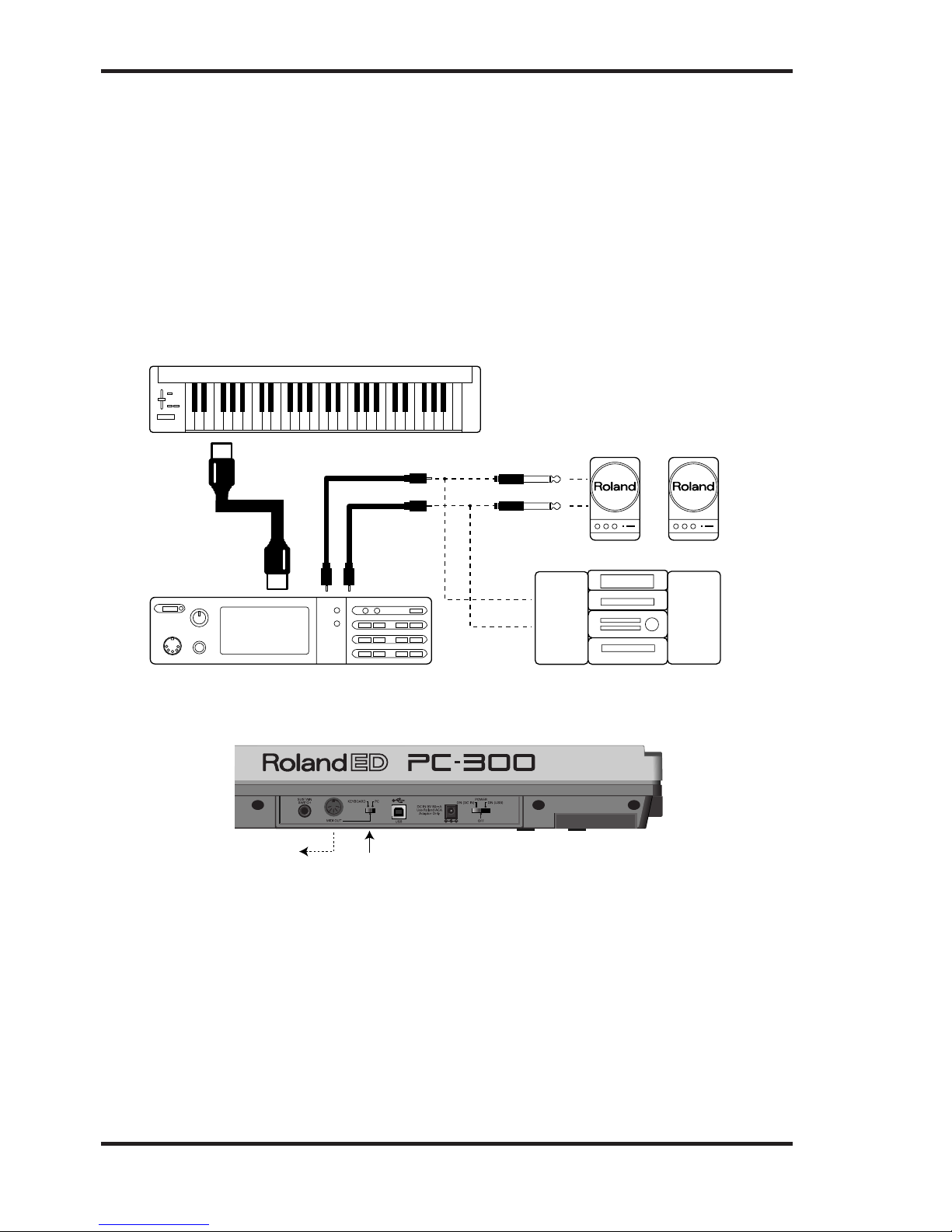

6. Connecting & setting up the PC-300

Owner’s Manual

The PC-300 can be powered using the

supplied adapter, or via a USB connection

with your computer.

Power supply

Using the USB power supply

Connect the PC-300’s USB port to a

free USB port of your PC (see page 10).

This requires the use of the supplied USB

cable.

Switch on your computer.

Using the supplied adapter

Note: Be sure to use only the specified AC

adapter (ACA series). Using any other type

may cause malfunction or electric shock.

Note: If the unit is to remain unused for an

extended period of time, unplug the power

cord.

Check that the PC-300 is OFF.

Connect the AC adapter to the DC IN

jack, and the other end to a power outlet.

Set to "ON (USB)"

To a USB connector of

you computer

ENGLISH

Setting up the PC-300

The PC-300 is a MIDI controller. It contains no sound-generating circuitry of its own, but

it can effectively control external units (sound module, computer, etc.) by transmitting a

wide variety of MIDI messages.

To ensure maximum benefit from your system, be sure to read this manual and the manu-

als for the external equipment you are using.

Controlling other MIDI devices

Connect the PC-300’s MIDI OUT port to the MIDI IN connector on the sound module

you wish to control.

Set the PC-300’s KEYBOARD/PC switch to “KEYBOARD”.

Desk Top Music setup

When connecting your computer with a sound module via a serial connection, use only a

serial cable which is designed for the model of computer you are using and its particular

kind of connector.

If the sound module has a COMPUTER/TO HOST switch, be sure to set it to the appropri-

ate position. This will vary depending on the type of computer, the way you are connecting

it, and the requirements of the software you are using.

Select "KEYBOARD"

To MIDI IN of the

sound module

MIDI OUT

connector

MIDI IN

connector

PC-300

Sound module Stereo set, etc.

OUTPUT jacks

Monitor speakers

(powered)

INPUT jacks

LINE IN,

AUX, or TAPE IN

PC-300

Andere Handbücher für PC-300

Inhaltsverzeichnis

Sprachen:

Andere Roland Elektronische Tastatur Handbücher

Roland

Roland EM-15 OR Bedienungsanleitung

Roland

Roland Fantom-X Bedienungsanleitung

Roland

Roland PRO-E Bedienungsanleitung

Roland

Roland PC-160 Bedienungsanleitung

Roland

Roland V-Combo VR-760 Technisches Handbuch

Roland

Roland A-70 Bedienungsanleitung

Roland

Roland AX-1 Bedienungs- und Wartungshandbuch

Roland

Roland Fantom G6 Technisches Datenblatt

Roland

Roland Fantom G6 Bedienungsanleitung

Roland

Roland A-90 Technisches Handbuch

Roland

Roland V-Combo VR-09 Bedienungsanleitung

Roland

Roland W-30 Bedienungs- und Wartungshandbuch

Roland

Roland BK-5 Bedienungs- und Wartungshandbuch

Roland

Roland EM-55 OR Bedienungsanleitung

Roland

Roland AX-1 Bedienungsanleitung

Roland

Roland VR-700 Bedienungsanleitung

Roland

Roland Music ATELIER AT100 Bedienungsanleitung

Roland

Roland Workstation GW-8 Bedienungsanleitung

Roland

Roland Prelude Bedienungsanleitung

Roland

Roland FP-4 Bedienungsanleitung

Roland

Roland JX-305 Bedienungsanleitung

Roland

Roland Gaia SH-01 Bedienungsanleitung

Roland

Roland Fantom-Xa Bedienungsanleitung

Roland

Roland Fantom-X Bedienungsanleitung

Beliebte Elektronische Tastatur Handbücher anderer Marken

Casio

Casio LK-50 Konfigurationshandbuch

Casio

Casio VZ-1 Fehlerbehebungshandbuch

Casio

Casio Privia PX-100 Bedienungsanleitung

Yamaha

Yamaha PortaTone PSR-225GM Bedienungsanleitung

Behringer

Behringer U-CONTROL UMX49 Bedienungsanleitung

Yamaha

Yamaha Portatone X2500 Bedienungsanleitung

Yamaha

Yamaha Portatone PSR-100 Bedienungsanleitung

Casio

Casio WK-1600 Bedienungsanleitung

Keith McMillen Instruments

Keith McMillen Instruments K-Board Pro 4 Technisches Datenblatt

Yamaha

Yamaha PortaSound PCS-30 Bedienungsanleitung

McGrey

McGrey 6170 Bedienungsanleitung

Yamaha

Yamaha PortaTone PSR-41 Bedienungsanleitung

HDC

HDC Kurzweil KP300X Bedienungsanleitung

Casio

Casio Celviano AP-45 Bedienungsanleitung

Akai

Akai MPK88 Bedienungsanleitung

Waldorf

Waldorf IRIDIUM Bedienungsanleitung

Yamaha

Yamaha NP-30 Montageanleitung

Yamaha

Yamaha Portatone PSR-38 Bedienungsanleitung
