Rollei Actioncam 372 Bedienungsanleitung

Introduction

Thank you for purchasing this Rollei product! Please read this manual carefully before using

the device.

Attention

1.This product is a high-precision product, do not drop or hit. To protect the camera please

use the underwater case which is included in the delivery.

2. Do not place the camera near anything having strong magnetism, such as magnets and

motors and need to avoid the product near anything emitting strong radio waves, a strong

magnetic field may cause the product to malfunction or damage the image and sound.

3. Do not place the camera at high temperatures or direct sunlight.

4. Use brand MicroSD cards as ordinary cards do not guarantee the proper use.

5. Do not use MicroSD cards in or near magnetic places to avoid loss of data.

6. During the charging process, if there is overheating, smoke or odor, please unplug the

power immediately and stop charging to avoid fire.

7. Please keep away the camera and its accessories from children to avoid choking or electric

shocks.

8. Store the product in a cool and dry place.

Product Features

1. Waterproof underwater housing to a depth of 30 meters

2. 2 inch Ultra HD display screen

3. Recording while charging is supported

4. Web camera function

5. Supports MicroSD memory cards up to 32GB

6. WIFI connection by App to control the camera

7. WDR wide dynamic rage recording for a clearer video

Main Equipment Diagram

1.USB 2. Microphone 3.TF card 5. Power button/Mode key

6. Lens 7.Work indicator light 8.Charging indicator light 9.Display

10.WIFI light 11. Enter/OK 12. Up key/WIFI key 13. Down key

14. Speaker 15. Battery compartment

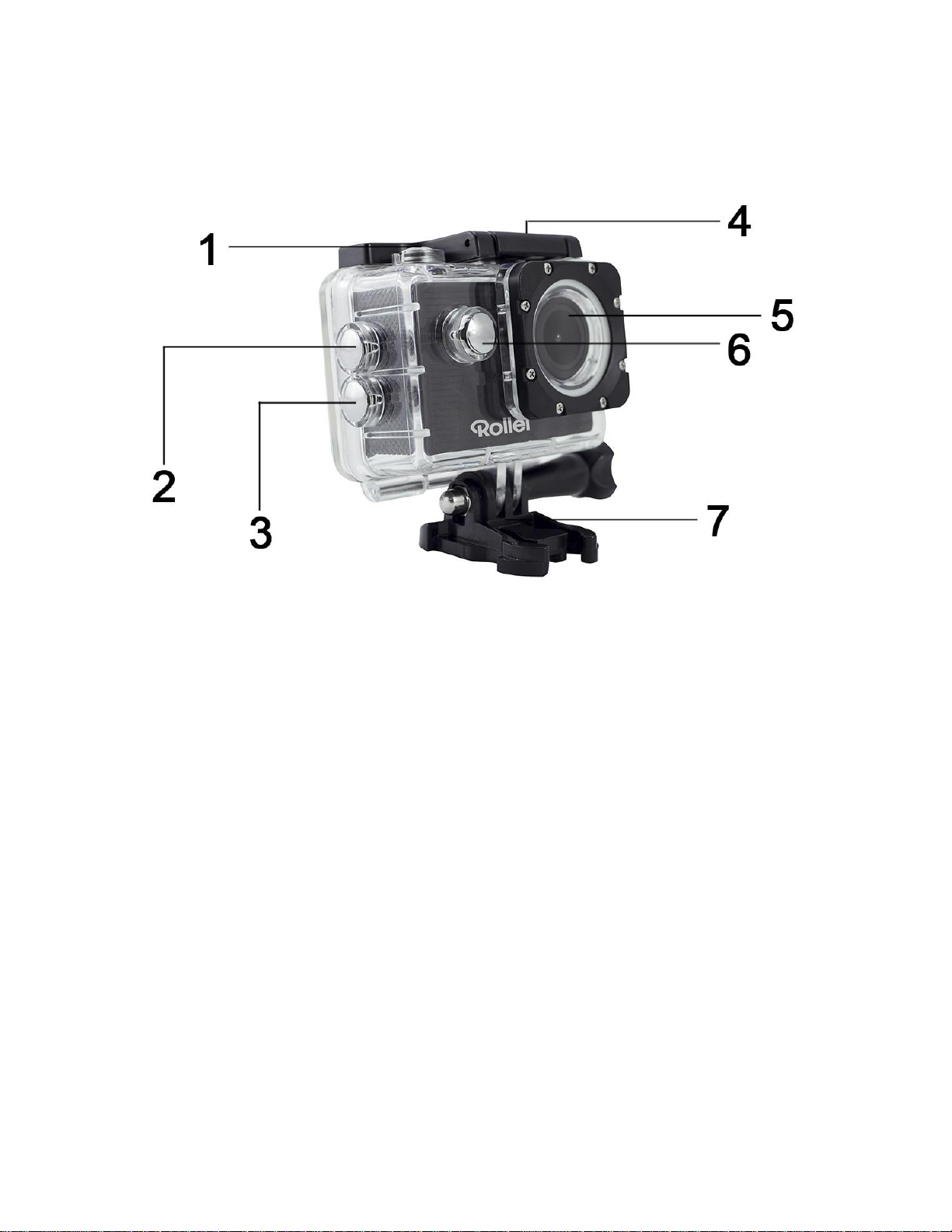

HousingsDiagram

1.Enter 2. Up key/WIFI key 3. Down key

4. Housing lock mechanism 5. Lens 6. Power button/Mode key

7. Base

Instructions

1. Insert MicroSD card

Note：Please use brand MicroSD card and format the card on a computer before using.

Ordinary neutral cards cannot be guaranteed to work properly.

2. Installing and removing the battery

A. In accordance with the direction of the arrow open battery compartment cover.

B. In accordance with the direction of the positive and negative symbols marked on the

battery, insert the battery correctly to the battery compartment until it is seated.

C. To remove the battery, open the battery compartment and take out the battery.

3. Charging the battery

A. Connect the camera to the USB-slot of a computer or to a power adapter for charging.

B. You can use a car charger to charge the battery in a car.

C. When charging, the red indicator light is on. If the device is fully charged, the red light turns

off.

4. Turn camera On and Off

A. Starting: Press the “Power button/Mode key” for about 3 seconds. The blue light turns on

and the display shows the start screen.

B. Shutdown: Press “Power button/Mode key” for about 3-5 seconds, the blue light turns off

and the display will show the end screen.

5. Mode switch

A. Press the mode key to open the mode. Press the button repeatedly to cycle through the

different modes (video / camera / playback / setup mode).

B. The top left indicates the video mode，indicates the photo mode, the

indicates the playback mode and the indicates the setup mode.

6. Video

A. Insert a memory card and press the “Power button/Mode key” to turn the camera on.

B. After the camera is started, press the “Enter/OK key” to start video recording. During

recording, the blue light and the yellow circle will flash.

C. To stop the recording press again the “Enter/OK key”

7. Photo

A. Turn the camera on and press the “Power button/Mode key” to change to photo mode.

B. Press the “Enter/OK key” to take the picture.

8. Playback mode

Press the “Power button/Mode key” to switch to the Playback mode. Use the up and down

keys to select an image and press OK to show the file.

9. Menu settings

A. Press the “Power button/Mode key” to switch to the menu settings.

B. Use the up and down keys to select the menu, press the Enter key to enter the sub-menu,

and select the setting item. Press OK to confirm.

10. USB cable to the computer

Connect the camera with an USB cable to the computer and the screen will display “Mass

Storage”, “PC Camera” and “Charge battery”. Selected with the up and down keys the desired

mode and press the “Enter/OK key” to choose the mode.

A. After entering “Mass Storage”, the computer will display a removable disk.

B. After entering “PC Camera”, the device can be used as PC camera for video

communication.

C. After entering “Charge battery”, only the battery of the camera will be charged while it is

connected to the computer.

11. WIFI connection

Frequency: 2.412-2.472 GHz; Transmission power: 7,08 mW

The Rollei Actioncam 372 can be connected via WiFi to a smartphone or tablet with Android

or iOS system.

A. Install the App "Goplus Cam" on your smartphone or tablet. The app can be downloaded in

the Google Playstore or in the Apple store.

B. Turn on the camera and press the camera up key. The camera screen will show a WiFi

logo and the SSID (WiFi account): AC372_xxxxxxxx (xxx is a placeholder for the individual

serial number of the device) appears and the PW (initial password) is: 12345. During this time,

the yellow WiFi indicator flashes.

C. Turn on the WiFi function at your smartphone or tablet. Search for the camera’s WiFi name

and connect both devices with each other. After the connection has been successful, the

yellow indicator is lit.

D. Start the App "Goplus Cam" on your smartphone or tablet. The live picture of the camera is

displayed on your screen. The App can record videos, take pictures, and download it to your

smartphone or tablet.

Specifications

Note: Specifications are subject to technical changes.

LCD Screen

2.0 “

Lens

140 degree

Video Resolution

720P/30fps; WVGA/30fps; VGA/30fps

Interpolated: 1080P/30fps

Video Format

AVI

Video compression formats

MJPG

Photo resolution

Interpolated: 16M/12M/10M/8M

Storage card

MicroSD, max. 32 GB

Camera mode

Single shot / self-timer (3 seconds / 5

seconds / 10 seconds / 20 seconds)

USB

USB2.0

Battery capacity

900mAh,3.7V, 3.33Wh

Recording time

1080P/ about 80minutes

Charging time

About 3 hours

Operating system

Win7/Win8/Win10/Mac OS

Dimension

60 x 41.8 x 30.36

FAQ

1. Crash, black and white phenomenon occurred during use

If the camera freezes during normal use, please remove and re-install the battery. The

camera returns to normal operating after turning it on again.

2.In case, the camera will not turn on or operate

Please check, if the battery is fully charged. Otherwise pull out and reinsert the battery and

turn the camera on.

3. Machine heating phenomenon occurs during use

Because this camera is a precision digital device with a better sealing, the machine will have

a certain amount of heat during use. This is a normal phenomenon.

4. Record a video without sound, or play video with a lower sound

First make sure the device is not inside the waterproof case, because the waterproof case

belongs to seal parts. The sound cannot be played, if the sound is turned off inside the menu.

5. Video is not running smooth, red and green blocks appear at the recording

Please format the memory with a computer and make sure to use genuine high-speed

memory card for recording.

6. WiFi signal instability

The WiFi signal susceptible to interference. Make sure that no barrier is around the unit to

facilitate signal transmission and hold the smartphone not too far away from the camera unit.

7. WIFI Unable to connect

First, check that the WiFi is turned on the camera. Then re-connect the camera and the

smartphone / tablet again with each other.
