Rollplay W461P-02 Montageanleitung
Read and understand the entire manual before assembly and operation. The vehicle must be
assembled by an adult who has read and understands the instructions.
Made in China.
Styles and colors may vary. Do not return to store. Call 1-888-982-9309 for assistance and
replacement parts.
IMPORTANT:
Save this manual with your sales receipt.
Owner’s Manual and Assembly Instructions
(2-Person Assembly Recommended)
Model #: W461P-01, W461P-02, W461P-03, W461P-04，W461-P-F-TL
12V Chevy Silverado
Scan here
to view the
assembly video
Introduction
Thank you for purchasing this vehicle from Rollplay. We hope the rider
enjoys it for miles to come. Please read this instruction guide carefully
before assembling and operating the vehicle. Please have your model
number and serial number ready before calling. Please have proof of
purchase. Keep your sales receipt and register your product at
www.rollplay.com.
Please contact Rollplay Customer Service with any questions.
Hours: 9 AM - 5 PM (CST), Monday - Friday
Phone: 1-888-982-9309
Email: customerservice@rollplay.com
Web: www.rollplay.com
Specifications:
BATTERY 12V 12AH
MOTOR 12V
AGE 3 Years and Up
MAX WEIGHT 59 kg (130 lb)
PRODUCT SIZE 156.5 x 90 x 71 cm
61.61 x 35.43 x 27.95 in
SPEED 4 - 8 km/h
2.5 MPH - 5 MPH (Preset at 4km/h 2.5 MPH)
RECHARGE TIME 8-12 Hours
TYPICAL RUN TIME 1-2 Hours
CHARGER OUTPUT DC 12.0V 1A
IMPORTANT!
YOU MUST CHARGE THE BATTERY
FOR 24 HOURS BEFORE FIRST USE!
Charge the battery after each use.
Charge the battery at least once a month, even if the vehicle is not in use.
DO NOT RETURN THIS ITEM
TO THE STORE!
Contact Customer Service if you need assistance or replacement parts.
Please have your model number and serial number ready before calling.
Please have proof of purchase. Keep your sales receipt and register your
product at www.rollplay.com as we may require proof of purchase.
customerservice@rollplay.com
1-888-982-9309
Read this entire manual to ensure
proper assembly and safe operation
of the vehicle.
4Table of Contents
Safety..........................................................5
Parts ..........................................................7
Charging Instructions ...............................8
Assemble the Rear Support Bars ............9
Install the Rear Support Bars .................10
Install the Rear Wheel Axle.....................11
Install the Gear Boxes.............................12
Assemble the Rear Wheels.....................13
Assemble the Front Wheels....................14
Attach the Truck Bed ..............................15
Attach the Mirrors ...................................16
Attach the Windshield and Dashboard..17
Attach the Steering Rod .........................18
Assemble the Steering Wheel ................19
Attach the Doors .....................................20
Attach the Tailgate ..................................21
Battery Attachment .................................22
Attach the Seat / Fasten Seatbelt ..........23
Operation Instructions ............................24
Maintenance ............................................25
General Care ............................................26
Troubleshooting Guide............................27
FCC Information ......................................29
Service and Repairs ...............................30
Warranty ...................................................31
Product Registration ...............................32
5
Safety
WARNING: SAFETY RIDING RULES
PREVENT INJURIES AND DEATHS:
NEVER LEAVE CHILD UNATTENDED. ALWAYS keep child in view when child is in
vehicle. Direct adult supervision is REQUIRED.
NEVER use on roadways, near cars, on or near steep inclines or steps, swimming
pools or other bodies of water.
ALWAYS wear shoes.
ALWAYS sit on the seat.
NEVER allow more than (2) riders in the vehicle.
RISK OF FIRE. Do not bypass.
The user must follow all safety rules and guidelines, or serious injury or death may
occur to the user.
• Always use common sense and safe practices when using the vehicle.
• This product contains small parts that are for adult assembly only. Keep small
children away when assembling. Remove and dispose of all protective material and
plastic bags before assembly.
•
Safety Commission (CPSC) Standard 16 CFR 1203.
• Do not overload the vehicle. Do not remove the weight restriction decals.
• Do not pull the vehicle with another vehicle or similar device.
• Keep body parts such as hands, legs, hair and clothing away from moving parts.
Moving parts can cause serious injury.
• Always wear shoes in the vehicle.
• Do not operate near streets or motor vehicles.
• Do not operate near drop-offs such as steps, steep inclines or hills. Operate on
relatively level ground.
•
• Do not operate in dangerous weather conditions such as rain or snow.
•
•
• Always use the vehicle in a safe, secure environment with adult supervision.
• Remove batteries if product is to be left unused for a long time; Always replace
the whole set of batteries at one time; Do not mix old and new batteries; Do not mix
alkaline, standard (carton-zinc) or rechargeable (nickel-cadmium) batteries.
6Safety
(Continued)
WARNING: BATTERY SAFETY
• Battery posts, terminals and related accessories contain lead and lead compound
chemicals known to the state of California to cause cancer, reproductive
harm, and are toxic and corrosive. DO NOT open the battery.
• Contact exposure to battery leakage (lead acid) may cause serious injury.
Immediately contact your doctor if exposure occurs. If the chemical is on the skin,
immediately give the person water or milk. Do not give water or milk if the person
is vomiting or has decreased alertness. Do not induce vomiting.
•
explosion. It could permanently damage the system. Keep the charger housing
closed to prevent exposed wiring, which may cause electric shock.
IMPORTANT:
charged for a full 24 hours (no more than 30 hours).
WARNING: ADULT SUPERVISION
REQUIRED
• Before using the vehicle, the rider must understand the vehicle controls and safety
issues.
• It is the responsibility of the adult to educate the child and to determine if the child
is capable of understanding the vehicle controls.
• An adult must ALWAYS directly supervise the use of this vehicle.
• NEVER leave a child unsupervised in the vehicle.
7

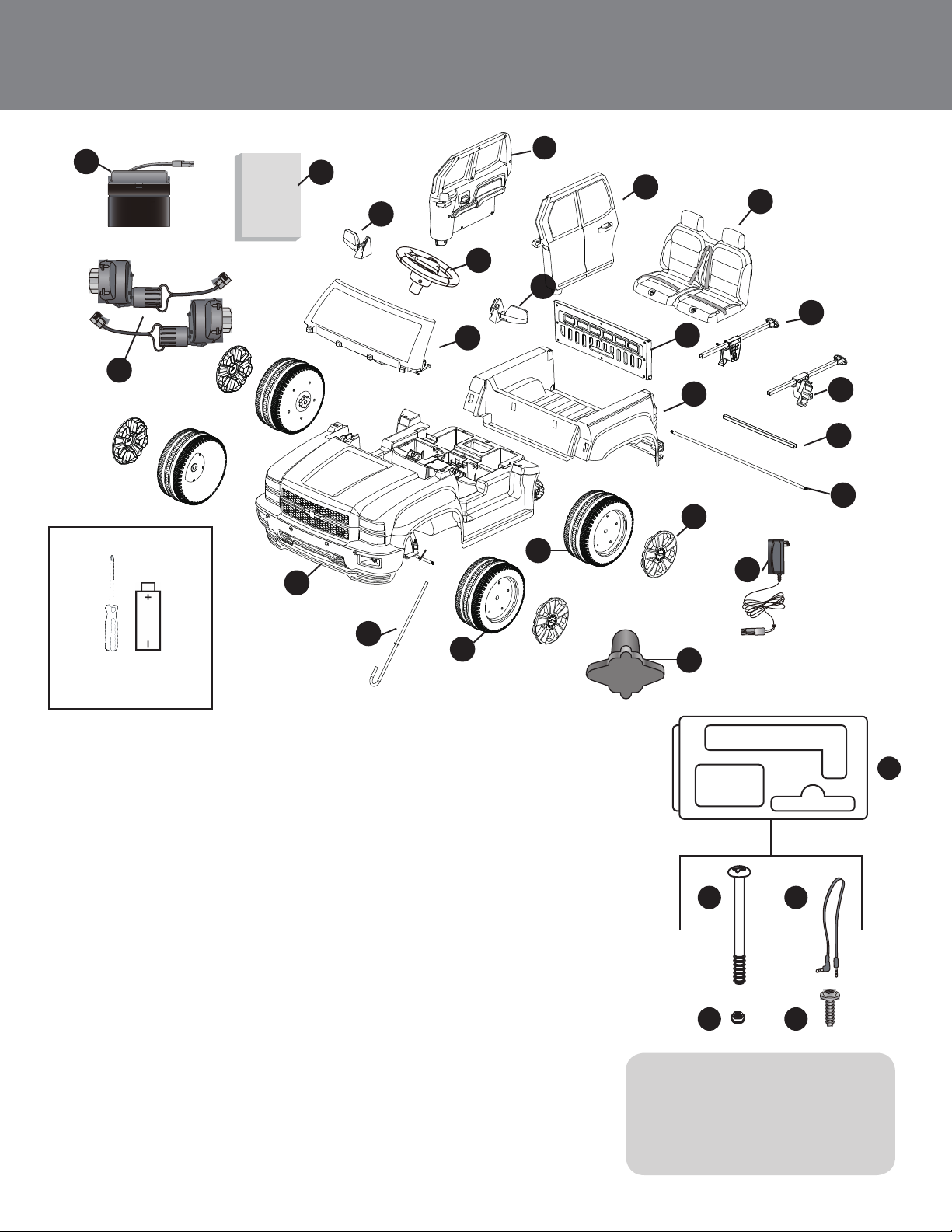

Parts
1. Gear Box ( x 2 )
2. 12V Battery
3. Right Mirror
4. Left Mirror
5. Right Door
6. Left Door
7. Seat
8. Right Support Bar (R)
9. Left Support Bar (L)
10. Support Lateral Bar
11. Rear Axle
12. Battery Charger
13. Wheel Covers ( x 4 )
14. Front Wheels ( x 2 )
15. Rear Wheels ( x 2 )
16. Windshield & Dashboard
17. Steering Wheel
18. Tailgate
19. Truck Bed
20. Truck Body
21. Manual
22. Hex Wrench
23. Steering Rod
24. Steering Wheel Screw
25. Steering Wheel Nut
26. Screws ( x 19 )
27. MP3 Cable
28. Blister Pack
• Phillips screwdriver
• 2 AA batteries
Not Included:
7
4
5
6
8
9
11
10
13
14
12
16
1
19
2
3
17
15
18
20
23
22
23
21
24
25
27
28
26
Helpful Tip:
1. Parts 24-27 are located in the
blister pack
2. Spare parts: Screws (2)
8Charging Instructions
ONLY AN ADULT SHOULD HANDLE THE BATTERY AND CHARGER.

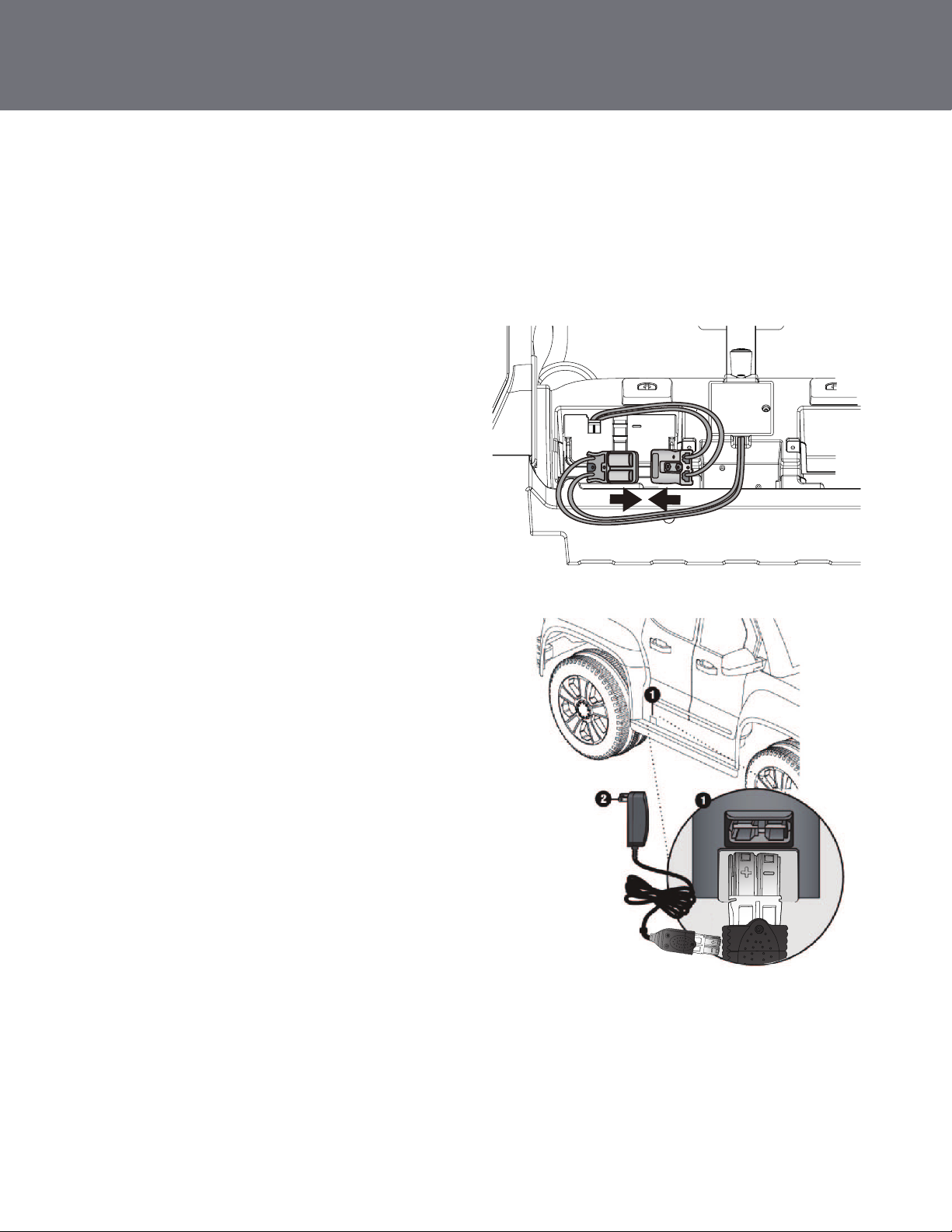

Connect the Battery:
1. Ensure the vehicle is stopped and turned
off.
2. Unlock and remove the seat.
3. Locate the white battery connector (A)
that attaches directly to the battery.
4. Connect the white battery connector (A) to
the white battery charger connector (B).
5. Replace the seat.
Charge the Battery:
YOU MUST CHARGE THE BATTERY FOR 24 HOURS
BEFORE THE FIRST USE!
BA
1.The charging station is located on the
bottom of the right door (1).
2.Plug in the connector on the charger into
the charging station (1).
3.Plug the charger into a 120V outlet (2).
4.Unplug the charger from the outlet when
charging is complete.
5. Remove the charger connector from the
charging station.
9

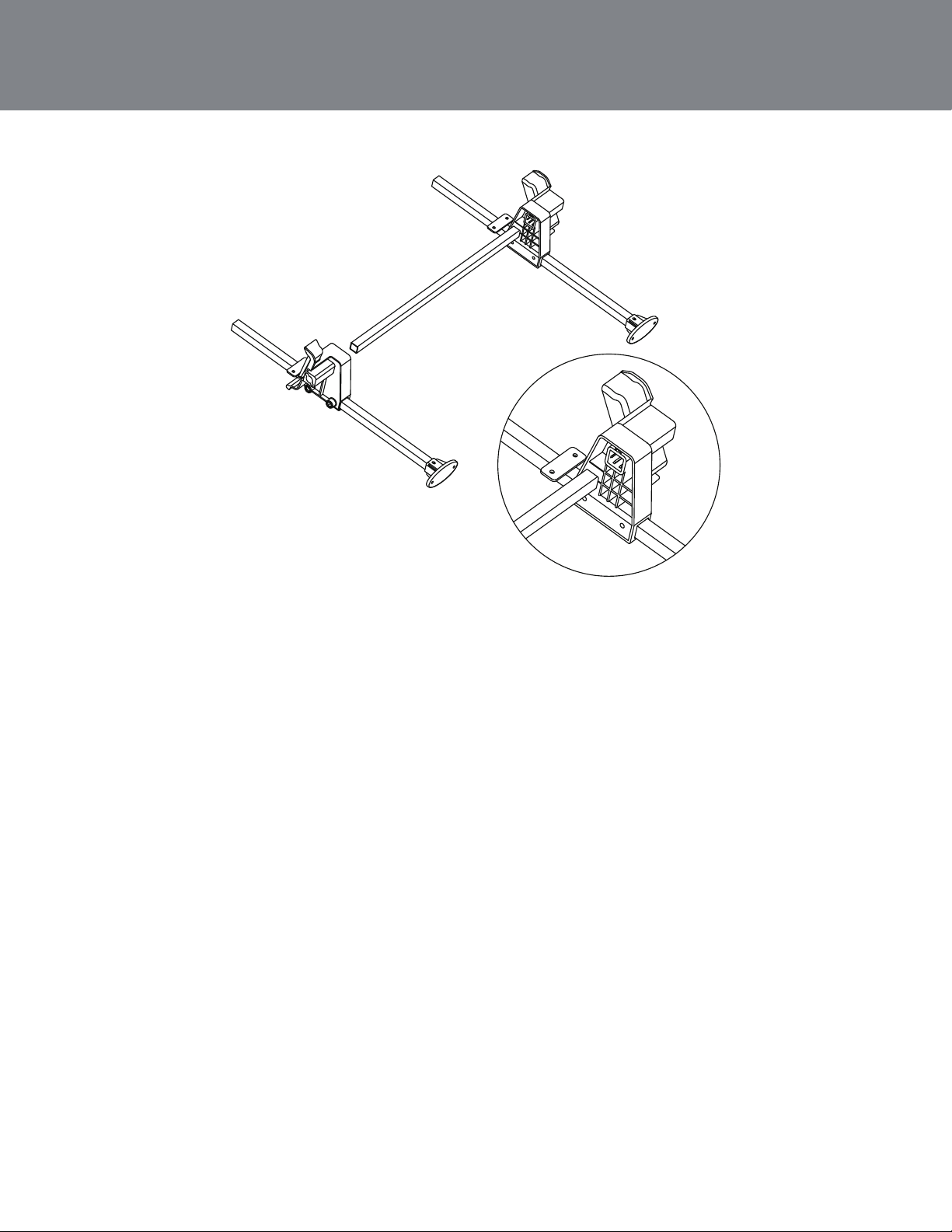

Assemble the Rear Support Bars
1. Locate the right (8) and left (9) support bars and the support lateral bar (10)
2. Insert the rear support lateral bar (10) into the square slots on the rear support side
bars (8,9)
3. Ensure the assembly is secure before moving on to the next step
2-Person Assembly Recommended
L(9)
R(8)
Support Lateral
Bar (10)

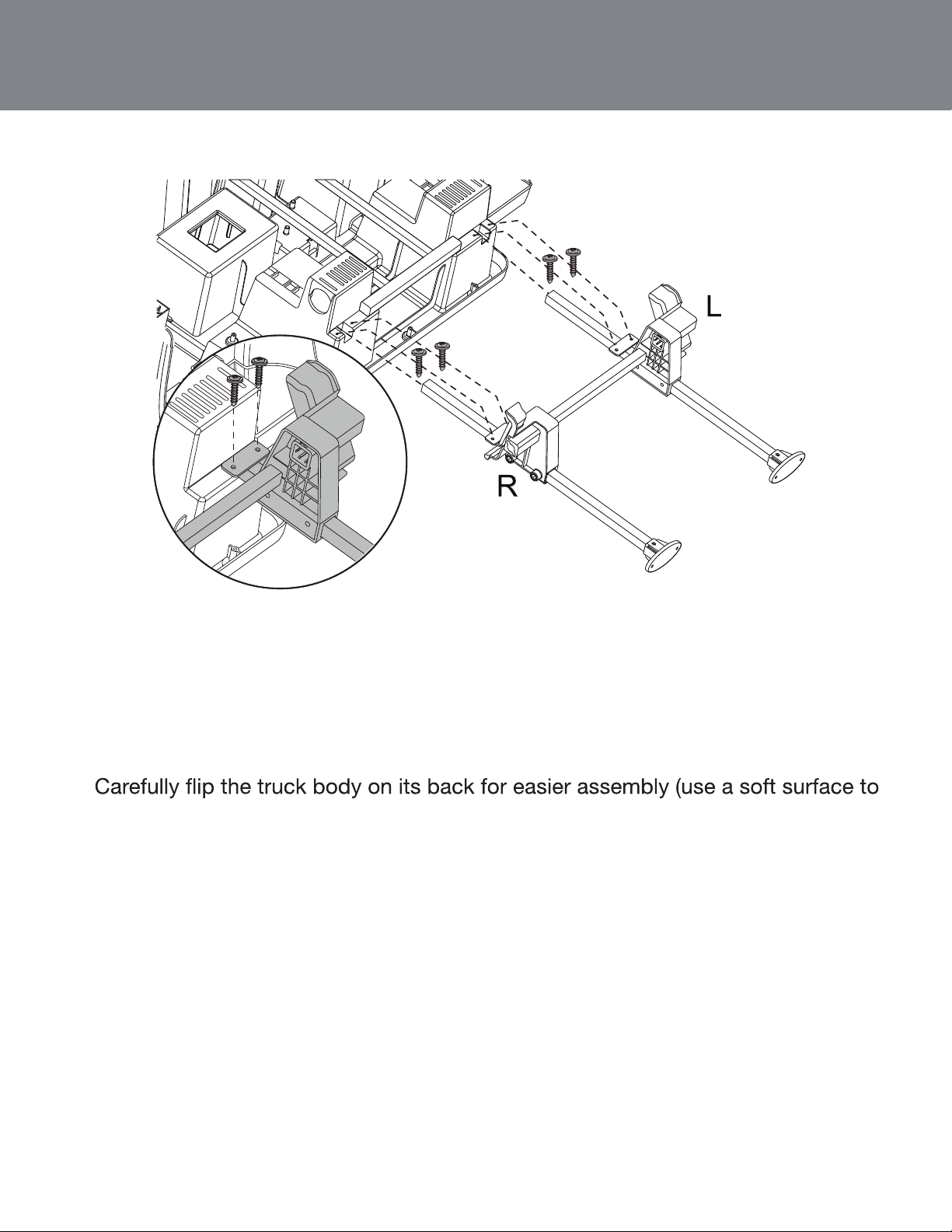

10 Install the Rear Support Bars
1.
avoid any scratches or damage)
2. Slide the assembled rear support bars (8,9,10) into the square holes on the back
of the truck body
3. Align the screw holes on the support bars with the holes on the truck body
4. Insert 4 screws (26) from the blister pack into the holes and fasten securely with a
screwdriver
