Rosco Pica Cube Bedienungsanleitung
USER’S MANUAL
Table of Contents
03
Your Rosco Pica Cube™
Product Description....................................................................................... 5
What’s In the Box............................................................................................ 7
Pica Cube™ Series
Pica Cube™ Interface................................................................................... 8
Pica Cube™ Revision Check....................................................................... 9
Pica Cube™4C.................................................................................................. 10
Pica Cube™WNC............................................................................................. 11
Pica Cube™UV................................................................................................. 12
Pica Cube™ Modes
DMX Mode.......................................................................................................... 13
Manual Mode..................................................................................................... 17
Color Wash Mode.............................................................................................. 19
Preset Mode....................................................................................................... 21
Serial Mode........................................................................................................ 23
Beam Angles
Diuser............................................................................................................... 24
Changing Diusers........................................................................................... 25
Table of Contents
04
Mounting and Configuration
Safety Cables.................................................................................................... 26
Make Your Own Cables
DMX & Power Cable Pinout Diagram............................................................ 27
Pica Cube™ Support
FCC Warning..................................................................................................... 28
General Precautions...................................................................................... 27
Warning Messages......................................................................................... 29
Product Description
05
Pica Cube™ Series
Rosco's innovative Pica Cube™ series of LED wash lights pack 1100 lumens of
output into a compact and portable 2.5 inch cube, while only consuming
22-24 Watts of power! The sleek yet rugged, geometric design of the Pica
Cube™ is perfectly at home in entertainment environments, museums, stores
and lobbies, built into sets, truss and lighting rigs of all styles.
These luminaires oer the flexibility and versatility needed for any type of
lighting challenge. The Pica Cube™ can be powered via a wall adapter or by
using a Pica Portal™ which gives you power and data over CAT5e cable.
An intuitive control panel sets virtually every aspect of the lights including a
master-slave configuration for fast lighting set-ups. With several modes you
can control your light with no limitations.
Product Description
06
Weighing just under 1 pound, mounting these compact 2.5 inch cubes is
limited only by the imagination of the installer. The one sided bolted yoke
design allows units to be easily mounted on any surface for greater output and
coverage.
Available in versions that oer full quad chip color mixing, tuneable color
temperature white light and true UV LED blacklight, the Pica Cube™ luminaires
are the smallest, most feature packed and aordable, professional grade LED
lights on the market.

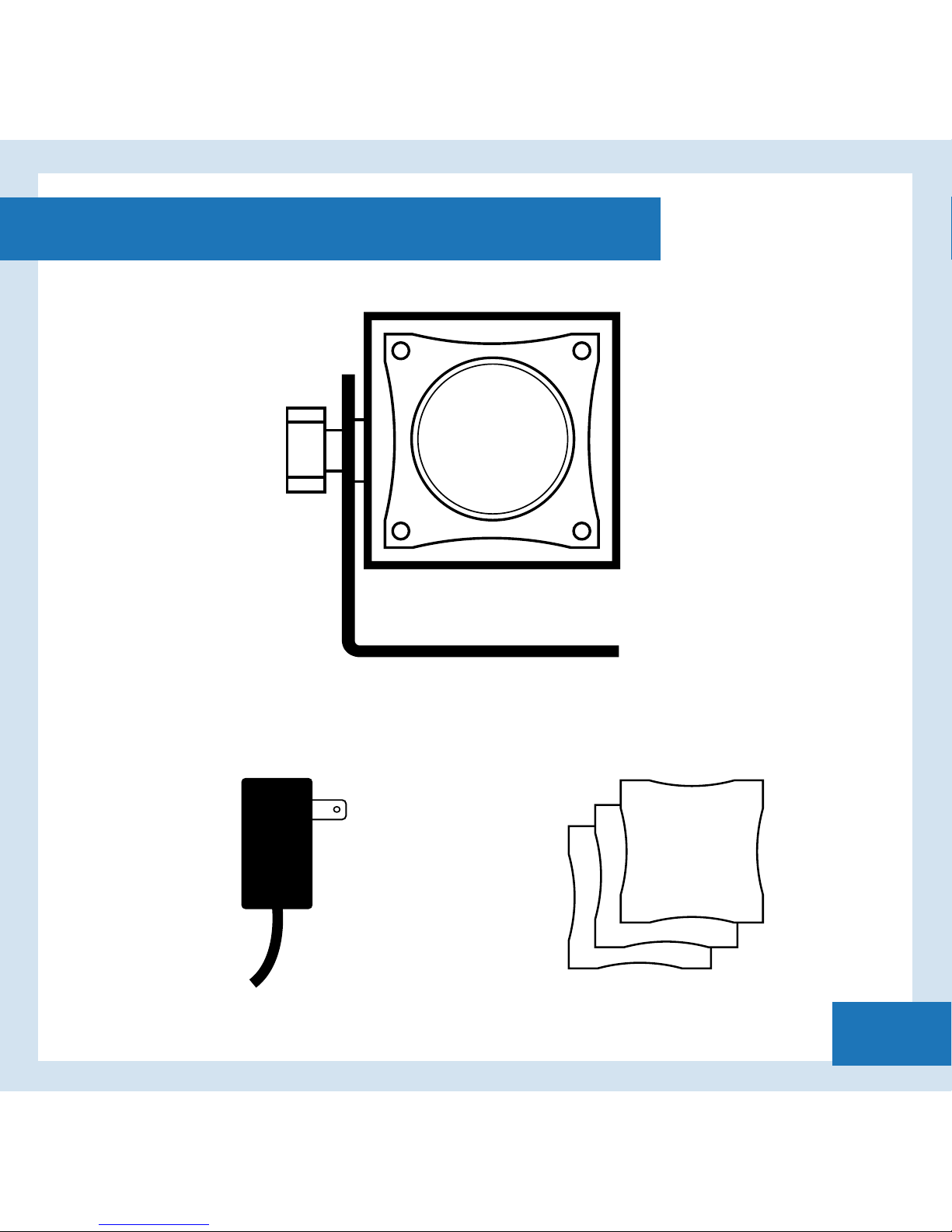

What’s In the Box
07
Pica Cube™
Power Option Diuser Pack
20
40
60

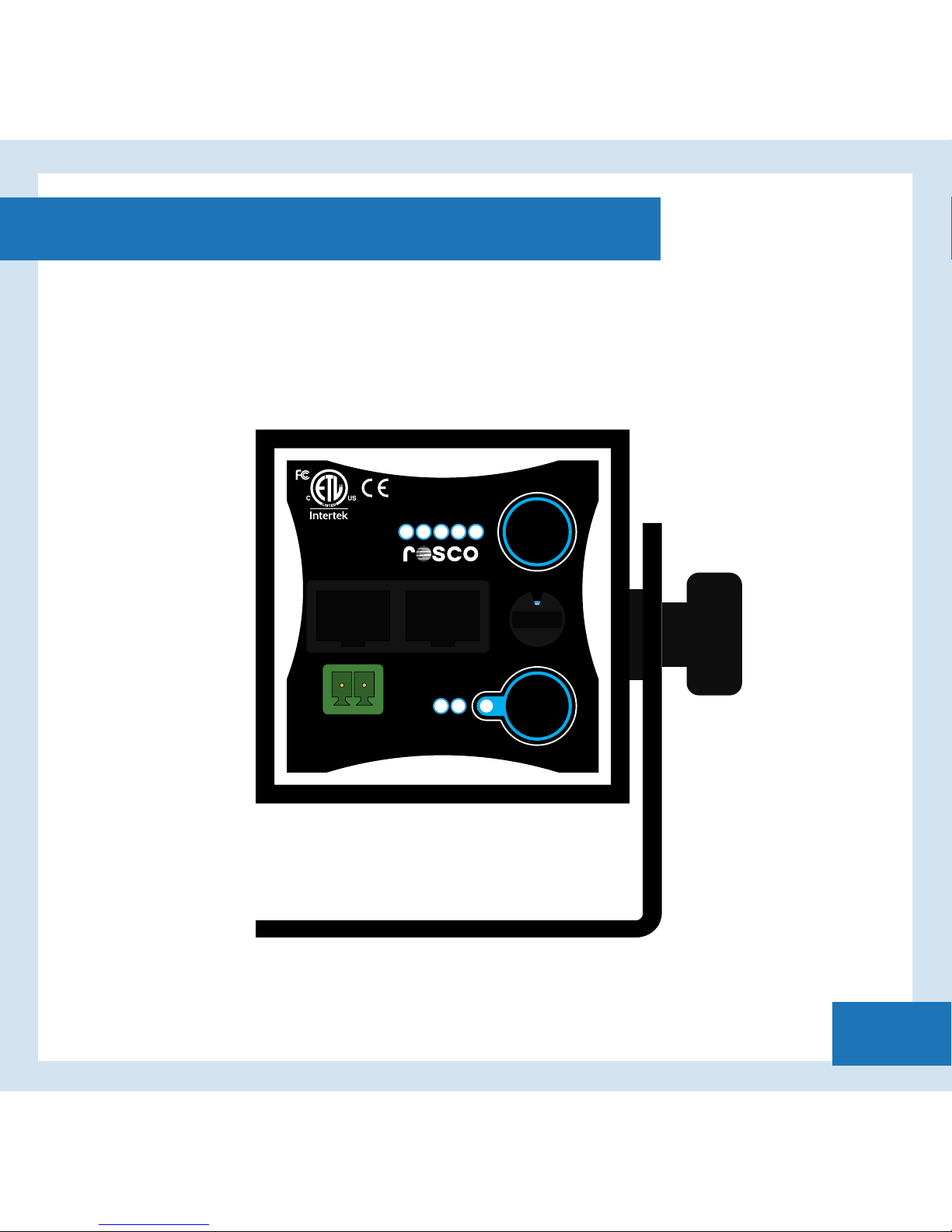

Pica Cube™ Interface
08
Ta = 45C Max
Pat No. 8767398
Made in USA
8
7
6
5
4
3
2
1
0
F
E
D
C
B
A
9
AUX INPUT
CLASS 2
12-24 VDC
12 VAC
PICA CUBE
DESIGNED BY THE BLACK TANK
TM
DMX OUT DMX IN
DMX
MANUAL
CLRWSH
PRESET
SERIAL
PWR
FAULT
TOGGLE
CHANGE
MODE
Pica Cube™ Revision Check
09
During your Pica Cube’s™ boot sequence, there will be a lamp test which illuminates all
indicators on the rear panel.
Aer the Lamp test, the green mode indicator LEDs will flash the firmware revision
of your Pica Cube™in Binary.
REVISION EXAMPLES
DMX
MANUAL
CLRWSH
PRESET
SERIAL
REV3
DMX
MANUAL
CLRWSH
PRESET
SERIAL
REV6
DMX
MANUAL
CLRWSH
PRESET
SERIAL
REV4
DMX
MANUAL
CLRWSH
PRESET
SERIAL
REV7
DMX
MANUAL
CLRWSH
PRESET
SERIAL
REV5
DMX
MANUAL
CLRWSH
PRESET
SERIAL
REV8
Pica Cube™ 4C
10
From walls to washes to uplighters, the Pica
Cube™ 4C color mixing wash light oers a
designer maximum creativity in a tiny package.
Using best in class RGBW quad color, multi
channel chip, a gorgeous palette of saturated,
mid-tone and pale tint colors can be dialed in
at the spin of a knob. And of course, a true
white is always available as well, not the
unflattering mixed amber compromise found
in other lights. Smart programming in the
Pica Cube™ 4C includes a stand-alone color wash mode or allows multiple
units to be easily slaved together, synchronized and oset using
self-generated DMX for color chases and other dynamic lighting patterns
without a console. Use it alone, configured in strips & arrays or built-in for
virtually any application needing colored light - from stage, studios and
location, bars and casinos, to stores, windows and lobbies.
NOTE: The luminaire should be positioned so that prolonged staring
into the luminaire at a distance closer than 3.3m is not expected.
