RackView

Widescreen 17"

Sliding

KVM Drawer - 1920 x 1080

Installation

and

Operation Manual

10707 Stancliff Road

Houston, Texas 77099

Phone: (281) 933-7673

[email protected]

LIMITED WARRANTY

No part of this manual may be reproduced, stored in a retrieval system, or transcribed in any form or any means, electronic or mechanical, including photocopying and

recording, without the prior written permission of Rose Electronics.

manual-rackview-widescreen-17-2018-03-25

Rose Electronics®warrants the RackView Widescreen 17” KVM Drawer to be in good working order for one

year from the date of purchase from Rose Electronics or an authorized dealer. Should this product fail to be in

good working order at any time during this one-year warranty period, Rose Electronics will, at its option, repair

or replace the Unit as set forth below. Repair parts and replacement units will be either reconditioned or new.

All replaced parts become the property of Rose Electronics. This limited warranty does not include service to

repair damage to the Unit resulting from accident, disaster, abuse, or unauthorized modification of the Unit,

including static discharge and power surges.

Limited Warranty service may be obtained by delivering this unit during the one-year warranty period to Rose

Electronics or an authorized repair center providing a proof of purchase date. If this Unit is delivered by mail,

you agree to insure the Unit or assume the risk of loss or damage in transit, to prepay shipping charges to the

warranty service location, and to use the original shipping container or its equivalent. You must call for a return

authorization number first. Under no circumstances will a unit be accepted without a return authorization

number. Contact an authorized repair center or Rose Electronics for further information.

ALL EXPRESS AND IMPLIED WARRANTIES FOR THIS PRODUCT INCLUDING THE WARRANTIES OF

MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE, ARE LIMITED IN DURATION TO A

PERIOD OF ONE YEAR FROM THE DATE OF PURCHASE, AND NO WARRANTIES, WHETHER EXPRESS

OR IMPLIED, WILL APPLY AFTER THIS PERIOD. SOME STATES DO NOT ALLOW LIMITATIONS ON HOW

LONG AN IMPLIED WARRANTY LASTS, SO THE ABOVE LIMITATION MAY NOT APPLY TO YOU.

IF THIS PRODUCT IS NOT IN GOOD WORKING ORDER AS WARRANTIED ABOVE, YOUR SOLE

REMEDY SHALL BE REPLACEMENT OR REPAIR AS PROVIDED ABOVE. IN NO EVENT WILL ROSE

ELECTRONICS BE LIABLE TO YOU FOR ANY DAMAGES INCLUDING ANY LOST PROFITS, LOST

SAVINGS OR OTHER INCIDENTAL OR CONSEQUENTIAL DAMAGES ARISING OUT OF THE USE OF OR

THE INABILITY TO USE SUCH PRODUCT, EVEN IF ROSE ELECTRONICS OR AN AUTHORIZED DEALER

HAS BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES, OR FOR ANY CLAIM BY ANY OTHER

PARTY.

SOME STATES DO NOT ALLOW THE EXCLUSION OR LIMITATION OF INCIDENTAL OR

CONSEQUENTIAL DAMAGES FOR CONSUMER PRODUCTS, SO THE ABOVE MAY NOT APPLY TO YOU.

THIS WARRANTY GIVES YOU SPECIFIC LEGAL RIGHTS AND YOU MAY ALSO HAVE OTHER RIGHTS

WHICH MAY VARY FROM STATE TO STATE.

DECLARATIONS OF CONFORMITY

This is to certify that, when installed and used according to the instructions in this manual, the units listed and

described here are shielded against the generation of radio interferences in accordance with the application of

Council Directives 2014/30/EU and 2014/30/EU, as well as these standards:

■EN 55022: 2010/AC:2011 (Class B)

■EN 55024:2010 + A1:2015

This equipment has been found to comply with the limits for a Class A digital device, pursuant to Part 15 of the

FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the

equipment is operated in a commercial environment. This equipment generates, uses, and can radiate radio

frequency energy and, if not installed and used in accordance with the instruction manual, may cause harmful

interference to radio communications. Operation of this equipment in a residential area is likely to cause

harmful interference in which case the user will be required to correct the interference at their own expense.

This equipment fully complies with the requirements of European Union Regulation (EC) 1907/2006

concerning the Registration, Evaluation, Authorization and Restriction of Chemicals (REACH):

These devices comply with Directive 2011/65/EU of the European Parliament and of the council of 8 June

2011 on the restriction of the use of certain hazardous substances in electrical and electronic equipment

(RoHS 2, RoHS II). The device labels carry a respective marking.

TABLE OF CONTENTS

Contents

Disclaimer 1

System Introduction 1

Features 1

Package Contents 2

RackView Options 2

RackView Model 3

RackView Layout 3

RackView Rear Panel Connector Layout 3

Installation Procedure 4

Installation of the RackView Widescreen 17-inch 4

Operation of the RackView Widescreen 17-inch 5

Cabling RackView to an External Device 6

Connection to a PS2 or USB Server 6

Connection to an External KVM Switch 6

RackView Cables 7

Troubleshooting 7

RackView Operation 8

Power-On Procedure 8

Video Input Select Button 8

OSD Selection 8

OSD Operation 9

Safety 10

Maintenance and Repair 11

Technical Support 11

Figures

Figure 1. RackView product layout - key features 3

Figure 2. RackView rear panel connector layout 3

Figure 3. RackView installation procedure 4

Figure 4. RackView console drawer operation 5

Figure 5. RackView cable connectivity 6

Figure 6. RackView device interface cables 7

Figure 7. OSD menu selection 8

Figure 8. RackView OSD configuration and settings 9

Figure 9. RackView chassis dimensions 14

Figure 10 RackView integrated KVM switch models 15

Figure 11. RackView with HDMI video option 16

Figure 12. HDMI cable connection 16

Figure 13. RackView with 3G/HD/SD-SDI video option 16

Figure 14. Schematic showing the back panel with the touchscreen option (USB-A) installed 18

Figure 15. RackView touchscreen setup procedure 18

Figure 16. RackView with a DC power connector fitted 19

TABLE OF CONTENTS

Tables

Table 1. RackView product and packaging dimensions ................................................................... 14

Table 2. RackView product and packaging dimensions (including a KVM switch)............................. 14

Table 3. Video resolution related to LCD specification .................................................................... 15

Table 4. DVI-D and VGA video formats............................................................................................ 17

Table 5. 3G/HD/SD-SDI video formats ............................................................................................ 17

Table 6. RackView DC power options.............................................................................................. 19

Appendices

Appendix A —Specifications 12

Appendix B —Part Numbers 13

Appendix C —RackView Dimensions 14

Appendix D —RackView with Integrated KVM Switch 15

Appendix E —RackView Video Options 16

Appendix F —RackView Touchscreen 18

Appendix G —RackView DC Power Options 19

INTRODUCTION

RackView Widescreen 17" Manual 1

Disclaimer

While every precaution has been taken in the preparation of this manual, the manufacturer assumes no

responsibility for errors or omissions. Neither does the manufacturer assume any liability for damages resulting

from the use of the information contained herein. The manufacturer reserves the right to change the

specifications, functions, circuitry of the product, and manual content at any time without notice.

The manufacturer cannot accept liability for damages due to misuse of the product or other circumstances

outside the manufacturer’s control. The manufacturer will not be responsible for any loss, damage, or injury

arising directly or indirectly from the use of this product (See limited warranty).

System Introduction

Thank you for choosing the Rose Electronics RackView Widescreen 17" Console Drawer. This product is the

result of Rose Electronics’ commitment to providing state-of-the-art solutions for today’s demanding workplace.

The RackView is the ideal product for managing one or more PC’s/Servers in a confined rack space.

The RackView is manufactured using a steel chassis to withstand constant mechanical movement in the rack.

The 17" LCD monitor supports 1920×1080 video resolution, with both VGA and DVI video interfaces available.

The keyboard tray includes a 2-button touchpad mouse, and either a PS2 or USB connector is available for

keyboard and mouse operation, via an external interface cable.

There are several options available with the RackView, including the integration of a VGA/USB or DVI/USB

KVM switch for PC/Server management, providing an all-in-one console management solution.

The instructions in this manual assume a general knowledge of computer installation procedures, familiarity

with cabling requirements, and some understanding video display device operation.

Features

■1U model with 17.3" Widescreen TFT/LCD monitor resolution up to 1920 x 1080, VGA or DVI

■Front panel controls provide access to the OSD for set-up and quick adjustments of

color, brightness, contrast, position, and shape of the display

■USB or PS/2 touchpad/keyboard interface

■Full size 104 keyboard with a separate numeric keypad and a 2-button touchpad mouse

■Supports Windows, Linux, Unix, Sun, MAC OS

■Panel protected by tempered glass

■Active EDID monitor function

■Quick and easy “one-man” rack mounting installation, the RackView drawer can be mounted at any height

in a standard 19" rack

■Fold and tilt the LCD Monitor for optimum viewing position

■18 International keyboard versions available

■Mounting rails included

■Optional DVI/USB or VGA/USB KVM Switch

RackView Widescreen 17" Manual 2

Package Contents

The RackView package contents consist of the following:



1 x RackView sliding KVM drawer



1 x Mounting bracket (sliding rails) set



1 x Set of screws/washers for assembly



1 x Combo interface cable (depending on the model selected)



1 x Power supply unit



1 x Power cable



1 x Manual

The above package content is only for the single console model. The contents can vary with options such as a

KVM switch, HDMI and 3G/SDI video and DC power.

Additional cables are usually ordered separately. If the package contents are not correct, contact Rose

Electronics or your reseller so the problem can be quickly resolved.

RackView Options



Integrated KVM switch, DVI USB Audio (12 port) or VGA USB (8 or 16 port)



HDMI (replaces the DVI interface)



3G/HD/SD-SDI video



Resistive Touchscreen



Front USB 2.0 port for device access, available with the KVM-Hub switch option only



Trackball mouse



DC power, 12, 24, 48, 125, 250V

Before Installation

It is very important to mount the equipment in a suitable cabinet or on a stable surface.

Make sure the mounting location has good ventilation, is out of direct sunlight, and away from sources of

excessive dust, dirt, heat, water, moisture, and vibration.

MODELS

RackView Widescreen 17" Manual 3

RackView Model

The RackView is available as described below.

RackView Layout

RackView Widescreen 17-inch color LCD

Figure 1. RackView product layout - key features

RackView Rear Panel Connector Layout

The RackView rear panel includes an HD15(KVM) and DVI-D connector as standard. The HD15(KVM)

connector supports VGA video, and also the keyboard/mouse interface.

This diagram shows the approximate positioning of the DVI-D and KVM connectors on the rear panel.

Figure 2. RackView rear panel connector layout

INSTALLATION

RackView Widescreen 17" Manual 4

Installation Procedure

Installation of the RackView Widescreen 17-inch

Step 1

Insert the Left and Right rear-mounting slides into

the RackView Console Drawer

Step 2

Measure the depth of the front and rear rack rails

Align each rear-mounting slide to a suitable length

(depth)

Step 3

Complete the Installation

Fix the RackView Console Drawer into the Rack

A set of mounting accessories is provided

Figure 3. RackView installation procedure

RackView Widescreen 17" Manual 5

Operation of the RackView Widescreen 17-inch

Step 1

Hold the handle and slide out the RackView drawer

Step 2

Flip up the LCD to a suitable viewing angle

Step 3

Operate the RackView Console Drawer

Figure 4. RackView console drawer operation

Andere Handbücher für Rackview LCD Panel Mount 19"

Dieses Handbuch passt für folgende Modelle

Inhaltsverzeichnis

Andere Rose electronics LCD-Schublade Handbücher

Rose electronics

Rose electronics Rackview LCD Panel Mount 19" Bedienungsanleitung

Rose electronics

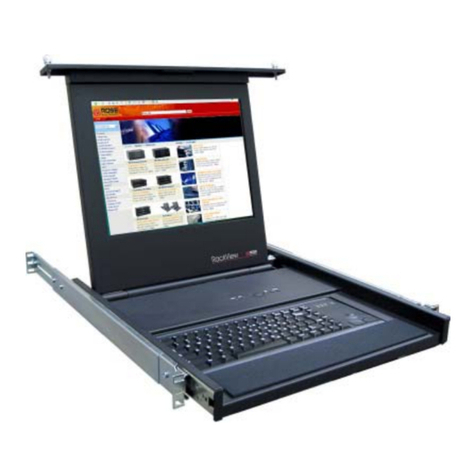

Rose electronics RackView RV1-CKVM15A Bedienungsanleitung

Rose electronics

Rose electronics RackView RV1-KVM15C Bedienungsanleitung

Rose electronics

Rose electronics RackView RV1-LCD15 Bedienungsanleitung

Rose electronics

Rose electronics RackView Dual Rail RV1-CDKVT19/DVI Bedienungsanleitung

Rose electronics

Rose electronics Rackview LCD Panel Mount 19" Bedienungsanleitung

Rose electronics

Rose electronics RackView-Switch RV1-CSKVT17/DVI Bedienungsanleitung

Rose electronics

Rose electronics RackView RV1-CAKVT17/DVI Bedienungsanleitung

Rose electronics

Rose electronics KVM Rack Drawer Bedienungsanleitung

Rose electronics

Rose electronics RV1-KVM15D Bedienungsanleitung

Rose electronics

Rose electronics RackView RV2-KVM15B Bedienungsanleitung

Rose electronics

Rose electronics RV1-CKVT17 Bedienungsanleitung

Rose electronics

Rose electronics Rackview LCD Panel Mount 19" Bedienungsanleitung

Rose electronics

Rose electronics RackView RV2-KVM15 Bedienungsanleitung

Rose electronics

Rose electronics RackView RV1-CAKVT21L/DVI/Kn Bedienungsanleitung

Rose electronics

Rose electronics RackView RV1-KT-R Bedienungsanleitung

Rose electronics

Rose electronics RackView RV1-LCDA17/Kn Bedienungsanleitung

Rose electronics

Rose electronics RackView High-Resolution 17 Bedienungsanleitung

Rose electronics

Rose electronics RackView RVP-KVM15 Bedienungsanleitung

Beliebte LCD-Schublade Handbücher anderer Marken

Acnodes

Acnodes KD 8228 Bedienungsanleitung

Ameriwood

Ameriwood 9524328PCOM Bedienungsanleitung

Kesseböhmer

Kesseböhmer TANDEM solo Bedienungsanleitung

Crystal Image Technologies

Crystal Image Technologies RMD-151-A Series Bedienungsanleitung

APW Wyott

APW Wyott Ease Extreme HDX-1-120 Bedienungsanleitung

NTI

NTI RACKMUX-V17-N Bedienungsanleitung

Austin Hughes

Austin Hughes CyberView L120 Bedienungsanleitung

Uplift Desk

Uplift Desk STR018 Bedienungsanleitung

Acnodes

Acnodes KDC 81932 Bedienungsanleitung

Acnodes

Acnodes RK1200T Bedienungsanleitung

StarTech.com

StarTech.com DuraView RACKCONS1501 Bedienungsanleitung

Mocka

Mocka Mischa Bedienungsanleitung

GRASS

GRASS DWD XP Bedienungsanleitung

StarTech.com

StarTech.com DuraView RACKCONS1701 Bedienungsanleitung

Fisher & Paykel

Fisher & Paykel IZONA CoolDrawer RB36S Bedienungsanleitung

Synergy Global Technology

Synergy Global Technology LCD1U17-44 Bedienungsanleitung

Fujitsu

Fujitsu RC25 Bedienungsanleitung

Acnodes

Acnodes RK 1000B Bedienungsanleitung
