Vista KM III

1×4, 1×8 KM Switch • No video • USB2.0 • Audio

Installation

and

Operation Manual

10707 Stancliff Road

Houston, Texas 77099

Phone: (281) 933-7673

tech-

[email protected]

LIMTED WARRANTY

No part of this manual may be reproduced, stored in a retrieval system, or transcribed in any form or any means, electronic or mechanical, including photocopying and

recording, without the prior written permission of Rose Electronics.

manual-vista-km-iii-2016-09-08

Rose Electronics®warrants the Vista KM III to be in good working order for one year from the date of purchase

from Rose Electronics or an authorized dealer. Should this product fail to be in good working order at any time

during this one-year warranty period, Rose Electronics will, at its option, repair or replace the Unit as set forth

below. Repair parts and replacement units will be either reconditioned or new. All replaced parts become the

property of Rose Electronics. This limited warranty does not include service to repair damage to the Unit

resulting from accident, disaster, abuse, or unauthorized modification of the Unit, including static discharge and

power surges.

Limited Warranty service may be obtained by delivering this unit during the one-year warranty period to Rose

Electronics or an authorized repair center providing a proof of purchase date. If this Unit is delivered by mail,

you agree to insure the Unit or assume the risk of loss or damage in transit, to prepay shipping charges to the

warranty service location, and to use the original shipping container or its equivalent. You must call for a return

authorization number first. Under no circumstances will a unit be accepted without a return authorization

number. Contact an authorized repair center or Rose Electronics for further information.

ALL EXPRESS AND IMPLIED WARRANTIES FOR THIS PRODUCT INCLUDING THE WARRANTIES OF

MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE, ARE LIMITED IN DURATION TO A

PERIOD OF ONE YEAR FROM THE DATE OF PURCHASE, AND NO WARRANTIES, WHETHER EXPRESS

OR IMPLIED, WILL APPLY AFTER THIS PERIOD. SOME STATES DO NOT ALLOW LIMITATIONS ON HOW

LONG AN IMPLIED WARRANTY LASTS, SO THE ABOVE LIMITATION MAY NOT APPLY TO YOU.

IF THIS PRODUCT IS NOT IN GOOD WORKING ORDER AS WARRANTIED ABOVE, YOUR SOLE

REMEDY SHALL BE REPLACEMENT OR REPAIR AS PROVIDED ABOVE. IN NO EVENT WILL ROSE

ELECTRONICS BE LIABLE TO YOU FOR ANY DAMAGES INCLUDING ANY LOST PROFITS, LOST

SAVINGS OR OTHER INCIDENTAL OR CONSEQUENTIAL DAMAGES ARISING OUT OF THE USE OF OR

THE INABILITY TO USE SUCH PRODUCT, EVEN IF ROSE ELECTRONICS OR AN AUTHORIZED DEALER

HAS BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES, OR FOR ANY CLAIM BY ANY OTHER

PARTY.

SOME STATES DO NOT ALLOW THE EXCLUSION OR LIMITATION OF INCIDENTAL OR

CONSEQUENTIAL DAMAGES FOR CONSUMER PRODUCTS, SO THE ABOVE MAY NOT APPLY TO YOU.

THIS WARRANTY GIVES YOU SPECIFIC LEGAL RIGHTS AND YOU MAY ALSO HAVE OTHER RIGHTS

WHICH MAY VARY FROM STATE TO STATE.

TABLE OF CONTENTS

Contents

Disclaimer 1

System Introduction 1

Features 1

Package Contents 2

Vista KM III Models 3

4-Port Model - Front View 3

4-Port Model - Rear View 3

8-Port Model - Front View 4

8-Port Model - Rear View 4

Installation 5

Vista KM III Operation 6

4-Port Switch 6

Display Topology Selection 6

Display Topology Configuration 6

Single-Head Mode KM Switching 7

Multi-Head Mode KM Switching 8

Front Panel Buttons 8

Hotkey Commands 8

RS-232 Commands 8

Limit Input Ports Configuration 9

Independent USB2.0 Switching 10

8-Port Switch 10

Initial Setup 10

Display Topology Configuration 10

Single-Head Mode KM Switching 12

Multi-Head Mode KM Switching 12

Front Panel Buttons 13

Hotkey Commands 13

RS-232 Control 13

Independent USB2.0 Switching 13

Safety 14

Maintenance and Repair 15

Technical Support 15

Figures

Figure 1. Vista KM III Front View 3

Figure 2. KM-4USB- III Rear Panel 3

Figure 3. Vista KM III Front View 4

Figure 4. Vista KM III Rear Panel 4

Figure 5. Vista KM III Single-Head Installation 5

Figure 6. Vista KM III Dual-Head Installation 5

Tables

Table 1. 4-Port Switch Single-head or dual-head selection 6

Table 2. Hotkey and RS232 Control Commands 9

Table 3. 8-Port Switch Single-head or dual-head selection 10

Table 4. Vista KM III Hotkey and RS232 Control Commands 13

Appendices

Appendix A- Specifications 16

Appendix B- Part Numbers 16

Appendix C- Hotkey and RS-232 Commands 17

INTRODUCTION

Vista KM III Manual 1

Disclaimer

While every precaution has been taken in the preparation of this manual, the manufacturer assumes no

responsibility for errors or omissions. Neither does the manufacturer assume any liability for damages resulting

from the use of the information contained herein. The manufacturer reserves the right to change the

specifications, functions, circuitry of the product, and manual content at any time without notice.

The manufacturer cannot accept liability for damages due to misuse of the product or other circumstances

outside the manufacturer’s control. The manufacturer will not be responsible for any loss, damage, or injury

arising directly or indirectly from the use of this product. (See limited warranty.)

System Introduction

Thank you for choosing the Vista KM III, USB Keyboard/Mouse Switch. It is the result of Rose Electronics

commitment to providing state-of-the-art solutions for today’s demanding workplace. The Vista KM III is a

dedicated USB KM (Keyboard and Mouse) switch capable of selecting and switching up to 8 different

computers through USB keyboard & mouse commands. With monitors directly connected to each PC/Server,

the Vista KM III enables a single USB keyboard and mouse to connect to and control all connected

PC/Servers.

Stereo analog audio output (4-port unit only) and USB 2.0 devices can be shared between the computers.

The switch can be connected to PC’s supporting single-head, dual-head and quad-head monitors, thus

increasing the versatility of the product in managing multi-head video installations

Switching computers can be controlled using keyboard hotkeys or RS-232 commands, as well as through the

unit’s front panel push buttons.

USB keyboard and mouse emulation provides quick PC source switching by means of keyboard hotkey

sequences. The Vista KM III imitates the presence of a keyboard and mouse to every attached computer

through its USB connection, even when the computers are not currently selected.

The Vista KM III is particularly suited to control desk and NOC applications where space constraints are a

major consideration, and where the user needs a quick and easy way to switch between multiple connected

PC/Servers.

Features

■Manage up to eight connected computers

■Dedicated processors for USB keyboard and mouse emulation

■Supports independent switching for USB 2.0 devices

■Full keyboard and mouse emulation for rapid switching

■Switch PC’s by using front-panel buttons, hotkeys and RS-232 control the mouse movement

■8-port unit comes with a front panel LED for selected channel display

■4-port unit also switches audio

■No software or drivers required for easy implementation, including multi-head use

Vista KM III Manual 2

Package Contents

The package contents consist of the following:

■The Vista KM III unit as ordered

■External power supply unit and country-specific power cable

■Manual

Additional cables that are required, but are not included in the package:

■USB cables, A to B

■Audio cables (4-port model)

■RS232 (DB9M) serial cable for serial port operation

Additional cables are usually ordered separately. If the package contents are not correct, contact Rose

Electronics or your reseller so the problem can be quickly resolved.

MODELS

Vista KM III Manual 3

Vista KM III Models

The Vista KM III comes in two models as shown below.

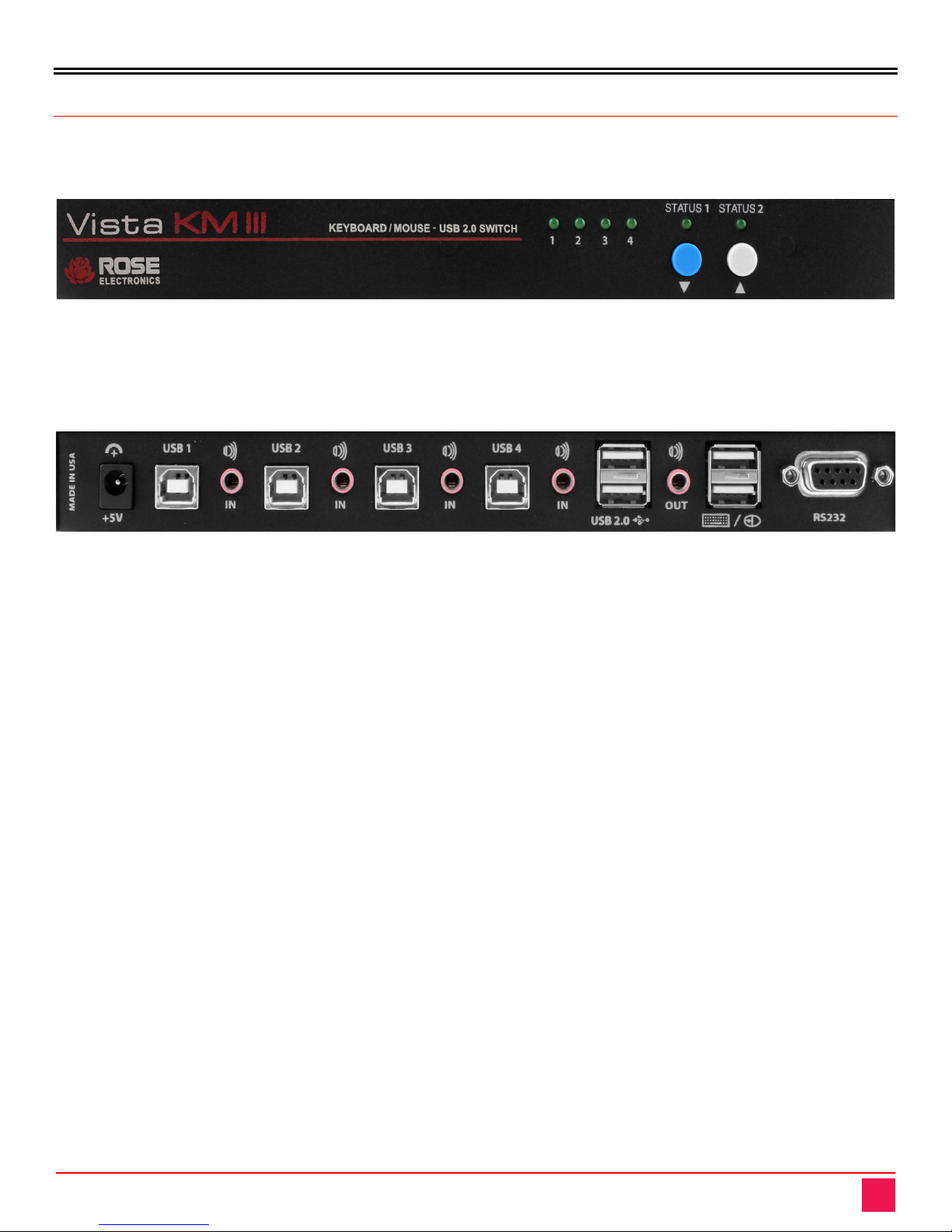

4-Port Model - Front View

Figure 1. Vista KM III Front View

The front panel has 4 x Station LED’s and 2 control buttons – Status 1 and Status 2.

4-Port Model - Rear View

Figure 2. KM-4USB- III Rear Panel

The rear panel of the Vista KM III has 4 x USB-B type connectors and Audio connectors for signals to and from

the computers. There are 2 x USB-A connectors for USB Keyboard and USB Mouse, and 2 x USB-A type

connectors for USB2.0 devices.

The RS232 control port has a DB9F connector.

The other ports on the back panel are as follows

■1 x DVI-D OUT Connect a DVI Monitor

■2 x USB KB/MS Connect a USB Keyboard/Mouse

■2 x USB 2.0 Connect any USB2.0 peripheral for sharing between computers

■1 x DB9F RS232 Serial control interface port

■1 x 3.5mm Audio Out Audio port for speaker connection

■1 x 5VDC Power connector for 5V PSU

Vista KM III Manual 4

8-Port Model - Front View

Figure 3. Vista KM III Front View

The front panel has 2 x Channel Select buttons, a 7-segment LED display and Status/Power LED indicators.

8-Port Model - Rear View

Figure 4. Vista KM III Rear Panel

The rear panel of the Vista KM III has 8 x USB-B type connectors for signals to and from the computers. There

are 2 x USB-A connectors for USB Keyboard and USB Mouse, and 2 x USB-A type connectors for USB2.0

devices.

The RS232 control port has a DB9F connector.

INSTALLATION AND OPERATION

Vista KM III Manual 5

Installation

Installation of the Vista KM III is very simple. The steps to do so are outlined below.

1. Ensure that power is disconnected from Vista KM III.

2. Connect the USB cables (male-A to male-B), from the computers to the respective ports on the Vista

KM III.

3. Optionally connect RS-232 for control functions.

4. Connect USB keyboard and mouse to the two USB ports labeled “KB/MS”.

5. Optionally connect USB peripherals (flash drives, printers, etc.) to the USB ports labeled “USB 2.0”.

6. Connect speakers to the Audio Out port. (4-port model only)

7. Apply power to the Vista KM III.

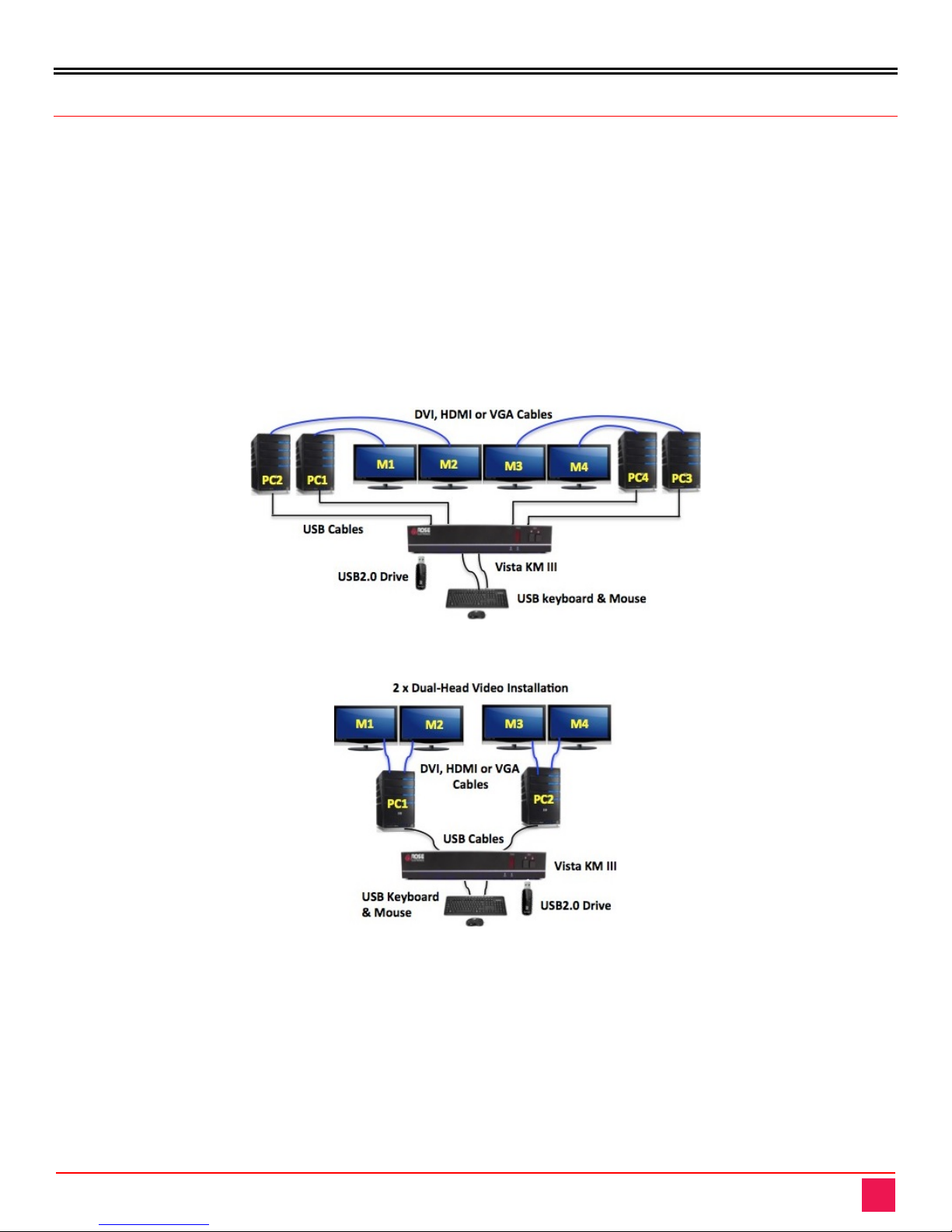

Two sample installation diagrams are shown below.

Figure 5. Vista KM III Single-Head Installation

Figure 6. Vista KM III Dual-Head Installation

Note:

It is not advisable to use native USB cable lengths greater than 10 ft (3 m), as longer cables may result in

intermittent USB keyboard/mouse performance.

Vista KM III Manual 6

Vista KM III Operation

This section deals with the use of the front panel buttons, and using RS-232 and hotkey commands.

4-Port Switch

Display Topology Selection

After connecting all devices to the Vista KM III, a display topology configuration and display mode must be

chosen. By default, the Vista KM III is configured to single-head display mode and a topology with 4 screens

arranged horizontally starting with port 1 on the left-hand side. The monitor installation setup must match one

of Vista KM III’s predefined display topology configurations. (See the next section)

The Display Topology can be selected through keyboard hotkey commands or through RS-232 control. If one

or more of the input computers have multiple displays then the multi-head display mode must be selected.

Otherwise, select the single-head display mode. Please refer to the Commands / Hotkeys table for the

commands to select single or multi-head mode

COMMANDS HOTKEYS RS232 CONTROL

Single-head display mode Ctrl + Ctrl + k + s //ks

Multi-head display mode Ctrl + Ctrl + k + m //km

Table 1. 4-Port Switch Single-head or dual-head selection

Display Topology Configuration

The Vista KM III has a configurable display topology that can be easily activated through keyboard hotkeys or

through RS-232 commands. No software or drivers required for configuring the display topology.

4 Displays – horizontal configuration

Hotkey Command: Ctrl + Ctrl + h + 4 + <CR>

RS-232 Command: //h4 <CR>

3 Displays – horizontal configuration

Hotkey Command: Ctrl + Ctrl + h + 3 + <CR>

RS-232 Command: //h3 <CR>

Dieses Handbuch passt für folgende Modelle

Inhaltsverzeichnis

Andere Rose electronics Schalten Handbücher

Rose electronics

Rose electronics Vista Remote 2 Bedienungsanleitung

Rose electronics

Rose electronics ORION Bedienungsanleitung

Rose electronics

Rose electronics UltraConsole Remote UCR-1R1X04U Bedienungsanleitung

Rose electronics

Rose electronics Vista AV Bedienungsanleitung

Rose electronics

Rose electronics MultiVideo HDMI MDM-4T2HD-A1MultiVideo HDMI... Bedienungsanleitung

Rose electronics

Rose electronics UltraVista Bedienungsanleitung

Rose electronics

Rose electronics UltraMatrix UM16-0X16U/E2 Bedienungsanleitung

Rose electronics

Rose electronics UltraLink UL-V3 Bedienungsanleitung

Rose electronics

Rose electronics Caretaker Plus Automatic Switch Bedienungsanleitung

Rose electronics

Rose electronics UltraMatrix EE2-1X16U/E Bedienungsanleitung

Rose electronics

Rose electronics SuperSwitch SS-9 Bedienungsanleitung

Rose electronics

Rose electronics RE2-1R2X16U Bedienungsanleitung

Rose electronics

Rose electronics MultiStation ML-2U Bedienungsanleitung

Rose electronics

Rose electronics MultiStation Bedienungsanleitung

Rose electronics

Rose electronics UltraLink UL-V3 Bedienungsanleitung

Rose electronics

Rose electronics ORION lc Bedienungsanleitung

Rose electronics

Rose electronics UltraMatrix AV Bedienungsanleitung

Rose electronics

Rose electronics UltraLink 2 Bedienungsanleitung

Rose electronics

Rose electronics Vista DP KVM-4TDP/A1 Bedienungsanleitung

Rose electronics

Rose electronics MASTER SWITCH Bedienungsanleitung

Rose electronics

Rose electronics Xtensys Bedienungsanleitung

Rose electronics

Rose electronics UEB-8UB Bedienungsanleitung

Rose electronics

Rose electronics Station Master Bedienungsanleitung

Rose electronics

Rose electronics Vista Mini Bedienungsanleitung

Beliebte Schalten Handbücher anderer Marken

URC

URC Total Control MFS-8 Bedienungsanleitung

Azbil

Azbil HPQ-D11 Bedienungsanleitung

Sony

Sony DFS-900M Bedienungsanleitung

SICK

SICK i17S Bedienungsanleitung

F&F

F&F SZR-277 Bedienungsanleitung

Shure

Shure UAMS/BK Bedienungsanleitung

Dräger

Dräger X-zone Switch Off Bedienungsanleitung

Asco

Asco Joucomatic 349 Series Bedienungsanleitung

BT Mini Hub Bedienungsanleitung

D-Link

D-Link DES-1226G Bedienungsanleitung

Johnson Controls

Johnson Controls FS80-C Bedienungsanleitung

Alcatel-Lucent

Alcatel-Lucent 7450 ESS-12 Bedienungsanleitung

MicroNet

MicroNet SP1200A Bedienungsanleitung

Ruijie

Ruijie RG-PF2920 Series Installations- und Betriebsanleitung

Altinex

Altinex DA1914SX Bedienungsanleitung

MiLAN

MiLAN MIL-SM2401M Bedienungsanleitung

RJM

RJM MASTERMIND PBC/6X Bedienungsanleitung

Atlas

Atlas MMK-KVM8 Bedienungsanleitung
