ROSIERES CIARRA Bedienungsanleitung
ENGLISH INSTALLATION AND USER’S MANUAL
ARABIC تﯾﺑﺛﺗﻟاو مدﺧﺗﺳﻣﻟا لﯾﻟد
FRENCH MANUEL D'INSTALLATION ET D'UTILISATION
ITALIAN MANUALE DI INSTALLAZIONE E USO
1
CONTENT
INTRODUCTION.............................................................................2
SAFETY PRECAUTION...............................................................2-3
PREPARE FOR INSTALLATION....................................................4
INSTALLATION............................................................................5-6
AIR VENTILATION SETTING.........................................................7
DESCRIPTION OF COMPONENTS............................................8-9
MAINTENANCE............................................................................10
TROUBLESHOOTING..................................................................11
ENVIRONMENTALPROTECTION................................................11
INSTALLATION AND USER’S MANUAL
2
INTRODUCTION
Thank you for choosing this CIARRA cooker hood.
This instruction manual is designed to provide you with all required
instructions related to the installation, use and maintenance of the
appliance.
In order to operate the unit correctly and safety, please read this instruction
manual carefully before installation and usage.
The cooker hood use high quality materials, and is made with a streamlined
design. Equipped with large power electric motor and centrifugal fan, it also
provides strong suction power, low noise operation, non-stick grease filter
and easy assembly installation.
SAFETY PRECAUTION
Never let the children operate the machine.
The cooker hood is for home use only,not suitable for barbecue, roast shop
and other commercial purpose.
The cooker hood and its filter should be clean regularly in order to keep in
good working condition.
Clean the cooker hood according to the instruction manual and keep the unit
from danger of burning. There is a fire risk if cleaning is not carried out in
accordance with the instructions.
Forbid the direct baking from the gas cooker.
Please keep the kitchen room a good convection.
If the supply cord is damaged, it must be replaced by the manufacturer, its
service agent or similarly qualified persons in order to avoid a hazard.
There shall be adequate ventilation of the room when the range hood is used
at the same time as appliances burning gas or other fuels;
The air must not be discharged into a flue that is used for exhausting fumes
from appliances burning gas or other fuels;
Regulations concerning the discharge of air have to be fulfilled.
This appliance can be used by children aged from 8 years and above and
persons with reduced physical, sensory or mental capabilities or lack of
experience and knowledge if they have been given supervision or instruction
3
concerning use of the appliance in a safe way and understand the hazards
involved.
Children should be supervised to ensure that they do not play with the
appliance.
Cleaning and user maintenance shall not be made by children without
supervision.
Do not flame under the range hood.
CAUTION: Accessible parts may become hot when used with cooking
appliance.
The warning shall be in the same part of the instructions that include details
of how to mount the equipment.
Electrical Shock Hazard
Only plug this unit into a properly earthed outlet. If in doubt seek advice from
a suitably qualified engineer.
Failure to follow these instructions can result in death, fire, or electrical shock.
4
PREPARE FOR INSTALLATION
a. If you have an outlet to the outside,your cooker hood can be connected as
below picture by means of an extraction duct (enamel, aluminum, flexible
pipe or inflammable material with an interior diameter of 150mm)
b. Before installation, turn the unit off and unplug it from the outlet.
c. The cooker hood should be placed at a distance of 65~75cm above the
cooking plane for best effect.
5
INSTALLATION
Attention! Observe the warning in the instruction sheet concerning the
operation of the appliance when air is discharged from the room.
When the range hood and appliance supplied with energy other than
electricity are simultaneously in operation, the negative pressure in the
room must be not exceed 4 Pa (4×10-5 Bar)
Way one:
To install onto the wall drill 2 holes of Ø8mm on a suitable place according
with the centre distance of hole in the back of the cooker hood.
Insert the nut into the holes.
Insert the screws into the nuts and tight. Put the cooker hood onto the
tighten screws.
Fix the cooker hood with safety screw. The two safety vents are positioned
on the back casing, with diameter of 6mm.
Put the one way valve onto the cooker hood.
6
Way two:
Drill 4 holes of 6mm diameter at the bottom of the hanging cupboard
Put the one way valve on the cooker hood, then install the cooker hood on
the bottom of the hanging cupboard, tighten the hood with enclosed 4
screws.
Note:
1.The extensible pipe are optional accessory, not supplied.
2.Take off protection film before installation.
3.There are 2 methods for ventilation , including ' horizontal ventilation' and '
vertical ventilation'. Please pay attention to the ventilation method when
installation.
Vertical ventilation: See Pic A, please use tool take out the round cover before
using, and the air can be vented from top
horizontal ventilation: See Pic B, please use tool take out the rectangular cover
before using, and the air can be vented from back.
The rectangular air outlet for horizontal ventilation is not supplied.
7
AIR VENTILATION SETTING
Outdoor exhausting: Turn the adjuster to outdoor position, install the outlet,
turn on the cooker hood, then the air will be vented from the outside outlet.
Recycling: the recycling mode with carbon filter ,Turn the adjuster to indoor
position, install the outlet cover, turn on the cooker hood, then the air can be
vented from the inside outlet.
Note: The charcoal filter is mounted on the back of the grill and must be
changed once three month.
Warning: the charcoal cannot be washed or recycled. It should be changed
at most after 120 hours using. The carbon filter shouldn’t be exposed to
heat.
NOTE:
Make sure the filter is securely locked. Otherwise, it would
loosen and cause dangerous.
When activated carbon filter attached, the suction power will be
lower.
8
DESCRIPTION OF COMPONENTS
OPERATION
Low Speed buttom
It’s used for Ventilation on the kitchen. It is suitable for simmering and cooking
which do not make much steam.
Medium Speed buttom
Airflow speed is ideally for ventilation in standard cooking operation.
High Speed button
When high density of smoke or steam produced, press high-speed button for
highest effective ventilation.
Light button
NOTE: If Low / Medium / High speed buttons are press at the same time, the unit
will only operate at the highest speed.
1
2
3
9

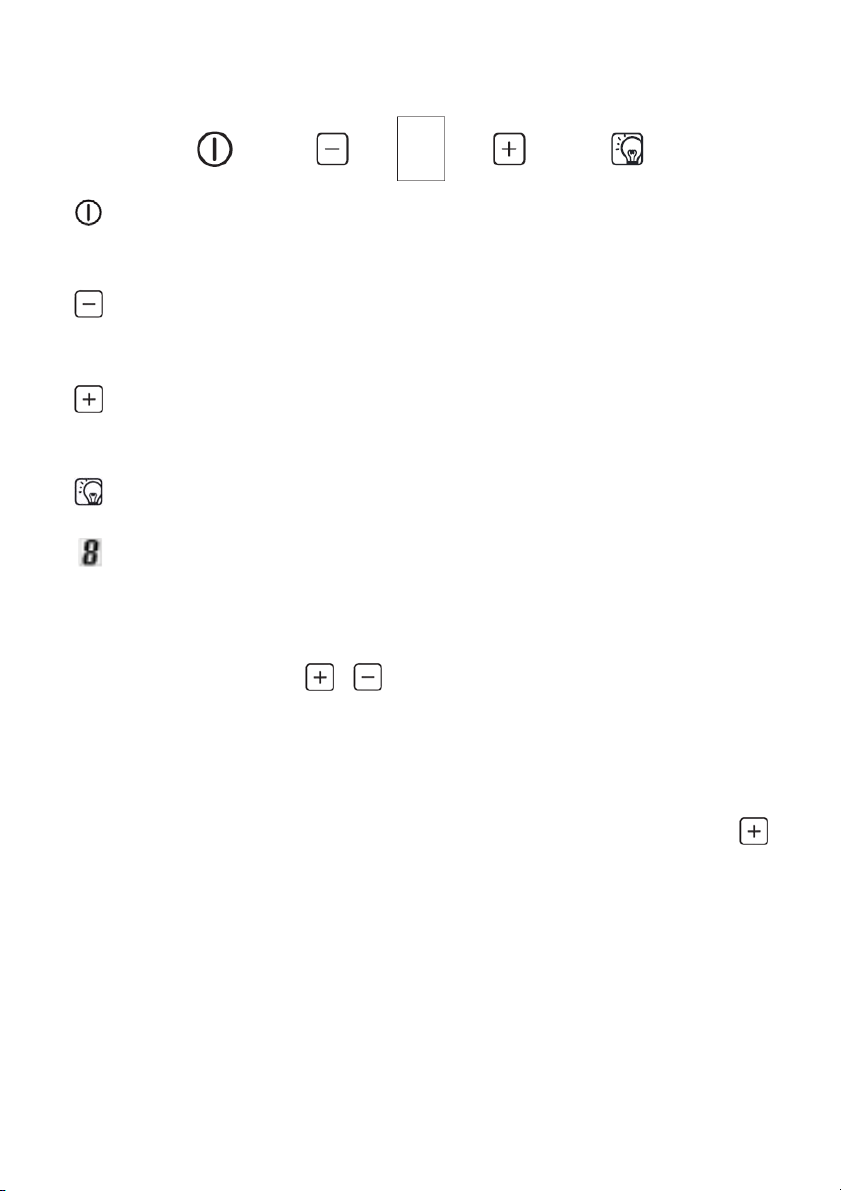

On/Off button
It’s used for turning on/off the fan.
Speed plus button
For increasing the speed of the fan
Speed decrease button
For decreasing the speed of the fan.
Light button
Digital display
Fan speed display:"1" for Low speed, "2" for Medium speed,
"3" for High speed,"4" for Booster function.
Quick timer: Press & hold for 1 second, Digital display will
flashing & into 5 minutes count down, after 5 minutes motor & light
will turn off automatic & Buzzer sound for 1 second.
Booster function
This hood has a booster function. To activate the booster, Press
to speed 4, enter into highest speed while the hood is in use and it
will increase speed for 5 minutes, before slowing down again.
