Vamp Spin Speaker

Installation Instructions

Speaker Hardware

Pg. 1/2

THREADLOCKER

Tools Required

Wire Strippers

& Crimps 5/16”

Allen Key

Phillips

Screw Driver

Deutsch

Wiring Harness x2

NOTES

*BEFORE WIRING ANYTHING PLEASE MAKE SURE YOUR BOAT, DECK, AND AMP ARE ALL TURNED OFF*

Pencil

Safety Lanyard x2

x6 x2

Rev. 28-May-15

• You will need to connect the included 20” Deutsch wiring harnesses to your tower

wires according to the chart in STEP B. Please note the Black and Blue wires of the

wiring harnesses are not used in this installation

Wiring Diagram

Port

Starboard

Function

Port Speaker +

Port Speaker –

Function

Stbd Speaker +

Stbd Speaker –

Speaker Wire

White

White/Black

Speaker Wire

White

White/Black

Tower Wire

Green

Green & Black

Tower Wire

Purple

Purple & Black

Crimp

Stbd Spk + Stbd Spk –

Port Starboard

Crimp

Port Spk + Port Spk –

If you have any questions please call : 1-321-638-1331

www.roswellmarine.com

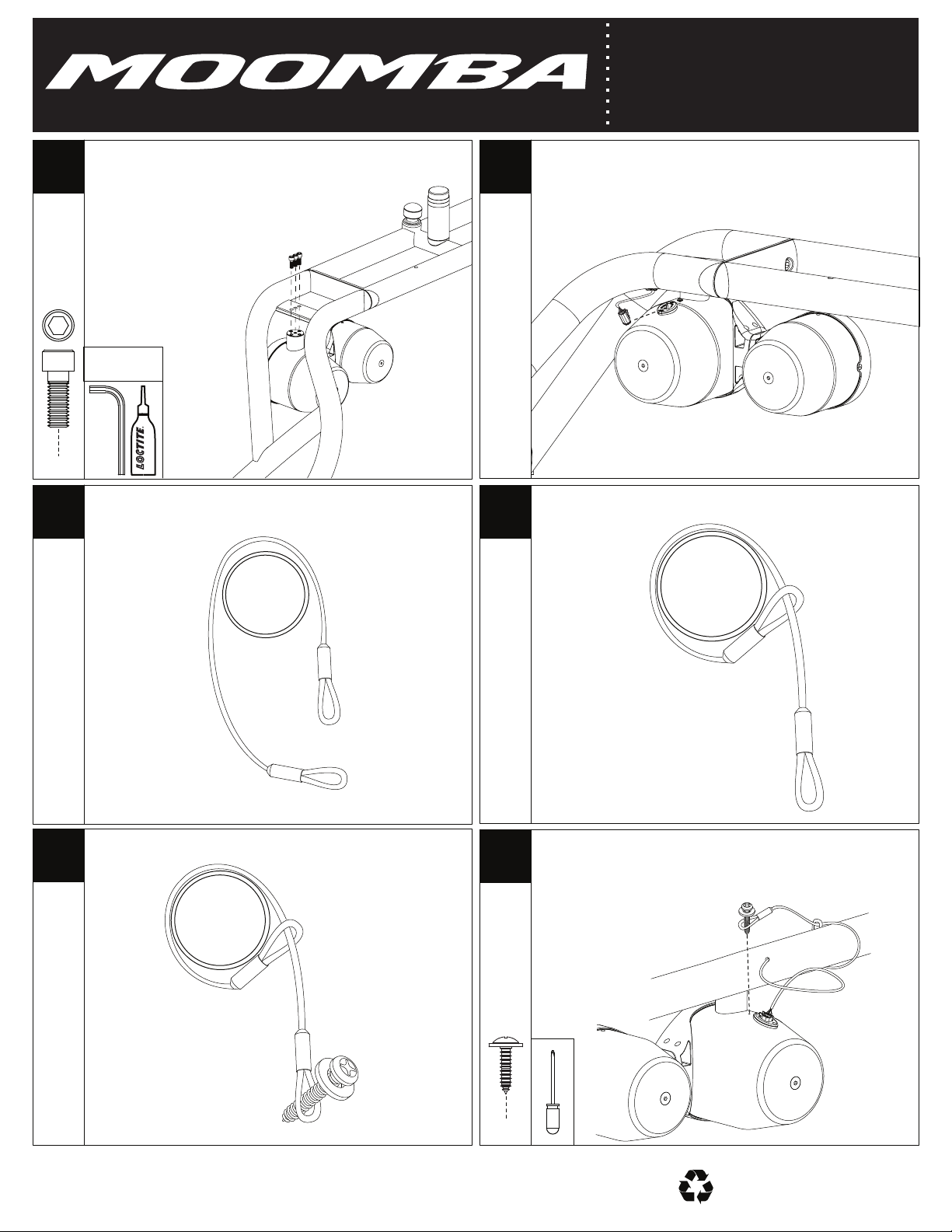

Loop the safety lanyard over the tower next to the

speaker clamp.

Apply RED Loctite to 3 bolts and fasten speaker

through tower speaker plate using a 5/16” allen key.

With your stereo/amp switched off, insert the Deutsch

wiring harness into speaker.

TOWER

5/16”

Torque bolts

to 20 ft/lb

THREADLOCKER

Feed one end of the lanyard through the other end.

Insert the screw through the washer and lanyard loop. Using a Phillips head screwdriver, securely attach the

lanyard to the small hole on the speaker between the

base of the clamp and the Deutsch connector.. Do not

over tighten.

TOWER

Pg. 2/2

Rev. 28-May-15

Vamp Spin Speaker

Installation Instructions

If you have any questions please call : 1-321-638-1331

www.roswellmarine.com
