Roxy RSA-65M Bedienungsanleitung

SPECIFICATIONS

RSA-65M / RSA-60DPModel No.

POWER REQUIREMENT AC: 220-240V 50/60Hz,

DC: 12V Car Battery

R.M.S POWER OUTPUT:

MAXIMUM 80 Watts

At 10% THD 65 Watts

At 5% THD 45 Watts

At 2% THD 36 Watts

INPUT CHANNELS 4 x Mic 0.5mV/ 4.7K? ,

2-AUX:

AUX-1 50mV/ 470K? ,

AUX-2 150mV/ 250K?

DIGITAL PLAYER* MP3 Player with USB/ BT/ FM Functions & Remote Control

FREQUENCY RESPONSE 60Hz - 15000Hz ± 3dB

TONE CONTROLS BASS: ±10dB at 100Hz (Cut-Boost Type)

TREBLE: ±10dB at 10KHz (Cut-Boost Type)

LINE BOOSTER OUTPUT 500mV/ 600?

S/N RATIO 60dB

OUTPUT TAPS FOR SPEAKERS 4? , 8? , 16? & 100V Line

PROTECTION 2A AC Fuse, AMPLIFIER IS PROTECTED

AGAINST WRONG BATTERY POLARITY

DIMENSIONS W385 x 120H x 295D mm

WEIGHT 6.250 KG

* Not available in RSA-65M

PA Mixer Amplifier + Digital Player

65W RMS / 80W Max.

RSA-65M

RSA-60DP

OPERATIONOPERATION

M A N U A LM A N U A L

MODEL No.

www.roxy.in

• Design and Specifications are subject to change without notice.

• Technical specifications are estimates only 12/18.

facebook.com/roxypasystem

twitter.com/roxypasystem

www.roxy.in

MADE IN INDIA

USB

READER

SAFETY INSTRUCTIONS

FEATURES OF PRODUCT

•

RSA-65M / RSA-60DP is a 65W power output Mixer

Amplifier with 4-MIC & 2-AUX inputs.

RSA-65M / RSA-60DP has a line output for connecting

to a Booster Amplifier.

5-LED array display is provided to track speaker output

level.

Cut/Boost type Bass & Treble Control provided for

enhanced tonal adjustment.

RSA-60DP has Built-in MP3 Digital Player with USB/

BT/ FM Functions & Remote Control. It can be used to

playback MP3 format songs from different sources like

USB Drive or SD cards. An LED display enables users

to keep a track on songs to be played.

Provision for automatic changeover from AC to Battery

operation if batteries are connected to ensure

continuity of program in case of power failure.

Protection provided against reverse polarity Battery

connections.

Designed for a wide variety of PA applications.

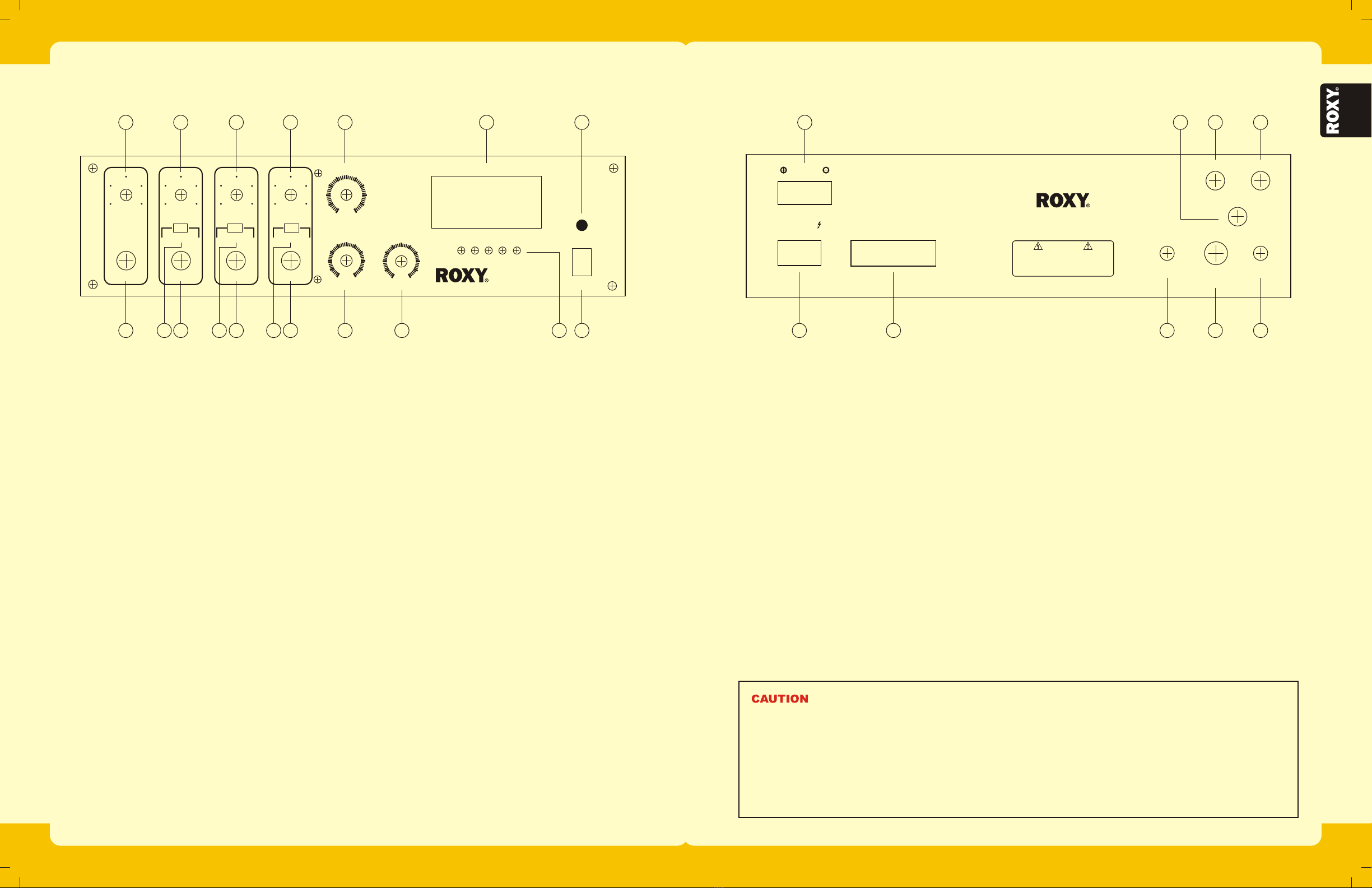

FRONT PANEL CONTROLS & FEATURES

1. MIC-1 INPUT JACK SOCKET

For accepting unbalanced signal from a

low impedance microphone.

2. MIC-2 / AUX-1 SELECTOR SWITCH

3. MIC-2 INPUT JACK SOCKET

4. MIC-3 / AUX-2 SELECTOR SWITCH

5. MIC-3 INPUT JACK SOCKET

6. MIC-4 / USB SELECTOR SWITCH

7. MIC-4 INPUT JACK SOCKET

8. BASS CONTROL

To Cut/Boost Bass Effect

9. TREBLE CONTROL

To Cut/Boost Treble Effect

10. LED ARRAY

This indicates the output level of the

Amplifier.

11. POWER SWITCH

To Turn On/Off Amplifier

12. POWER LED

This LED glows when the amplifier is

switched ON.

13. BUILT-IN MP3 DIGITAL PLAYER

DP-79

14. MASTER VOLUME CONTROL

For adjusting the overall volume level

from the amplifier.

15. MIC-4 / USB VOLUME CONTROL

16. MIC-3 / AUX-2 VOLUME CONTROL

17. MIC-2 / AUX-1 VOLUME CONTROL

18. MIC-1 VOLUME CONTROL

19. SPEAKER TERMINAL BLOCK (100V)

For connecting speakers with 100V line

matching transformers.

MIC-1 MIC-2/AUX-1 MIC-3/AUX-2 MIC-4/USB

MASTER

MIC-2/AUX-1 MIC-3/AUX-2 MIC-4/USB

MIC-1 MIC-2 MIC-3 MIC-4

+1 0

-1 0

BASS

CUT BOOST

+1 0

-1 0

TREBLE

-13 -8 -3 0dB +3

POWER

OUTPUT LEVEL

RSA-60DP

CUT BOOST

MP3 DIGITAL PLAYER

1 2 3 4 5 6 7 8 9 10 11

12131415161718

REAR PANEL CONTROLS & FEATURES

20. SPEAKER TERMINAL BLOCK

(4? , 8? & 16? )

For connecting low impedance

speakers.

21. EARTH TERMINAL

22. AC MAINS FUSE (Rating 2 AMP)

This protects the amplifier from

excessive current flow.

23. 3 CORE AC MAINS CABLE PLUG

24. AUX-2 INPUT JACK SOCKET

For accepting auxiliary input from

Cassette Player, CD player, Echo unit

etc.

25. AUX-1 INPUT JACK SOCKET

26. LINE OUTPUT JACK SOCKET

For connecting to a booster amplifier to

obtain combined higher power output.

27. BATTERY TERMINAL BLOCK

For connecting 12V Car Battery as

standby power source.

• Disconnect input to AUX-2 Socket before using Built-in MP3 Digital Player. It should be noted that a user can

use eitherAUX-2 source or Built-in MP3 Digital Player at one given point of time.

• Do not eject USB/SD Card while playing or using Built-in MP3 Digital Player. Doing so may damage USB/SD

Card or Built-in MP3 Player.

• When speakers are connected to low impedence Terminal Strip (COM-4? -8? -16? ), no speakers should be

connected to COM-100V Terminal Strip & vis-a-versa doing so may damage Amplifier or Speaker or both.

AUX-1 AUX-2

50mV 150mV

LINE

OUT

BOOSTER

FUSE

AC-2A

12V DC

COM 100V 4WCOM 8 W16 W

RSA-60DP

MADE IN INDIA

NO USER SERVICEABLE PARTS INSIDE. REFER SERVICING TO

QUALIFIED PERSONNEL ONLY. THIS EQUIPMENT MUST BE

EARTHED. DISCONNECT POWER SUPPLY CORD BEFORE

CHANGING FUSE OR REMOVING COVER. TO PREVENT FIRE

OR SHOCK HAZARD, DO NOT EXPOSE THIS EQUIPMENT TO

RAIN OR MOISTURE.

CAUTION

19 20 21

EARTH TERMINAL

22 23

24252627

MP3 DIGITAL PLAYER: CONTROLS & FEATURES

-: MP3 DIGITAL PLAYER :-

A. SD/MMC Card Connector: Insert the SD/MMC Card into

its appropriate slot to play. When taking out the card, pull

the card to take out.

While inserting SD/MMC card into the slot, ensure that

the card is inserted in such a way that all pins are facing

downward and cut is towards right as shown in figure.

B. USB Connector: Insert the USB drive here. While

inserting USB drive into the USB connector, hold the USB

drive in such a way that hollow part of the USB drive is

upwards as shown in Figure.

Any forceful insertion in wrong direction will damage the

connector.

C. REPEAT : Press once to repeat the song being

played. Press again to repeat all the songs.

D. VOL–: To decrease volume level of MP3 Player.

E. MODE: To select SD or USB if both are inserted.

F. STOP: To stop the track being played.

G. VOL+: To increase volume level of MP3 Player.

H. PLAY/PAUSE: Press PLAY/PAUSE once to Pause

if music is already playing. Press PLAY/PAUSE again to

resume playing. Play will resume from the same point

where it had stopped.

I. Next: Press NEXT to select next forward music

track. Pressing NEXT repeatedly will move the system to

successively next forward tracks.

J. PREV: Press PREV to Select the previous track.

Pressing PREV repeatedly will move the system to

successively previous tracks.

K. LCD DISPLAY: Displays 3 digits of the track selected to

play i.e. 001 to 999. During play, displays the time

duration of the track played.

L. IR Sensor: Picks up signal from the Remote control.

Point the Remote control towards this sensor when using

the remote control.

M. POWER ON LED

N. POWER: Press once to switch off MP3 digital player,

press again to switch ON.

O. Number Key 0 to 9. To Choose the track number to be

played.

P. : To select the previous track.

Q. MODE: To select SD or USB if both are inserted.

R. : Press to select the next track.

S. : Press once to repeat the song being played. Press

again to repeat all the songs.

T. STOP: Press to stop the track being played.

U. VOL: Press to decrease the volume of Digital Player.

V. MUTE: Pres once to mute the sound, press again the

resume the sound.

W. VOL: Press to increase the volume of Digital Player.

X. PLAY/PAUSE: Press Play/Pause once to Pause

when music is already playing. Press Play/Pause again

to resume replaying.

Y. BATTERY REPLACEMENT: Pull out the battery tray and

replace the battery with positive electrode facing

upwards as shown in figure below. Push the battery

compartment back to theclose position. Use CR2025 or

equivalent lithium coin cell.

-: REMOTE CONTROL :-

POWER MUTEPLAY

1 2 3

456

78 9

PAUSE

REPEAT

FFREW

NEXT VOLPREV

MODE STOP

DIGITAL PLAYER

REPEAT

VOL -MODESTOP

VOL +NEXTPREV

USBSD CARD

PWR

A B C

GHI

DP-79

NOTES:
