Royal Sovereign RHD-2201 Bedienungsanleitung

Royal Sovereign International Inc.

OWNER'S MANUAL

Model No. RHD-2201

English

LAMINATOR

Please read instructions carefully before use.

Introduction 3

Package Contents 3

Safety Precautions 4

Parts 5

Features Guide 7

Operating Instructions 8

Maintenance 10

Trouble Shooting Guide 10

Warranty 12

Contents Page

TABLE OF CONTENTS

RHD-2201

INTRODUCTION

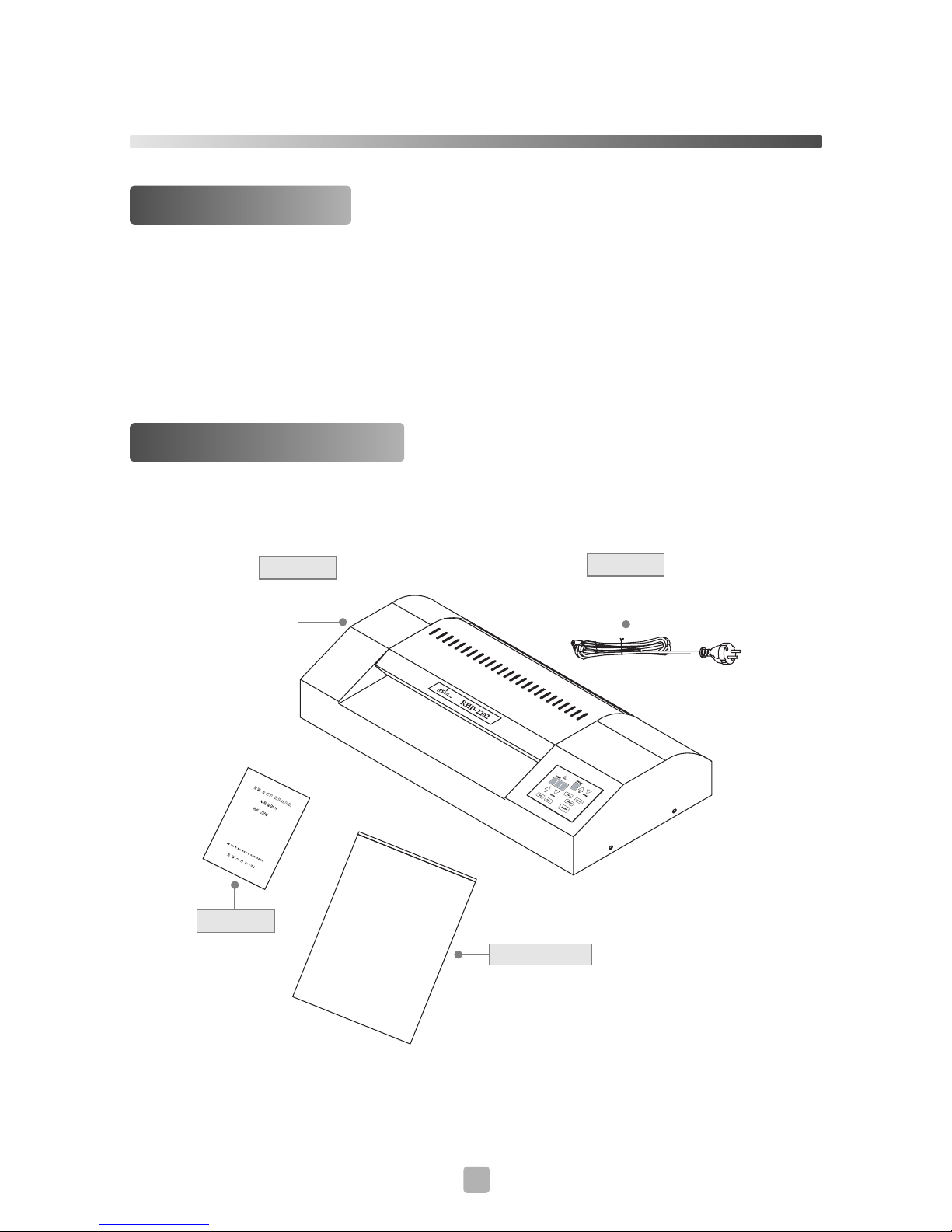

PACKAGE CONTENTS

Power Code

Manual

Cleaning Paper

Main Body

RHD-2201

Thank you for purchasing the RHD-2201 Pouch laminator. It has been designed

and manufactured to provide years of continuous service. For high quality

lamination, please read this instruction manual thoroughly. This manual will

provide you with complete operating and maintenance information.

SAFETY PRECAUTIONS

Failure to comply with any of the following safety procedures

could result in serious injury.

Keep this information for future reference.

WARNING

1. Insure the unit is plugged into a properly grounded outlet with the correct voltage.

2. Only licensed electricians should service or repair the electrical wiring.

3. Keep flammable and wet objects away from the machine.

4. Place machine on a flat sturdy surface.

5. Avoid excessive sunlight, humidity and temperatures.

6. Unplug the machine when moving it or when it's not in use.

7. Keep out of reach of children.

8. Only authorized maintenance and service technician are permitted to make

repairs to the machine.

9. When cleaning the machine, don't use flammable sprays or materials.

10. Do not touch the rollers or allow foreign objects inside the machine.

RHD-2201

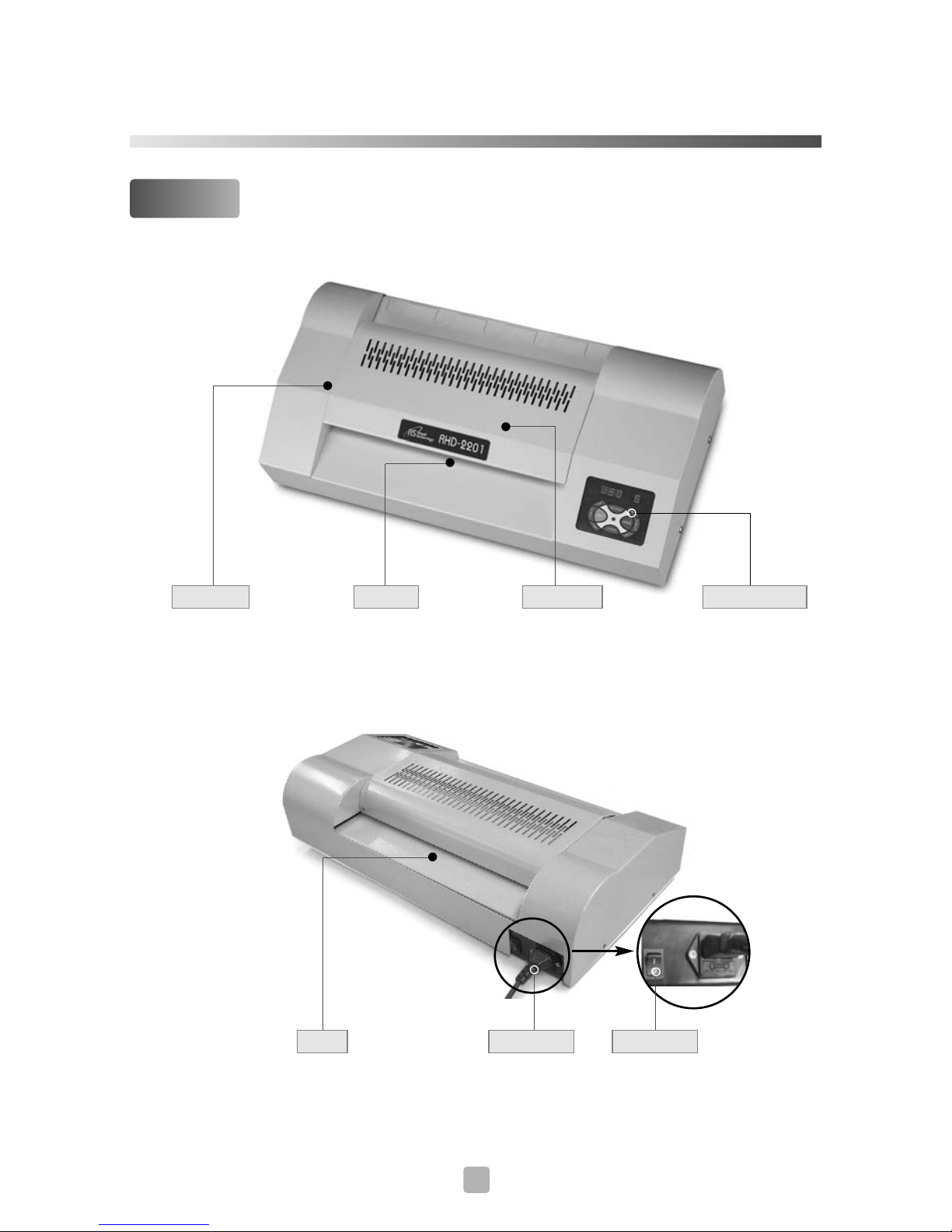

PARTS

Metal cover Cover Roller Operation paneEntrance

Exit Power cord Power switch

Detail for the operation panel

Power : It starts after pushing button, and it is set temperature 90ºC and speed

6step(75mic+80g) when the start.

Please push the power button when shut off. It is set the temperature

60ºC and speed 2step automatically, then it is stop automatically after for

a while.

HOT : After pushing Cold function and Stand By function then pushing HOT

button that is set up the temperature 90ºC and speed 6 step automatically.

Please control the temperature and speed on it’s requred film specification

referring to the manual “Film Termperature and Speed chart”

Cold : Please push the cold button when the lamination of cold film.

Temp : It can be controled 40ºC ~ 160ºC in unit of 1ºC

In case of wide range of temperature, please push the button

continuously.

Speed : It can be controled 1~9 step in units of 1step

(Please refer to the manual “Film Termperarure and Speed Chart”)

Start lamp : When not ready, light on and off repeatably

When ready, the lamp light on

Reverse : In case of wrong inserting and rolled film, the machine has a reverse

function

Stand By : It is set up the temperature 80ºC and speed 2step automatically.

(please use this function when you stop the machine for a while)

T-Check : In case of changing temperature and starting the machine, the present

temperature of roller can be checked.

RHD-2201

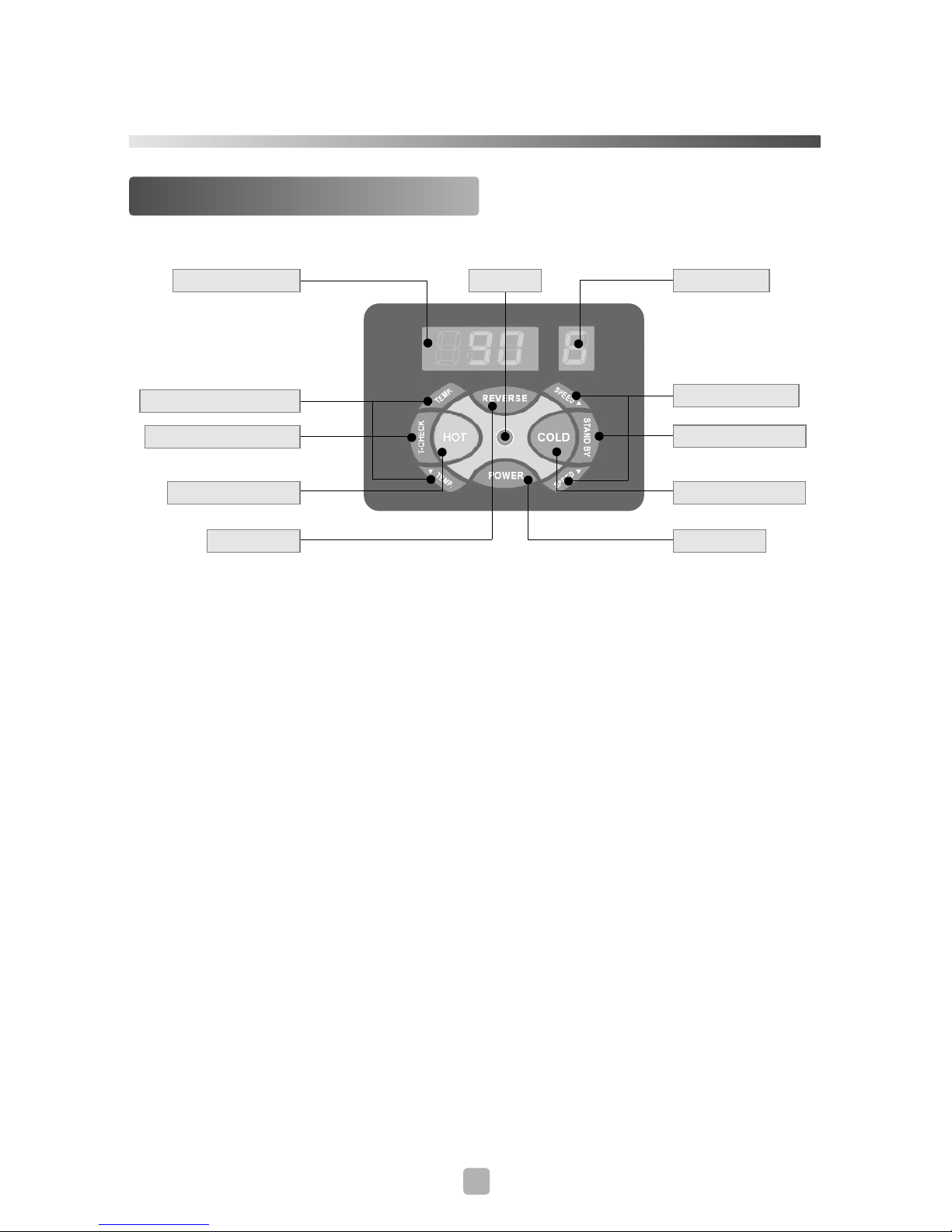

Temperature window Ready lamp Speed window

Temperature control button

Temperature check button

Speed control button

Cold lamination button

Reverse button Power On/Off

Stand By Button

Hot lamination button

FEATURES GUIDE

1. 6 Rollers Product : High quality and fast speed with 6 Rollers laminator.

2. Hot and Cold function : There are Hot and Cold function that can be used

both hot and cold film

3. Use different film : Hot film, Cold film, Thinflex film, Foam board, Foil

4. Temperature and Speed Control Function : It can be controled the

temperature 40~160ºC in unit of 1ºC and 1~9 step in unit of 1step.

It can be controled temperature and speed on it's required specification of

various film lamination.

5. Reverse Function : In case of wrong inserting and rolled film, the machine

has a reverse function

6. Stand By Function : The machine can be staying in 80ºC of temperature

continuously that the user who frequently use the machine can reduce the

ready time for saving eletronic power.

7. Fast Speed : Maximum speed is 2700mm / min, and 1~9 step can be

controled for it's condition of lamination.

8. Preventing Overheat Function : When the wong condition of termperature

sensor, heating system is automatically stopped for safety.

9. FND Display : It can be seen it's speed and temperature condition at day and

night through the FND window.

10. Present Temperature Function : The user can check the present

termperature.

11. Automatical shutting off function : It can be shut off the power supply

automatically after the use.

12. Cover Roller : There is special cover on the roller to help the clean.

13. Button Sound : The user know it's condition through the button sound.

14. Accuracy : The temperature and speed are very accurate by Microprecessor.

15. Stability : Heating can be transmitted to the roller very stablely by using

Quartz and High-sensor heater.

16. Simplicity : It's simple and fascinate design can be used in every place and

simply set up.

17. Safety : It is guranteed by the perfect after-service.

RHD-2201

OPERATING INSTRUCTIONS

1. Place the machine on a flat sturdy surface.

2. Insure the unit is plugged into a properly grounded outlet with the correct

voltage power plug and outlet.

3. Turn the laminator ON located on the rear of the machine.

4. Push on POWER button.

5. Press the HOT FILM or COLD FILM button according to the film you are using

for lamination.

6. If you are laminating several items and need hot lamination for some and cold

lamination for some we recommend you laminate the cold pouch items first to

save time.

7. Choose appropriate laminating thickness and speed using the FND controller,

Please see below temperature and speed table which is standard for

RHD-2201.

* Materials to be laminated :

80g = Thin paper such as paper for fax machine or magazine.

120g = Copy paper

200g = Pictures, Catalogues

* NOTE : The weight of paper may vary depending on manufacturers therefore

it is recommended to adjust proper temperature and speed

accordingly.

• We recommend you use Royal Sovereign laminating film.

• The above table is based on Royal Sovereign's film.

RHD-2201

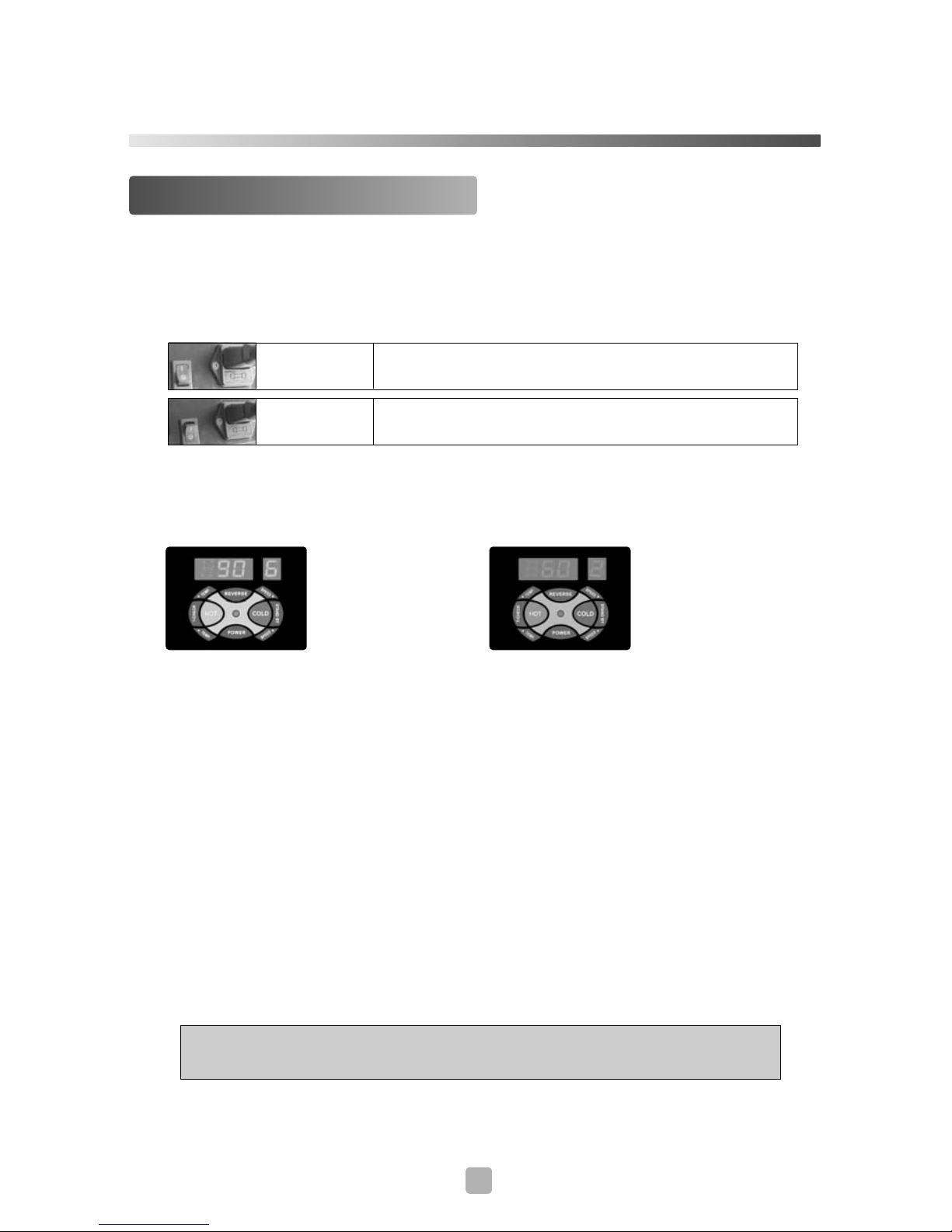

Finishing lamination

(Please turn off the machine when rollers are cooled down)

> Power Off

> Use for Hot Button

Starting lamination

> Power On

> Use for Cold Button

8. Please wait until " Ready Lamp" is steadily lit.

(If materials are laminated while Ready Lamp is blinking, lamination results

may not be good enough).

9. Once the ready lamp is steadily lit place the lamination pouch with the sealed

end first into the entrance of the laminator.

10. The laminated item will exit the rear of machine.

11. If an item gets jammed press the "Reverse" button to clear the jam.

12. For periods in between jobs set the laminator to "pre-heat" to conserve

electricity.

13. Repeat the above steps until all of your lamination is completed.

When lamination is completed turn the power off

RHD-2201

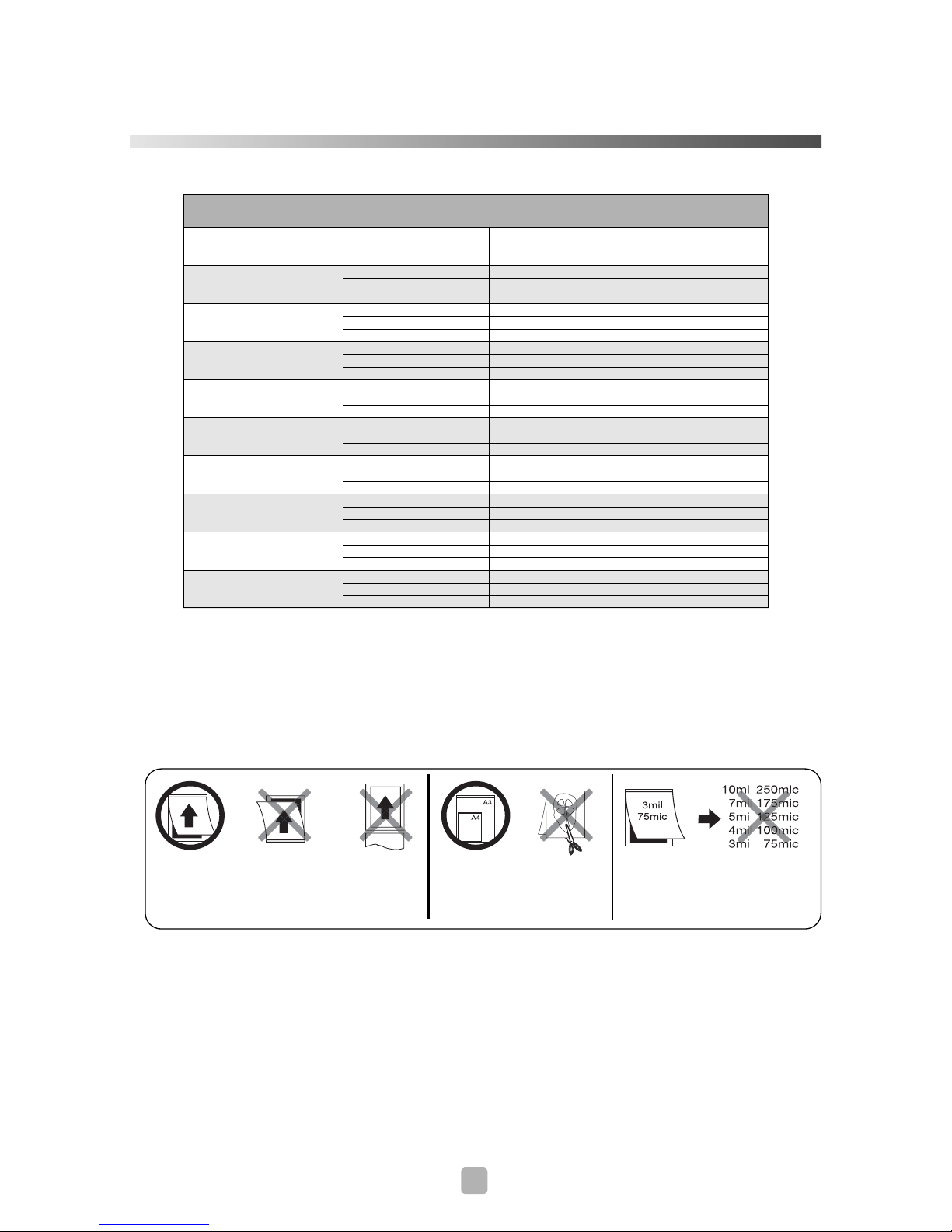

Make sure that you place the laminating pouch

with the sealed end first into the entrance of the

laminator.

Only laminate whole pouches,

DO NOT cut or alter pouches

in anyway before laminating.

Set temperature according to

pouch film thickness.

FILM SETTINGS -Based on 25˚C-

Film Thickness

75 mic (3 mil)

100 mic (4 mil)

125 mic (5 mil)

150 mic (6 mil)

175 mic (7 mil)

200 mic (8 mil)

250 mic (10 mil)

THINFLEX

FOIL

100

105

110

115

125

120

125

120

125

120

200

120

200

120

200

120

200

120

200

120

200

120

200

120

200

120

200

Paper(g) Temp(˚C) Speed

MAINTENANCE

TROUBLE SHOOTING GUIDE

Using Cleaning Paper :

1. Turn the laminator ON located on the rear of the machine.

2. Please wait until " Ready Lamp" is steadily lit.

Once the ready lamp is steadily

lit place the cleaning paper in the entrance of the machine. Once the paper

has exited the machine fold the cleaning paper so that the inside is now

facing out and again place the paper in the entrance of the machine.

3. Continue repeating step 2 until the paper exits the machine and is not dirty.

* NOTE : Rollers should be cleaned after 10 laminations.

Do not use regular paper to clean the rollers it must be plain coated

white paper.

Do not apply any cleaning fluids to the rollers, certain fluids may cause damage.

5. Do not clean rollers with sharp or pointed objects.

6. Use a damp cloth with water to clean the body of the machine.

7. Store machine in a dry clean area.

RHD-2201

Motor doesn't work. 1. Check if the power cord is plugged in.

2. Check if the power is on.

Problem Possible Solution
