Royole RoKit Introduction

Development Kit Introduction

1.1 Basic introduction

1.2 Fully flexible display (FFD) introduction

1.3 Fully flexible sensor (FFS) introduction

1.4 Development mainboard introduction

1.5 HDMI adapter board introduction

1.6 Expansion accessories introduction

Development Kit Introduction

Royole RoKit (Royole Flexible Development Kit, hereinafter referred to as RoKit)

is a flexible product development verification tool kit launched by Shenzhen Royole

technology for smart hardware product developers (product designers and

application developers) in various industries, as well as individual hobbyists and

tech enthusiasts who love hands-on work with basic hardware/system components

required for the development process.

RoKit is composed of one fully flexible display (FFD), one fully flexible sensor

(FFS), Android 10 system development motherboard, an HDMI adapter board,

expansion accessories, adapters and related wiring harnesses.

1.1

Basic introduction

Product appearance

RoKit interior

5. Data Cables

üMicro USB

üType-C USB

üMicro HDMI

1. Fully Flexible Display (FFS)

Fully Flexible Sensor (FFS)

4. Expansion Accessories

üFFD Extension Cord

üFFS Lead Plate

üFFS Transfer Board

üMic Expansion Board

üOptical Distance Sensing

Expansion Board

üPower Conversion Board

üWIFI Antenna

2. Development Mainboard

3. HDMI Adapter Board

6. Quick Guide

*Anti-static EVA as partition

Internal component layout

RoKit components

Components

Specifications

Qty

Carton

specifications

Size

360mm*260mm*100mm

(Length*Width*Height)

Material

Aluminum box, built-in anti-

static EVA

Weight

<2500g

Front cover

component

Fully flexible display

module (FFD)

• Royole Third-Generation

Cicada Wing Fully

Flexible Display

• 7.8 inch

• Supports touching

Fully flexible sensor

module (FFS)

7.8inch

Back cover

components

Development

mainboard

Qualcomm SDA660 platform

solution, Android 10

HDMI adapter board

HDMI to MIPI

Expansion accessory

box

• FFD extension cable * 2

• FFS expansion board * 1

• FFS lead board * 1

• Microphone expansion

board * 1

• Optical distance sensing

expansion board *

• Power conversion board *

• Wi-Fi antenna * 2

HDMI data cable

Micro HDMI, 1m

USB data cable

Micro USB, 1m

System data cable

Type-C, 1m

Adapter

5V 2.0A (Not included)

1.2

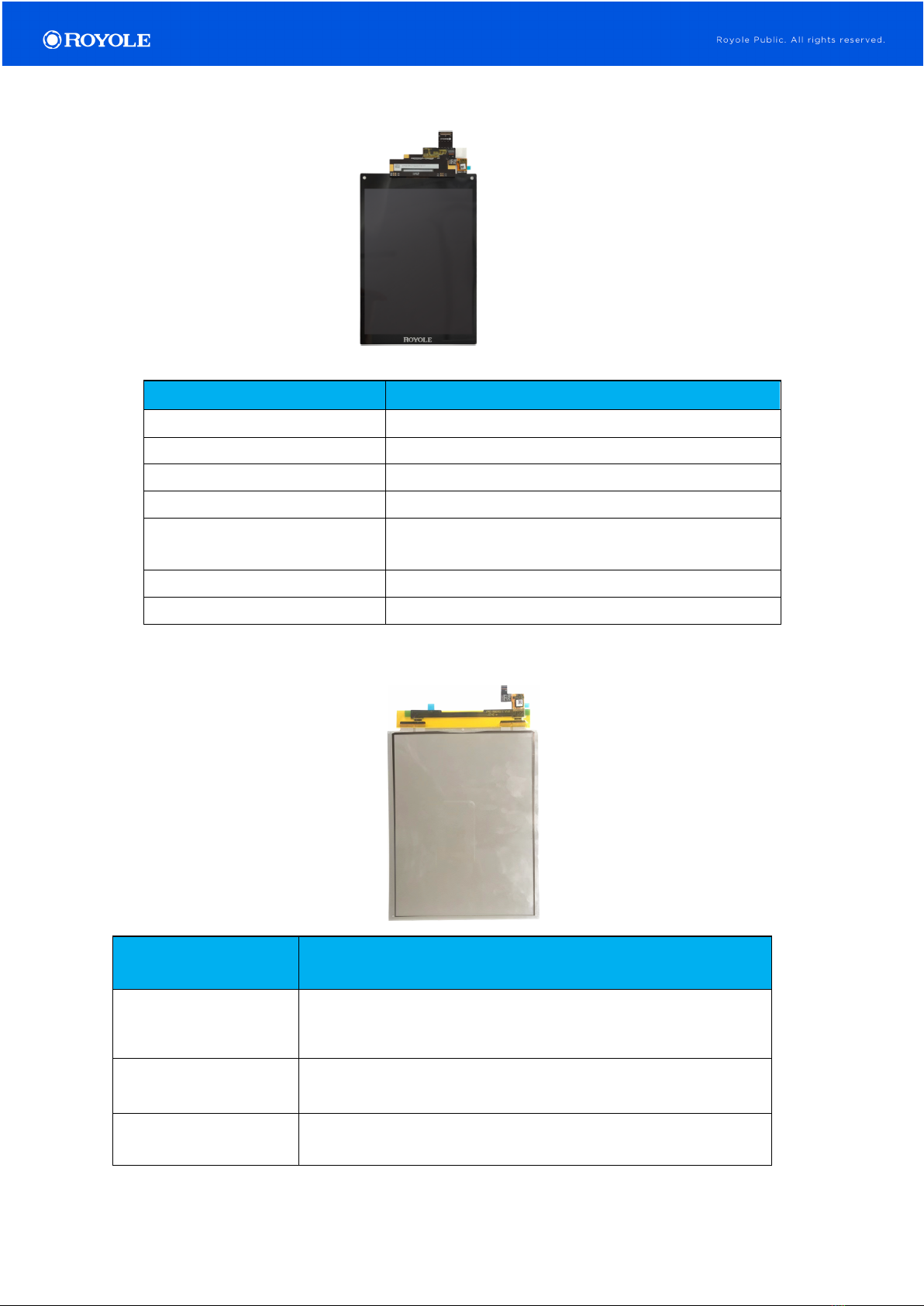

Fully flexible display (FFD) introduction

Device Aspect

Specifications

Dimensions

129.4 mm (W) * 188.7 mm (H)

Display area

118.8 mm (W) * 158.4 mm (H)

Aspect ratio of display

4:3

Resolution

1440*1920@60HZ

Power consumption

reference

3W max. @ 300 nits Full White

1.7W @ 40% APL

Color

16.7M (3*8bit)

Port

2 port MIPI

1.3

Fully flexible sensor (FFS) introduction

Device aspect

Specifications

Dimensions

171.88 mm±0.2 mm（L)*132.6 mm±0.2 mm（w)

To u c h a re a (AA)

7.8 inch

Thickness

0.15 mm ± 0.015 mm

Module pin definition

1.4

Development mainboard introduction

Sensor channel

RX 32, TX24

Communication port

IIC

Device Aspect

Specifications

Dimensions

129mm*22mm (*)

Display

Fully flexible display module (FFD)

CPU

Qualcomm SDA660, 2.2GHz, eight core

RAM+ROM

3GB + 32GB

Wireless network

WLAN: 802.11 a/b/g/n/ac, BT5.0

G-Sensor/

Gyroscope

Support

Speaker

Support, 0.7W*1

Expansion support

Optical distance sensor, microphone, FFS

Physical button

Power switch

USB

Type-C, system data

Power

Power adapter/power bank specification requirements

*The motherboard size will vary in different batches, but the functions will be the

same.

1.5

HDMI adapter board introduction

5V2.0A+ (not included)

Operating system

Android 10, Root permissions open

Device Aspect

Specifications

Dimensions

128mm*50mm

Signal input

HDMI1.4, resolution 1440*1920@60HZ

Signal output

Fully flexible display module (FFD)

Power supply port

USB: 5V2A

DC: 12V1A

To u c h

USB, Windows 10 support

1.6

Expansion accessories introduction

No.

Device Aspect

Qty

Function Description

FFD extension

cable

As a connection extension cable

for FFD, it can be used to connect

FFD and development

motherboard/HDMI adapter board

FFS lead board

Lead port of FFS is suitable for

connection between FFS and third-

party platforms

FFS extension

board

FFS, extension of development

mainboard

Microphone

expansion board

Microphone function module,

extension of development

mainboard

Optical distance

sensing expansion

board

Optical distance sensor module,

extension of development

mainboard

Power conversion

board

As the port conversion between

the development motherboard and

the adapter/power bank

Wi-Fi antenna

Antenna for development

mainboard

Technical Support

For further technical support, please visit our official website address:

https://global.royole.com

Thank you for your support!

Wishing your flexible ideas can become reality in your hands!
