USERS MANUAL
Golf Cart Lithium Battery
WARRANTY INFO：
Serial number
Purchase date
Welcome to Roypow Products
At Roypow we provide golf cart battery that is safe and reliable. Our golf cart lithium battery packs are designed with
integrated golf cart battery system, the batteries are used in replacing the lead-acid battery, which are available for
drop-in replacement for the golf carts nicely.
Please read the user manual carefully before using the product and always take care when using this product. This
product is not intended for use by young or infirm persons without supervision.

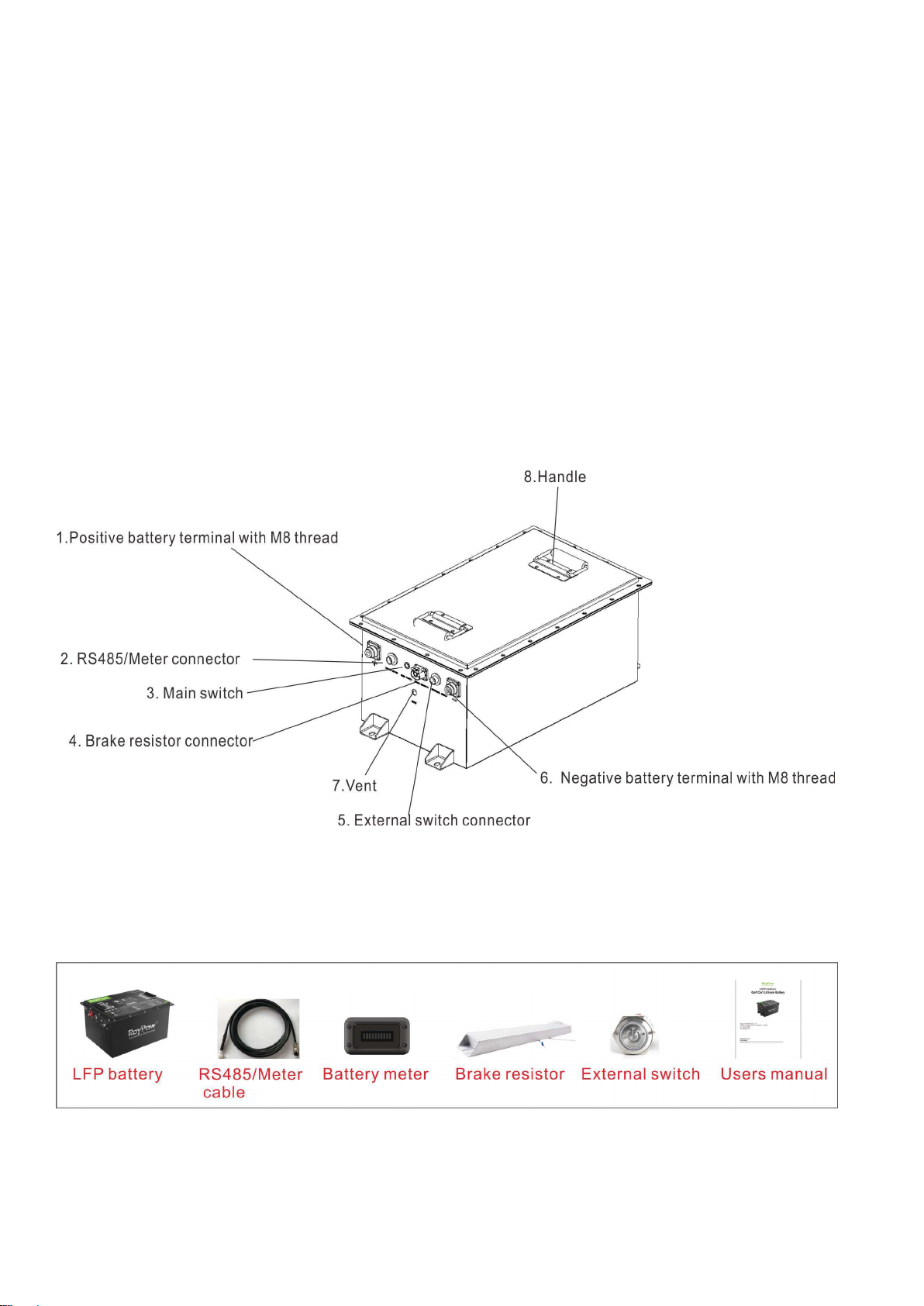

OVERVIEW
The batteries are equipped with an integrated cell management system which features:
Cell balancing
Battery voltage monitoring
Battery current monitoring
Pre warning when battery capacity less than 20% (communication by means of RS485)
Battery temperature monitoring (integrated temperature sensor)
Note:Press the “MAIN SWITCH” button/external switch to turn on the battery, green light indicates power on.
Press and hold the “MAIN SWITCH” button/external switch for 3 seconds to turn off the battery.
DELIVERY CONTENTS
Connection: Install the Meter and External switch
1 Install the Meter and External switch in a suitable position on the dash of the golf cart
2 Connect the Meter cable and External switch to the corresponding connector on the battery

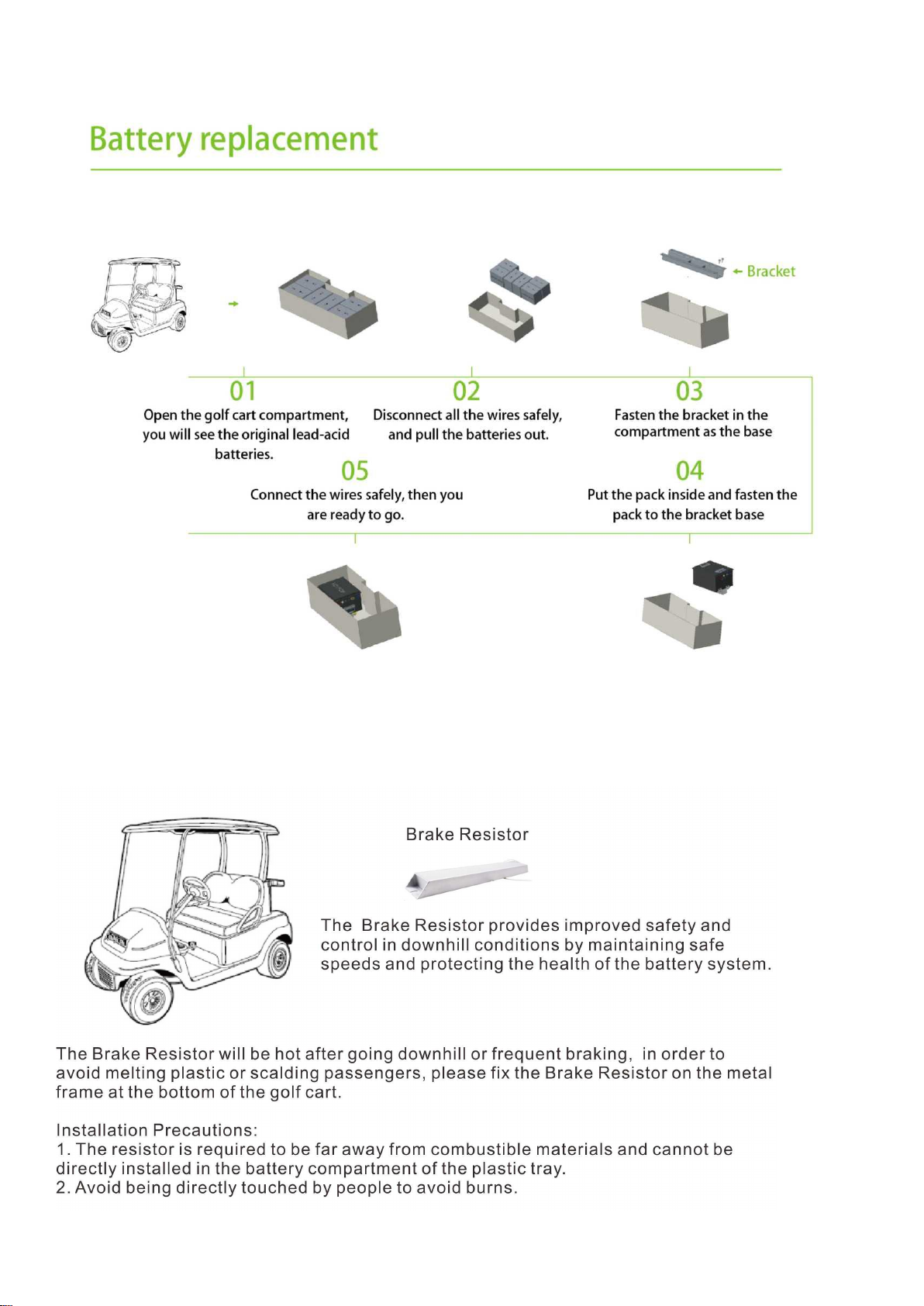

Install the brake resistor
Specification
Model
S51105P
S51160P
S72105P
Technical
Parameter
Nominal voltage
51V
51V
76V
Nominal capacity
105Ah
160Ah
105Ah
Stored energy
5.3kWh
8.2kWh
8.06kWh
Life cycles
>3500 times
>3500 times
>3500 times
Self discharge
Max 3% per month
Max 3% per month
Max 3% per month
Charge current
Maximum charge
105A
160A
105A
Standard charge
22A
22A
14A
Charging time
Standard charge
5h
8h
8h
Discharge current
Continuous
discharge
105A
160A
105A
Maximum discharge
315A
315A
315A
Over Current
protection
315A with 30S
315A with 30S
315A with 30S
Environment
Charge temperature
range
-4°F~131°F ( -20°C ~ 55°C)
-4°F~131°F ( -20°C ~ 55°C)
-4°F~131°F ( -20°C ~ 55°C)
Discharge
temperature range
-4°F~131°F ( -20°C ~ 55°C)
-4°F~131°F ( -20°C ~ 55°C)
-4°F~131°F ( -20°C ~ 55°C)
Storage temperature
range
-4°F~113°F ( 1 month )
( -20°C~45°C)
32°F~95°F ( 1 year )
( 0°C~35°C)
-4°F~113°F ( 1 month )
( -20°C~45°C)
32°F~95°F ( 1 year ) ( 0°C~35°C)
-4°F~113°F ( 1 month )
( -20°C~45°C)
32°F~95°F ( 1 year )
( 0°C~35°C)
General
Cell combination
16S1P
16S2P
24S1P
Cell assembly
LF105 (3.2V 105Ah)
LF80A (3.2V 80Ah)
LF105 (3.2V 105Ah)
Casing material
Stainless steel
Stainless steel
Stainless steel
Weight
103 lbs (46.8 kg)
165 lbs (75 kg)
159 lbs (72 kg)
Dimension (L*W*H)
23*13*10″(58.5*33*25cm)
31.5*12.6*9.2″(80*32*23.2cm)
29*12.6*9.7″(74*32*24.6cm)
IP rate
IP67
IP67
IP67
