RSA Lighting COMBOLIGHT GRF Series GRF420 Bedienungsanleitung

Catalog #

Type

Project

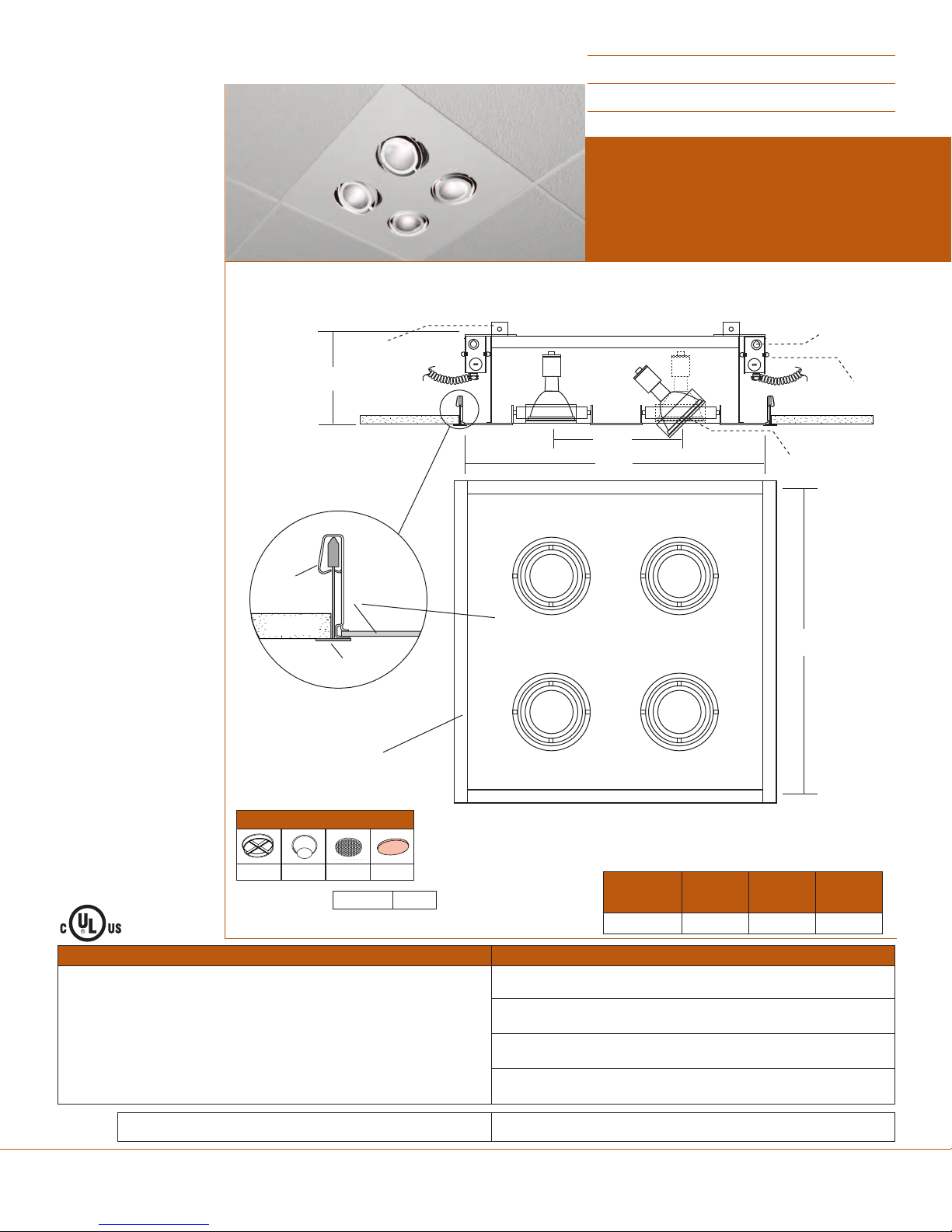

COMBOLIGHT® GRF Series

FOUR (4) Light Recessed

Multi-Lamp Luminaire

for Lay-in, T-Bar Grid Style Ceiling

Covered Opening

Line Voltage PAR20

Double Gimbals

45º x 45º locking

angular adjustment



Thermal protector

Junction Box

Tabs for 

aircraft cable 

suspension

Mudding Detail

Ceiling compund

is applied over 

mudding frame

Trimless

Detail





Ceiling Tiles and T-Bar by others

Ceiling Tile

.125" Aluminum 

Coverplate

T-Bar Support

Fixture

Retaining

Clip

DESCRIPTION:

An adjustable PAR20 fixture suit-

able for multiple downlighting

applications with one point of

electrical entry. For use in lay-in

t-bar grid style ceilings. Powder

coat finish on housing & lamp

assembly.

CONSTRUCTION:

Housing Assembly: 18 gauge

CRS. J-Box Assembly: 16 gauge

CRS (galvanized). Faceplate

cover: .125” Aluminum plate.

Fixture utilizes specially devel-

oped retaining clips for snap-in

mounting directly to t-bar sup-

ports. Tabs on housing top

accommodate above ceiling air-

craft cable support for added

stability.

LAMP ASSEMBLY:

Four PAR20 lamps mounted in

adjustable bezels. Each lamp

can accept up to two optical

accessories. Double gimbals

provide 45º x 45º adjustment.

SYSTEM PROTECTION:

Thermal protection provided to

guard against overheating, and

misuse of insulation over and

around fixture. Vent holes in

housing provide cooler operation

ELECTRICAL:

Junction box is UL listed for

through branch wiring, (access

above ceiling not required) for 8

#12, 90°C supply conductors or

60°C for end of run. J-box and

wiring accessible through ceiling

opening.

ALL RSA COMBOLIGHT

PRODUCTS ARE MADE IN

THE U.S.A.

RSA LIGHTING®

RSA LIGHTING LLC 9660 - 9700 TOPANGA CANYON BLVD. CHATSWORTH CA. 91311

TOLL FREE: 800-356-3030 • 818-349-3030 • FAX: 818-349-3031 • www.rsalighting.com

SPECIFY -

ORDERING EXAMPLE:

= Four Light Recessed Combo for Grid Style Ceiling (Covered Opening) -

120 V PAR20 - White Finish

Overall Height

Overall Width

Lamp Spacing

Overall Length

8.50” 23.44” 7.24” 23.44”

RECESSED GRID CEILING MOUNT

COVERED OPENING PAR20

Optional Accessories - Details on Other Side

Baffle Snoots Louvers Lenses

Cat. # / Description Finish

GRF420 - 4 Light Recessed Combo for

Lay-in Grid Style Ceilings

120V PAR20

BK - Black

WH - White

S - Silver

PT - Custom

GRF420

GRF420 WH

Other Adders:

CC - Two Circuit
