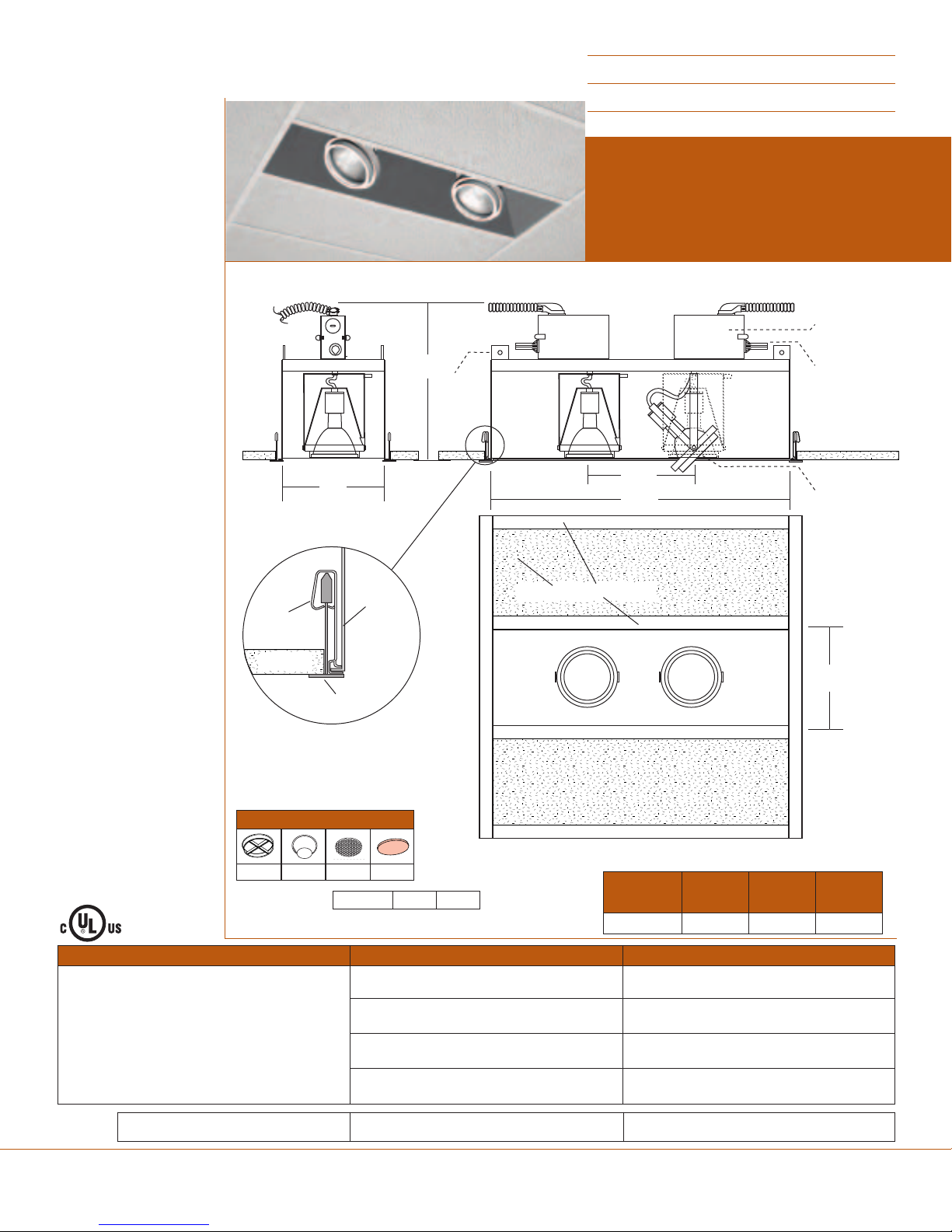

COMBOLIGHT® GR Series

TWO (2) Light Recessed

Multi-Lamp Luminaire

for Lay-in, T-Bar Grid Style Ceiling

Open Housing Aperture

Line Voltage PAR30

380º x 45º locking

angular adjustment

Thermal protector

Junction Box

Tabs for 

aircraft cable 

suspension



Ceiling Tiles and T-Bar by others

Ceiling Tile

Fixture

Housing

T-Bar Support

Fixture

Retaining

Clip

DESCRIPTION:

An adjustable PAR30 fixture suit-

able for multiple downlighting

applications with one point of

electrical entry. For use in lay-in

t-bar grid style ceilings. Powder

coat finish on housing & lamp

assembly.

CONSTRUCTION:

Housing Assembly: 18 gauge

CRS. J-Box Assembly: 16 gauge

CRS (galvanized). Fixture utilizes

specially developed retaining

clips for snap-in mounting

directly to t-bar supports. Tabs

on housing top accommodate

above ceiling aircraft cable sup-

port for added stability.

LAMP ASSEMBLY:

Two PAR30 lamps mounted in

adjustable bezels. Each lamp

can accept up to two optical

accessories. 380º x 45º locking

lamp adjustment. Provides 45º

visual cut-off.

SYSTEM PROTECTION:

Thermal protection provided to

guard against overheating, and

misuse of insulation over and

around fixture. Vent holes in

housing provide cooler operation

ELECTRICAL:

Junction box is UL listed for

through branch wiring, (access

above ceiling not required) for 8

#12, 90°C supply conductors or

60°C for end of run. J-box and

wiring accessible through ceiling

opening.

ALL RSA COMBOLIGHT

PRODUCTS ARE MADE IN

THE U.S.A.

RSA LIGHTING®

RSA LIGHTING LLC 9660 - 9700 TOPANGA CANYON BLVD. CHATSWORTH CA. 91311

TOLL FREE: 800-356-3030 • 818-349-3030 • FAX: 818-349-3031 • www.rsalighting.com

SPECIFY -

ORDERING EXAMPLE:

= Two Light Recessed Combo for Grid Style Ceiling (Open Housing Aperture) -

120 V PAR30 - Black Interior Finish - Regular Yoke Lamp Holder

Overall Height

Overall Width

Lamp Spacing

Overall Length

11.97” 8.01” 7.21” 23.44”

RECESSED GRID CEILING MOUNT

w/ OPEN HOUSING PAR30

Optional Accessories - Details on Other Side

Baffle Snoots Louvers Lenses

Cat. # / Description Interior Finish Lamp Holder

GR230 - 2 Light Recessed Combo for

Lay-in Grid Style Ceilings

120V PAR30

BK - Black YK - Regular Yoke (Standard)

WH - White RT - Retractable Yoke

S - Silver

PT - Custom

GR230

GR230 BK YK

Other Adders:

CC - Two Circuit
