Product Summary
The Exterior Siren/Strobe Model SE 650 is a wireless
siren designed for use in RSIalarm™ security systems.
The siren includes the following features:
> Totally wireless, battery operated
> Weather-resistant enclosure
> Dual tamper function provides detection for both wall
and cover tamper.
> Transmits check-in/status signal every 8 minutes
Installation Guidelines
For easier installation, programming and RF testing
should be done to check for good communication between
the control panel and all system devices before mounting
system devices. Install the siren and other system devices
in the following order:
>Programming/RF Testing—program siren and
all other devices into the control panel and test
RF communication from each intended device
location to the control panel.
>Mounting—mount siren at the tested location.
Programming/RF Testing
The following provides summarized steps for device
programming and testing. For complete details, refer
to the control panel installation manual.
1Remove four cover
screws, separate cover
from siren and install
batteries.
2Put control panel
into programming/
configuration mode.
3Using a programmed
alphanumeric keypad,
proceed through menus
until the display shows
ADD A NEW DEVICE.
4Press Yes. The display
shows PRESS PROGRAM
BUTTON OF DEVICE.
5Press and release
program button on siren
using a paper clip end.
The siren LED flashes.
Wait for keypad display
to show SIREN (1 - 25)
RECORDED.
6Press Yes. The display shows RADIO RANGE TEST?
Press Yes again. The siren LED starts flashing and
keypad display shows TEST IN PROGRESS.
7Take siren to its intended mounting location and
make sure LED flashes continuously, indicating good
communication with control panel.
8Press Yes to end radio range test, then press Esc/No.
9The display shows RECORDING NEW DEVICES?
Repeat steps 4 - 8 for remaining sirens.
10 When finished, exit from configuration mode.
Screws
Program Button
INSTALLATION INSTRUCTIONS
Exterior Siren/Strobe Model SE 650
Manufactured by RSIalarm Document No. 1012-c November 2006
4455 White Bear Parkway, Suite 700
White Bear Lake, MN 55110
USA
Toll Free: 877-206-5800
Fax: 651-762-4693
www.videofied.com
© 2007 RSIalarm™ Videofied®is a Registered Trademark of RSIalarm™.
S2View is a registered trademark of RSIalarm™. Specifications subject to change without notice.
Mounting
>
Use proper tools and hardware for mounting the unit.
>
Mount outdoors under eves to help prevent direct contact
from elements.
>
Mount on front of structure where strobe light is clearly
visible to responding authorities.
Regulatory Information
FCC Part 15
This device complies with FCC Rules Part 15.
Operation is subject to the following two conditions:
1.) This device may not cause harmful interference and,
2.) this device must accept any interference that may be
received, including interference that may cause undesired
operation.
Changes or modifications not expressly approved by RSIalarm,
Inc. can void the user’s authority to operate the equipment.
Specifications
Panel Compatibility V-6000
Operating Frequency 915 MHz. 25 frequencies
Radio type Spread Spectrum Bidirectional RF
Power Requirements Four 1.5 V Alkaline batteries
Battery Type D size alkaline
Power Output 105 dB @ 1 meter
Operating Temperature -13° - 158° F (-25° - 70° C)
Maximum Relative Humidity 70%, non-condensing
Dimensions (LxWxD): 9 in. x 6-1/2 in. x 3 in.
(227 mm x 166 mm x 80 mm)
Weight 31 oz./880 g (without batteries)
UL Listings 1023 (applied for)
1Remove batteries.
2Hold unit up against
mounting surface and
mark the three
mounting holes.
3Drill pilot holes
and install anchors
where needed.
4Place unit on mouning surface so mounting holes
line up with pilot holes/anchors and secure unit with
appropriate screws.
5Install batteries, observing correct polarity.
6Attach front cover.

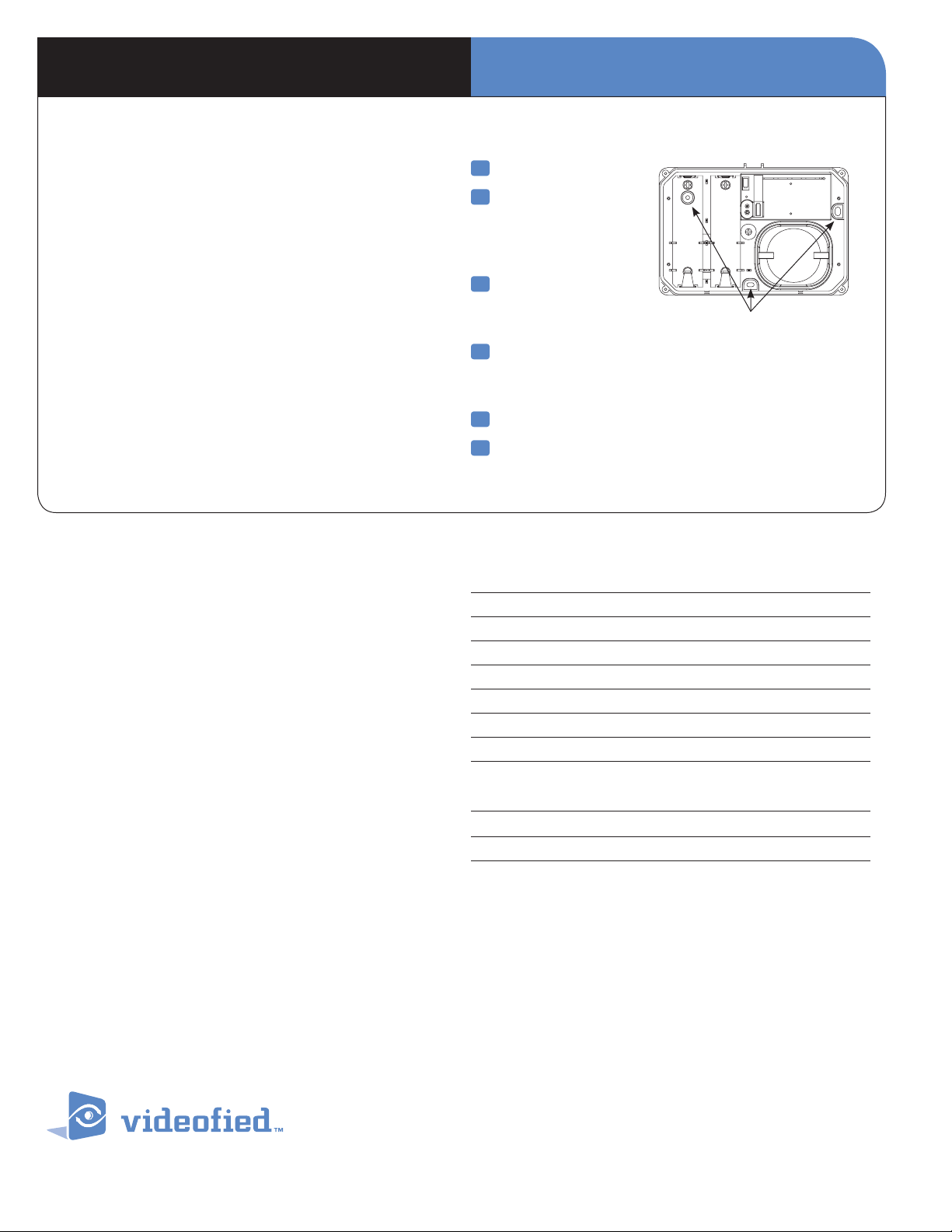

Mounting Holes
INSTALLATION INSTRUCTIONSExterior Siren/Strobe Model SE 650
