460MSA-N700
Protocol Gateway
Product User Guide
Real Time Automation, Inc.
2
1-800-249-1612
Trademarks
CompactLogix, ControlLogix, & PLC-5 are registered trademarks of Rockwell Automation, Inc. EtherNet/IP is a trademark of the ODVA.
MicroLogix, RSLogix 500, and SLC are trademarks of Rockwell Automation, Inc. Microsoft, Windows, and Internet Explorer are registered
trademarks of Microsoft Corporation. BACnet®is a registered trademark of American Society of Heating, Refrigerating and Air-Conditioning
Engineers (ASHRAE). All other trademarks and registered trademarks are the property of their holders.
Limited Warranty
Real Time Automation, Inc. warrants that this product is free from defects and functions properly.
EXCEPT AS SPECIFICALLY SET FORTH ABOVE, REAL TIME AUTOMATION, INC. DISCLAIMS ALL OTHER WARRANTIES, BOTH
EXPRESSED AND IMPLIED, INCLUDING BUT NOT LIMITED TO IMPLIED WARRANTIES OF MERCHANTABILITY OR FITNESS FOR A
PARTICULAR APPLICATION. THIS LIMITED WARRANTY GIVES YOU SPECIFIC LEGAL RIGHTS. YOU MAY ALSO HAVE OTHER
RIGHTS, WHICH VARY FROM STATE TO STATE.
The examples and diagrams in this manual are included solely for illustrative purposes. Because of the many variables and requirements
associated with any particular application, Real Time Automation, Inc. cannot assume responsibility or liability for actual use based on the
examples and diagrams. Except as specifically set forth above, Real Time Automation and its distributors and dealers will in no event be liable
for any damages whatsoever, either direct or indirect, including but not limited to loss of business profits, income, or use of data. Some states
do not allow exclusion or limitation of incidental or consequential damages; therefore, the limitations set forth in this agreement may not apply
to you.
No patent liability is assumed by Real Time Automation with respect to use of information, circuits, equipment, or software described in this
manual.
Government End-Users
If this software is acquired by or on behalf of a unit or agency of the United States Government, this provision applies: The software (a) was
developed at private expense, is existing computer software, and was not developed with government funds; (b) is a trade secret of Real Time
Automation, Inc. for all purposes of the Freedom of Information Act; (c) is “restricted computer software” submitted with restricted rights in
accordance with subparagraphs (a) through (d) of the Commercial “Computer Software-Restricted Rights” clause at 52.227-19 and its
successors; (d) in all respects is proprietary data belonging solely to Real Time Automation, Inc.; (e) is unpublished and all rights are reserved
under copyright laws of the United States. For units of the Department of Defense (DoD), this software is licensed only with “Restricted Rights”:
as that term is defined in the DoD Supplement of the Federal Acquisition Regulation 52.227-7013 (c) (1) (ii), rights in Technical Data and
Computer Software and its successors, and: Use, duplication, or disclosures is subject to restrictions as set forth in subdivision (c) (1) (ii) of the
Rights in Technical Data and Computer Software clause at 52.227-7013. If this software was acquired under GSA schedule, the U.S.
Government has agreed to refrain from changing or removing any insignia or lettering from the Software or documentation that is provided or
from producing copies of the manual or media. Real Time Automation, Inc.
© 2022 Real Time Automation, Inc. All rights reserved.
Real Time Automation, Inc.
3
1-800-249-1612
Revision History ............................................................................................................................................6
Overview.......................................................................................................................................................7
Hardware Platforms......................................................................................................................................8
Hardware –N700......................................................................................................................................9
Powering the Gateway..............................................................................................................................9
Port Connections........................................................................................................................................10
Mounting with a DIN Rail............................................................................................................................11
Installing..................................................................................................................................................11
Removing ................................................................................................................................................11
Accessing the Main Page.............................................................................................................................12
Committing Changes to the Settings ..........................................................................................................14
Main Page ...................................................................................................................................................15
Device Configuration...................................................................................................................................16
Network Configuration ...............................................................................................................................17
Modbus TCP/IP Server Configuration.........................................................................................................18
Modbus TCP/IP Server Configuration-Data Groups....................................................................................19
Auto-Configure Group by Device vs. Auto-Configure Group by Data Type............................................20
Group by Device (Default Method).........................................................................................................20
Group by Data Type ................................................................................................................................20
Modbus TCP/IP Server Data Group Configuration: Auto-Configure.......................................................21
Modbus TCP/IP Server Data Group Configuration: Manual Mode.........................................................22
Configure Read and Write Data Groups .................................................................................................23
ASCII Configuration.....................................................................................................................................24
Receive Data............................................................................................................................................25
Receive Data –Operation Mode.............................................................................................................26
Transmit Data..........................................................................................................................................27
Transmit Data –Triggering Methods ......................................................................................................28
ASCII Configuration –Technology Triggering Method............................................................................30
ASCII Configuration –ASCII Parsing ............................................................................................................32
ASCII Configuration –ASCII Parsing Examples ........................................................................................33
ASCII Configuration –ASCII Concatenating.............................................................................................35
ASCII Configuration –ASCII Concatenating Examples.............................................................................37
Real Time Automation, Inc.
4
1-800-249-1612
ASCII Configuration –ASCII Message Counter........................................................................................39
Mapping - Transferring Data Between Devices ..........................................................................................40
Display Mapping and Values.......................................................................................................................41
Display Data ............................................................................................................................................41
Display String...........................................................................................................................................44
Display String use case................................................................................................................................46
Data and String Mapping –Auto-Configure................................................................................................47
Data Mapping –Explanation.......................................................................................................................48
Data Mapping –Adding Diagnostic Information ........................................................................................49
String Mapping –Explanation.....................................................................................................................53
Mapping –Auto-Configure Mode to Manual Configure Mode ..................................................................54
Mapping –Manual Configure Mode to Auto-Configure Mode ..................................................................55
View as Text ................................................................................................................................................56
Data Mapping..........................................................................................................................................56
String Mapping........................................................................................................................................56
Base Triggering –Data Validiation Triggering.........................................................................................57
Security Configuration ................................................................................................................................59
Security Configuration-Security Levels ...................................................................................................60
Security - Log In.......................................................................................................................................61
Security - Log Out....................................................................................................................................61
Email Configuration ....................................................................................................................................62
Alarm Configuration....................................................................................................................................63
Diagnostics –Alarm Status......................................................................................................................65
Alarms –Active .......................................................................................................................................65
Alarms –Clear.........................................................................................................................................66
Change of State (COS) Configuration..........................................................................................................67
Diagnostics Info...........................................................................................................................................68
Diagnostics Mapping...............................................................................................................................68
Diagnostics –Modbus TCP/IP Server..........................................................................................................69
Diagnostics –ASCII......................................................................................................................................71
Configuration Files ......................................................................................................................................76
Export Configuration...............................................................................................................................76
Import Configuration ..............................................................................................................................76
Save and Replace Configuration Using SD Card..........................................................................................78
Real Time Automation, Inc.
5
1-800-249-1612
Saving Configuration Using SD Card........................................................................................................78
Replacing Configuration Using SD Card ..................................................................................................78
Utilities........................................................................................................................................................79
Real Time Automation, Inc.
6
1-800-249-1612
Revision History
Version
Date
Notes
8.4.5
11/18/2019
Features Added
1. Released OPC UA Server (US) Protocol
2. Ability to now Import/Export Template Files with out an FTP session
Bug Fixes
3. Updated Profinet Server (PS) on N34 hardware Platform
4. Updated Wi-Fi software
8.6.0
2/28/20
Bug Fixes
1. Omron Plc Communication fixes for EtherNet/IP
2. Profinet GSDML Substitute values fix
8.7.4
9/1/20
Features Added:
1. BMS, BM, DFM, DS, DM, TCP, USB, PBS have been ported to the latest base software
2. TCP,BMS,BM now Available on N2E and N2EW hardware Platform
3. New ASCII Mode Available on TCP/A/USB/WI protocols
4. User Guides updated with more examples
Bug Fixes:
1. Improved Data Mapping and String Mapping performance
2. Improved functionality/performance on EC,ETC,ES,MC,MS,BS,BC, A,,WI,PS protocols
8.7.22
4/6/21
Features Added:
1. Support for RSLogix Versions 32 + with unsigned data type support
2. ETC now support Long integer files (L files) for MicroLogix PLCS that support them
3. SC now supports data block (DB) access
8.7.53
4/28/21
Features Added:
5. Added support for the NNBU hardware platform
6. Improved RFIDeas scanner support
7. Updated MM and MRS to use Modbus RTU Client and Modbus RTU Server terminology
Real Time Automation, Inc.
7
1-800-249-1612
Overview
The 460MSA-N700 gateway connects a Modbus TCP Client with one or two ASCII devices. By following
this guide, you will be able to configure the 460MSA-N700 gateway.
Number of ASCII devices is dependent on the Hardware and Product number of the 460 gateway.
For further customization and advanced use, please reference the appendices located on the CD or
online at: http://www.rtautomation.com/product/460-gateway-support/.
If at any time you need further assistance, do not hesitate to call Real Time Automation support.
Support Hours are Monday-Friday 8am-5pm CST
Toll free: 1-800-249-1612
Email: support@rtautomation.com
Real Time Automation, Inc.
8
1-800-249-1612
Hardware Platforms
The 460 Product Line supports a number of different hardware platforms. There are differences in how
they are powered, what serial settings are supported, and some diagnostic features supported (such as
LEDs). For these sections, be sure to identify the hardware platform you are using.
To find which hardware platform you are using:
1) Look on the front or back label of the unit for the part number.
2) On the webpage inside the gateway, navigate to the dropdown menu under Other and select
Utilities. Click the Listing of Revisions button. The full part number is displayed here.

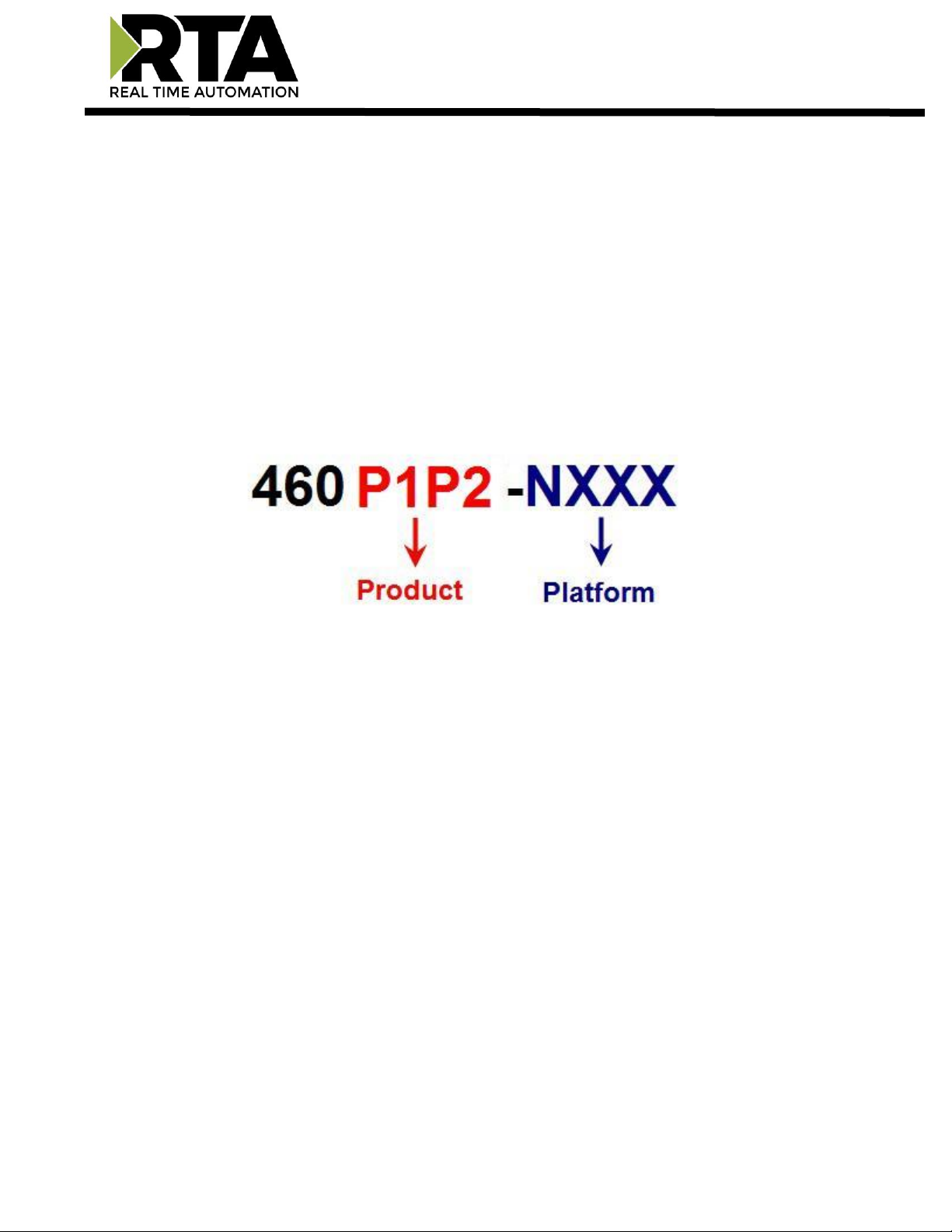

Once you have the full part number, the platform will be the number following the “-N”:
Real Time Automation, Inc.
9
1-800-249-1612

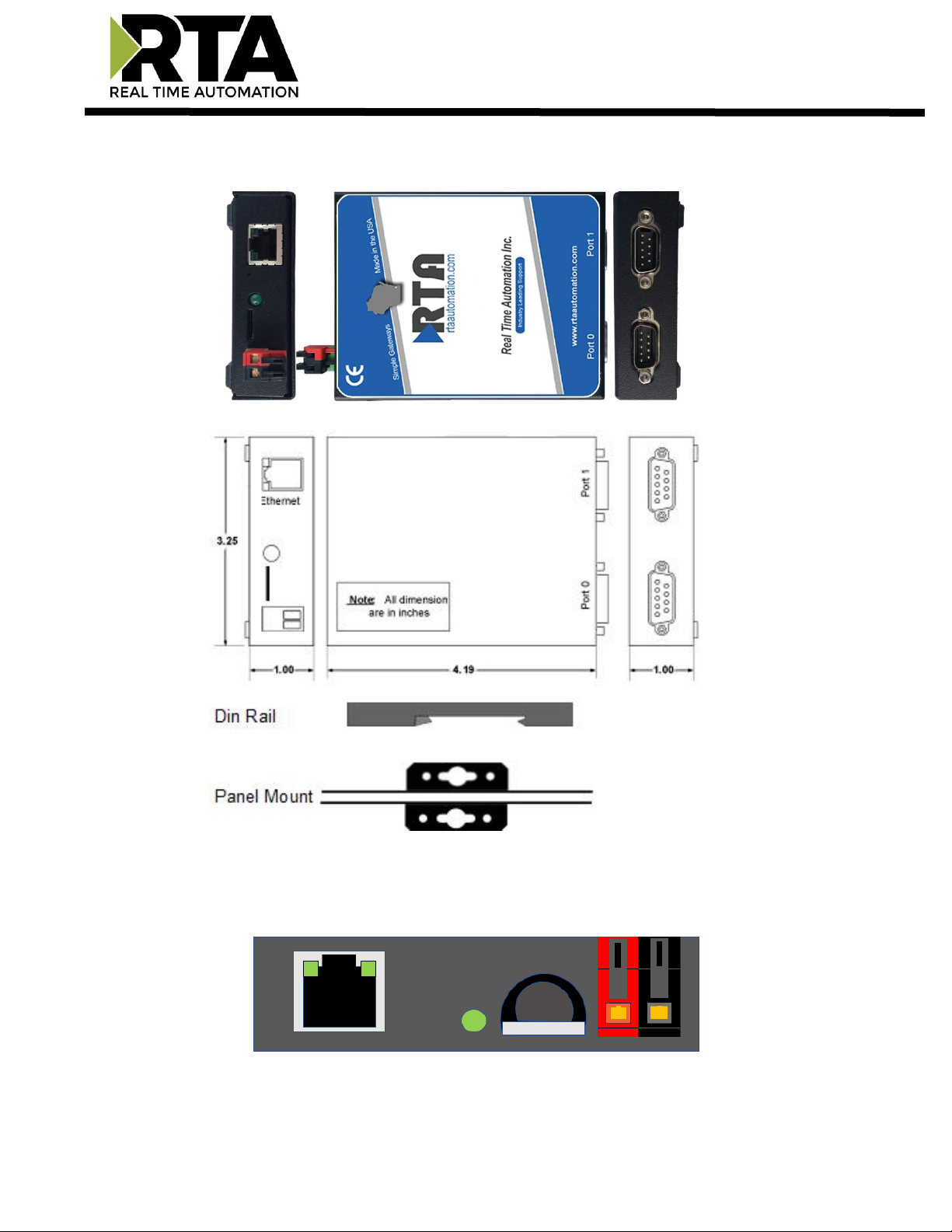

Hardware –N700
Powering the Gateway
1) Connect a 12-24 VDC power source to the gateway:
a) 2-Pin Terminal power connection with Red Wire = (+) Black Wire = (-)
Real Time Automation, Inc.
10
1-800-249-1612
Port Connections

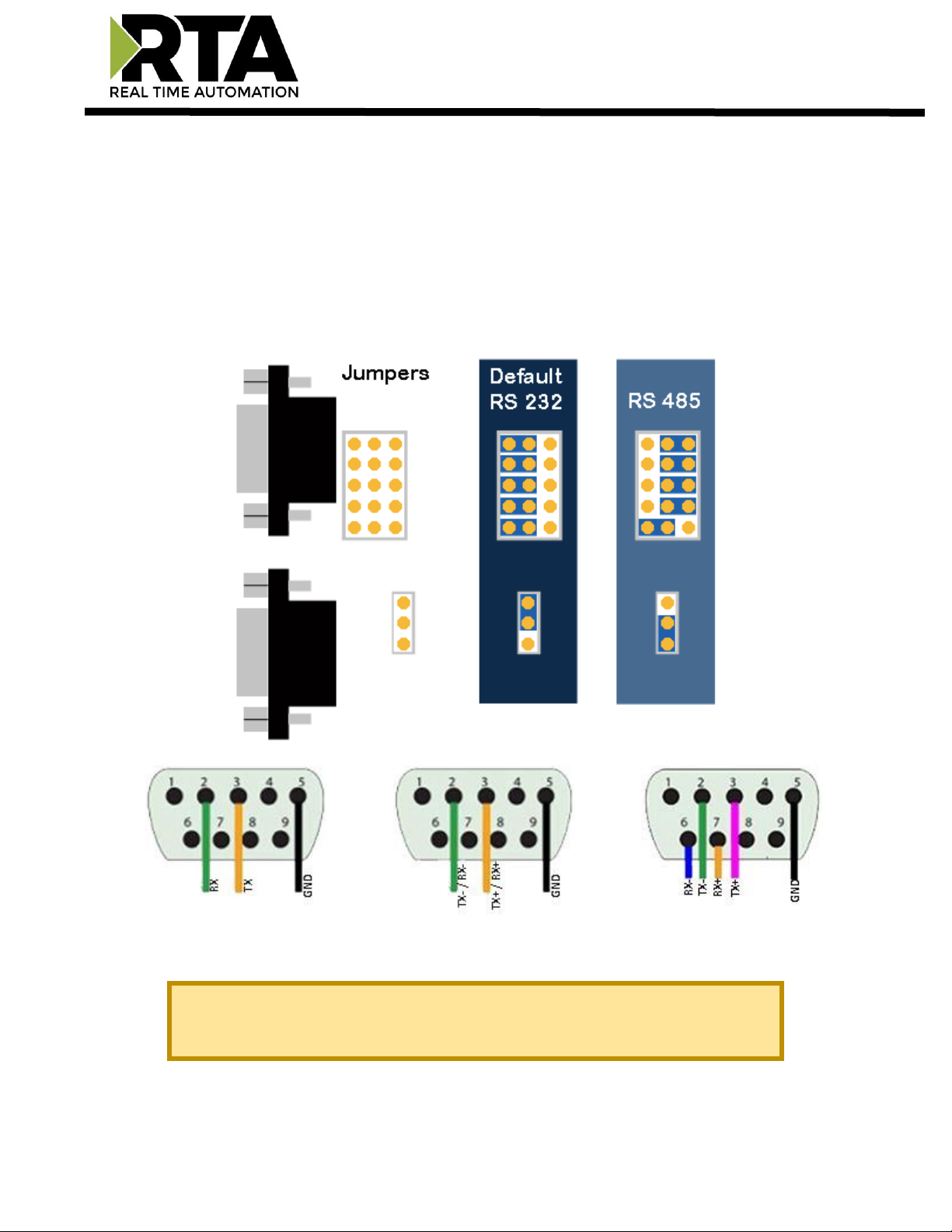

The factory default port settings for Port 0 and Port 1 are RS232. If the default port settings are not
compatible with your ASCII device, Port 0 can be configured for RS232, RS485, or RS422. Port 1 can only
be configured for RS232.
Jumper Configuration
Port 0 & Port 1
RS232
Port 0
RS485
Port 0
RS422
The default jumper configurations are setup for the following serial modes:
•Port 0 –RS232
•Port 1 –RS232
RS 422
Inhaltsverzeichnis
Andere RTA Tor Handbücher
RTA
RTA 460MCBS-N700 Technisches Datenblatt
RTA
RTA 435NBX-NNA1 Technisches Datenblatt
RTA
RTA 460AQT-NNA1 Technisches Datenblatt
RTA
RTA 460ECMRS-N700 Technisches Datenblatt
RTA
RTA 460MSMM-N2EW Technisches Datenblatt
RTA
RTA 460A-N700 Technisches Datenblatt
RTA
RTA 460ECUS-NNA4 Technisches Datenblatt
RTA
RTA 460BSDFM-NNA1 Technisches Datenblatt
RTA
RTA 460TCPA-NNA1 Technisches Datenblatt
RTA
RTA 460ETCMM-NNA1 Technisches Datenblatt
RTA
RTA 460BCUSB-NNCU Technisches Datenblatt
RTA
RTA 460ECBC-NNA1 Technisches Datenblatt
RTA
RTA 460ETCUS-N2E Technisches Datenblatt
RTA
RTA 460MCBC-N2EW Technisches Datenblatt
RTA
RTA 460PSMRS-N34 Technisches Datenblatt
RTA
RTA 460BSSC-NNA1 Technisches Datenblatt
RTA
RTA 460MSBS-N700 Technisches Datenblatt
RTA
RTA 460BMAWS-NNA4 Technisches Datenblatt
RTA
RTA 460TCPUSB-N70U Technisches Datenblatt
RTA
RTA 460PSMM-N2EW Technisches Datenblatt
Beliebte Tor Handbücher anderer Marken
LST
LST M500RFE-AS Bedienungsanleitung
Kinnex
Kinnex Media Gateway Bedienungsanleitung
2N Telekomunikace
2N Telekomunikace 2N StarGate Bedienungsanleitung
Mitsubishi Heavy Industries
Mitsubishi Heavy Industries Superlink SC-WBGW256 Bedienungsanleitung
ZyXEL Communications
ZyXEL Communications ZYWALL2 ET 2WE Bedienungsanleitung
Telsey
Telsey CPVA 500 - SIP Bedienungsanleitung
HMS
HMS Netbiter EasyConnect EC150 Bedienungsanleitung
Huawei
Huawei EchoLife HG620 Bedienungsanleitung
AT&T
AT&T U-verse 3801 Gebrauchs- und Pflegehandbuch
Logic IO
Logic IO RTCU MX2 turbo Bedienungsanleitung
Suttle
Suttle MediaMAX MXM-521 Bedienungsanleitung
Rosonix Technology
Rosonix Technology RSG-3000 Bedienungsanleitung
