RTS XCP-40-RJ11 Kurzanleitung
July 2006 Rev B
XCP-40-RJ11
Breakout Panel Technical Guide
38110-512
1
CHAPTER 12
XCP-40-RJ11
9000-7494-000
The XCP-40-RJ-12 Breakout Panel allows for the expansion
of the ADAM frame using RJ-12 connectors. When using
the 40-port RJ-12 breakout panel, you MUST use the SCSI
backcard with the AIO-16 card.

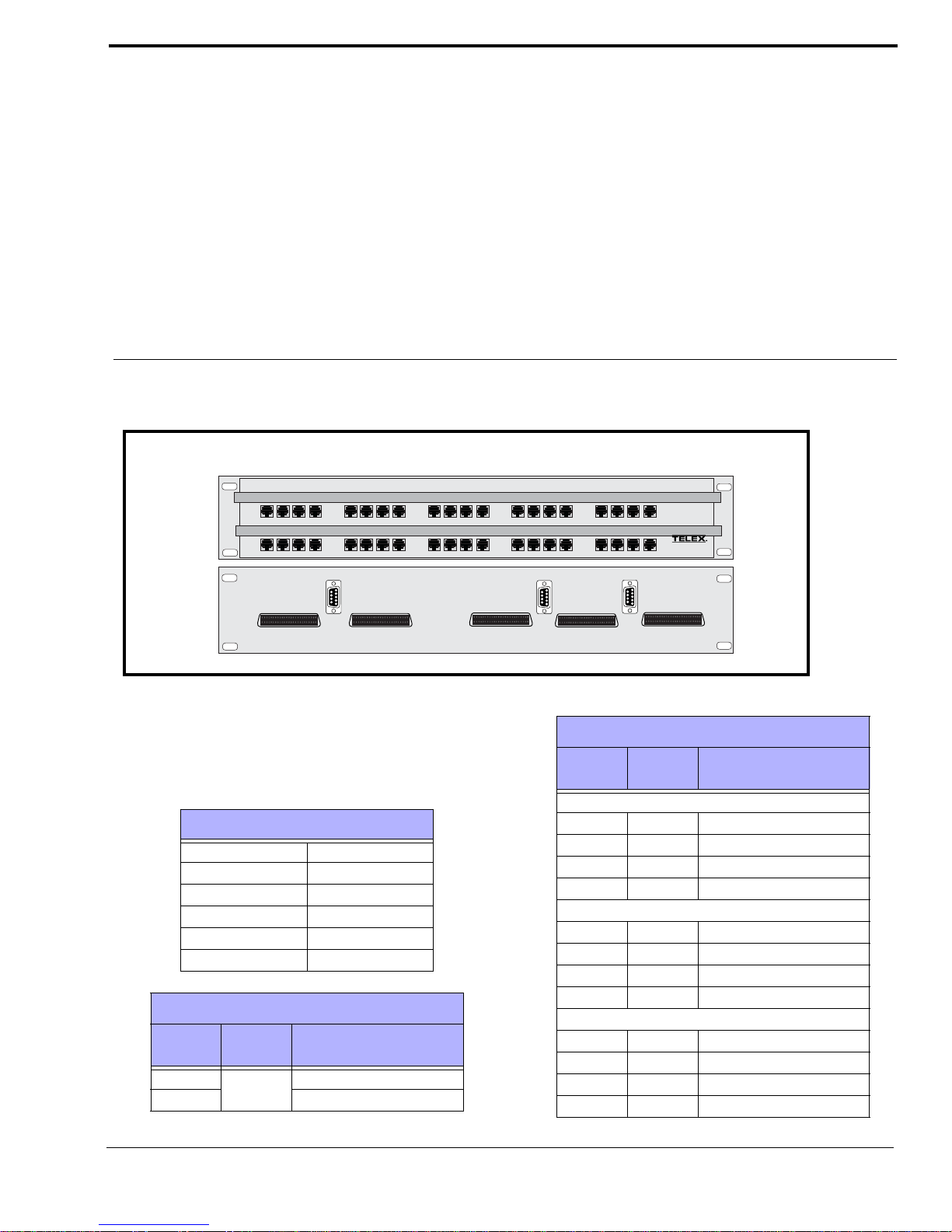

Figure 1.
Telex Communications, Inc.
Made in U.S.A.
J1 J2 J3 J4 J9 J10 J11 J12 J17 J18 J19 J20 J25 J26 J27 J28 J33 J34 J35 J36
J5 J6 J7 J8 J13 J14 J15 J16 J21 J22 J23 J24 J29 J30 J31 J32 J37 J38 J39 J40
J1 J2 J3 J4 J5
RJ-12 Connector
Pin 1 Keypanel Data -
Pin 2 Audio Out +
Pin 3 Audio In +
Pin 4 Audio In -
Pin 5 Audio Out -
Pin 6 Keypanel Data +
SCSI Connector - J1, J2, J3, J4, J5
Pin
Number Port Function
2 Data +
27 Data -
34 1 Audio To Matrix +
9 1 Audio To Matrix -
35 1 Audio From Matrix +
10 1 Audio From Matrix -
36 2 Audio To Matrix +
11 2 Audio To Matrix -
37 2 Audio From Matrix +
12 2 Audio From Matrix -
38 3 Audio To Matrix +
13 3 Audio To Matrix -
39 3 Audio From Matrix +
14 3 Audio From Matrix -
SCSI Connector - J1, J2, J3, J4, J5
Pin
Number Port Function
XCP-40-RJ11 9000-7494-000
2
40 4 Audio To Matrix +
15 4 Audio To Matrix -
41 4 Audio From Matrix +
16 4 Audio From Matrix -
42 5 Audio To Matrix +
17 5 Audio To Matrix -
43 5 Audio From Matrix +
18 5 Audio From Matrix -
44 6 Audio To Matrix +
19 6 Audio To Matrix -
45 6 Audio From Matrix +
20 6 Audio From Matrix -
46 7 Audio To Matrix +
21 7 Audio To Matrix -
47 7 Audio From Matrix +
22 7 Audio From Matrix -
48 8 Audio To Matrix +
23 8 Audio To Matrix -
49 8 Audio From Matrix +
24 8 Audio From Matrix -
SCSI Connector - J1, J2, J3, J4, J5
Pin
Number Port Function
