RT920 USER GUIDE
RT920 User Guide
1. Front view
Switch on: Hold power button until device switches on.
Switch off: Hold power button keep until the device shows the menu (as shown in
figure), select "Power off".
Switch off display : Press the power button once or set the auto sleep option at
"Setting -> Display -> Sleep"
Wake up: When the display is off, press power button once to turn on the display.
LED Indicator
Key pad
Touch screen
RTSCAN TECHNOLOGY LIMITED
2
RT920 USER GUIDE
2. Side view
Power button
Volume control
Reset button
Scan button
POGO pin
Barcode Scanner
Scan button
User-defined button
Mini USB port
3.5 mm earphone port
RTSCAN TECHNOLOGY LIMITED
3
RT920 USER GUIDE
3. Back view
Camera
Loudspeaker
TF Card slot
SIM slot
Battery cover
lock
U-style strap: remove by pulling
the strap downward
RFID card induction area
RTSCAN TECHNOLOGY LIMITED
4
RT920 USER GUIDE
RTSCAN TECHNOLOGY LIMITED
5
RT920 USER GUIDE
Removing battery
Switch to ‘unlock’ position and use the strap buckle to raise the battery cover, as
shown below.
Battery installation
Insert the battery into the battery
compartment in the direction as
shown in image right. Battery
should sit tightly in the compartment
when correctly installed. Do not use
excessive force to insert the battery.
RTSCAN TECHNOLOGY LIMITED
6
RT920 USER GUIDE
Battery charging
Charge by DC power adapter
To plug in the power adapter connector into the DC power port on the terminal
device. Red color LED indicates battery is charging, green color LED indicates
battery is fully charged.
DC power adapter USB data communication cable
Charging by dock
Insert the device to the dock and make the battery proper contact with the
charging dock,like the picture below.
B
A
RTSCAN TECHNOLOGY LIMITED
7
RT920 USER GUIDE
A:Power LED B: Charging status LED
Power LED will turn green after inserting the adapter.Charging status LED will
show RED when charging and turn green when fully charged.The LED in device
will show red and turn off after fully charged.(Notice:USB in device only for data
transfer)
Charging by car charger
Insert the device to car charger and link the adapter to DC port in the bottom.
Press two sides button on the charging dock at the same time will pop up the device
from charging dock. (Notice:USB in device only for data transfer)
Battery operation
This device battery is polymer type battery, which should only be charged by
using original RTscan power supply.
Do not short the battery
Do not store battery in hot, humid, or corrosive environment.
Do not break or crack open the battery.
Do not store battery when it is fully charged completely drained.
If device is not used for long period of time, remove the battery from the
device.
Sides buttons
USB port
DC port
RTSCAN TECHNOLOGY LIMITED
8
RT920 USER GUIDE
If battery is misshapen, or is found leaking, replace the battery immediately.
Note : The battery should be charged for at least 8 hours before the first use.
INSTALLING THE SIM/TF CARD
1. Swing open the main battery cover clip by 90 degrees, you can then remove
the battery cover
2. Insert the SIM card or microSD/TF card into their corresponding slots in the
battery compartment
Notice:You should gently push the SIM/TF card to the correct position without
using excessive force.
Connecting to PC
After you installed the android driver or an android smartphone assistant,you
can connect the device to your PC with the USB cable provided. After the device
connected to your PC,the screen would display like this:
RTSCAN TECHNOLOGY LIMITED
9
RT920 USER GUIDE
Note : When you enable device as USB storage to PC, the flash memory of the
device are map as a PC drive. At this point of time, you cannot install
APK to the device.
To install APK to the device, it should not be in USB storage mode.
Select this option to
enable / disable device
as USB storage to the
PC
Select this option to
enable / disable USB
debugging
Check this to enable
USB debugging
Check this to enable
device as a USB
storage to PC
After the device
connected to your
PC,you could drag the
top part of the screen
down,to show the USB
options.
RTSCAN TECHNOLOGY LIMITED
10
RT920 USER GUIDE
Setting

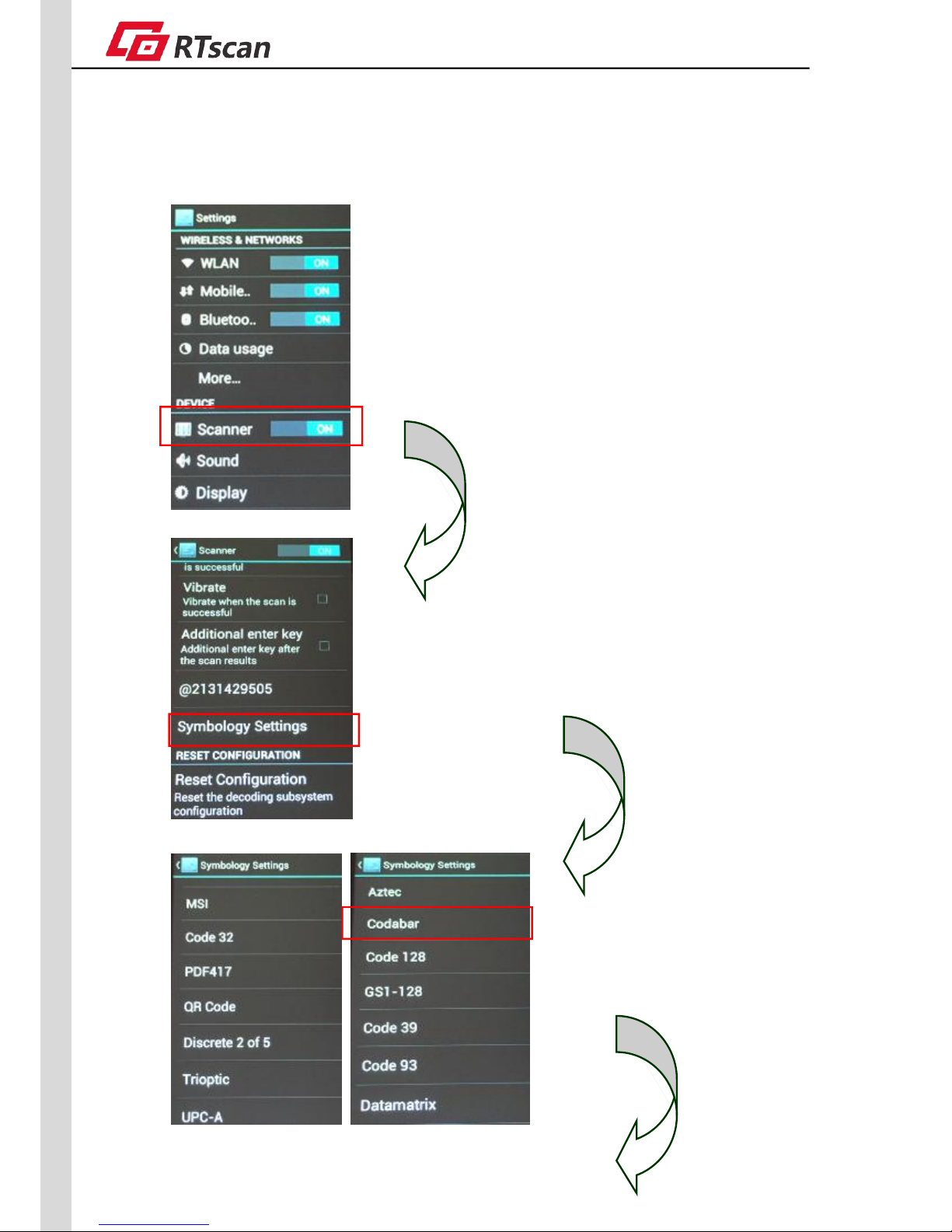

1. Barcode scanning setting
