Rushstage Rush 350 Bedienungsanleitung
1
350W LED Moving Head Light
3in1
User Manual
2
Note: This manual include important information on how to install and use it safely.
Please read it carefully before install and operate as required. At the same time,
please keep this manual properly for emergencies.
Contents
1. Safety warning …………………………………………………………3
2. User Instructions ……………………………………………… …………6
3. Lamp appearance …………………………………………………………8
4. Installation……………………………………………………………………8
5. Function setting……………………………………………………………12
6. Menu operation ……………………………………………………………14
7. DMX channel ………………………………………………………………15
8. Technical parameters.………………………………………………………18
9. Photometric data………………………………………………………… 20
Accessories:
The following random accessories have been packaged with light, please check
and verify:
When this product leaves the factory, the performance is intact and the packaging is
complete. All users should strictly abide by the warnings and operating instructions
stated in this manual. Any damage caused by misuse is not covered by the
company's warranty. Failures and problems caused by ignoring the operating
3
manual are not within the scope of the dealer's responsibility.
This manual is subject to technical changes without notice.
Note: The company's products are calculated based on the company's delivery date.
The warranty period of the whole machine is one year, and the light source is not
within warranty.
1SAFETY INSTRUCTIONS
Notice
Please read the safety requirements in this section carefully before
installing, energizing, operating or repairing !
The following important safety signs will be used in this product manual
● After receiving the lamp, please unpack and check whether there is
any damage caused by transportation. If there is damage caused by
transportation, please do not use this lamp, and contact the dealer or
manufacturer as soon as possible.
● The manufacturer will not be held responsible for the losses caused
by not following this manual and changing the lamps at will.
● Please note that the damage to the lamp caused by the modification
of the lamp is not covered by the warranty.
● If you have any questions or suggestions, please contact the dealer
or manufacturer in time.
4
● When the lamp is in use, it must be kept away from high
temperature, fire, electric shock, vibration and strong light
environment.
● Qualified operators can carry out installation, maintenance and
repair, and ensure that they operate in strict accordance with the
operating procedures of this manual
● There are no children who can be repaired by the user inside this
lamp, please do not open the lamp to repair by yourself.
● Do not look directly at the light source of the lamp (especially for
patients with epilepsy) to avoid damage to the eyes!
● Do not connect this lamp to any other dimming device.
● If visible damage occurs to the light source, lens or display protective
cover on the lamp, it is damaged to the extent of failure. If cracks or
deformation occur, please stop using it and contact the manufacturer to
replace the original accessories, otherwise normal use will be affected.
● The installation position of the luminaire should be such that it will not
be stared at at a distance of less than 4 meters for a long time.
● Before starting to operate the lamp, please check whether all the
covers (or shells) have been installed and whether the screws have
been tightened reliably. It is forbidden to use the lamp with the cover
(or shell) open.
● Keep the lamp clean and do not touch the lamp glass directly with
your hands.
● During operation, it is recommended to wear necessary protective
equipment, such as goggles, gloves, etc.
● The person who connects the electrical part must have the
corresponding qualifications before the operation.
● Before installation, please make sure that the power supply voltage
you are using matches the voltage marked on the lamp.
● Each lamp should be properly grounded, and electrical installation
should be carried out in accordance with relevant standards.
● Do not use power cords with damaged insulation, and do not
overlap power cords with other wires.
● When the lamp is not in use or cleaning, please hold the power cord
plug to unplug it, do not pull or directly pull the power cord.
● Make sure that the power cord used complies with safety
regulations.
● If the lamp is not waterproof or dustproof, please be careful not to
short-circuit the lamp when it is exposed to rain or moisture during the
operation of the lamp.
● Do not turn on or off the lamp repeatedly within a short period of
time, as this will shorten the life of the lamp light source or other
5
electrical components.
● There is a safety rope connection hole at the bottom of the lamp.
For safety reasons, please pass the safety rope equipped with the
lamp through the safety rope connection hole for auxiliary lifting.
● Before any installation, maintenance and cleaning of the lamp,
please make sure that the power supply has been cut off!
● Under normal working conditions at room temperature, the
temperature of the outer metal surface of the lamp (including the
surface of the radiator) will reach 50°C at the highest temperature.
● There will be smoke and peculiar smell before the light is turned on
for the first time. This is a normal process and does not mean that the
lamp is defective.
● When using, do not touch the shell with bare hands to avoid burns!
● Please do not install the lamp directly on the surface of ordinary
combustible materials.
● Do not project the lamp directly on combustible objects, and the
distance between the lamp and the illuminated object is more than 10
meters.
● The lamp should be installed in a well-ventilated place, and the
distance from the wall should be kept at least 50 cm. At the same
time, please check whether the fan and ventilation holes are
unblocked.
●Please do not expose the front glass to sunlight or other strong light
sources from any angle. The lens may focus the light in the lamp,
which may cause a potential fire hazard.
6
● This product complies with the "General Technical Requirements
Standards for the Recycling of Waste Electrical and Electronic
Products"
● When the product reaches the scrap standard and needs to be
scrapped, the customer can scrap and recycle the product.
2USER INSTRUCTIONS
Cleaning and Maintenance
When the lamp cannot be started, please check whether the power fuse of the lamp is
blown. The lamp is equipped with an overheating protection device. The protection
device will automatically cut off the power when it is overheated. When this happens,
please check whether the fan is running normally and whether the fan and fan net are
blocked by dust. Find out the fault and repair it before starting the lamp.
Because substances such as smoke oil and dust tend to adhere to the lens and reduce
the light output, in order to ensure the reliable use of the lamp, it is very necessary to
keep the lamp clean. The cooling fan should be cleaned every 15 days. The cleaning of
internal and external optical lenses, mirrors, and coated color filters must be performed
periodically to optimize light output.
The cleaning frequency depends on the operating frequency of the lamp and the
7
surrounding environment. When cleaning, use a soft cloth and general glass cleaning
products to clean. It is recommended to clean the external optical system at least once
every 20 days, and clean the internal optical system at least once every 30/60 days.
Keep the lens clean and do not directly touch the optics of the lamp with your hands.
●Before performing any maintenance and cleaning the lamp, please
make sure that the power has been cut off!
●Only qualified technicians can carry out maintenance work.
●Before maintenance,the power must be completely cut off!
●In order to prevent sunlight or other light from directly irradiating the
head lens and focusing on the inside of the lamp body to cause high
temperature damage to the lamp, before the lamp is powered off,
please use the Y-axis control channel to keep the lamp head down.
● Do not wipe the lamp housing with organic solvents such as alcohol to avoid damage.
● Do not use any solvents containing chemical components to clean the coated color
filters.
● Lubrication
In order to maintain the smooth rotation of the gobo and the smooth movement of the
focus lens, it is recommended to give the focus lens every two months
The 3 guide rails and the 2 guide rails of the magnifying lens are lubricated once. Good
and high-temperature-resistant lubricating oil/grease should be used.
●Ordinary Troubleshooting
Fault description
Take countermeasures
The lamp can't work normally
check if the power fuse is blown
Check if the bulb is in good condition
The lamps are not controlled by the
controller
Check if the DMX start address of the
lamp is set correctly
8
Check if the XLR signal cable is damaged
The lamps work intermittently
Check whether the fan is working
normally, and whether dust is blocking the
fan and the fan net
The light is dim and the brightness
is obviously reduced
Check whether the LED light source has
reached the expiration date
Check whether the internal and external
optical system is clean
The beam is impure (has a halo)
Clean the dust and oil from the lens and
other parts
Serious beam distortion
Check if the lens is broken
Clean the lens dust or oil

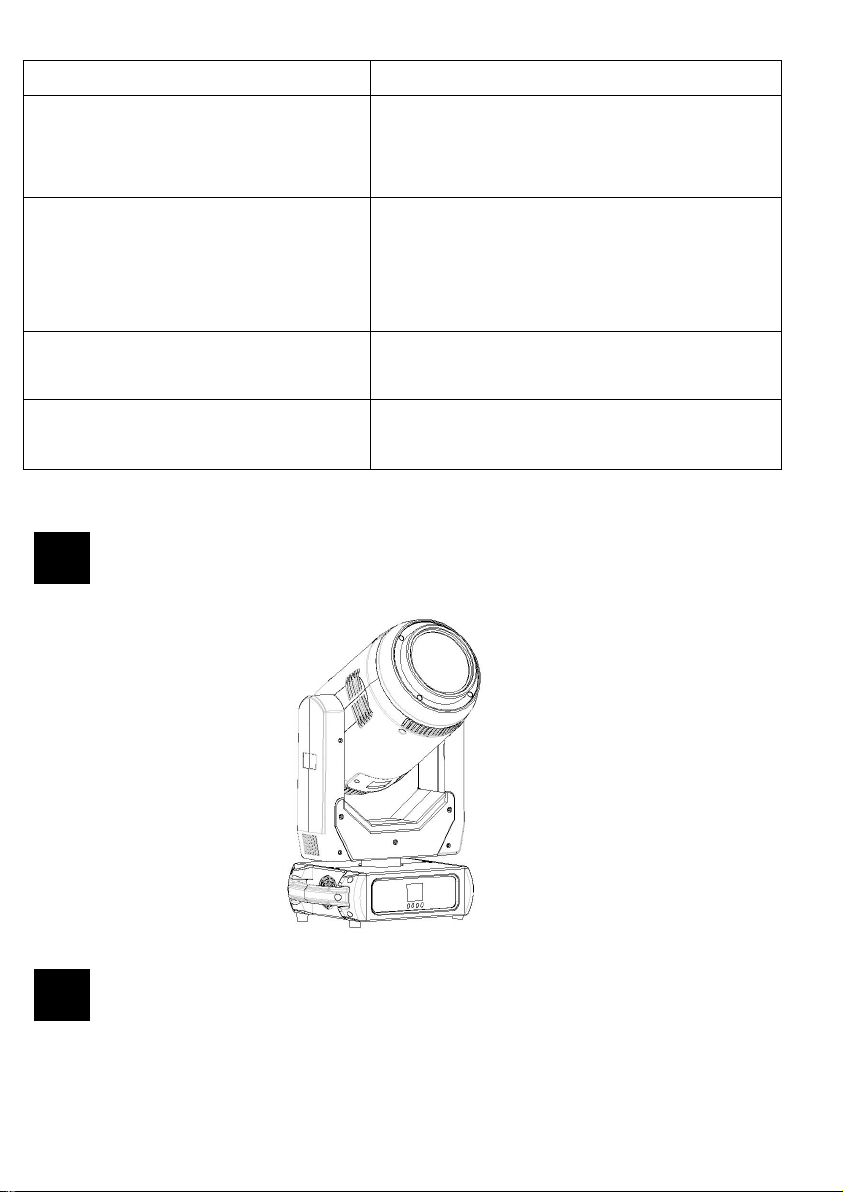

3LAMP APPEARANCE
4INSTALLATION
Warning!!
To ensure safety, please pass the
safety rope through the connection
hole to ensure safety.
9
Take out the 2 hooks and 1 safety rope that came with the machine, use the 4 hook
quick knobs attached to the hooks to install the 2 hooks on the bottom of the luminaire,
and then hang the luminaire on the fixed bracket with the hooks and twist Tighten the
hook and lock bolts to fix the whole lamp. Please confirm that the lamp is installed firmly
and reliably, and ensure that the hoisting position has enough strength to bear the
weight of the lamp. For safety reasons, please follow the warning shown in the figure
above to pass the safety rope provided with the lamp through the safety hole at the
bottom of the lamp holder for auxiliary lifting to ensure safety.
Warning!!
●The hook is only used when hoisting the lamp. It is strictly forbidden to
use the hook as a handle to carry the lamp. Please use the handle when
carrying.
●For safety reasons, please use a safety rope that can withstand 10
times the weight of the lamp to pass through the safety hole of the lamp for auxiliary
lifting.
●Power connection:
The power cord connection is as follows:
Clamps
Safety cable
10
L (fire wire) = brown wire
E (ground wire) = yellow/green two-color wire
N (center line) = blue line
When connecting the power supply, please note that the power supply voltage and
frequency must be consistent with the voltage and frequency marked on the nameplate
of the lamp. When multiple lamps are used at the same time, it is recommended to
connect the power supply of each lamp separately, so that each lamp can be individually
controlled on/off.
●When connecting the power supply, the ground wire (yellow/green
two-color wire) must be safely grounded, and the electrical installation
must comply with all relevant standards.
●If you have any questions about electrical installation, please do not
operate and consult a qualified electrician.
●Connection of control signal:
The connection between the lamp and the controller and between the lamp and the
lamp must use a two-core shielded wire with a diameter of not less than 0.5 mm. Please
use a 3-pin (included) XLR plug/seat to connect the DMX512 output/inlet of the lamp.
The connection between the XLR plug/socket and the wire is shown in the list above. It
must be noted that the 3-core of the XLR plug/seat cannot be in contact with the inner
shell and the core and the core cannot be in contact during the connection. Except for
Inhaltsverzeichnis
