instructions

Read the instructions and keep them safe. Pass them on if you pass the coﬀee maker

on. Remove all packaging, but keep it till you know the coﬀee maker works.

important safeguards

Follow basic safety precautions, including:

1 The coﬀee maker must only be used by or under the supervision of a responsible

adult. Use and store the coﬀee maker out of reach of children.

2 Don’t put the coﬀee maker in liquid, don’t use it in a bathroom, near a

source of water, or outdoors.

3 Sit the coﬀee maker on a stable, level, heat-resistant surface.

4 The scald hazard lasts long after boiling. Keep the coﬀee maker and cable away

from the edges of worktops.

5 Steam will collect under the lid. To avoid the risk of scalding, don’t open the lid till

the coﬀee maker has cooled.

6 Check that the lid is properly closed before using the coﬀee maker.

7 Take care when pouring – don’t over-tilt the carafe.

8 Don’t connect the coﬀee maker to an external timer or remote control system.

9 Don’t touch hot surfaces e.g. carafe or hotplate. Use the handle and grip.

10 Route the cable so it doesn’t overhang and can’t be caught or tripped over.

11 Unplug the coﬀee maker when not in use, before moving or cleaning. Let it cool

down before cleaning and storing away.

12 Fill the coﬀee maker from a jug or the carafe, not directly from the tap.

13 Don’t ﬁll the coﬀee maker above the max mark.

14 Put the carafe on the hotplate before brewing.

15 To stop the coﬀee maker, press the [button. The light will go out.

16 Before adding water, or reusing the coﬀee maker, let it cool for 10 minutes, to avoid

spitting.

17 Don’t use the coﬀee maker for any purpose other than those described in these

instructions.

18 Don’t put the carafe in a microwave oven.

19 Don’t try to reposition the carafe handle. You risk breaking the glass.

20 Keep the coﬀee maker, carafe, and cable away from hotplates, hobs, and burners.

21 Don’t use accessories unless we provide them.

22 Don’t use the coﬀee maker if it’s damaged or malfunctions.

23 If the cable or plug is damaged, return the coﬀee maker, to avoid hazard.

household use only

before using for the ﬁrst time

Fill the reservoir to the max mark with water, and run the coﬀee maker without coﬀee.

When it’s ﬁnished, discard the hot water and clean the coﬀee maker.

positioning

1 Sit the coﬀee maker on a stable, level, heat-resistant surface.

2 Route the cable so it doesn’t overhang, and can’t be tripped over or caught.

3 Don’t plug it in yet.

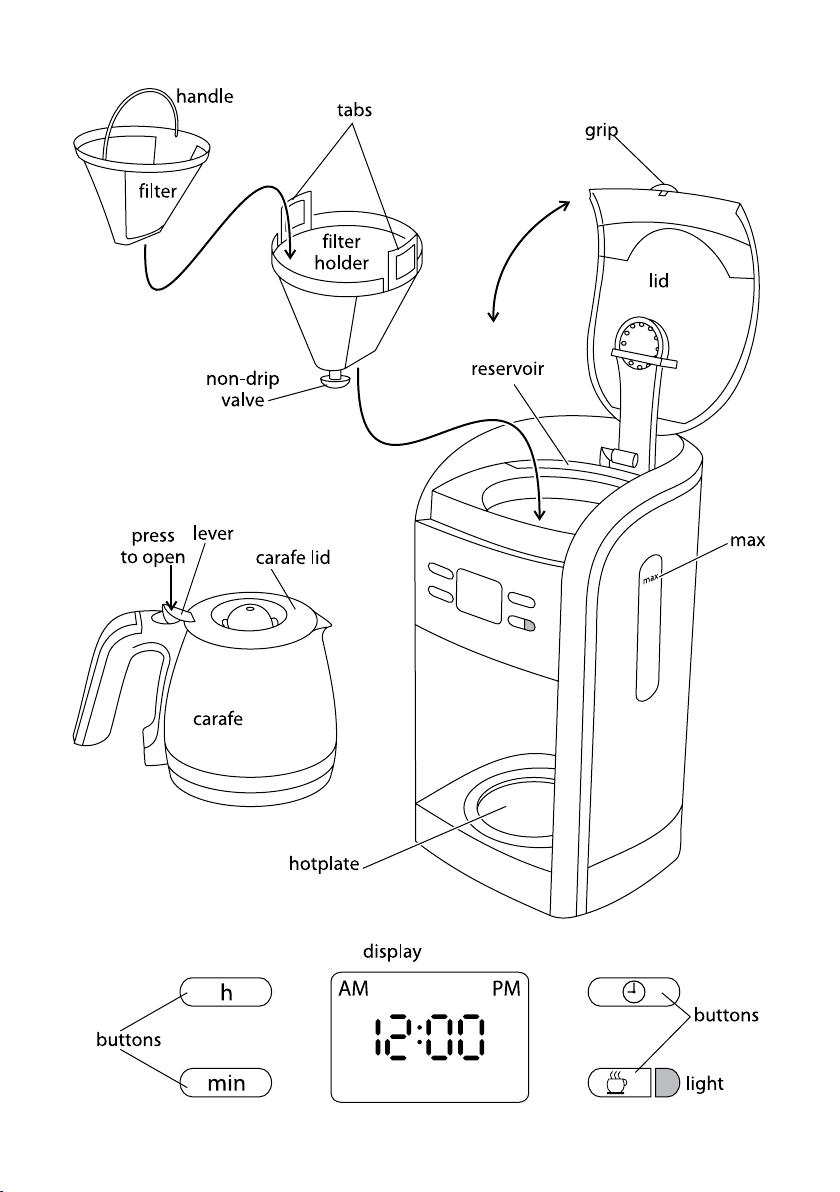

water ﬁll

4 Use the carafe to ﬁll the reservoir, to avoid overﬁlling.

5 Remove the carafe from the hotplate.

6 Press the lever at the rear of the handle, to open the carafe.

7 Use the grip to open the coﬀee maker lid, to expose the reservoir, the ﬁlter holder,

and the ﬁlter.

8 Fill the reservoir with at least 2 cups of water, but not above the max mark. If you

overﬁll, excess water will escape from the overﬂow at the rear of the coﬀee maker.

9 Close the carafe lid, and sit the carafe on the hotplate.

coﬀee ﬁll

10 Put ﬁlter-ground coﬀee into the ﬁlter. The amount will vary with the type of coﬀee,

and individual taste, but we suggest starting with one scoop per cup of water.

11 Use the grip to close the coﬀee maker lid.

power up

12 Plug the coﬀee maker into the power socket (switch the socket on, if it’s switchable).

13 The display will show 12:00.

coﬀee now

14 To make coﬀee right away:

a) ignore the display

b) press the [button, the light will come on

c) after a few seconds, coﬀee will drip into the carafe

coﬀee later

15 If you want to use the timer to make coﬀee later:

set the time now

a) Press and release the

h(hour) and min (minute) buttons to set the display to the

correct time

b) AM or PM will show at the sides of the display – check you’ve got the right one

set the brewing time

c) press and release the Tbutton, to put the display into timer mode – Auto will

ﬂash at the bottom right of the display

d) press and release the

h(hour) and min (minute) buttons to set the display to the

time you want the coﬀee maker to start brewing

e) AM or PM will show at the sides of the display – check you’ve got the right one

f) if you don’t press anything within 5 seconds, the display will revert to the correct

time – go back to c) above

g) press and

release the [button – the display will revert to the correct time, and

Auto will show at the bottom right of the display, to remind you that you’ve set

the timer

h) at the time you set, Auto will disappear from the screen, the light will come on,

and the coﬀee maker will start up

next time

i) next time you use the coﬀee maker, remember that the timer has already been

set – it’ll remember the time set until you unplug it, or set it again

stopping

16 If you need to cancel the timer before brewing has started, you can either:

a) press and release the [button twice – the ﬁrst press overrides the timer, and

turns the light on, to make coﬀee, the second press turns the light oﬀ, and resets

the display to the correct time

or b) press and release theT button once, then immediately press and release the [

button

,Whichever method you use, check that the display has reverted to the correct time,

and that Auto isn’t showing.

17 If you need to stop the coﬀee maker while it’s brewing, press and release the [

button. The light will go out. After about 10 seconds, the display will darken.

forget the brewing time?

18 If you want to check the brewing time, press and release the Tbutton – Auto will

ﬂash, the brewing time will show for about 5 seconds, then Auto will stop ﬂashing,

and the display will revert to the correct time.

keep warm

20 When the brewing process has ﬁnished, the hotplate will stay on for 2 hours to keep

your coﬀee hot, then it’ll switch the hotplate oﬀ, the light will go out, and the

display will darken.

animated display

21 While the coﬀee is brewing, the display will show a tumbler pouring into a carafe.

22 After the coﬀee has brewed, while it’s keeping the coﬀee warm, the display will

show a full carafe.

pouring

23 To pour, remove the carafe from the hotplate, and pour from the spout.

24 Replace the carafe on the hotplate to keep your coﬀee warm.

25 You may notice some resistance when you replace the carafe – this is caused by the

top of the carafe pushing against the non-drip valve.

a quick cup

26 You may remove the carafe to pour coﬀee at any time. The non-drip valve will stop

coﬀee dripping on to the hotplate.

27 To avoid overﬂowing, replace the carafe within 30 seconds. This may not sound

much, but its more than enough time to pour a couple of cups.

ﬁnished?

28 When the carafe is empty, press the [button to switch the hotplate oﬀ.

29 Unplug the coﬀee maker and let it cool down fully before cleaning, or for 10 minutes

before reﬁlling.

caution beware of steam when you open the lid

ground coﬀee

30 If you want to buy ready-ground coﬀee, medium-ground or ﬁlter-ground coﬀee will

give you the best results. The amount will vary with the type of coﬀee and your

individual taste. We suggest starting with two rounded teaspoons per cup.

storing coﬀee

31 Coﬀee is best kept in an airtight container in a cool dry place, or in the fridge.

Exposure to air oxidises coﬀee and allows the ﬂavour to evaporate.

milk

32 There’s a great deal of contention on the subject of milk in coﬀee. Our view is that

personal taste should rule, not convention.

33 If you like milk in your coﬀee, use warm or hot milk, to avoid overcooling the coﬀee.

34 To extract maximum ﬂavour from the coﬀee, it should be cool enough not to scald

or burn the mouth, but hot enough to let the ﬂavour ﬁll the mouth, nose and

sinuses, not just the taste buds.

bottled water

35 If you use bottled water, check that there are no added ingredients, ﬂavourings, etc.

and use still water, not sparkling. The carbon dioxide which gives the sparkle will

adversely aﬀect the ﬂavour of your coﬀee.

taste

36 Don’t be tempted to reheat coﬀee in the coﬀee maker. You’ll damage the coﬀee

maker and the coﬀee will be undrinkable.

37 Clean the ﬁlter holder, ﬁlter, and carafe after each use. Residue from a previous brew

will spoil your coﬀee.

38 If left for much more than about an hour, chemical changes in the coﬀee liquor start

to aﬀect the ﬂavour. It’s best to pour it away and make a fresh pot.

care and maintenance

39 Unplug the coﬀee maker and let it cool down fully.

40 Use the grip to open the lid.

41 Use the ﬁlter handle to lift out the ﬁlter, then tip the used coﬀee grounds into the

bin.

42 Use the tabs on the ﬁlter holder to lift the ﬁlter holder out of the coﬀee maker.

43 Wipe the outer surfaces of the coﬀee maker with a damp cloth.

44 Wash the ﬁlter, ﬁlter holder and carafe in warm soapy water, rinse thoroughly and

dry.

45 Replace the ﬁlter holder in the coﬀee maker, with the non-drip valve to the front.

46 Replace the ﬁlter in the ﬁlter holder.

47 Use the grip to close the coﬀee maker lid.

48 Replace the carafe on the hotplate.

49 Don’t wash any part in a dishwasher.

50 Don’t put the coﬀee maker in any liquid.

51 Don’t use harsh or abrasive cleaners or solvents.

descale regularly – even in soft water areas

Limescale may be white, coloured, even rusty-looking, but it’s normally visible.

Phosphate scale isn’t generally visible, but it’s there, even in soft water areas.

All scale causes overheating, and reduces the life of the coﬀee maker.

So, even with soft water, descale regularly, to help keep your coﬀee maker in working

order.

Use a proprietary brand of descaler suitable for use in plastic-bodied products. Follow

the instructions on the package of descaler. When descaling has ﬁnished, empty the

carafe and operate the coﬀee maker twice more with fresh water, but without coﬀee.

Discard the water to ensure that no chemical residues are left in the coﬀee maker.

,Products returned under guarantee with faults due to scale will be subject to a

repair charge.

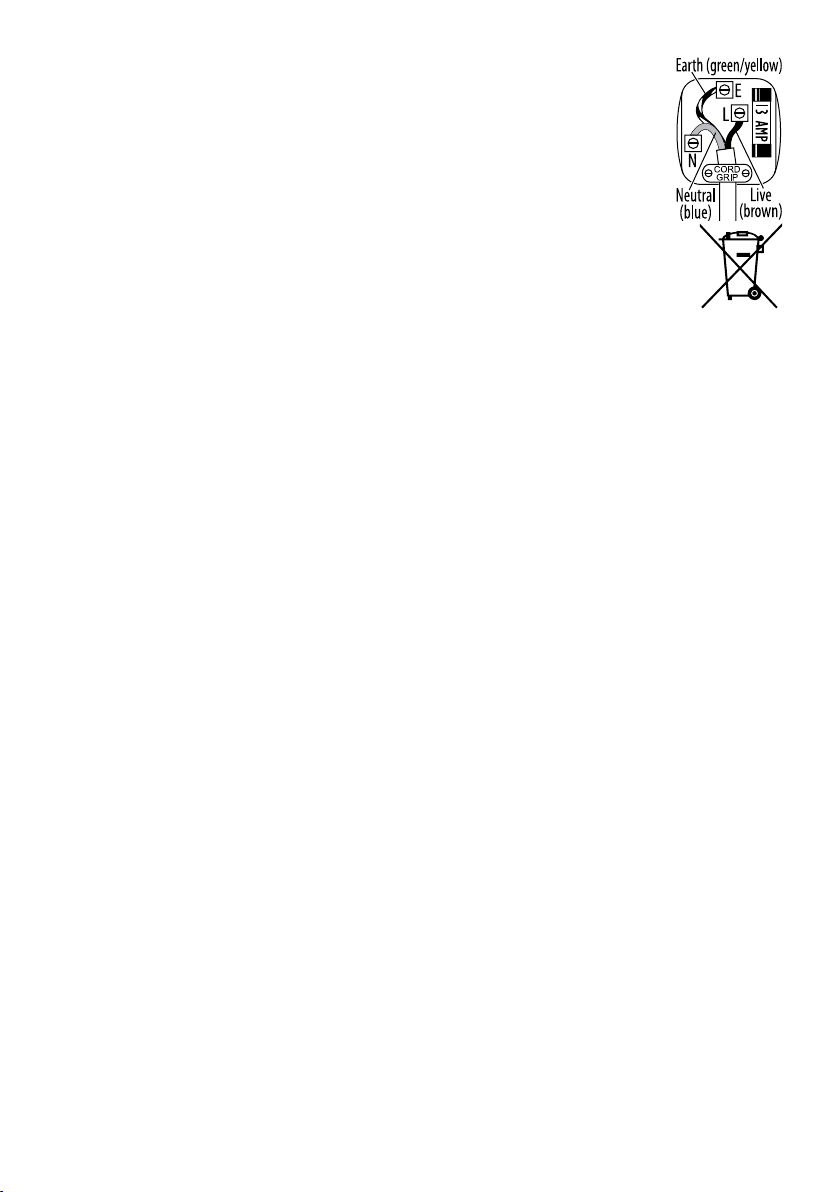

connection

The product must be earthed. It has a 13A BS1362 fuse in a 13A BS1363

plug. To replace the plug, ﬁt the green/yellow wire to Eor E, the blue wire

to N, and the brown wire to L. Fit the cord grip. If in doubt, call an

electrician. Don’t use a non-rewireable plug unless the fuse cover is in

place. If you remove the plug, dispose of it.

wheelie bin symbol

To avoid environmental and health problems due to hazardous substances in

electrical and electronic goods, appliances marked with this symbol mustn’t be

disposed of with unsorted municipal waste, but recovered, reused, or recycled.

service

If you ring Customer Service, please have the Model No. to hand, as we won’t be able

to help you without it. It’s on the rating plate (usually underneath the product).

The product isn’t user-serviceable. If it’s not working, read the instructions, check the

plug fuse and main fuse/circuit breaker. If it’s still not working, consult your retailer. If

that doesn’t solve the problem:

Pack carefully, with a note of your name, address, day phone number, and what’s

wrong. If under guarantee, say where and when purchased, and include proof of

purchase (till receipt). Send it to Customer Returns (address below right).

Customer Service Customer Returns

(correspondence only) Salton Europe Ltd

Salton Europe Ltd Heath Mill Road

Failsworth Wombourne

Manchester Wolverhampton

M35 0HS WV5 8AQ

Customer Service (serv[email protected])

telephone 0845 658 9700 (local rate number)

guarantee

Defects aﬀecting product functionality appearing within one year of purchase will be

corrected by replacement or repair provided the product is used and maintained in

accordance with the instructions. Your statutory rights are not aﬀected.

Documentation, packaging, and product speciﬁcations may change without notice.

online

www.russellhobbs.co.uk for more products

439-927

Dieses Handbuch passt für folgende Modelle

Inhaltsverzeichnis

Andere Russell Hobbs Kaffeemaschine Handbücher

Russell Hobbs

Russell Hobbs CM8100BKR Bedienungsanleitung

Russell Hobbs

Russell Hobbs 12591 Bedienungsanleitung

Russell Hobbs

Russell Hobbs 20680-56 Bedienungsanleitung

Russell Hobbs

Russell Hobbs 20682-56 Bedienungsanleitung

Russell Hobbs

Russell Hobbs 18592SS Installationsanleitung

Russell Hobbs

Russell Hobbs 14741-56 Bedienungsanleitung

Russell Hobbs

Russell Hobbs 28251 Bedienungsanleitung

Russell Hobbs

Russell Hobbs 24020-56 Bedienungsanleitung

Russell Hobbs

Russell Hobbs 23241-56 Bedienungsanleitung

Russell Hobbs

Russell Hobbs 20680 Bedienungsanleitung

Russell Hobbs

Russell Hobbs 18504-56 Bedienungsanleitung

Russell Hobbs

Russell Hobbs RHCMRET Installationsanleitung

Russell Hobbs

Russell Hobbs 25270-56 Bedienungsanleitung

Russell Hobbs

Russell Hobbs 18374-56 Bedienungsanleitung

Russell Hobbs

Russell Hobbs 14741-56-RH Bedienungsanleitung

Russell Hobbs

Russell Hobbs Reflections 10650 Produktinformationsblatt

Russell Hobbs

Russell Hobbs 18331-56 Bedienungsanleitung

Russell Hobbs

Russell Hobbs CAFE BARISTA RHCM45 Installationsanleitung

Russell Hobbs

Russell Hobbs 20132-56 Bedienungsanleitung

Russell Hobbs

Russell Hobbs 18536 Bedienungsanleitung

Russell Hobbs

Russell Hobbs 21702-56 Bedienungsanleitung

Russell Hobbs

Russell Hobbs 21170-56 Bedienungsanleitung

Russell Hobbs

Russell Hobbs Coffee machine Bedienungsanleitung

Russell Hobbs

Russell Hobbs Coffee machine Bedienungsanleitung

Beliebte Kaffeemaschine Handbücher anderer Marken

Taurus

Taurus Livorno 6 Bedienungsanleitung

Delta-q

Delta-q QUICK Bedienungsanleitung

Bunn

Bunn LCA-1 Fehlerbehebungshandbuch

Black & Decker

Black & Decker BLACK DECKER HOME DE790 Montageanleitung

Saeco

Saeco Vienna Plus Sup 018M Bedienungsanleitung

DeLonghi

DeLonghi DC300 Bedienungsanleitung

INCAPTO

INCAPTO BXCO1470E Bedienungsanleitung

Bosch

Bosch TASSIMO finesse TAS16B Series Bedienungsanleitung

Exido

Exido 245-072 Bedienungsanleitung

Animo

Animo OptiVend Choco Bedienungsanleitung

Siemens

Siemens TQ505DF Series Bedienungsanleitung

DeLonghi

DeLonghi ECI341 Bedienungsanleitung

Krups

Krups KT406511 Bedienungsanleitung

Cimbali

Cimbali M32 Classic Bedienungsanleitung

Philips

Philips HL3844N Bedienungsanleitung

Bosch

Bosch TES 515 SERIES Bedienungsanleitung

Tekmatix

Tekmatix TMFM - 65 Bedienungsanleitung

Scarlett

Scarlett SC-CM33005 Bedienungsanleitung
