INSTRUCTIONS AND WARRANTY
MODEL NO: 23972ZA
RUSSELL HOBBS PEARL GLIDE IRON
Congratulations on purchasing our Russell Hobbs Pearl Glide Iron. Each unit is
manufactured to ensure safety and reliability. Before using this appliance for the first time,
please read the instruction manual carefully and keep it for future reference.
FEATURES
1. Dry, steam and spray iron
2. 24000-2600W
3. *Pearl infused ceramic soleplate for a 50-percent smoother glide
4. *Two times more durable soleplate - designed to be hardwearing and long-lasting
5. 150g steam shot for the toughest wrinkles and 40g continuous steam for tackling
creases
6. Anti-drip feature means water won’t drip onto your clothes as you iron
7. Self-clean feature helps to prevent the build-up of limescale which can help lengthen
the lifespan of your appliance
8. A generous 315ml water tank means you don’t have to fill up so often
9. Self-clean anti-calc feature
10. 2m Power cord
11. Variable temperature control
12. Variable and vertical steam
13. Textured handle for comfort and grip
14. Power indicator light
15. For domestic use only
16. 2 year warranty (1 year retail • 1 year extended upon online registration of product •
visit www.russellhobbs.co.za)
*Vs Russell Hobbs Standard Ceramic
IMPORTANT SAFEGUARDS
When using any electrical appliance, basic safety precautions should always be followed
including the following:
1. Please read the instructions carefully before using any appliance.
2. Always ensure that the voltage on the rating label corresponds to the mains voltage
in your home.
3. Incorrect operation and improper use can damage the appliance and cause injury to
the user.
4. The appliance is intended for household use only. Commercial use invalidates the
warranty and the supplier cannot be held responsible for injury or damage caused
when using the appliance for any other purpose than that intended.
5. This appliance is not intended for use by persons (including children) with reduced
physical, sensory or mental capabilities, or lack of experience and knowledge, unless
they have been given supervision or instruction concerning the use of the appliance
by a person responsible for their safety.
6. Children should be supervised to ensure that they do not play with the appliance.
7. Check the power cord and plug regularly for any damage. If the cord or the plug is
damaged, it must be replaced by the manufacturer or a qualified person in order to
avoid an electrical hazard.
8. Do not use the appliance if it leaks, has been dropped or damaged in any way. In
case of damage, take the unit in for examination and/or repair by an authorised
service agent
9. To reduce the risk of electric shock, do not immerse or expose the motor/ electrical
assembly, plug or the power cord to water or any other liquid.
10. Never immerse the unit in water or any other liquid for cleaning purposes.
11. Remove the plug from the socket by gripping the plug. Do not pull on the cord to
disconnect the appliance from the mains. Always unplug the unit when not in use,
before cleaning or when adding or removing parts.
12. The use of accessory attachments that are not recommended or supplied by the
manufacturer may result in injuries, fire or electric shock.
13. A short cord is provided to reduce the hazards resulting from becoming entangled in
or tripping over a longer cord.
14. Do not let the cord hang over the edge of a table or counter. Ensure that the cord is
not in a position where it can be pulled on inadvertently.
15. Do not allow the cord to touch hot surfaces and do not place on or near flammable
goods, near an open flame, hot gas or electric burner or a heated oven.
16. Use of an extension cord with this appliance is not recommended. However, if it is
necessary to use an extension lead, ensure that the lead is suited to the power
consumption of the appliance to avoid overheating of the extension cord, appliance
or plug point. Do not place the extension cord in a position where it can be pulled on
by children or animals or tripped over.
17. This appliance is not suitable for outdoor use. Do not use this appliance for anything
other than its intended use.
18. Do not carry the appliance by the power cord.
19. Always operate the appliance on a smooth, even, stable surface. Do not place the
unit on a hot surface.
20. Ensure that the switch is in the “0” or “OFF” position after each use.
21. Don’t iron clothing while it’s being worn – you’ll burn or scald the wearer.
22. Don’t touch the soleplate and keep away from the steam emitting from it.
23. Take care when emptying the iron – it may contain hot water.
24. Don’t use the iron in the vicinity of children.
25. Use the iron on a stable, level, heat-resistant surface, preferably an ironing board.
26. Don’t leave the iron unattended while plugged in, or while it’s standing on the ironing
board. It could be knocked over by you, by a child or by a pet.
27. Don’t fill the iron directly from the tap, use the water beaker provided.
28. Don’t fill past the MAX level mark shown on the water tank or water will leak from the
iron during use.
29. Deposits or minerals in the water supply will generate scale and block the steam
holes in the soleplate. It is advisable to use distilled water when filling your iron. Do
not use chemically distilled water.
30. Leave the iron upright to cool down fully before cleaning and storing away.
31. Don’t use the iron for any purpose other than those described in these instructions.
32. Take care not to scratch the soleplate – avoid buttons, zips, etc.
33. When placing the iron on its heel rest, ensure that the surface on which is has been
placed is clean and stable.
34. The iron has a protective thermal fuse, which will blow if it overheats. If this happens,
the iron will stop working and must be returned for repair.
35. Always unwind and straighten the power cord before use.
36. Unplug the iron from the mains electrical supply before:
a. Cleaning
b. Filling with water or emptying the water tank
c. Immediately after use
d. When not in use
e. When moving
37. The appliance generates high temperature steam. Always handle with care and warn
other users of potential danger.
38. Don’t let the power cord touch the soleplate as it may result in damage as well as a
potential fire hazard.
39. Empty the water tank after each use.
40. Do not add perfume, vinegar or other chemical liquids into the water tank as they
may result in damage to the appliance.
41. Do not operate this appliance by means of an external timer.
42. The manufacturer does not accept responsibility for any damage or injury caused by
improper or incorrect use, or for repairs carried out by unauthorised personnel.
43. In case of technical problems, switch off the appliance and do not attempt to repair it
yourself. Return the appliance to an authorised service facility for examination,
adjustment or repair. Always insist on the use of original spare parts. Failure to
comply with the above-mentioned precautions and instructions, could affect the safe
operation of this appliance.

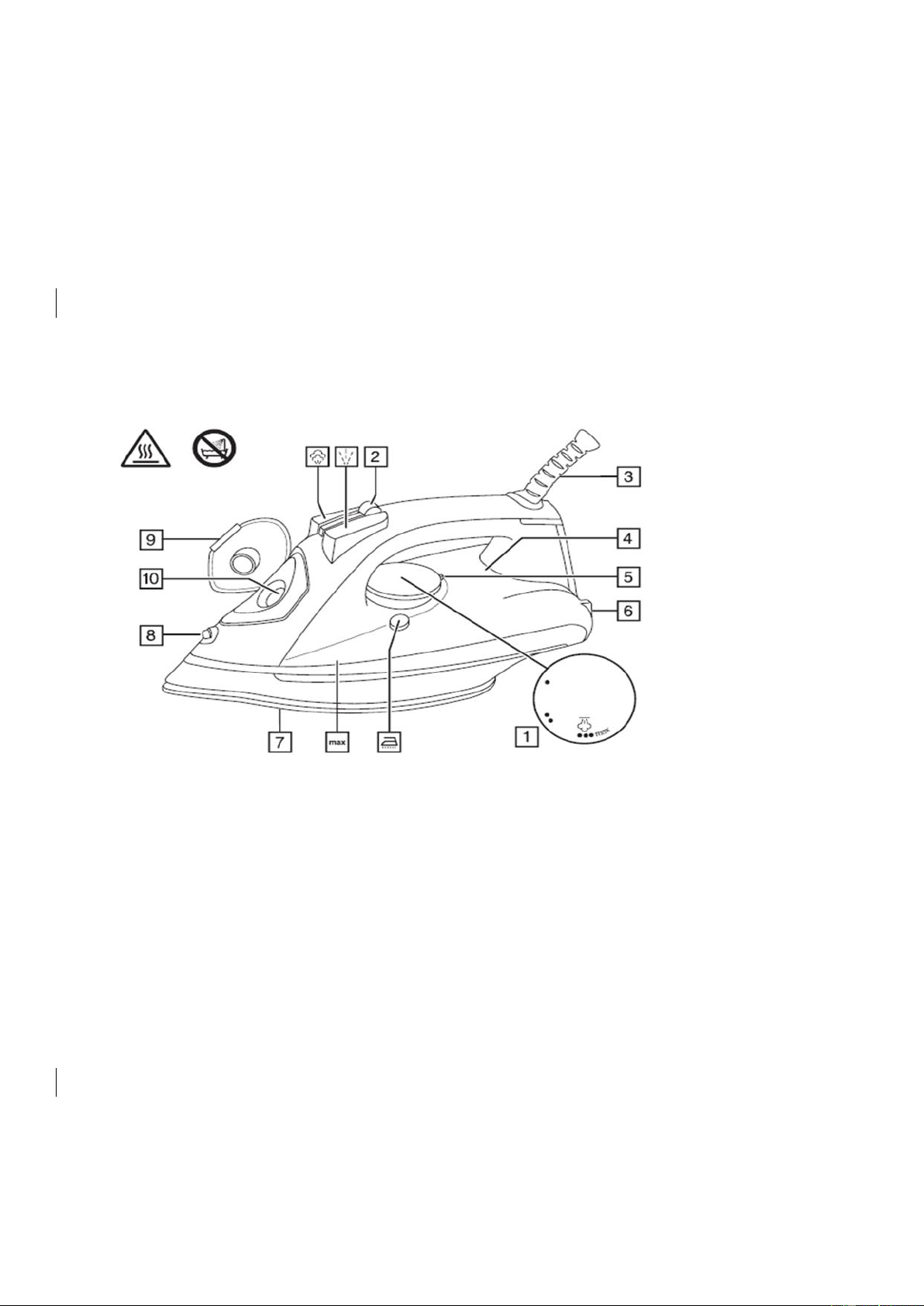

PARTS DIAGRAM
1. Temperature control
2. Steam control
3. Swivel cord
4. Light
5. Marker
6. Heel
7. Soleplate
8. Spray nozzle
9. Water inlet cover
10. Water inlet
OPERATING INSTRUCTIONS
BEFORE FIRST USE
•Remove any protective films or stickers from the soleplate and the iron’s body.
•Wipe the soleplate with a dry soft cloth.
•Unwind and straighten the power cord.
•Fill the iron as described in the section “How to Fill the Water Tank”.
•Connect the appliance to a suitable mains power supply outlet.
•Turn the Temperature Dial to the MAX position.
•Wait until the pilot light cycles a few times or wait for at least 3 minutes for the
temperature to stabilize before ironing. Once the pilot light goes off after the cycle,
then the required temperature is reached.
•Move the steam knob to the ON position - steam will start to come out from the vents
on the soleplate.
•Begin first time ironing with an old towel.
•When the water tank is empty and there is no more steam that can be produced; the
preparation work is completed.
•The iron is now ready for normal use.
Note: It is normal for small amount of smoke to be produced the first time you use the iron,
this will quickly disappear. When using the steam function for the first time, do not direct the
steam towards the laundry, as there could be debris from the steam vents.
HINTS AND TIPS FOR IRONING
1. Sort the articles to be ironed according to the type of fabric. This will minimize the
frequency of temperature adjustment for different garments.
2. Start ironing the fabrics requiring the lowest temperature and progress to the higher
ones because the iron heats up quicker than it cools down.
3. “Test iron” a small area on the backside or inside of the garment if you are unsure
about the type of fabric. Start with a low temperature and increase gradually.
4. Wait for about three (3) minutes before ironing when changing the temperature. The
iron needs time to cycle to the temperature selected.
5. Delicate fabrics such as silk, wool, velour, etc. are best ironed with an ironing cloth to
prevent shine marks.
6. You may need to press the steam button a few times to activate the burst of steam
function.
7. Always keep the soleplate smooth – avoid contact with sharp, hard, metal objects.
TEMPERATURE SETTING GUIDE
1 Check for textile care symbols
If the instructions on the fabric label differ from this guide, follow the instructions on the label.
HOW TO FILL THE WATER TANK
1. Disconnect the appliance from main power supply outlet.
2. Ensure that the temperature dial and steam knob are in the “MIN” and “OFF”
positions.
3. Open the water inlet cover.
4. Place the iron on its heel rest and tilt forward approximately at a 45-degree angle.
5. Fill water through the water-filling inlet hole up to the MAX level mark indicated on the
side of the iron/ water tank. Never fill above this mark. Pour the water slowly to
prevent an airlock and over filling.
6. Close the water inlet cover and wipe off any spillages on Iron.
Note: For the best result, it is advisable to use de-mineralized water or distilled water.
Do not use chemically de-scaled water or any other liquids
SWITCHING ON THE IRON
1. Set the temperature control to • and set the steam control to
2. Stand the iron on its heel.
3. Put the plug into the power socket (switch the socket on, if it's switchable).
4. Turn the temperature control to align the setting you want next to the marker. The
light will come on.
5. When the iron reaches the temperature you set, the light will go of. It'll then cycle on
and off as the thermostat operates to maintain the temperature.
WATER SPRAY FUNCTION
This function can be used at any time and it does not affect other functions.
1. Water spotting affects some fabrics. Test this out on a hidden part of the fabric.
2. Lift the iron off the fabric.
3. Aim the spray nozzle at the fabric.
4. Press the button - you may have to press it 2 or 3 times to pump water through
the system.
NOTE: When using the water spray function, ensure that there is enough water in the water
tank.
BURST OF STEAM
This function works well for tough wrinkles and heavy fabrics. By pressing the burst of steam
button ( ) an intense burst of steam is emitted from the soleplate. This can be very useful
when removing stubborn creases. This function can be used once the iron has reached
maximum temperature. For optimal results, there should be a five (5) second interval
between presses of the burst of steam button.
To further prevent leaking water from the soleplate, do not press the burst of steam button
continuously for more than three (3) seconds. Allow at least a one (1) minute interval before
pressing the burst of steam button again. Stubborn creases should be removed within three
(3) burst of steam button presses.
VERTICAL STEAMING
Burst of steam can also be applied when holding the iron in a
vertical position. This function is useful for removing wrinkles on
garments in hanging position, hanging curtains, or other hanging
fabrics.
•Check that there's adequate ventilation behind the fabric, otherwise moisture may
build up, causing mildew.
•Check that there's nothing behind the fabric that may be damaged by the steam.
Check that pockets, turn-ups, and cuffs are empty.
•Check that there's water in the reservoir.
•Set the temperature control to max and set the steam control
•Hold the iron close to (but not touching) the fabric.
•Press the steam burst button.
•Leave 4 seconds between shots, to let the temperature build up.
Note: It may be necessary to press the burst of steam button few times to start this function.
During the use of ‘Burst of Steam’, stop ironing when the pilot light turns on and then start
ironing again only after the pilot light has turned off.
Warning: Do not apply steam on any clothes or fabrics that are being worn by human or
pets. The temperature of the steam is very high and will burn or scald.
DRY IRONING
This function irons without the use of steam.
If you're going to be dry ironing for 20 minutes or more, empty the reservoir first to avoid
spontaneous bursts of steam.
1. Connect the iron with a suitable mains power supply outlet.
2. Set the steam knob to position “0”/ “no steam”/ “OFF”.
3. Turn the temperature dial to the correct ironing temperature according to the
recommendation of the garment label.
4. Wait until the pilot light cycles a few times or wait for at least 3 minutes for the
temperature to stabilize before ironing.
5. Once the pilot light goes off after the cycle, then the required temperature is reached.
6. After use, turn the temperature dial to the “0”/ “OFF”/ “MIN” position to switch it off.
7. Disconnect the iron from mains power supply outlet.
8. Follow cleaning and maintenance instructions.
STEAM IRONING
This function can only be used at a higher ironing temperature – moderate or max position.
1. Connect the iron to a suitable mains power supply outlet.
2. Set the steam knob to position “0”/ “no steam”.
3. Turn the temperature dial to the correct ironing temperature according to the
recommendation of the garment label.
4. Wait until the pilot light cycles a few times or wait for at least 3 minutes for the
temperature to stabilize before ironing. The pilot light will glow to indicate that the iron
is heating up.
5. When the required temperature is reached, the pilot light will go off. The iron is ready
to use.
6. After use, turn the temperature dial to the MIN position to switch off the iron.
7. Disconnect the iron from mains power supply outlet.
8. Follow cleaning and maintenance instructions.
Note: This iron has an anti-drip feature: if you are ironing garments for a long period of time,
the soleplate temperature may decrease. The anti-drip function will ensure that water does
not leak from the soleplate during this time.
SELF-CLEANING
This function removes the scale and minerals built up in the steam chamber. The iron will
remain in the best condition if this function is performed once every two weeks. You may
choose to use the function more frequently depending on the hardness of the water used or
water available in your local area.
•Make sure that the appliance is unplugged from the mains supply outlet.
Inhaltsverzeichnis
Andere Russell Hobbs Eisen Handbücher
Russell Hobbs
Russell Hobbs POWERSTEAM ULTRA 20630AU Installationsanleitung
Russell Hobbs
Russell Hobbs RHI100 Bedienungsanleitung
Russell Hobbs
Russell Hobbs Rapidsteam RHC902 Installationsanleitung
Russell Hobbs
Russell Hobbs Steam Iron Bedienungsanleitung
Russell Hobbs
Russell Hobbs RHC1200 Installationsanleitung
Russell Hobbs
Russell Hobbs 26470-56 Bedienungsanleitung
Russell Hobbs
Russell Hobbs EASYGLIDE RHI500 Leitfaden
Russell Hobbs
Russell Hobbs 14773 Bedienungsanleitung
Russell Hobbs
Russell Hobbs RHI 405 Installationsanleitung
Russell Hobbs
Russell Hobbs SUPREME RHC470 Installationsanleitung
Russell Hobbs
Russell Hobbs 15131 Bedienungsanleitung
Russell Hobbs
Russell Hobbs 26020-56 Bedienungsanleitung
Russell Hobbs
Russell Hobbs LIGHT AND EASY 23590-56 Bedienungsanleitung
Russell Hobbs
Russell Hobbs 14804 Bedienungsanleitung
Russell Hobbs
Russell Hobbs 22523-56 Bedienungsanleitung
Russell Hobbs
Russell Hobbs 22520 Bedienungsanleitung
Russell Hobbs
Russell Hobbs RHC300 Installationsanleitung
Russell Hobbs
Russell Hobbs RHI002 Installationsanleitung
Russell Hobbs
Russell Hobbs Light and Easy Brights 24840-56 Bedienungsanleitung
Russell Hobbs
Russell Hobbs 20630-56 Bedienungsanleitung
