Saab 32 025 603 Bedienungsanleitung
Saab 9-3 5D M06-
900 Installation instructions
SCdefault
MONTERINGSANVISNING ·INSTALLATION INSTRUCTIONS
MONTAGEANLEITUNG ·INSTRUCTIONS DE MONTAGE
SITdefault
Saab 9-3 5D M06-
Parking assistance (SPA)
Accessories Part No. Group Date Instruction Part No. Replaces
32 025 603 9:40-05 Sep 05 32 025 604
F930A403
2 32 025 604
Saab 9-3 5D M06-

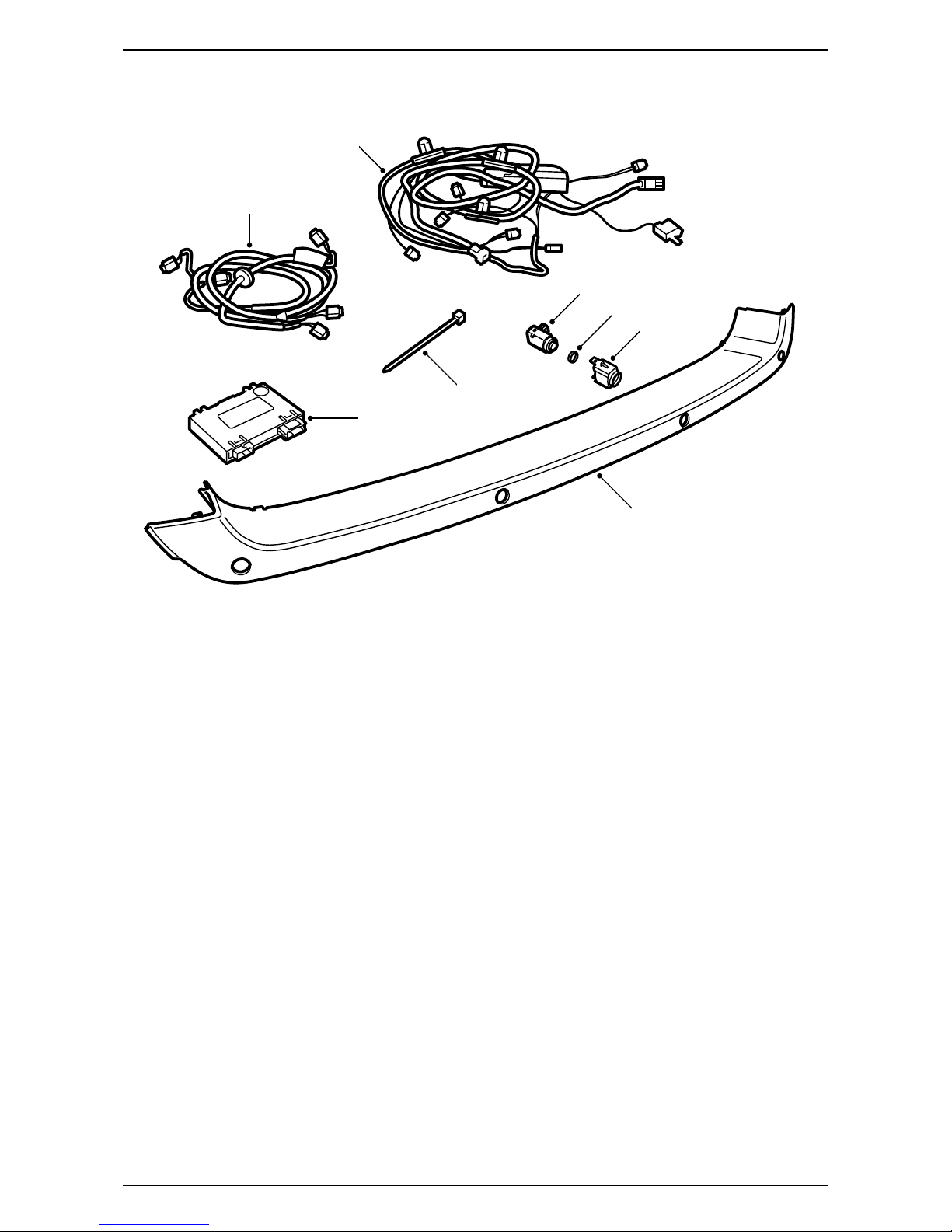

1 SPA control module
2 Holder (x4)
3Seal(x4)
4 Distance sensor (x4)
5 Protective shell, bumper
6 Wiring harness, distance sensor
7 Wiring harness, rear harness
8 Cable tie (x4)
F930A404
1
5
7
6
2
3
4
8
32 025 604 3
Saab 9-3 5D M06-

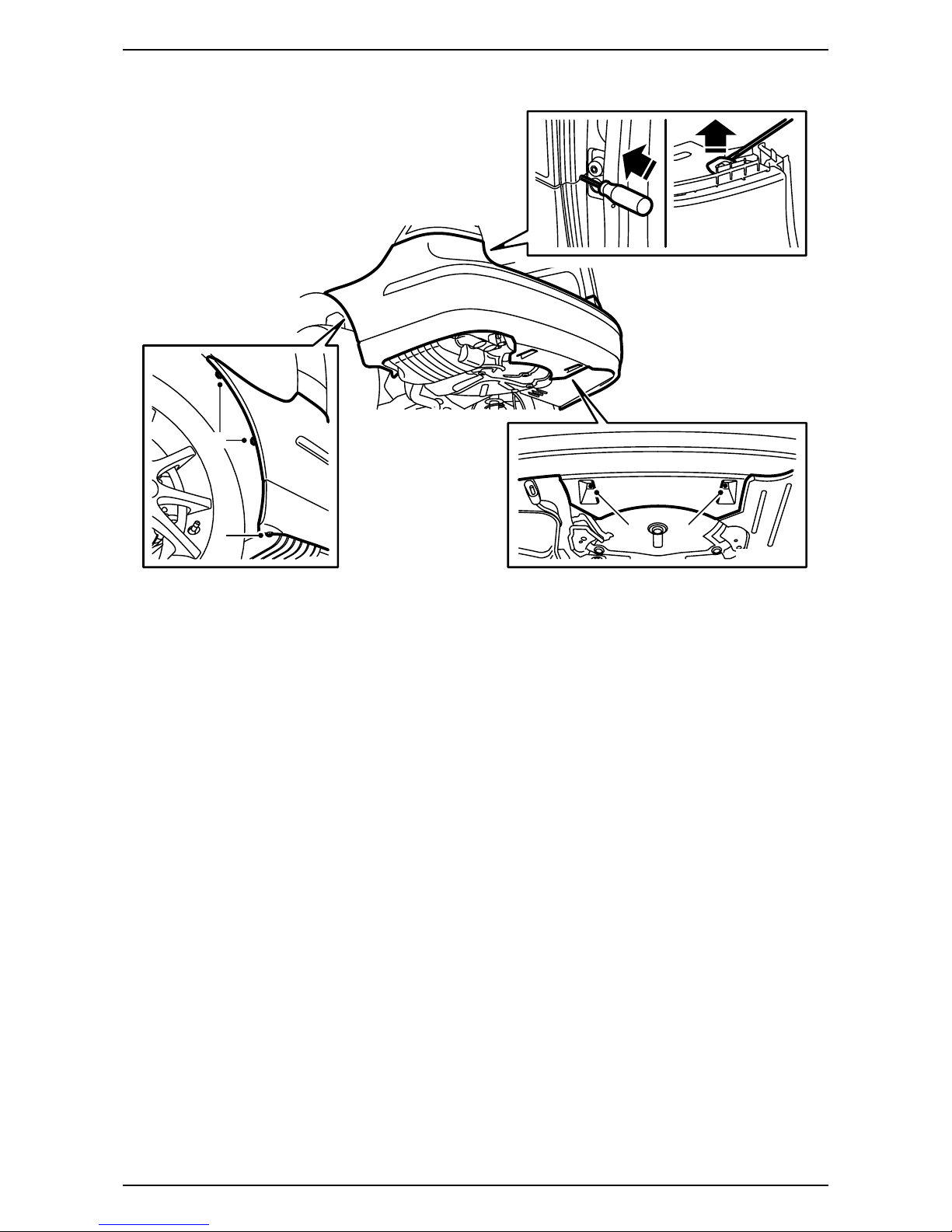

1 Turn the ignition key to the OFF position and
remove the key.
2 Raise the car.
3 Remove the spoiler's centre nuts.
4 Remove the screws to the wheel housing.
5 Lower the car and open the tailgate.
6 Insert a screwdriver in the hole to reach under
the catch for the bumper shell. Bend up using
the screwdriver to release the catch.
F930A405
3 3
6
4
4
4 32 025 604
Saab 9-3 5D M06-

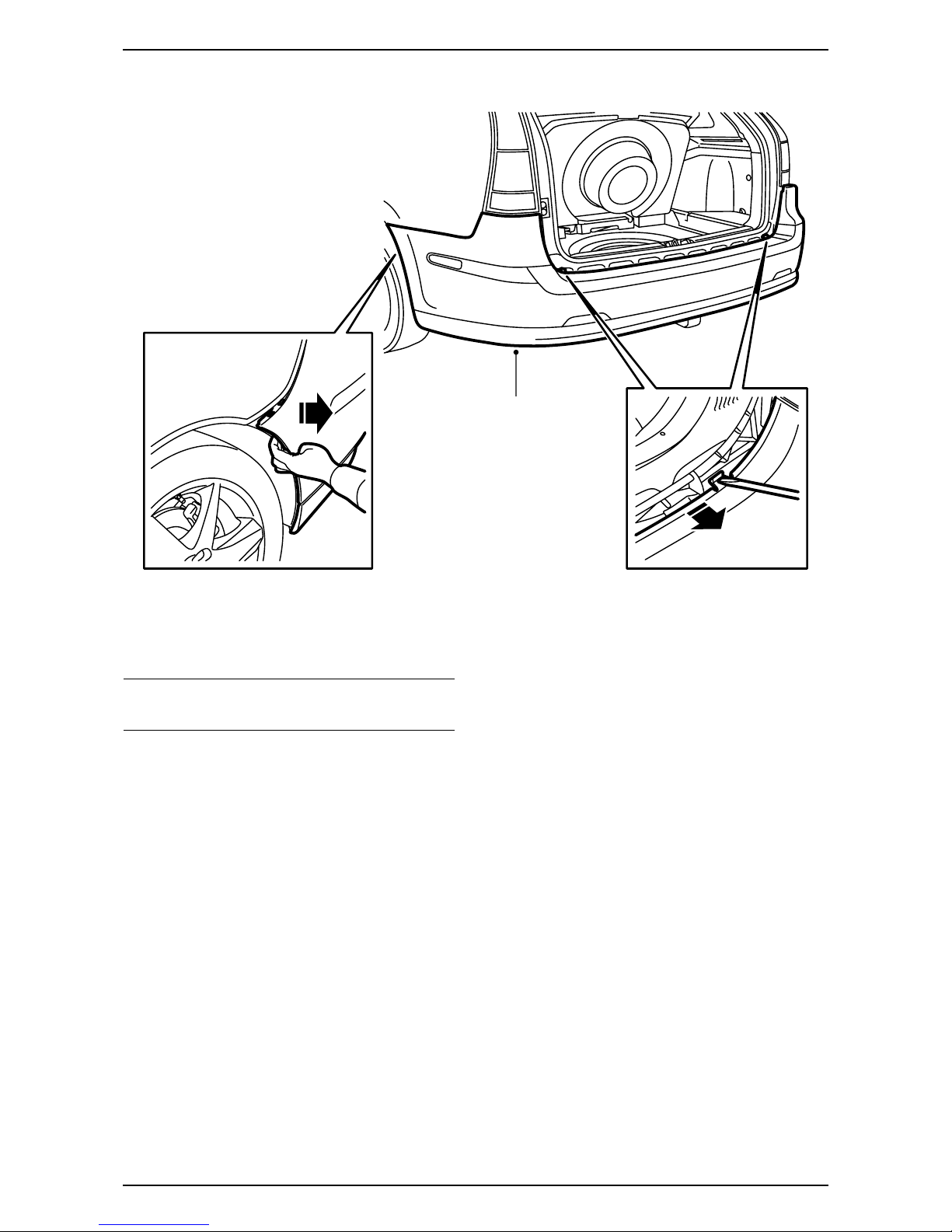

7 Pull the bumper shell away from the holders.
8 Release the catches using a screwdriver.
Detach the shell from the moulding.
9 Lift off the bumper shell.
Important
Place the bumper on a soft, clean surface.
F930A406
8
9
7
32 025 604 5
Saab 9-3 5D M06-
10 Pull the cellular block from the bumper shell
lugs.
11 Remove the protective corner mouldings and
the protective shell by inserting tool 82 93 474
under the shell to release the clips.
F930A407
11
10
1111 11
6 32 025 604
Saab 9-3 5D M06-
12 Fit the seals to the sensors.
13 Fit together the distance sensors and the
holders.
14 Fit the distance sensors in the bumper shell.
Turn the connector in the right direction, see
illustration.
15 Connect the kit's wiring harness to the sensors
and pull it along the shell. The connector must
come out toward the left-hand light cluster.
WARNING
Check that the wiring harness is not pinched.
Incorrect fitting can damage the wiring harness
and cause a short-circuit/fire.
F930A408
12
13
15 15 15
14 14 14 14
32 025 604 7
Saab 9-3 5D M06-
16 Fit the cellular block by guiding it in toward the
bumper shell lugs. Press the cellular block in.
17 Fit the protective shell by pressing in the clips.
Make sure that the sensors are located
correctly.
18 Check that all the clips are secured in the
bumper shell.
F930A409
18
17
17
18
16
8 32 025 604
Saab 9-3 5D M06-
19 Fold down the rear seat backrests.
20 Remove the left and right-hand C-pillar trim. Use
82 93 474 Removal tool to remove the cover
plate.
21 Remove the left and right-hand side bolsters.
Use 82 93 474 Removal tool to remove the clips.
F930A410
20
20
20
21
21
21
32 025 604 9
Saab 9-3 5D M06-
22 Remove the luggage compartment floor.
23 Cars with subwoofer: Lift up the subwoofer.
24 Remove the scuff plate's clips using 84 71 179
Removal tool, clips and lift up the scuff plate.
F930A411
24
24 22
22
10 32 025 604
Saab 9-3 5D M06-

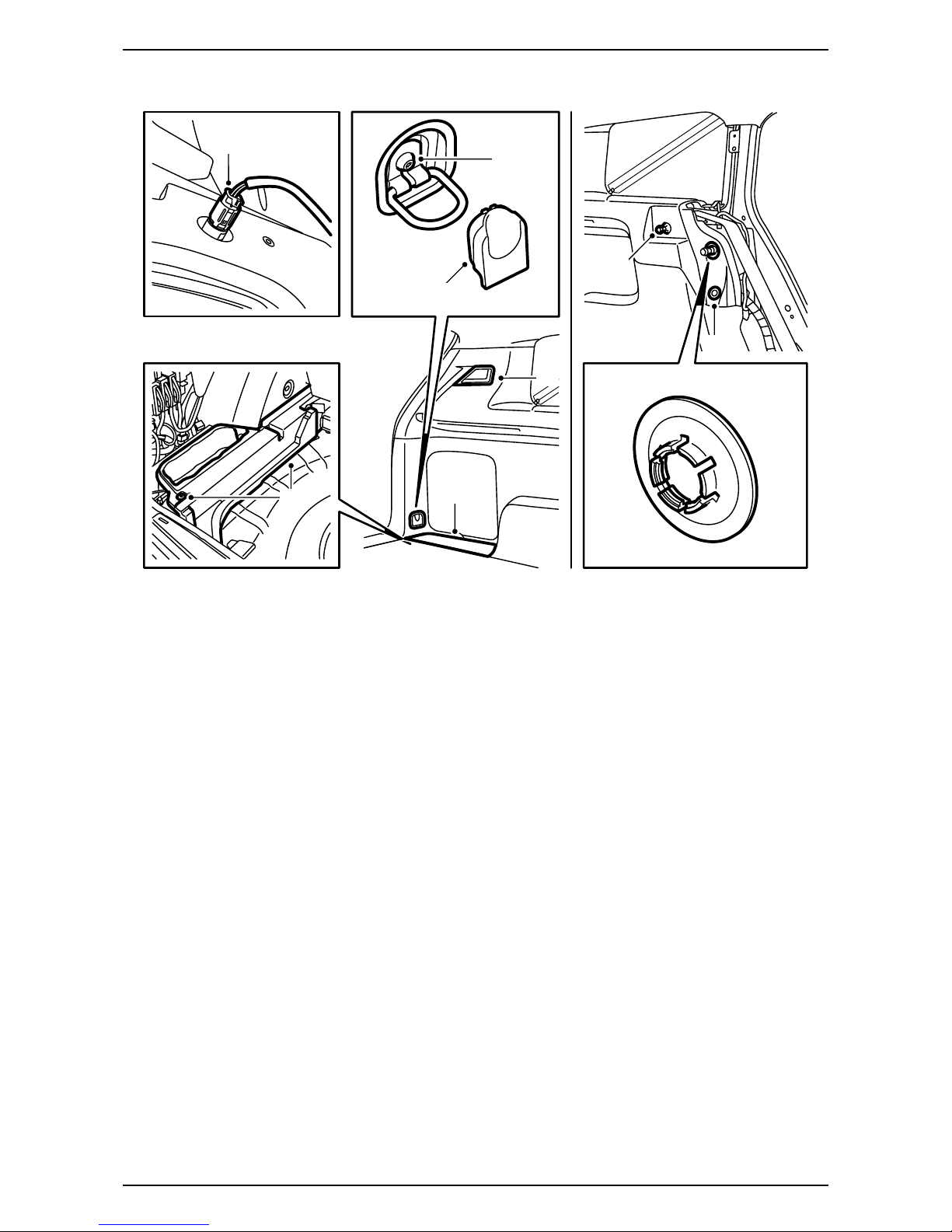

25 Steps 25-33 must be carried out on both the
left and right-hand sides.
Remove the clip from the mounting in the body.
Use a screwdriver.
26 Remove the two-stage rivet using 84 71 179
Removal tool, clips.
27 Remove the mounting for the cargo guard
(if fitted).
28 Remove the cover and the screw.
29 Lift the cover away from over the storage
compartment.
30 Remove the luggage compartment lighting lens
and insert the bulb holder through the hole in the
side trim.
31 Right-hand side: Also unplug the connector to
the 12 V socket.
32 Remove the trim so that the clips release.
33 Remove the clip for the foam block and remove
the foam block.
F930A412
31 28
28
30
29
33
25
27
26
