Saab 12 832 505 Bedienungsanleitung

Saab 9-3 CV M04-

900 Installation instructions

SCdefault

MONTERINGSANVISNING ·INSTALLATION INSTRUCTIONS

MONTAGEANLEITUNG ·INSTRUCTIONS DE MONTAGE

SITdefault

Saab 9-3 CV M04-

Integrated telephone

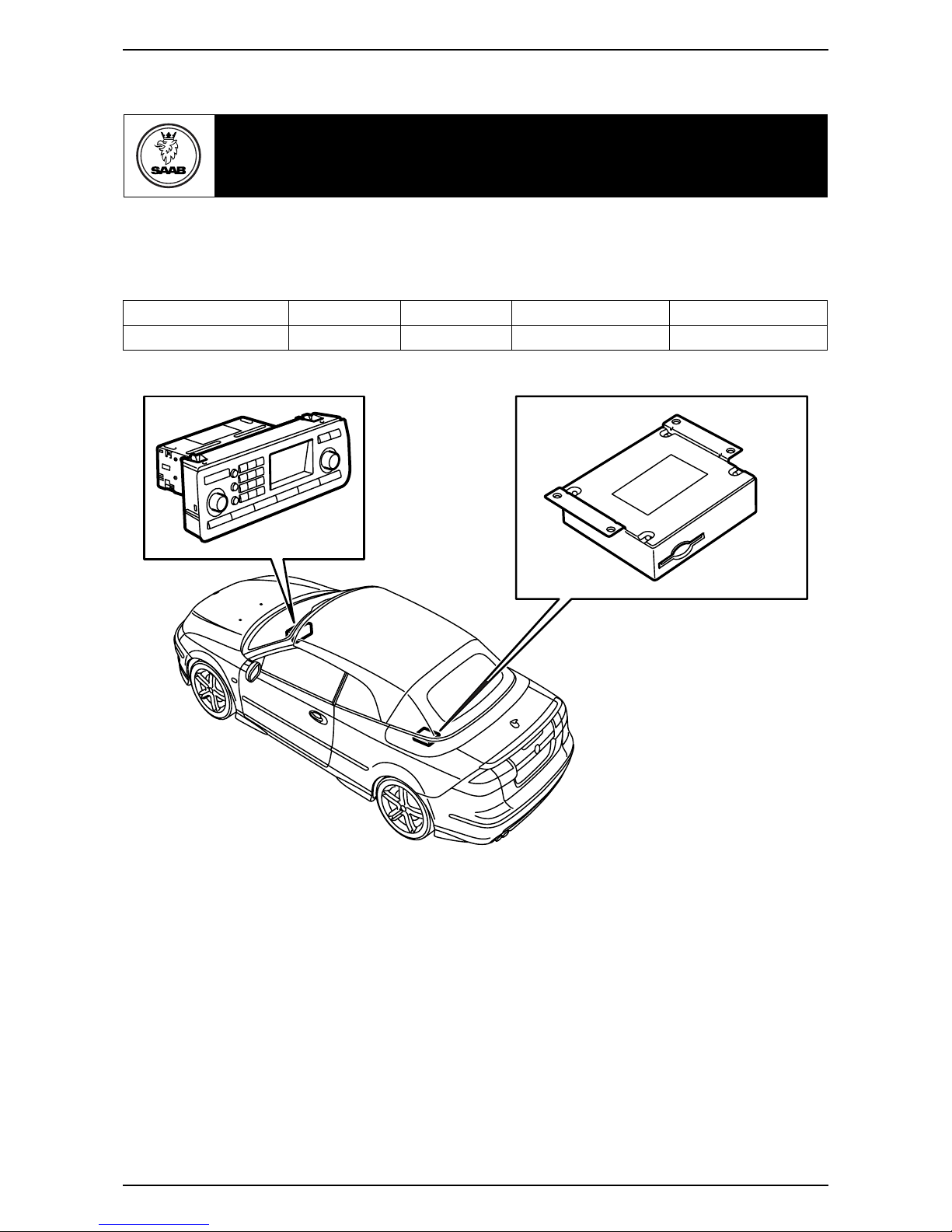

Accessories Part No. Group Date Instruction Part No. Replaces

12 832 505 9:39-13 Nov 03 12 832 515

F930A301

2 12 832 515

Saab 9-3 CV M04-

1 Fibre optic cable, A-pillar - Torsion compartment,

2770 mm long

2 Fibre optic cable (x3)

– Amplifier - Torsion compartment (870 mm long)

– Luggage compartment console - Torsion

compartment (1195 mm long)

– Between the units in the luggage compart-

ment console (455 mm long)

3 Wiring harness with fibre optic cable

4 Optical cable connector, 2-pin

5 Bracket for telematics unit

6 Screw (x2)

7 Antenna, Bluetooth

8 Cable tie (x17)

In addition, the following items are required

(ordered separately)

·Telematics unit

·Control panel (certain cars)

·Antenna cable (certain models)

·Steering wheel (certain cars)

F930A302

12 832 515 3

Saab 9-3 CV M04-

Bus Communication

Many parts of the car's electrical system communi-

cate using a bus. There are three types of bus

communication: P-bus (Powertrain Bus), I-bus

(Instrument Bus) and O-bus (Optical bus). The

audio system communicates via the O-bus together

with the navigation system, the telephone system

and others.

The O-bus is optical and is a ring bus. Two fibre

optical cables are connected to each control module

on the bus, one fibre optical cable for receiving and

one for sending. Messages received are converted

by each control module from a fibre optic signal to

electrical and then converted back to optical for

sending. The O-bus data transfer rate is 25 Mbit/s.

AMP1 is an amplifier behind the left-hand rear side

trim

AMP2 is an amplifier by the REC

CDC is a CD changer by the REC

DVD is a DVD player by the REC

When fitting new equipment to be connected to the

O-bus it is important that it is connected into the

correct side of the existing equipment.

Important

It is very important that everything connected to

the O-bus is connected in a specific order, see

illustration, and that the ring is closed the whole

time.

Connection in any other way than that described

in these fitting instructions may result in several of

the car's systems failing to work.

F930A100

CDC

DVD

AMP2

CDC

AMP2

DVD

2DVD

CDC

AMP2

DVD

CDC

2 1

Important

Handle the fibre optic cables with care or the

signal may be distorted.

·It is very important that the two leads in the

connector are not confused with one another.

·Do not splice the cables.

·Do not bend the cable in a radius smaller than

25 mm.

·Do not expose the cable to temperatures

exceeding 85 °C.

·Keep the cable ends free from dirt and grime.

·Do not expose the cable to impact as this may

cause the transparent plastic to whiten,

thereby reducing the intensity of the light and

causing possible communication interruptions.

·The cable should not lie against any sharp

edges as this may cause increased signal

reduction.

4 12 832 515

Saab 9-3 CV M04-

1 Raise the soft top and open the boot lid.

2 Remove the carpet on the luggage compartment

floor and remove the luggage compartment scuff

plate.

3 Remove the rivets and lift out the front section of

the luggage compartment trim.

4 Remove the side scuff plate on the left-hand

side.

5 Remove the clips for the left-hand side trim and

fold the trim aside. Unhook the strap on the rear

side of the side trim and remove the connector

from the luggage compartment lighting. Remove

the side trim.

6 Check from the luggage compartment if there is

a connection for the antenna cable in the centre

of the torsion compartment and if a telematics

unit is fitted in the centre of the torsion compart-

ment. If a telematics unit is fitted then it must be

removed together with the bracket but without

the connectors being removed.

No telematics unit and no antenna connec-

tion: Continue with step 7.

Telematics unit and blue antenna cable

connection fitted but no violet antenna cable

connection: Continue with step 7.

No telematics unit, and blue antenna cable

connection fitted, but no violet antenna

cable connection: Continue with step 7.

No telematics unit but violet antenna cable

connection fitted: Continue with step 22.

Telematics unit and blue antenna cable

connection fitted and connected, and violet

antenna cable connection is fitted but not

connected: Continue with step 61.

No telematics unit, but blue antenna cable

connection fitted and violet antenna cable

connection fitted: Continue with step 22.

F930A303

2 2

12 832 515 5

Saab 9-3 CV M04-

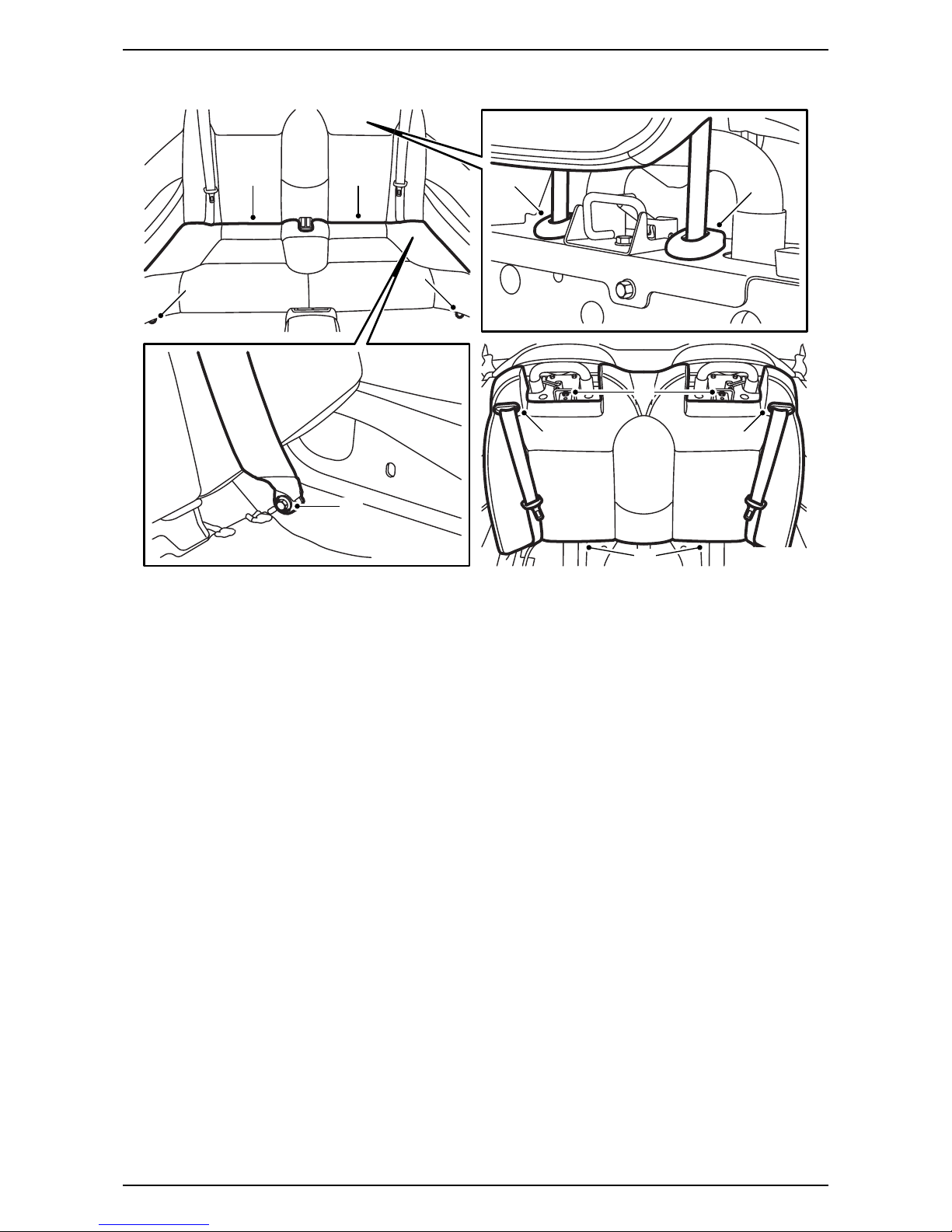

7 Fold down the soft top completely, but allow the

soft top cover to remain open.

8 Open the rear side window on the left-hand side

completely.

9 Remove the screws which hold the rear seat

cushion at the front edge.

10 Lift up the cushion and pull it forwards so that it

loosens.

11 Pull up both of the rear head restraints to the

highest position.

12 Press in the lock on the head restraints' sleeves.

Hold the lock pressed in and remove the head

restraints.

13 Remove the screws for the seat belts' lower

mounting.

14 Remove the two screws for the backrest cushion

upper mounting.

15 Pull the backrest cushion lower section forwards

and lift the backrest cushion upwards.

16 Press out the seat belt guide from the backrest

cushion and move the seat belt out from the

guide and the backrest cushion.

17 Lift out the backrest cushion.

F930A304

10 10 12 12

16 16

6 12 832 515

Saab 9-3 CV M04-

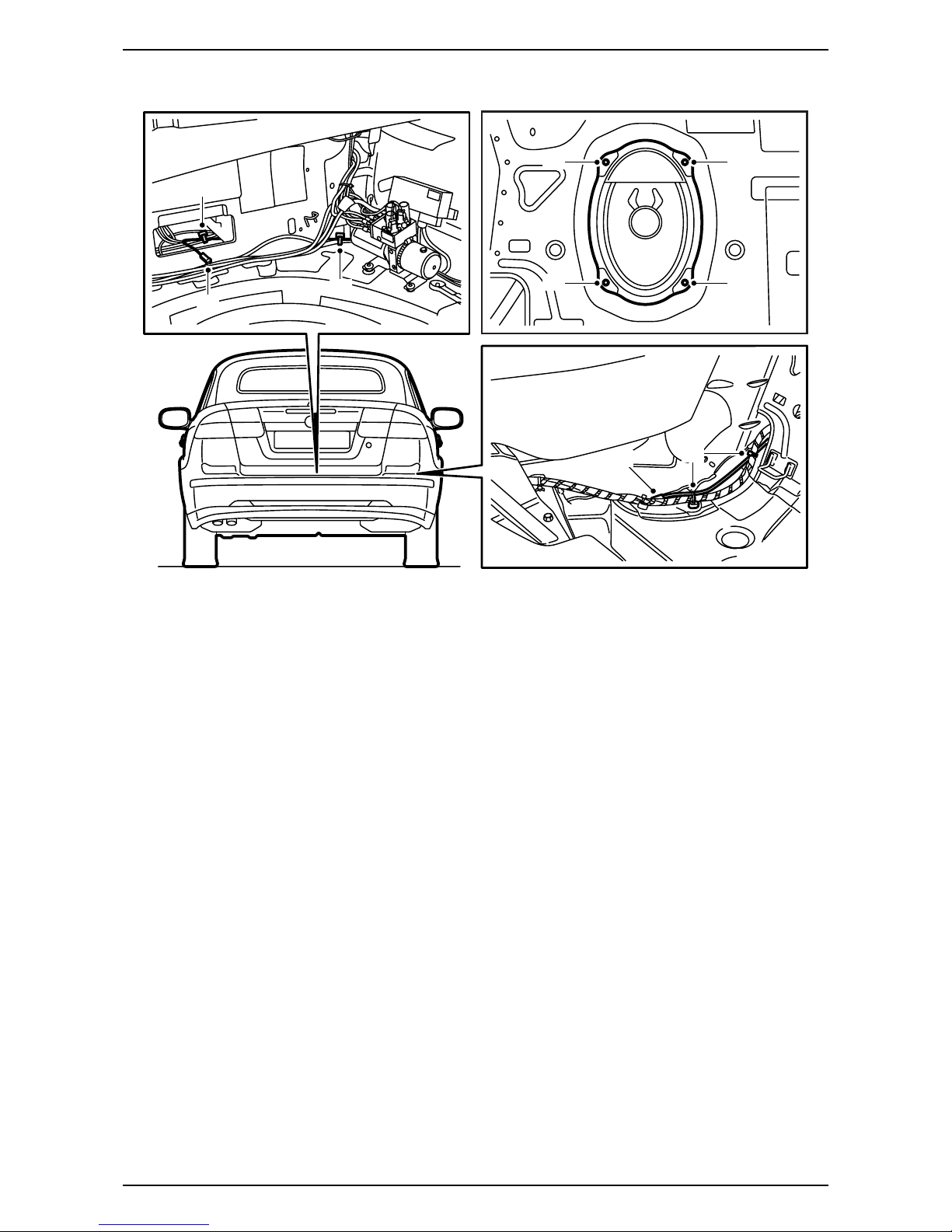

18 Locate the violet antenna cable connection at

the seat belt lower mounting on the right-hand

side of the car. Remove the connectors.

19 Remove the right-hand bass speaker or the

right-hand cover.

20 Cut off the cable tie in order to be able to change

the location of the antenna cable and fit a new

cable tie in the same place, but only around the

wiring harness.

21 Guide the antenna cable into the torsion

compartment and position the antenna cable

connection, together with the blue antenna

cable connection if fitted, at the centre of the

torsion compartment.

Without navigation: Continue with step 22.

With navigation: Continue with step 61.

F930A305

21 21

21 19

12 832 515 7

Saab 9-3 CV M04-

22 Carefully remove the speaker grille from the left-

hand rear side trim. Use removal tool 82 93 474.

23 Remove the screws which hold the rear side

trim on the left-hand side.

24 Lift the side trim upwards. Retain any rubber

protection.

25 Unhook the control module from the side trim,

but do not remove the control module connector

as this means a diagnostic trouble code being

generated.

26 Remove the speaker connector and remove the

side trim.

27 Remove the left-hand bass speaker or the left-

hand cover.

F930A306

8 12 832 515

Saab 9-3 CV M04-

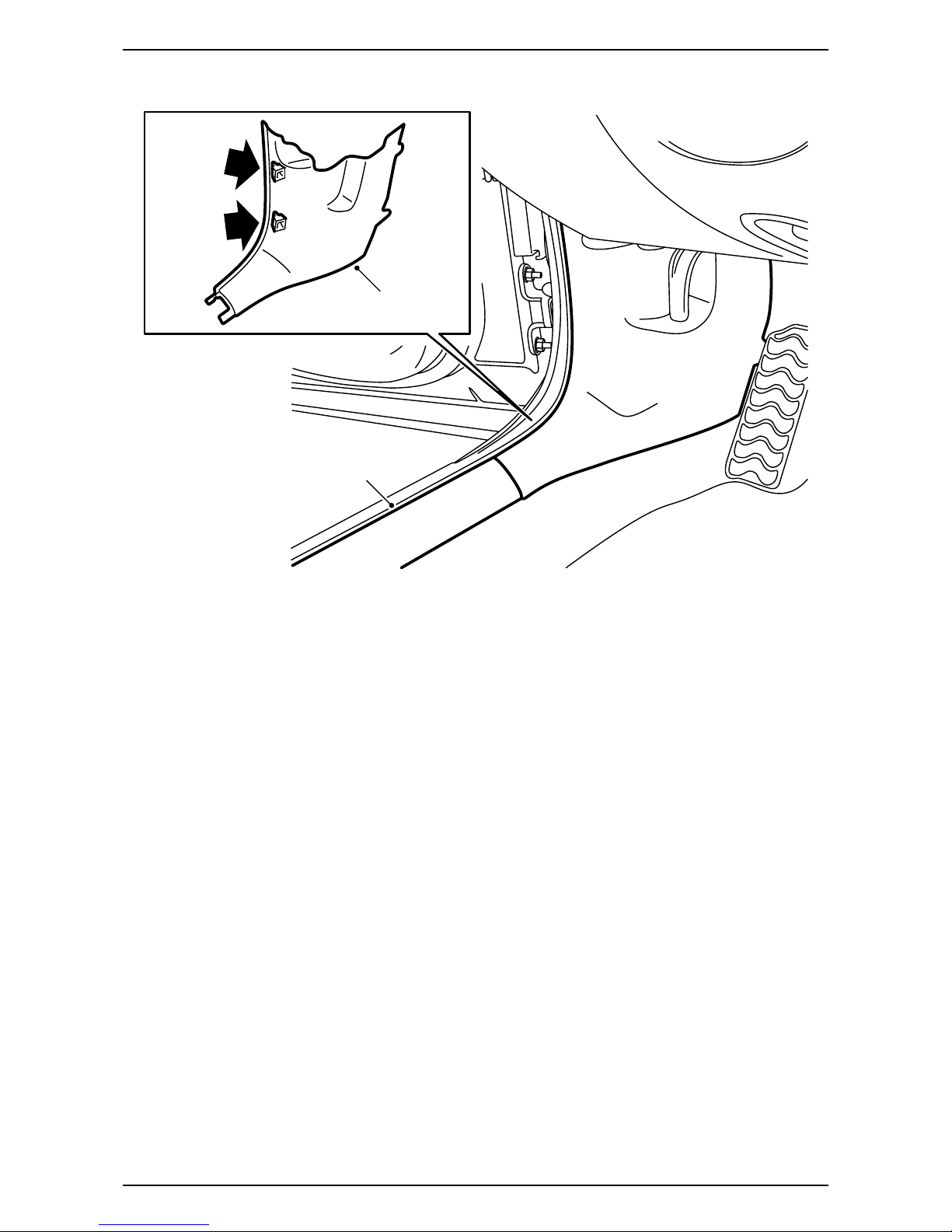

28 Remove the left-hand scuff plate.

29 Remove the lower section of the A-pillar trim on

the left-hand side.

F930A307

12 832 515 9

Saab 9-3 CV M04-

30 Position the left-hand front seat in its most

forward position and fold the backrest forwards.

31 Take the fibre optic cable, A-pillar - Torsion

compartment, from the kit and guide it from the

connector at the left-hand lower A-pillar via the

wiring harness by the scuff plate, under the rear

seat and to the left-hand roll-bar in the torsion

compartment. Secure the fibre optic cable with

cable ties.

32 Raise the soft top completely and open the boot

lid.

Note

The seat must be pushed to the rear position in

order to access the whole route. Following which,

push the seat back to the forward position.

Important

Handle the fibre optic cables with care or the

signal may be distorted.

·Do not bend the cable in a radius smaller than

25 mm.

·The cables must not be exposed to knocks

which cause the transparent plastic to whiten,

which means that the light intensity is weak-

ened. Such damage can cause an interruption

to communication.

·The cable should not lie against any sharp

edges as this may cause increased signal

reduction.

F930A308

31 31

10 12 832 515

Saab 9-3 CV M04-

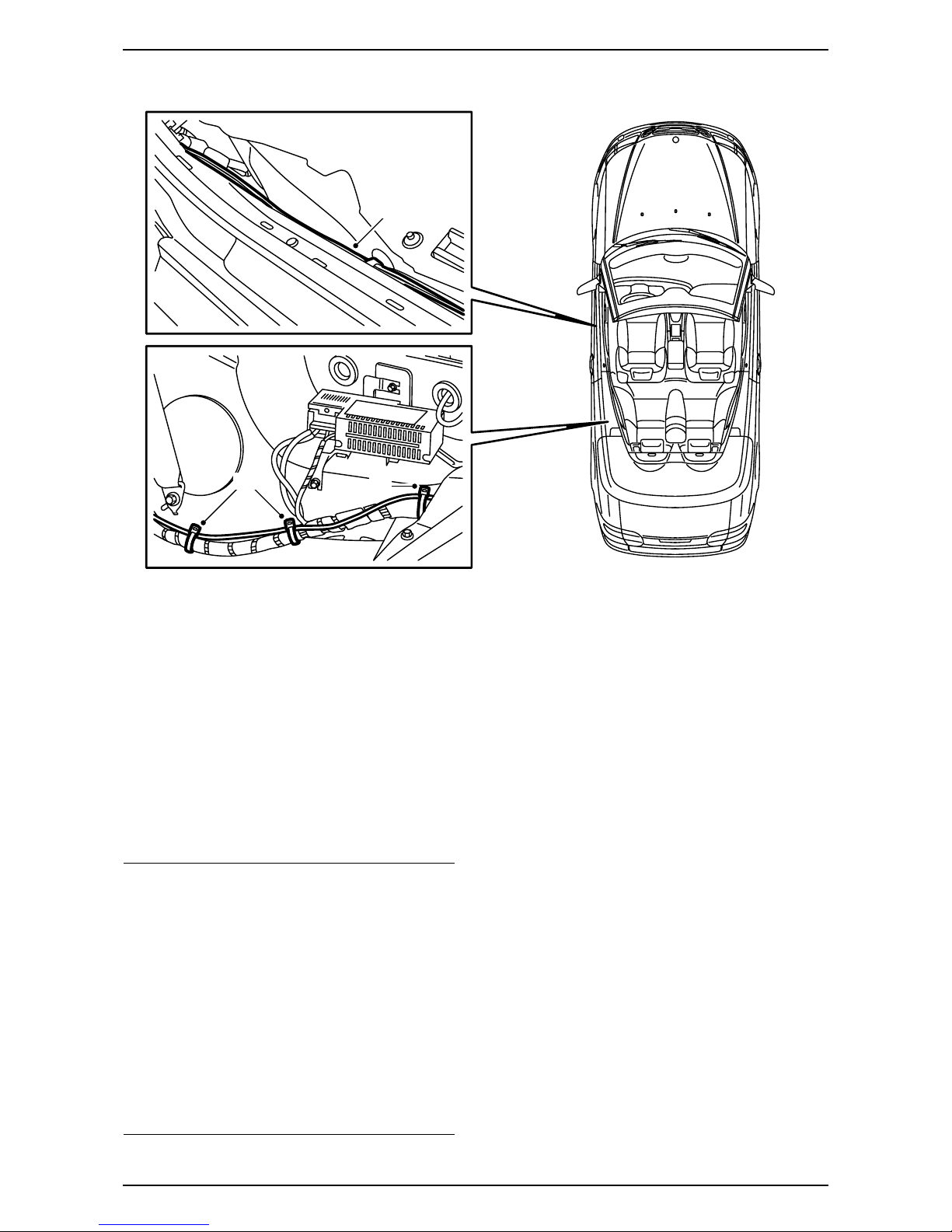

33 Remove the battery cover and the battery

negative cable.

34 Locate the connector with connected fibre optic

cables at the left-hand lower A-pillar (taped to

the cable duct) and lift up the connector lock tab.

35 Remove the fibre optic cable from the position in

the connector where the arrow points outwards,

to the fibre optic cable.

36 Remove the protective cover from the connection

to the kit's fibre optic cable and fit the protective

cover on the removed fibre optic cable's connec-

tion. Carefully move the fibre optic cable aside so

that it is not damaged and position it behind the

wiring harness.

37 Fit the connection on the fibre optic cable which

was fitted in step 31 in the connector and fit the

lock tab.

WARNING

The visible red light is a class 1 laser. Do not look

directly into the optical fibre or the control module

connector at close range. A distance of less than

20 mm between your eyes and the light source

may cause eye injury.

Important

Handle the fibre optic cables with care or the

signal may be distorted.

·It is very important that the two cables in the

connector are not mixed up.

·Do not bend the cable in a radius smaller than

25 mm.

·Keep the cable ends free from dirt and grime.

·The cable should not lie against any sharp

edges as this may cause increased signal

reduction.

F930A309
