Sachtler Flowtech 75 Bedienungsanleitung

User Guide

Part No. S2051-0001

www.sachtler.com

Tripod





Original Instructions: English

way, including, but not limited to, photocopy, photograph, magnetic or other record without the prior agreement and permission in writing of the Vitec

Group Plc.



The information contained in this publication is believed to be correct at the time of printing. Vitec Videocom Ltd reserves the right to make changes



of the publication.



Should this publication not contain information on the core functionality of your product, please let us know. You may be able to access the latest

revision of this publication from our website.





All product trademarks and registered trademarks are the property of The Vitec Group Plc.

All other trademarks and registered trademarks are the property of their respective companies.



Vitec Videocom Ltd

Supports Technical Publications Department

Email: [email protected]

PDF

PDF Other languages available For download please visit 

Video tutorials are available. Please visit  for further details.





Warning symbols used in these instructions ..... 2

Health and Safety ......................... 2

Mounting and Installation ................... 2

About this guide........................... 3

Intended use ............................. 3

Warranty ................................ 3

Extended warranty ........................ 3

 4

 



Setting up the Tripod ....................... 6

Attach Optional Mid Level Spreader ........... 7

Using Locks When no Spreader Used ......... 8

No Spreader Mode ........................ 8

Spreader Mode ........................... 8

Opening Tripod Legs ....................... 9

Alternative Locking Method ................. 11

 ........................ 12

 

Fit Supplied Attachment Mount .............. 13

.................... 13

Fit Optional Rubber Feet ................... 14

 

 ...............................14

Flush the Tripod.......................... 14

 ...................... 15

 ..................... 16

Adjusting brake force...................... 16

Tripod .................................17

 















Safety cautions are used in these instructions. These safety

instructions must be followed to avoid possible personal injury and

possible damage to the product.



Where there is a risk of personal injury or

injury to others, comments appear supported by the

warning triangle symbol.

Where there is a risk of damage to the product,

associated equipment, process or surroundings,

comments appear supported by the word ‘’.



All personnel must be fully trained and

adhere to correct manual handling techniques and

Health & Safety regulations. It is the responsibility

of the local organisation to enforce safe working

practices at all times.



Do not exceed the maximum payload

capacity.

Tripod spike feet can be dangerous, take care

when handling. Always place tripod on the ground before

releasing quick release levers.

 Avoid trapping



 Set the tripod footprint to suit the

shooting environment.

Do not leave unattended.

Keep out of reach of children.

 When in use always fully lock the tripod quick

release levers to prevent the tripod collapsing.

When releasing the quick release levers, be

prepared to support the weight of any attached payload.





Always hold the payload securely when

making adjustments to the tripod height or footprint.

Do not place your foot or heavy weight onto

the spreader.

Always remove the camera before

transporting.





This user guide is an important part of the product and is aimed at the

personnel who operate and maintain the tripod. It contains information

about the tripod and its proper use and serves to safeguard users and

their equipment.



This tripod has been designed for professional use in television



Any use above and beyond this purpose is deemed improper and will

void the warranty.



The product is covered by a one year warranty.

The warranty will be invalidated if:

• The tripod is improperly installed or used in a manner contrary to

this user guide.

• The tripod housing is opened by unauthorised personnel.

We reserve the right to make changes to the product based on

technological advances.



Please register at www.sachtler.com for an extended warranty period.



 

Hinge Lock Slider

Hinge Lock Button

Double-spiked Foot

4

Quick Release Lever

Accessory Dock x 3

Attachment Mount









 



  

Rubber Foot S2051-1070

Mid-level Spreader S2054-1001

Attachment Mount S2051-1900

4 8691











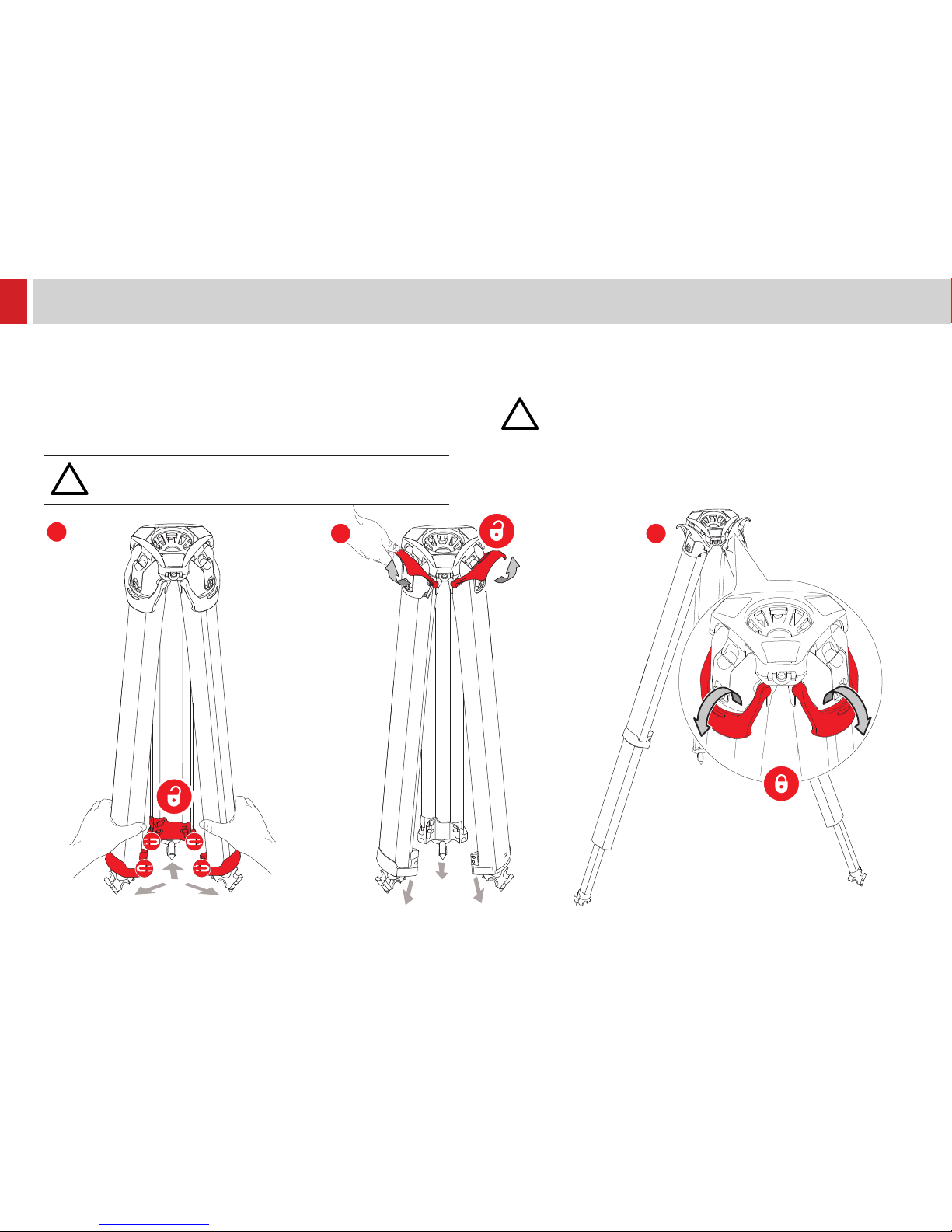

 The legs are secured using magnetic catches. Pull the legs from

the bottom to separate.

 Place the tripod on the ground. Lift the quick release levers fully

and raise the tripod to the required height.

 

Tripod spiked feet can be dangerous. Always

place tripod on the ground before releasing quick release

levers.

 With the correct height achieved, lower the quick release levers to

lock the legs in position.



locking levers are in the fully closed (down) position.





Ensure the latching pins are fully engaged with

the locating holes in the tripod. Failure to attach correctly

could result in damage to the equipment

The tripod is delivered with the Hinge Lock in the OFF

position for use with a spreader.

(See page 8 for lock operation).

 Hold the spreader between thumb



release buttons on each side.

 Align the latching pins with the locating

holes on the tripod leg.

 Release the buttons to lock the

spreader in place.

 Unlock the spreader arms to allow the arms to extend as required.

 Tighten the spreader locks when the tripod legs are in the correct

position.



Lock is in the OFF (spreader mode) position for use with a

spreader. (See page 8 for lock operation).





The tripod can be used without a spreader using the three

lock positions.

 The tripod has 3 x lock positions 20°, 46° and 72°.

Hinge Lock Slider in the neutral

() position.

(Legs free to move through full

movement)

Hinge Lock Slider in the engaged

() position.

(Leg will stop at pre-set positions)

46°

20°

72°

Risk of damage. Only use the 72° hinge lock

setting with the legs in the fully retracted position. Do not

apply excessive load.



 With the lock in the raised position the lock is .



 With the lock in the lower position the lock is .
