Sachtler FSB 10 Bedienungsanleitung

FSB 10 Fluid Head

User Guide

FSB 10 Fluid Head

Part No. S2045-0001

S2046-0001

EN DE www.sachtler.com

Original Instructions: English

way, including, but not limited to, photocopy, photograph, magnetic or other record without the prior agreement and permission in writing of the Vitec

Group Plc.

Disclaimer

The information contained in this publication is believed to be correct at the time of printing. Vitec Videocom Ltd reserves the right to make changes



of the publication.



Should this publication not contain information on the core functionality of your product, please let us know. You may be able to access the latest

revision of this publication from our website.



Trademarks

All product trademarks and registered trademarks are the property of The Vitec Group Plc.

All other trademarks and registered trademarks are the property of their respective companies.

Published by:

Vitec Videocom Ltd

Email: [email protected]

Contents / Inhaltverzeichnis

Safety.....................................2

About this Guide / Warranty ..................4

Box Contents ..............................5

Operating Elements . . . . . . . . . . . . . . . . . . . . . . . . . 6

Installation.................................8

Touch Bubble.............................8

Mounting the Fluid Head....................8

Mounting to a Tripod.....................8

 ...9

 .......10

Fitting the Pan Bar........................14

Adjusting the Pan Bar .....................14

 ...................15

Balancing the Payload.....................16

 .......16

...............18

 ...............18

Adjusting the Drags.......................20

Transportation ............................21

Maintenance ..............................22

Technical Specication .....................23

General Notices ...........................24

Sicherheit ................................26

Über diese Anleitung .......................28

Verpackungsinhalt . . . . . . . . . . . . . . . . . . . . . . . . . 29

Bedienelemente ...........................30

Montage..................................32

.....................32

Montage des Fluidkopfes ..................32

Stativbefestigung ......................32

Umwandlung des Kopfes in einen Flachboden33

Einsatz und Entnahme der Kamera ..........34

Schwenkarmmontage .....................38

Schwenkarmverstellung ...................38

 ..................39

Einstellen der Kamerabalance ..............40

Einstellen des Schwerpunktes . . . . . . . . . . . . . . . 40

Zusätzliche Einstellung des Schwerpunktes ...42

Einstellen des Gegengewichts ..............42

Einstellen der Dämpfung...................44

Transport.................................45

Wartung..................................46

Technische Spezikationen..................47

Allgemeine Hinweise .......................48

Safety

Important information on the safe installation and operation of

this product. Read this information before operating the product.

For your personal safety, read these instructions.

Do not operate the product if you do not understand how to use

it safely.

Save these instructions for future reference.

Warning Symbols Used in these Instructions

Safety cautions are included in these instructions. These safety

instructions must be followed to avoid possible personal injury and

avoid possible damage to the product.

WARNING!

Where there is a risk of personal injury or injury to

others, comments appear supported by the word

‘WARNING’.

Health and Safety

WARNING! Risk of personal injury or injury to others. All

personnel must be fully trained and adhere to correct manual

handling techniques and Health & Safety regulations. It is the

responsibility of the local organisation to enforce safe working

practices at all times.

Mounting and Installation

WARNING! Do not

the combined mass of the head and its full payload.

WARNING! Risk of nger entrapment. Do not



CAUTION! Always lock the horizontal and vertical brakes when



head on the tripod.

CAUTION! Hold the camera securely when mounting or



adjustments to the tripod height or footprint.

CAUTION! Always hold the pan bar when making adjustments

to the counterbalance or camera position. Do not use the pan



CAUTION! Do not attach heavy items to the pan bar.

CAUTION! Always remove the camera before transporting.

CAUTION!

Where there is a risk of damage to the product,

associated equpment, process or surroundings,

comments appear supported by the word ‘CAUTION’.

Safety

Maintenance

WARNING!



effect the safety of the product. It may also invalidate the

terms and conditions of the product warranty.

CAUTION! When replacing the battery, only use the same or

an equivalent type of battery recommended for use with this

product.

About this Guide



smooth pan and tilt movement giving the operator total image control

through a wide range of angles.

This user guide has been produced to instruct the user on the correct



Intended Use

About this User Guide

Warranty

This product is covered by a one year warranty.

The warranty will be invalidated if:

• The head is improperly installed or used in a manner contrary to

this user guide.

• The head housing is opened by unauthorised personnel.

Extended Warranty

Please register at www.sachtler.com for an extended warranty

period.

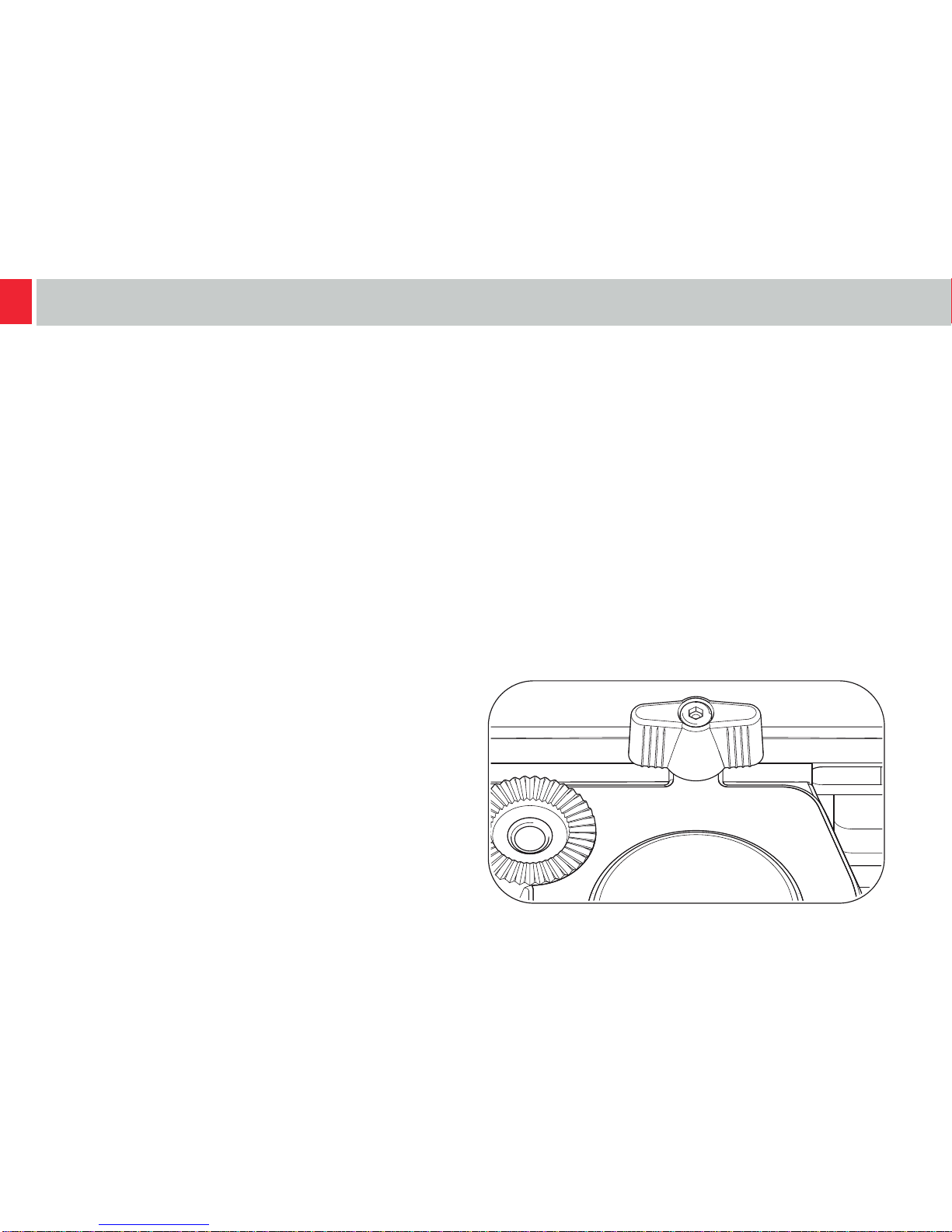

Serial Number Location

S2046 XXX XXXX

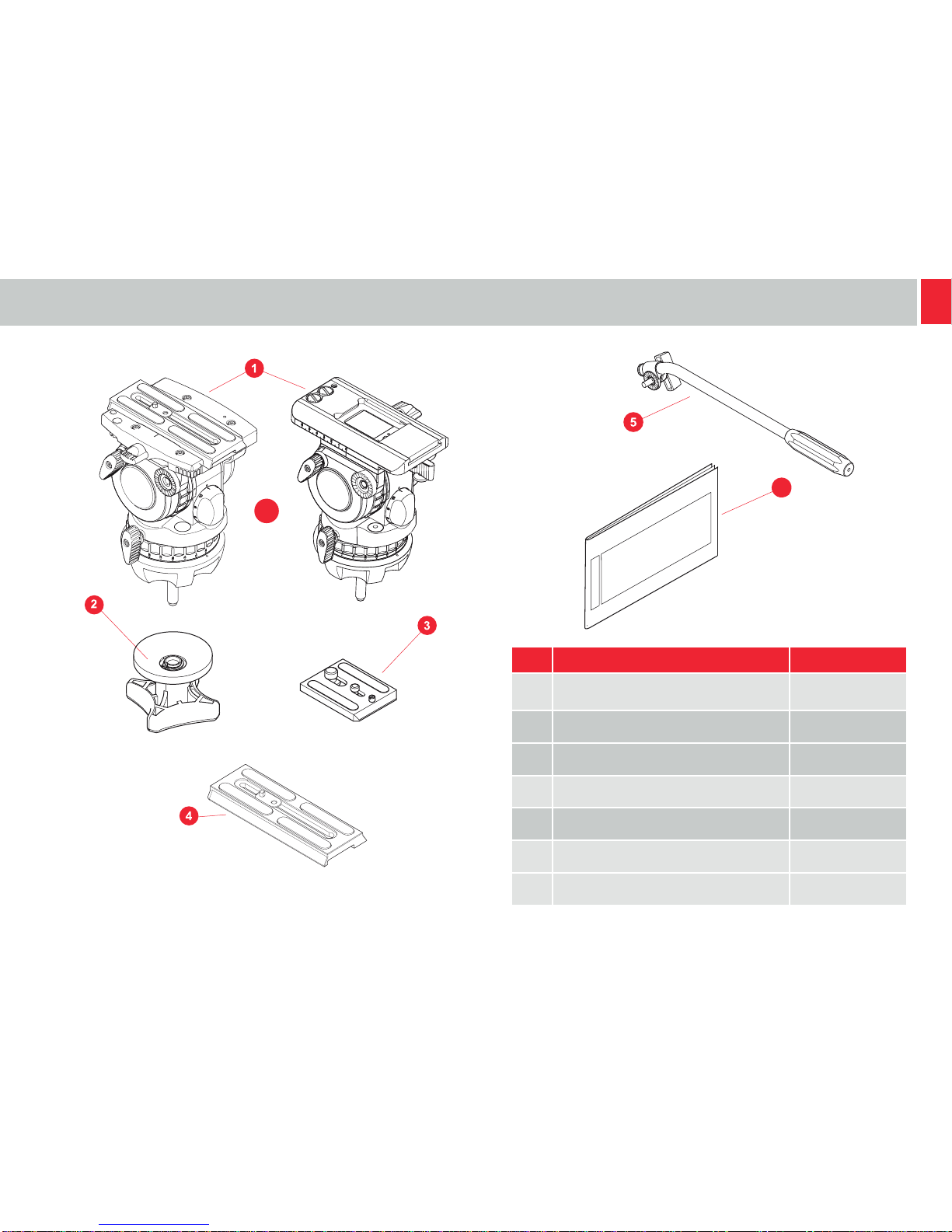

Box Contents

Item Description Part No

1 

 

2Tie down SKO12B0366

3Touch & Go camera plate S 0364

4Sideload camera plate S 0164

5Pan bar plus right 0992SP

6User guide 

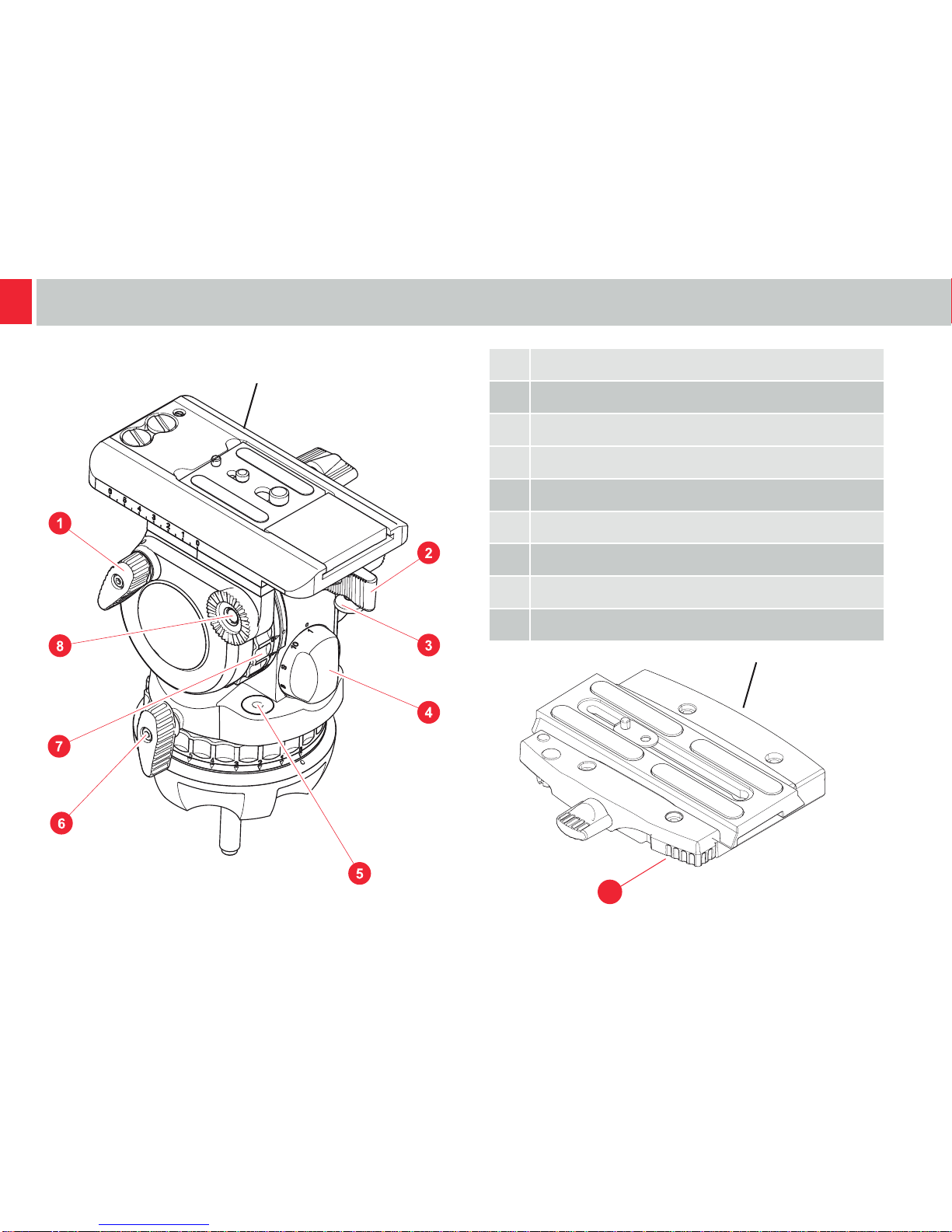

Operating Elements

1Vertical brake

2Touch & Go system lock lever

3Touch & Go system safety lock

3a Sideload system safety lock

4

5Illuminated touch bubble

6Horizontal brake

7Vertical drag control

8Rosette for left pan bar

Left View Touch & Go System

Sideload system

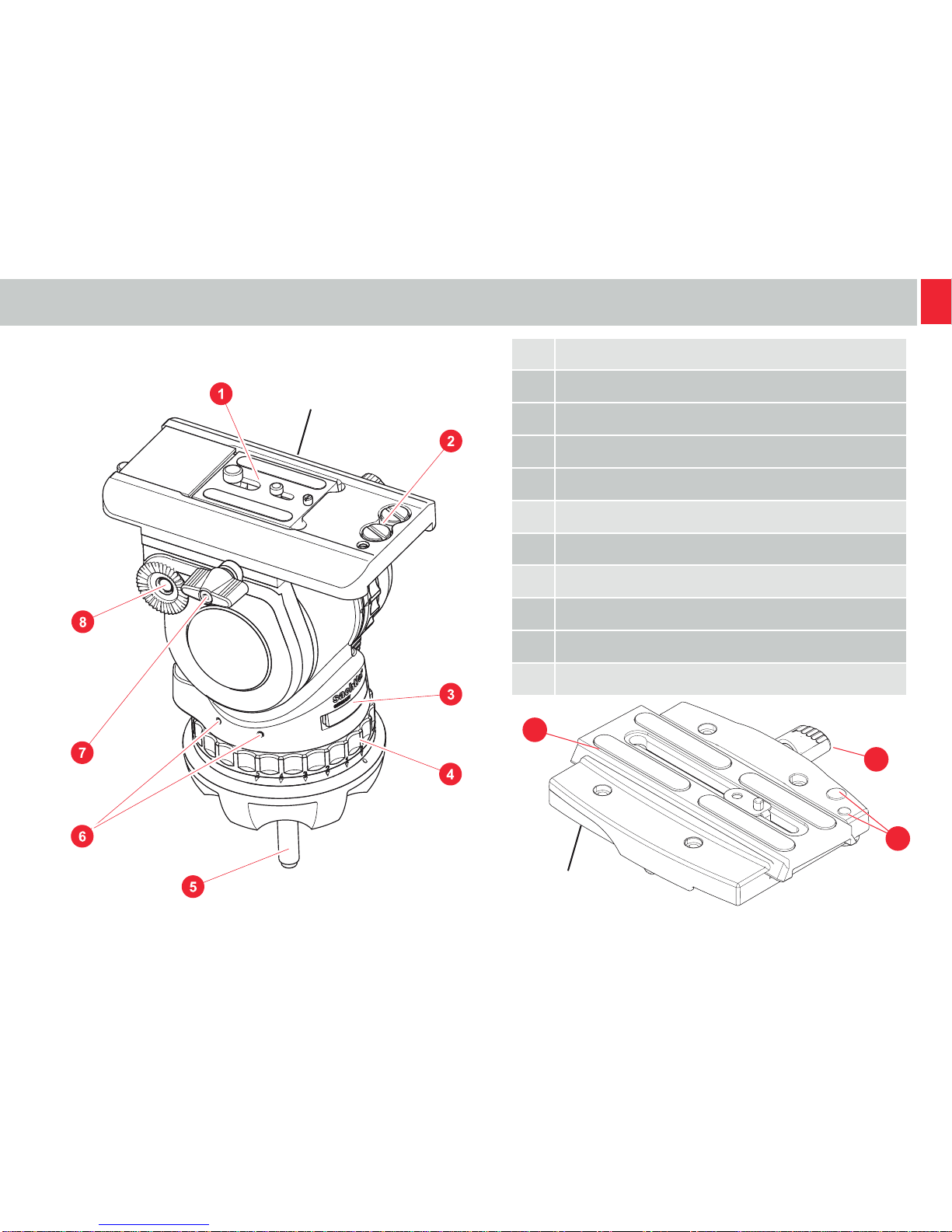

Operating Elements

1Touch & Go camera plate S

1a Sideload camera plate S

2Spare camera screws

2a Spare camera screws

3Battery compartment for touch bubble

4Horizontal drag control

5Tie down mounting

6Eyepiece leveller / accessory holder, attachment positions

7Balance plate clamp knob

7a Balance plate clamp knob

8Rosette for right pan bar

Right View

Touch & Go System

Sideload System

Installation

Mounting to a Tripod

1.

with one hand.

2.

the tie down loosely.

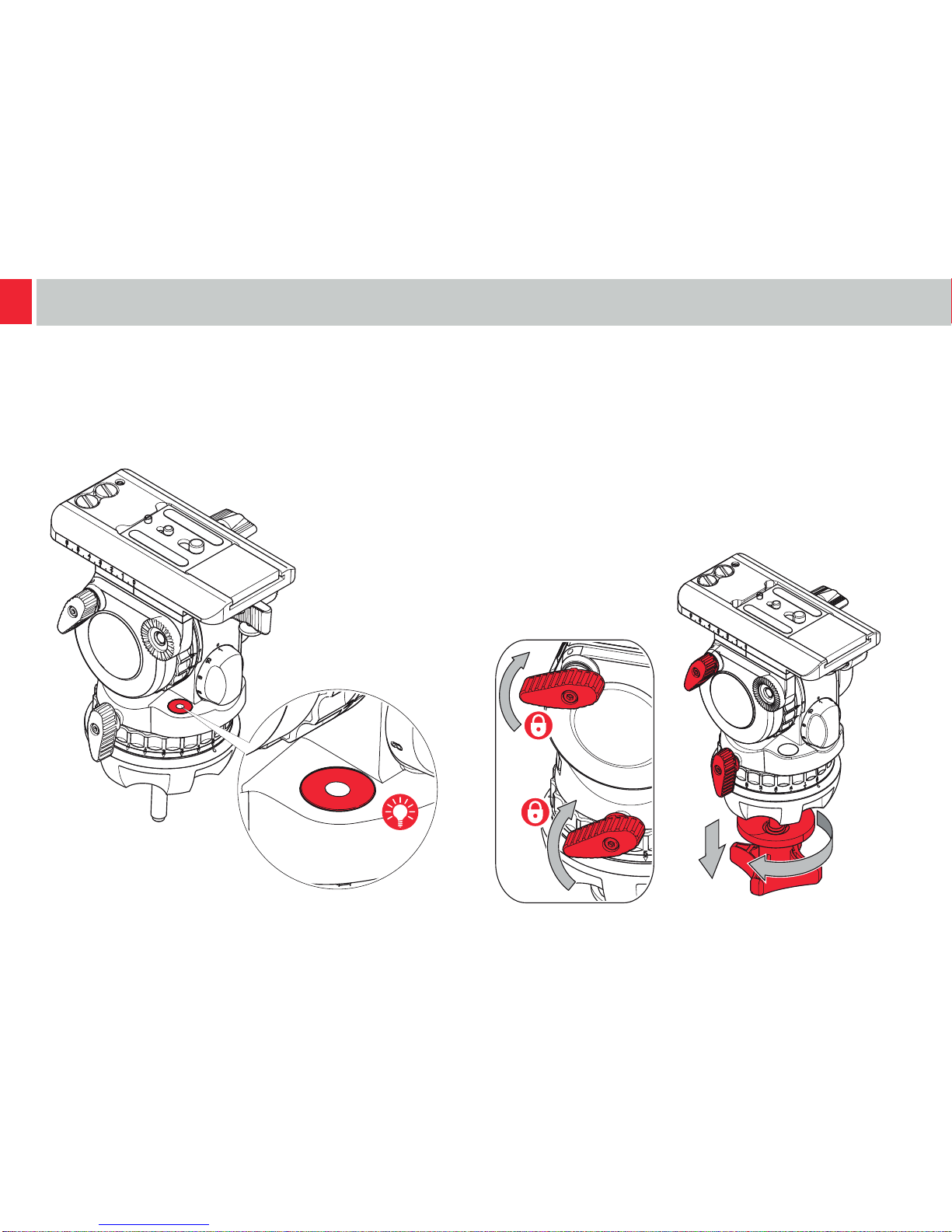

Touch Bubble



easy levelling in poor lighting conditions. The illumination is activated



approximately 20 seconds.

Mounting the Fluid Head





directly to a pedestal using the threaded holes in the ball base or

using an adaptor available as an accessory.
