Saferhomee T804 Bedienungsanleitung
2
Sensitivity
Switches
Indicator Light: flashes once meaning the motion sensor was
activated and sent the wireless signal.
Battery Compartment: please insert 3 pieces AA 1.5V Alkaline
batteries (not included).
Sensitivity Switches: used to adjust the sensitivity of the sensor
(High/Low adjustable).
Indicator Light
Battery
Compartment
Sensor Eye
1. System Components And Usage
Wireless Motion Sensor
Sensor Eye: detects heat movements.
3
Step 2
(Indicator lights will be on for 5 seconds meaning work properly,
and wait about 30 seconds to activate the sensor.)
Sensitivity
Switches
Insert the 3pcs AA 1.5V Batteries and note the anode and
cathode (Batteries are not included).
Alkaline
Step 1
Select the sensitivity (High / Low).
If High sensitivity, the detection range of the sensor is 50 feet;
If Low sensitivity, the detection range of the sensor is 35 feet.
How to add sensors to the wireless receiver
(Note: all the HTZSAFE sensors can work with all
the HTZSAFE receivers.Take one of our receivers HB-808A
for example to show you how to connect the sensor to the receiver;
Up to 32 sensors can be added to one or multiple receivers.)
2. Operation Instructions
4
Step 3

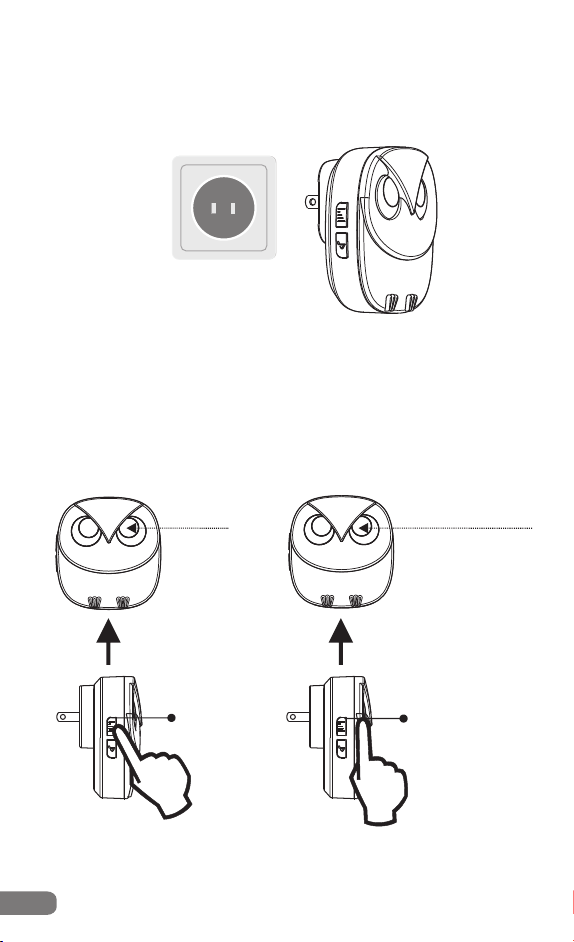

Plug the receiver into an outlet.
The indicator light of the receiver will flash once
and a beep prompt meaning normal operation.
press and hold the button
for 5 seconds
Volume release the button
Volume Volume
light up flashing slowly
Step 4
Press and hold the “Volume” button for 5 seconds and release
the button when you hear a beep prompt and the indicator light
flashes.
5
Step 5
Note:please have the sensor close to the plug-in receiver.
Activate the sensor.
flashing quickly
1 foot waya
(the indicator light will flash
once meaning the motion sensor
was activated and sent the wireless
signal)
(a ring tone prompt and the indicator
light flashes quickly meaning the
sensor has been added to the
plug-in receiver successfully)
Step 6
has been added to the receiver already.
Activate the sensor again to confirm the sensor
Step 7
Fix the back cover ( the back cover must be fixed well to
ensure the waterproof if the sensor is installed outdoor).
Step 8
Installation.
long screws
short screws
3
Wireless Motion Sensor
1
2
6
7
4.please point the sensor eye towards to the engine or exhaust
pipe if detecting vehicles.(the working principle of the
senor is detecting the movements with heat sources).
2.Please point the sensor towards a open field
(not towards the trees or bushes).
3.please adjust the sensor a little down(never upwards).
1. Please fix the motion sensor tightly to ensure the position
and the direction will not be moved easily by wind.
Installation Notes:
8
32-HB202011-T804(1.1)-02
75mm
100mm
Wireless Motion Sensor
65mm 30mm
Technical parameters
Detection Range
Item
Wireless Transmission Range
Wireless Frequency
Working Voltage
Battery Type
433MHz FSK+FHSS
3pcs AA 1.5V Batteries(not )Alkaline included
4.5V
Low sensitivity----35 feet(10m)
High sensitivity----50 feet(15m)
Technical Parameters
Working Current Static≤1mA; Alarming≤100mA
Working Temperature Range
1/2 Mile (800m)
-22°F to 158°F（-30℃ to 70℃)
Detection Angle 15°
3. Technical Parameters
