Safetec 2510037 Bedienungsanleitung

Safetec offers an Automatic and Manual Dispenser

for Instant Hand Sanitizer; and a Manual Dispenser

for SaniWash®Antimicrobial Hand Soap. The

Automatic Dispenser also has a ﬂoor stand option

that is easy to place and move around in any

facility where hand sanitizer is needed.

Automatic and

Manual Dispensers

For Hand Sanitizer & Hand Soap

Manual Dispenser

(Hand Sanitizer & Soap)

2510037

Automatic Dispenser

(Hand Sanitizer Only)

27508

Drip Tray

Automatic

Dispenser

Floor Stand

(only used with

Auto Dispenser)

Safetec of America, Inc.

1-800-456-7077 | safetec.com

KILL GERMS

INSTANTLY

Item# Description Case Qty.

17360 Fresh Scent 800ml Manual Dispenser Reﬁll 12 /case

17369 Fresh Scent 800ml Auto Dispenser Reﬁll 12 /case

Item# Description Case Qty.

2510037 Manual Dispenser 800ml 12 /case

27508 Automatic Dispenser 800ml 12 /case

Item# Description Case Qty.

27507 Floor Stand (Auto Dispensers Only) 1 each

2510122 Drip Tray 1 each

Choose a Dispenser

Manual Dispenser‡

(Hand Sanitizer or SaniWash®Hand Soap)

Automatic Dispenser‡

(Hand Sanitizer Only)

Hand Sanitizer

Manual Reﬁll

17360

Hand Sanitizer

Automatic Reﬁll

17369

Choose a Refill

Add Accessories

Drip Tray

• Drip Trays can be used on both Automatic and Manual Dispensers

• Adhesive tabs on the back easily adhere to surfaces, as an alternative

to using screws.

Floor Stand (For Automatic Dispensers only)

Order Information

Instant Hand Sanitizer*

• Kills 99.9% of germs (Contains 66.5% Ethyl Alcohol)

• Formula evaporates completely, leaving no sticky residue on hands

• Aloe vera adds moisture with each use

SaniWash Antimicrobial Hand Soap†

• Aids in reducing the risk of cross-contamination

• Uses PCMX for antimicrobial action and contains aloe vera for

added moisture with each use

Compliance

*Meets OSHA, APIC and CDC hand washing recommendations in the absence of soap and water

†Meets OSHA and APIC hand washing recommendations

‡Meets ADA operability

Drip Tray

2510122

Floor Stand

27507

Manual Dispenser Instructions

Mounting Instructions

Tape Mounting

1. Clean the ﬂat surface with towelette and

an abrasive cleanser prior to mounting. Dry

surface thoroughly. Only recommended for

mirrors or other similar ﬂat surfaces

2. Remove backing from tape and press ﬁrmly

against mounting surface for 10 seconds.

Open cover and press directly on back plate

for additional 10 seconds. Allow 8 hours be-

fore loading unit.

3. Opening Instructions: Push up on two release

buttons on each side of base with thumb and

foreﬁnger. With other hand, gently pull cover

away from wall at top of dispenser.

(For locking units – insert provided key into key-

hole in right-hand release button and press

upward; key must remain in keyhole while closing

dispenser)

Screw Mounting

Recommended for surfaces that are not ideal for tape

mounting

1. Hold dispenser against wall in desired position,

open cover and mark screw hole location on wall,

insuring screw heads will not interfere with release

bar.

2. Use appropriate anchors and drill size for #10 x 1"

self-taping screws to attach dispenser ﬁrmly to the

wall.

Reﬁll Instructions

1. Press ﬁnger into perforated area and remove key-hole perforated shaped area.

2. Locate nozzle and pull down through bottom of box.

3. Place cartridge on dispenser platform. Pull nozzle with thumb and foreﬁnger to rotate top of tub so Arc of

Half Moon Pump is facing toward you.

4. Place top of tube ﬁrmly in neck of upper locator and ﬁt Ears of Half Moon Pump into Lower Locator Slots.

5. Before closing the cover, check to make sure Arc of Half Moon Pump is facing toward you and Ears of

Half Moon Pump are ﬁrmly seated in slots of lower locator.

Upper Locator

Ears of

Half Moon

Pump

Lower Locator Slots

Arc of

Half Moon

Pump

to open and

close locking

unit, insert key

in this release

button release

buttons

screw mounting holes (5)

tape

mounting

clearance,

1 ⁄" mini-

mum

Installing Hand Sanitizer Reﬁll

1. Press ﬁnger into perforated

area and remove key-hole

perforated shaped area.

2. Locate nozzle and pull down

through bottom of box.

3. Place cartridge on dispenser

platform. Pull nozzle with

thumb and foreﬁnger, pull

round disk of nozzle all the

way to bottom of lower

locator.

4. Before closing cover, check

to make sure round disc of

nozzle is ﬁrmly in place at

bottom of lower locator.

5. After Reﬁll is properly placed,

close dispenser cover. LED

indicatior will blink GREEN/

RED 3 times.

6. Place hand underneath

dispenser, within 8cm of sensor. LED will blink GREEN and

dispense hand sanitizer into hand.

*To Reset: Open and close cover

Round Disk

of Nozzle

Quick Visual Automatic Installation Instructions

Mounting Instructions

To Open Dispenser

Use provided key to press down at top of

front cover where key lock is located. Grab

the dispenser cover from the top and pull

toward you. Cover is hinged at bottom.

Tape Mounting

1. Only recommended for mirrors or other

similar ﬂat surfaces.

2. Dispenser must be mounted at least 10" above

any counter or object surfaces.

3. Remove backing from tape and press ﬁrmly against

mounting surface for 10 seconds. Open cover and press

directly on back plate for additional 10 seconds.

Allow 1 hour before loading unit.

Screw Mounting

1. Hold dispenser against wall in desired location,

open cover and mark screw hole location on wall.

2. Install provided anchors into drywall and secure

dispenser with provided screws.

Automatic Dispenser Instructions (Also available with floor stand option)

Automatic Dispenser Installation Instructions

Recommended Installation Height Open Dispenser

Installation with Screws

Installation with Adhesive

Backing (no screws) Installation Cartridge Install Batteries

1. 2. 1. 2.

1. 2. 3.

Sensitivity Adjustment: If sensor is too sensitive, remove black sticker that is covering Sensor Adjustment screw. Turn screw counterclockwise

slightly. (i.e. like a dial on a clock, turn in 15 minute intervals to desired setting)

Reﬁll Instructions

Installing Batteries (batteries not included)

Open dispenser, locate battery compartment on the right side of the

dispenser and slide cover forward, away from wall. Place (3) C-cell Al-

kaline batteries in proper orientation and slide cover back into place.

Lower

Locator Slots

Upper

Locator

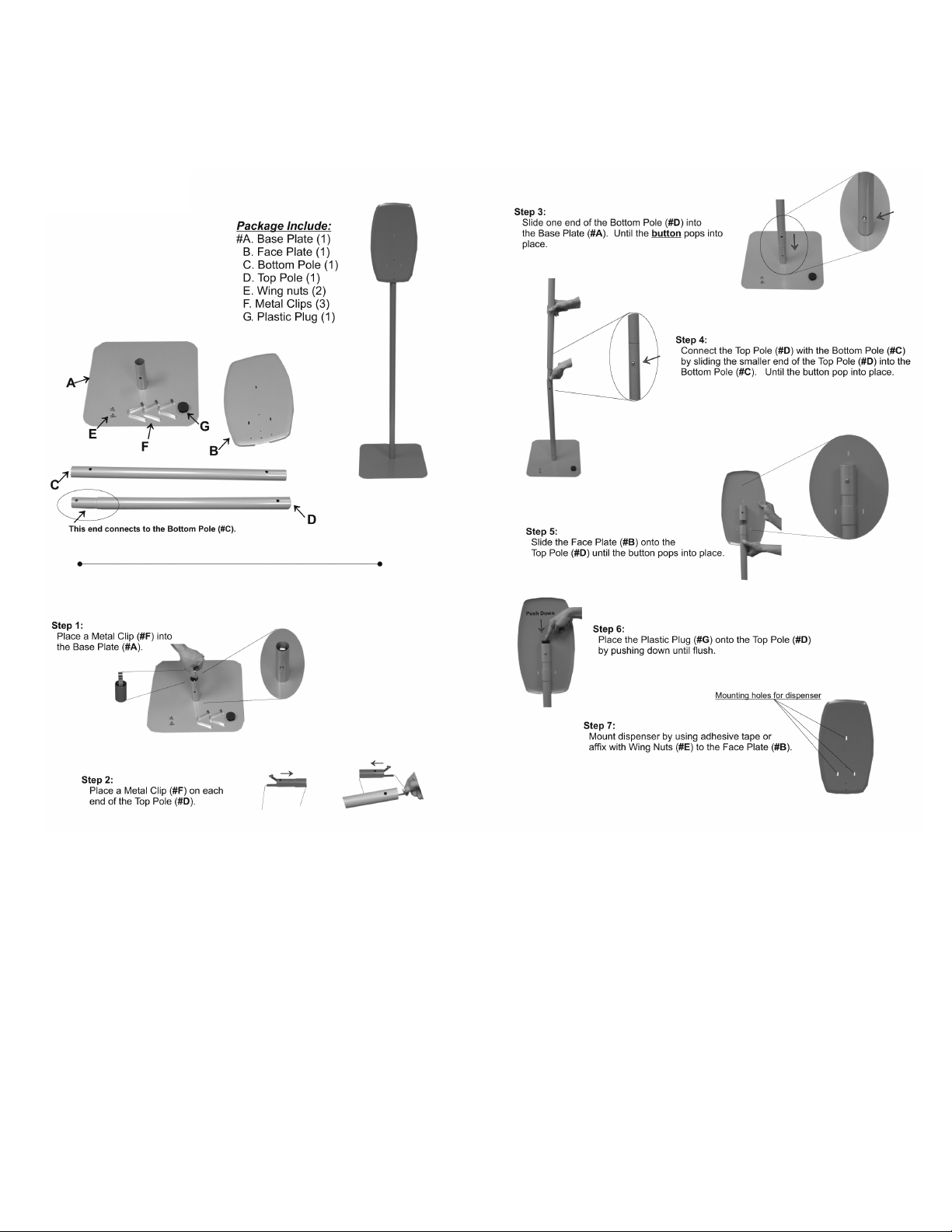

Floor Stand Instructions
