Sagem F@ST 1400 Bedienungsanleitung
SAGEM SA
Le Ponant de Paris
27, rue Leblanc
75512 PARIS CEDEX 15 - France
Ref 251 309 131
SAGEM
F@STTM1400
F@STTM1400W
English
User guide
www.sagem.com/adsl/
Default parameters
SSID = F@st1400W
1
SAGEM F@st™ 1400 / 1400W
Table of Contents
PRESENTATION ................................................................................................................ 3
1.1 Prerequisites ....................................................................................................... 4
1.2 Contents of the SAGEM F@st™ 1400/1400W modem/router package ............. 5
INSTALLING THE HARDWARE ........................................................................................ 6
1. Installing the ADSL filters .................................................................................... 6
2. Installing the modem/router ................................................................................. 7
2.1 Plugging in the telephone line cord .......................................................... 7
2.2 Powering up the modem/router ................................................................ 8
CONFIGURING THE MODEM/ROUTER ........................................................................... 9
1. Preliminary configuration ..................................................................................... 9
2. Choice of the port for the modem/router configuration ........................................ 9
3. Connection via the Ethernet port ....................................................................... 10
3.1 Wiring ..................................................................................................... 10
3.2 Configuring the network parameters ...................................................... 10
4. Connection via the USB port ............................................................................. 12
4.1 Installing the USB drivers in Windows ................................................... 12
4.2
Installing the USB drivers in MacOS X ........................................
14
4.3 Installing the USB drivers in MacOS 8.6 and 9 ...................................... 16
4.4 Wiring ..................................................................................................... 17
5. Access to the HTTP configurator ...................................................................... 18
6. High-speed configuration of your suscription settings ....................................... 19
CONFIGURING THE WIRELESS NETWORK ................................................................. 22
1. Definitions.......................................................................................................... 22
2. Configuring the wireless network on your modem/router .................................. 22
3. Configuring your computers .............................................................................. 23
SAFETY ON YOUR MODEM/ROUTER ........................................................................... 24
1. Controling access to the HTTP configurator ..................................................... 24
2. SSID and WEP key (SAGEM F@st™ 1400W only) .......................................... 25
3. Filtering the Mac addresses (SAGEM F@st™ 1400W only)............................. 25
4. Firewall .............................................................................................................. 26
INSTALLING SERVERS ON THE LOCAL NETWORK ................................................... 27
1. Configuring the modem/router in order to be able to use servers
on the local network .......................................................................................... 27
2. Configuring the modem/router for Peer-to-Peer software programs ................. 28
TROUBLESHOOTING ..................................................................................................... 30
1. Absence of ADSL synchronization .................................................................... 30
2. Access to the HTTP configurator is impossible ................................................. 30
3. Internet site look-up impossible ......................................................................... 32
4. Return to factory configuration .......................................................................... 32
Safety instructions 2
SAGEM F@st™ 1400 / 1400W
5. Updating the modem/router’s application software progam .............................. 33
5.1 Procedure to be applied to a computer in Windows ............................... 33
5.2 Procedure to be applied to a computer in Mac OS ................................ 35
APPENDICES .................................................................................................................. 36
A. Description of the modem/router ....................................................................... 36
B.
Modem/router status (QUICK STATUS)
......................................................... 37
C. Uninstalling the modem/router .......................................................................... 38
SAFETY INSTRUCTIONS ............................................................................................... 39
Environment ............................................................................................................... 39
Power supply source .................................................................................................. 39
Maintenance ............................................................................................................... 39
Safety levels ............................................................................................................... 40
3 Presentation
SAGEM F@st™ 1400 / 1400W
Computers associated
to 802.11b Wi-Fi network
USB port
Internet
ADSL
cable
USB cable
Crossed
Ethernet cable Ethernet port
This guide will enable you to easily install your SAGEM F@st™ 1400/1400W modem/
router.
This unit is an ADSL Wi-Fi modem/router integrating three functions:
1. An integrated ADSL modem for a direct connection to your ADSL line.
2. A router enabling you to simultaneously connect several computers to this ADSL line.
3. A wireless access point linking your computers with no additional wiring (SAGEM
F@st™ 1400W only).
This modem/router has three types of local interface for connection with the computers
making up your local network:
• 1 USB port.
• 1 Ethernet 10/100BT port.
• 1 Wi-Fi wireless access point (SAGEM F@st™ 1400W only).
PRESENTATION
What is Wi-Fi ? (SAGEM F@st™ 1400W only)
Wi-Fi is a wireless network technology. With it, owing to the SAGEM F@st™
1400W modem/router, the various computers connected to this wireless
network are able to share your ADSL line. The wireless network complies with
the IEEE 802.11b standard.
Presentation 4
SAGEM F@st™ 1400 / 1400W
Symbols used in this guide
Warns you against a hazardous act or omission.
Gives important information that you should be aware of.
1.1 Prerequisites
The following elements are required before the modem/router can be used:
• a telephone line able to accommodate ADSL transmission,
• a subscription with a high-speed Internet Service Provider,
• a computer with a USB or Ethernet port,
• a Web browser (preferably Internet Explorer from version 5 up).
The minimum configuration of your computer must be:
• for Windows: Pentium II, 400 MHz, RAM: 128 MB,
• for MacOS: Power PC G3, 233 MHz, RAM: 128 MB,
• 30 MB of available space on your hard disk,
• a monitor with a minimum resolution of 1024 x 768.
If your computer does not have the Wi-Fi function, it will have to be fitted with a Wi-Fi
accessory (IEEE 802.11b standard).
Several types are available:
- USB Wi-Fi keys
- PCMCIA Wi-Fi boards
- PCI Wi-Fi boards
5 Presentation
SAGEM F@st™ 1400 / 1400W
1.2 Contents of the SAGEM F@st™ 1400/1400W
modem/router package
+ Ethernet initialization key (7)
+ Installation CD-ROM
+ Quick installation guide
This guide shows you the steps you have to follow in order to get connected
to the Internet:
1. Installing the hardware.
2. Configuring the modem/router.
3. Configuring the wireless network.
The installation CD-ROM contains the detailed reference manual for the
modem/router.
ADSL filter
(option)
(3)
ADSL line cord
(RJ11/RJ11)
(2)
ADSL Wi-Fi
modem/router
(1)
USB cable
(type A USB/
type B USB)
(5)
Ethernet cable
(RJ45/RJ45 crossed cable)
(6)
Power block
(4)
Installing the hardware 6
SAGEM F@st™ 1400 / 1400W
Installing the ADSL filters
Installing a filter on all the phone plugs used is essential for ensuring that your phone
terminals and modem/router operate correctly (3 filters maximum per installation).
Carry out the following steps:
• unplug the telephone cable from your appliance (telephone, fax, etc.),
• insert a filter into the plug,
• plug your appliance back onto the ADSL/RTC separator filter.
1
INSTALLING THE HARDWARE
(3) ADSL filter
7 Installing the hardware
SAGEM F@st™ 1400 / 1400W
2.1 Plugging in the telephone line cord
• Connect one end of the ADSL telephone line cord (2)
to the LINE port on your modem/router.
• Connect the other end of the ADSL line cord to one of the ADSL filters on your
installation.
Rotate the antenna in such a way as to be able to insert the cables in their respective fixed
connectors.
Installing the modem/router
2
Connection with a telephone set or a FAXConnection with no telephone set
(2)
(1)
Do not insert the line cord in the Ethernet port marked ETH.
This may damage your modem/router.
ADSL filter (3)
(2)
ADSL filter (3)
(2)
The line cord is the black RJ-11-type cord. Do not mistake it for the RJ-45-type
Ethernet cable. The RJ-11 connector is narrower than the RJ-45.
Installing the hardware 8
SAGEM F@st™ 1400 / 1400W
2.2 Powering up the modem/router
• Connect the cable (4) to the PWR port located on the rear panel of the modem/router.
• Connect the power pack to a nearby socket.
• Set the On/Off switch (I/0) to On (the "I" position).
The PWR LED comes on.
In no event should you connect your modem/router to a single computer using
the USB and Ethernet cables simultaneously.
You can now connect your computers to the SAGEM F@st™ 1400/1400W
modem/router:
• via the USB interface,
see chapter 4 "Connection via the USB port" ........................................................ page 12
• via the Ethernet interface,
see chapter 3 "Connection via the Ethernet port" ................................................. page 10
• via the wireless network interface (SAGEM F@st™ 1400W only)
see section entitled "Configuring the wireless network" ........................................ page 22
After a few minutes, the modem/router is
automatically synchronized with your ADSL
line. The LINE LED comes on permanently.
On/Off switch (I/0)
(4)
9 Configuring the modem/router
SAGEM F@st™ 1400 / 1400W

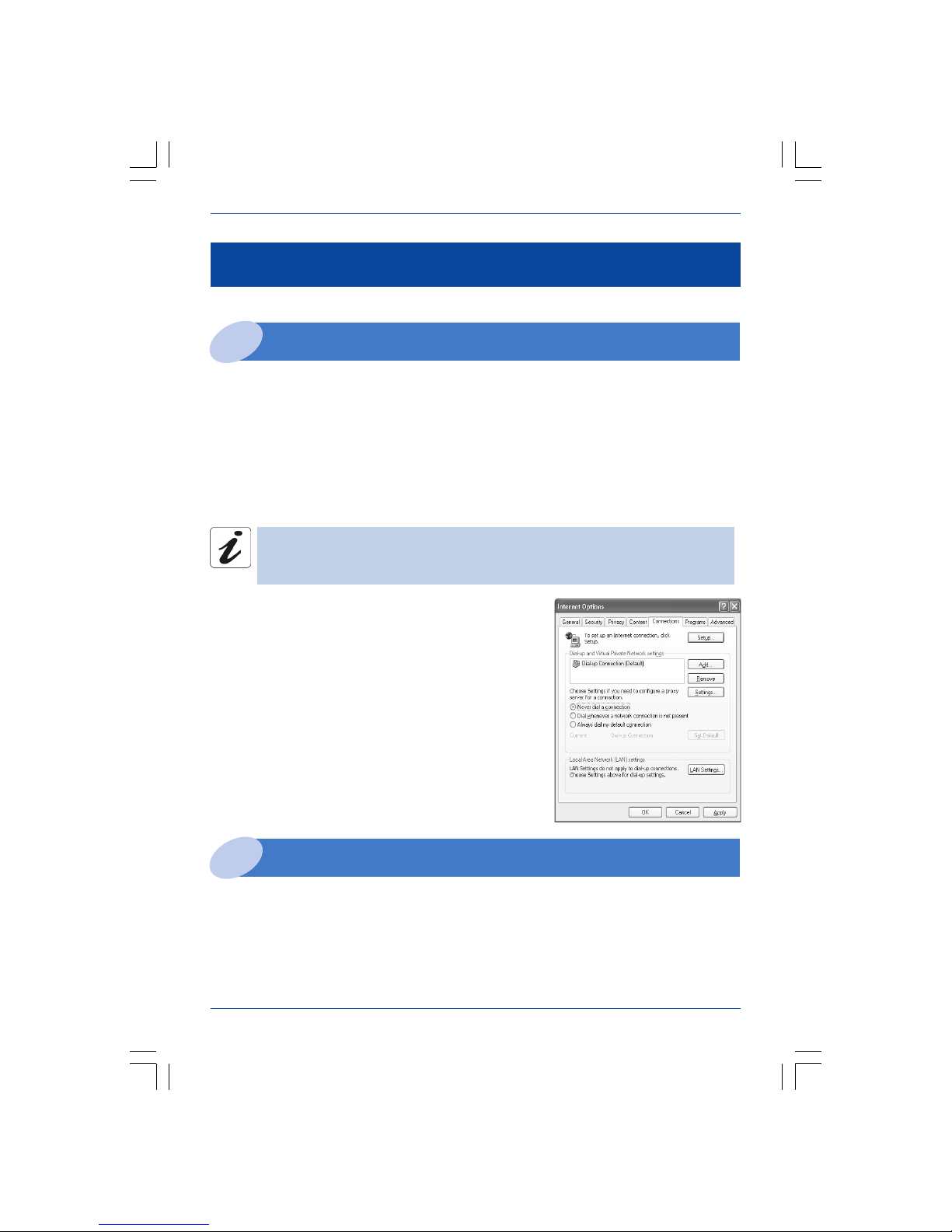

CONFIGURING THE MODEM/ROUTER
Preliminary configuration
1
You can configure your modem/router via its HTTP configuration interface. This interface is
visible from your Web browser.
This chapter describes the steps making possible:
• access to this HTTP configuration interface,
• configuration of your Internet account on the modem/router,
• access to the Internet.
The SAGEM F@stTM 1400/1400W is a router. It contains the parameters of
your ADSL subscription. It is therefore pointless carrying these parameters over
into the properties of your computer.
You are recommended to check that the Internet
browser of each computer is configured in the following
way:
Internet Explorer, for example
In the Tools menu, click on Internet Options.
In the Connections tab, select "Never dial a
connection".
Choice of the port for the modem/router configuration
2
The modem/router has 2 ports which enable you to configure it:
• 1 Ethernet port,
• 1 USB port.
If your computer is provided with an Ethernet card, we recommend that it be configured via
the Ethernet port. Should this not be the case, you may use the USB port.
