Sailfish 208 CC Owner’s Manual

02/23/2015 Sailsh208CCOwner’sManual|sailshboats.com 1

2. Boat Specications

3. Trailer Measurement Chart

4. Boat Layout

5. Wiring Harness Schematic

6. Battery Wiring / Battery Switch Diagram

7. Fuel System Layout

8. Plumbing Diagram

9. Ignition Switches, Engine Shut-Off Cord/Lanyard

10. Plug and Play Wiring

10. Fuel-Water Separator - Yamaha

11. Console Area / Battery Access

12. UFLEX Steering System

13. Bilge Pumps

14. Raw Water Washdown System

15. Livewell Operation

16. Trim Tab Maintenance

17. Optional Porta Potti

19. Vinyl Care and Cleaning

20. Aluminum Cosmetic Corrosion (Pitting)

21. Caring for Aluminum

22. Caring for Stainless Steel

23. Windshield, Window and Hatch Care Instructions

24. Gel Coat

Table of Contents

02/23/2015 Sailsh208CCOwner’sManual|sailshboats.com 2

Sailsh 208 CC - Specications

SPECIFICATIONS

• LOAHullOnly..................................20’2”

• LengthRigged.................................22’2”

• Beam.................................................7’7”

• FuelCapacity................................60gal.

• Approx.RiggedWeight............3,275lbs.

• MaxHPSingle...............................150hp

• Draft-Hull.......................................... 12”

• Deadrise(Multi-angle).................19°-21°

• BatteryCapacity.....................................2

• RodHolders(Standard).........................6

• BridgeClearancewithT-Top.............8’2”

STANDARDFEATURES

Electrical

• 12VoltDCAccessoryPlug

• AccessorySwitchPanelw/Circuit

Breakers

• DualBatterySystemw/Switch

• Compass

• ElectricHorn

• FullInstrumentation

• CockpitCourtesyLEDLights

Plumbing

• AutomaticBilgePump

• HighSpeedLivewellPickup

• RawWaterWashdown

• SelfBailingCockpit

Hardware

• MarineGradeStainlessSteelHardware

• FlushMountedHinges&DeckPlates

• HeavyDutyStainlessRubRail

• StainlessSteelBow&SternEyes

• StainlessSteelRodHolders(2)

• TotalStandardRodHolders(6)

• SSCupholders(4)

Seating

• Captain’sChairsw/RemovableCushions(2)

• AftBaitwellCushion

Storage

• AnchorLocker

• BatteryCompartment

• In-ConsoleStorage(Lockable)

• InsulatedFishBox/Storage(2)-Drain

Overboard

• RecessedRodStorage

• AftIn-FloorStorageBox

Fishing

• BaitPrepStation

• Aerated21GallonBaitwell

Boat

• CarbonFiber&Kevlar®ReinforcedDeck

&Hull

• ClosedCellFoamFlotation

• SailTechCompositeFullTransom

• SailTechFoamFilledFiberglassStringer

System

• StainlessSteeringWheel

• WindScreenw/StainlessSteelGrabRail

• 10MicronYamahaFuelFilter/Water

Separatorw/SSBase(YamahaOnly)

• NBTVinylProtection(StainResistant

MildewInhibitorUVProtector)

OPTIONS

BoatOptions

• BoardingLadder/SwimPlatform

• BowCushionSet

• TrimTabsw/IndicatorSwitch&Built-In

AutoRetractFeature

• T-Topw/LEDSpreaderLight&Rod

Holders

SeatingOptions

• LP2withRemovableBackrest

• 72qt.FrontHelmCoolerSeat&Backrest

• LivewellConsoleUpgradew/FrontHelm

Seat&Backrest

EngineOptions

Yamaha

• F115XA

• F150XA(standardw/HydraulicSteering)

Mercury

• 115ELPT-Mechanical

• 150XL-Mechanical(standardw/

HydraulicSteering)

02/23/2015 Sailsh208CCOwner’sManual|sailshboats.com 3

Sailsh Boat Trailer Measurement Chart

Boat Models B C D E F G H I

208 CC 78 in. 53 in. 28 in. 11 in. 82 in. 218 in. 235 in. 27 in.

1900 BB 88 in. 66 in. 37 in. 10.5 in. 99.5 in. 198 in. 217 in. 24 in.

2100 BB 88 in. 66 in. 37 in. 10.5 in. 99.5 in. 220 in. 240 in. 24 in.

220 CC & WAC 87 in. 59 in. 31 in. 14.5 in. 102.5 in. 216.5 in. 243 in. 32 in.

240 CC & WAC 92 in. 59 in. 31 in. 15 in. 107 in. 241 in. 272 in. 30 in.

270 CC & WAC 94 in. 59 in. 31 in. 15 in. 107 in. 268 in. 302 in. 30 in.

275 DC 94 in. 59 in. 31 in. 15 in. 107 in. 268 in. 302 in. 30 in.

290 CC & WAC 94.5 in. 61 in. 32 in. 15.5 in. 107 in. 301 in. 336 in. 30 in.

320 CC & EXPRESS 105 in. 65 in. 33 in. 16.5 in. 115 in. 315 in. 349 in. 38 in.

02/23/2015 Sailsh208CCOwner’sManual|sailshboats.com 4

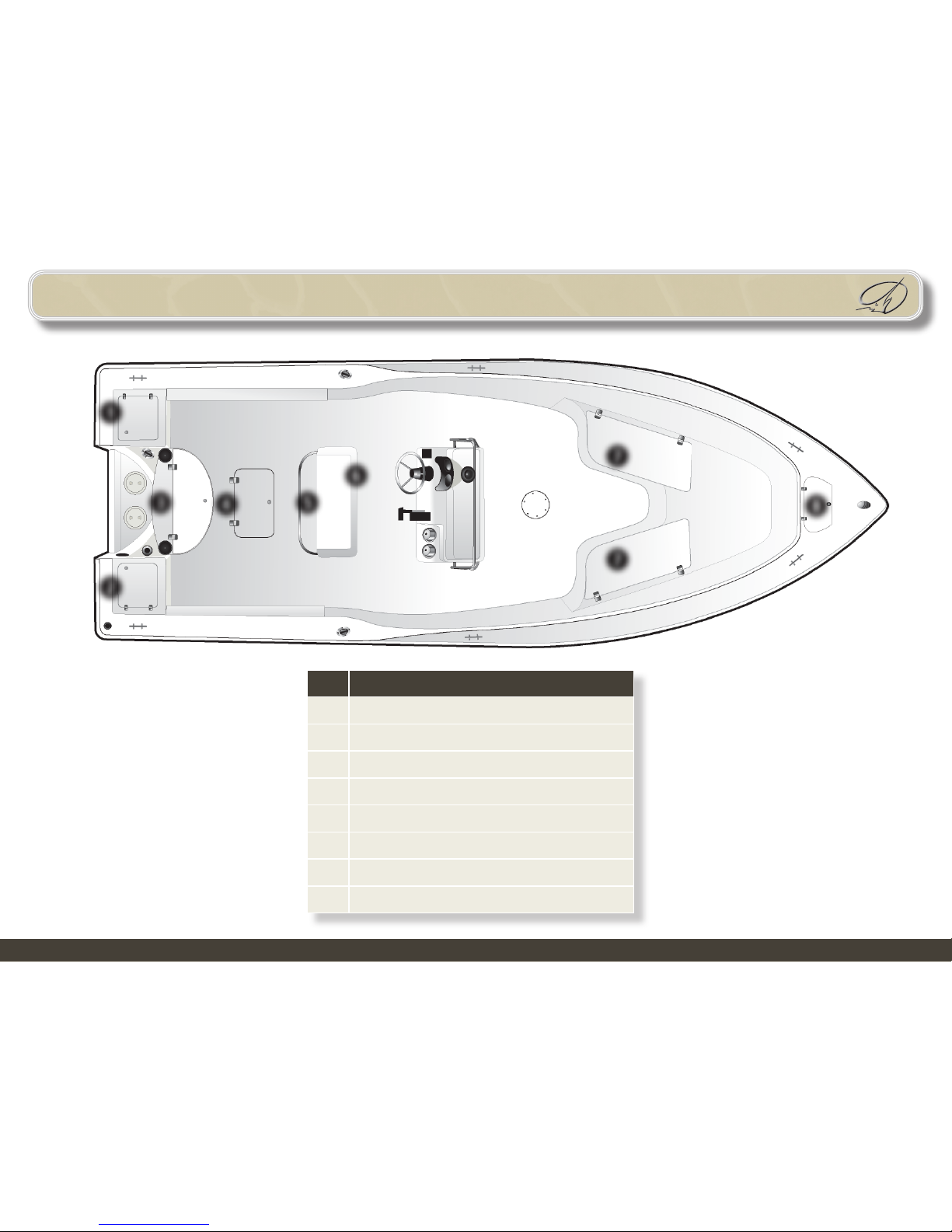

Sailsh 208 CC Boat Layout

Key Description

1Bait Prep Station

2Battery Access and Storage Compartment

321 Gallon Livewell

4In Floor Storage

5Leaning Post

6Console/Helm Area

7Insulated Fish Boxes

8Hanging Anchor Locker

eri

02/23/2015 Sailsh208CCOwner’sManual|sailshboats.com 5

208 CC Wiring Harness

02/23/2015 Sailsh208CCOwner’sManual|sailshboats.com 6

Battery Installation: Perko Switch

Perko Battery Switch on 1900BB, 2100BB, 208CC, 220CC & 220WAC

Connect all ground wires to

the negative post on battery

#1.

Perko battery switch has a

#1, #2 and ALL position to

switch to.

When switched to the ALL

position, battery #1 and #2

are hooked up in parallel.

02/23/2015 Sailsh208CCOwner’sManual|sailshboats.com 7

Fuel System Layout

Key Description

1Primer Bulb - Yamaha only

2Fuel Filter Access - Yamaha Only

3Fuel Tank Location

4Fuel Fill

5Fuel Sender

6Fuel Pickups

02/23/2015 Sailsh208CCOwner’sManual|sailshboats.com 8

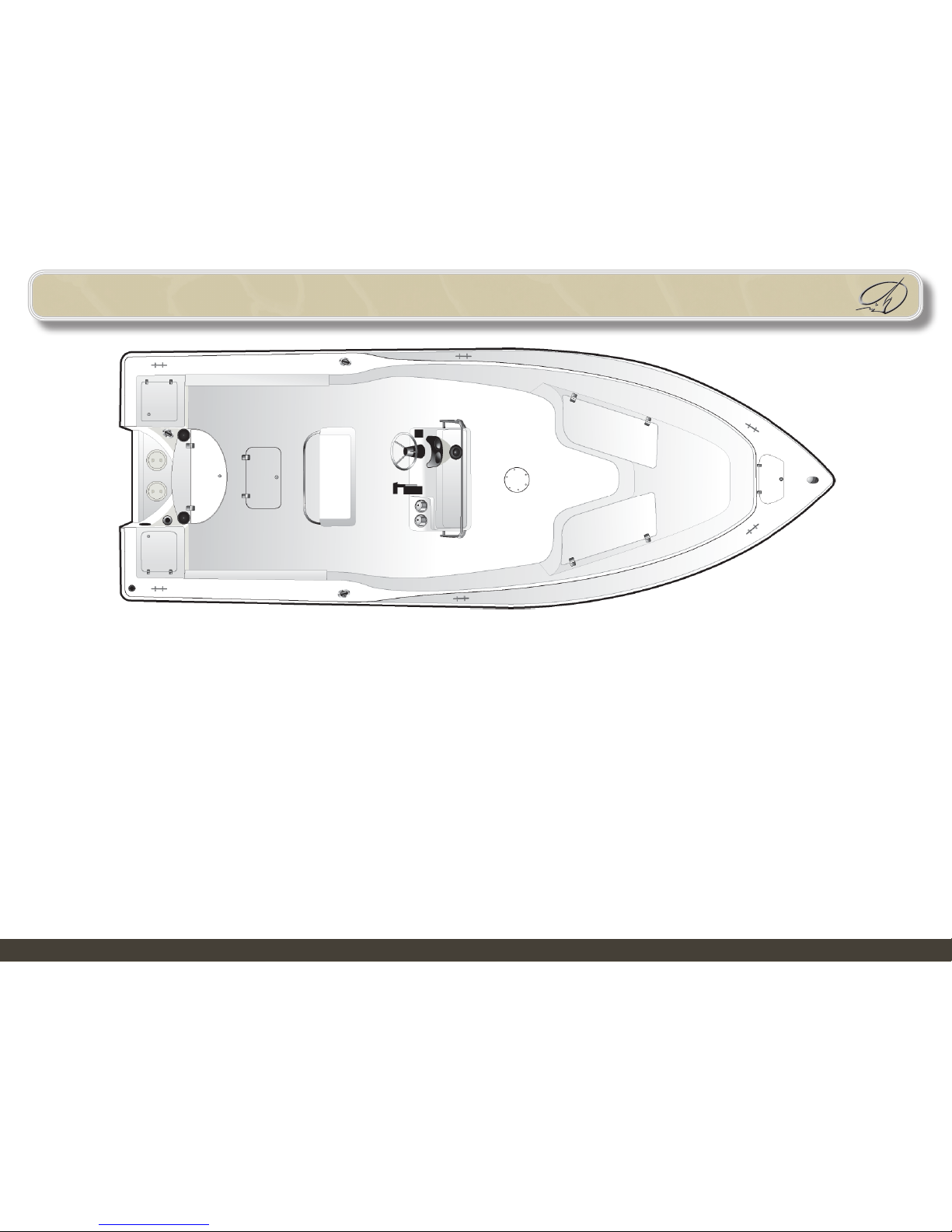

Plumbing Diagram

02/23/2015 Sailsh208CCOwner’sManual|sailshboats.com 9

Sailsh 208 CC

Ignition Switches, Engine

Shut-off Cord/Lanyard

Each Sailsh boat will be equipped with a Yama-

ha or Mercury ignition switch with an emergency

engine shut off cord/lanyard.

This lanyard should be worn at all times while

operating the vessel, if the vessel operator falls

or moves a unsafe distance away from the helm

controls the lanyard will pull out causing the en-

gine to shut down.

Make sure the lanyard is not attached to a part of

your clothing that could be easily torn free caus-

ing the switch not to pull. See your YAMAHA or

MERCURY owner’s manual for more information

on this safety feature.

Engine Break-In Period

Each new outboard motor will need to go through

a break in period to make sure all of the internal

moving parts and components have a chance to

correctly mate.

For more information on the break in period spe-

cic to your engine please refer to your YAMAHA

or MERCURY Owner’s manual.
