Sais RMD-24W-D2 Bedienungsanleitung

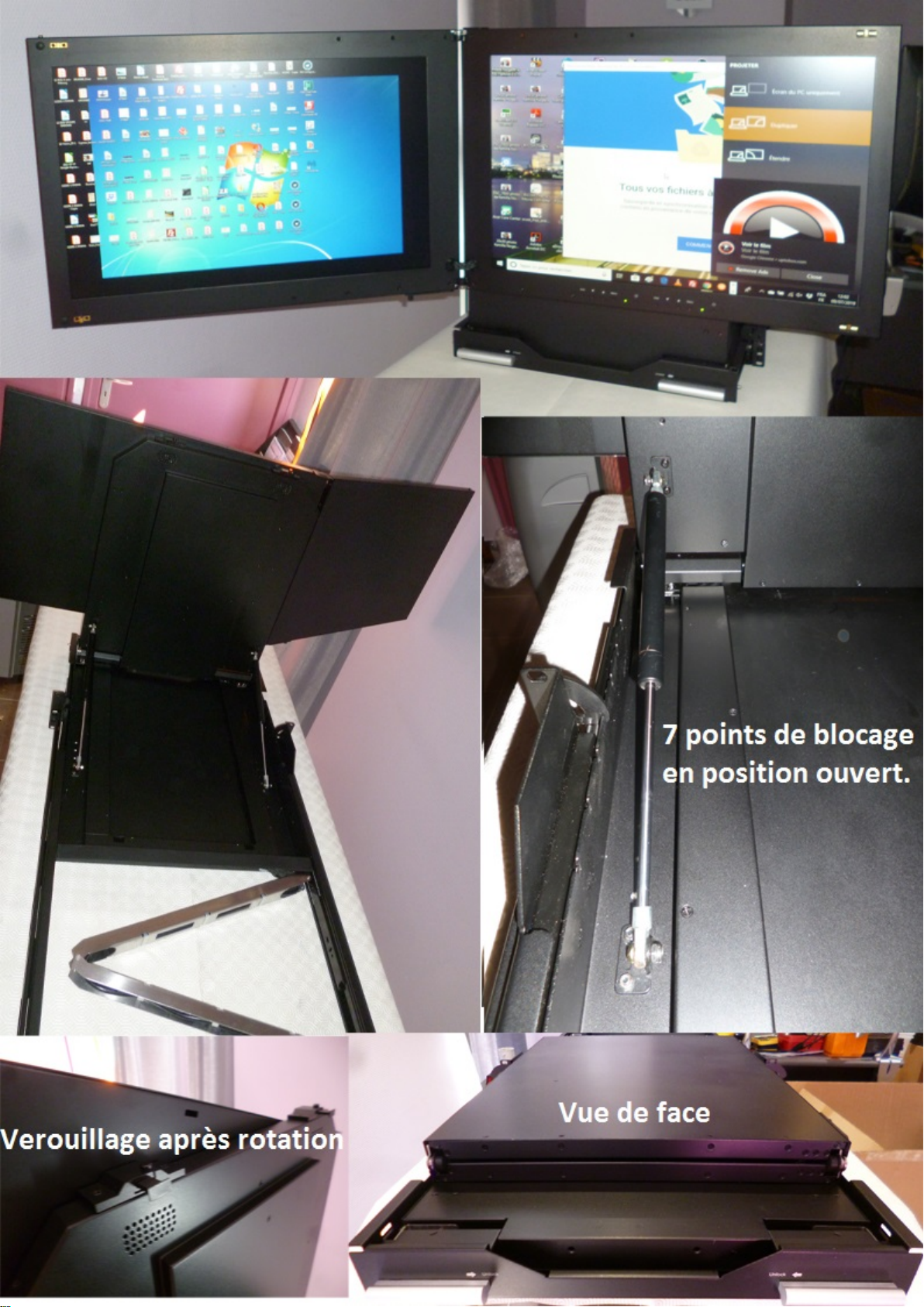

Rack Mount Dual LCD Drawer (screen pivot)

Model # RMD-24W-D2 / RMD-24WU-D2

Mechanical and Environment:

Height

2U Foldable

Rack Depth

24”to 40”( cabinet front rail to rear rail )

Construction

Metal Housing

Operating Temperature

0 - 50 deg. C

Operating Humidity

10% - 90% ( non -condensing )

Anti-Vibration

5 - 500 Hz / 1 Grms PTP

Anti-Shock

15G / Peak ( 11 ms )

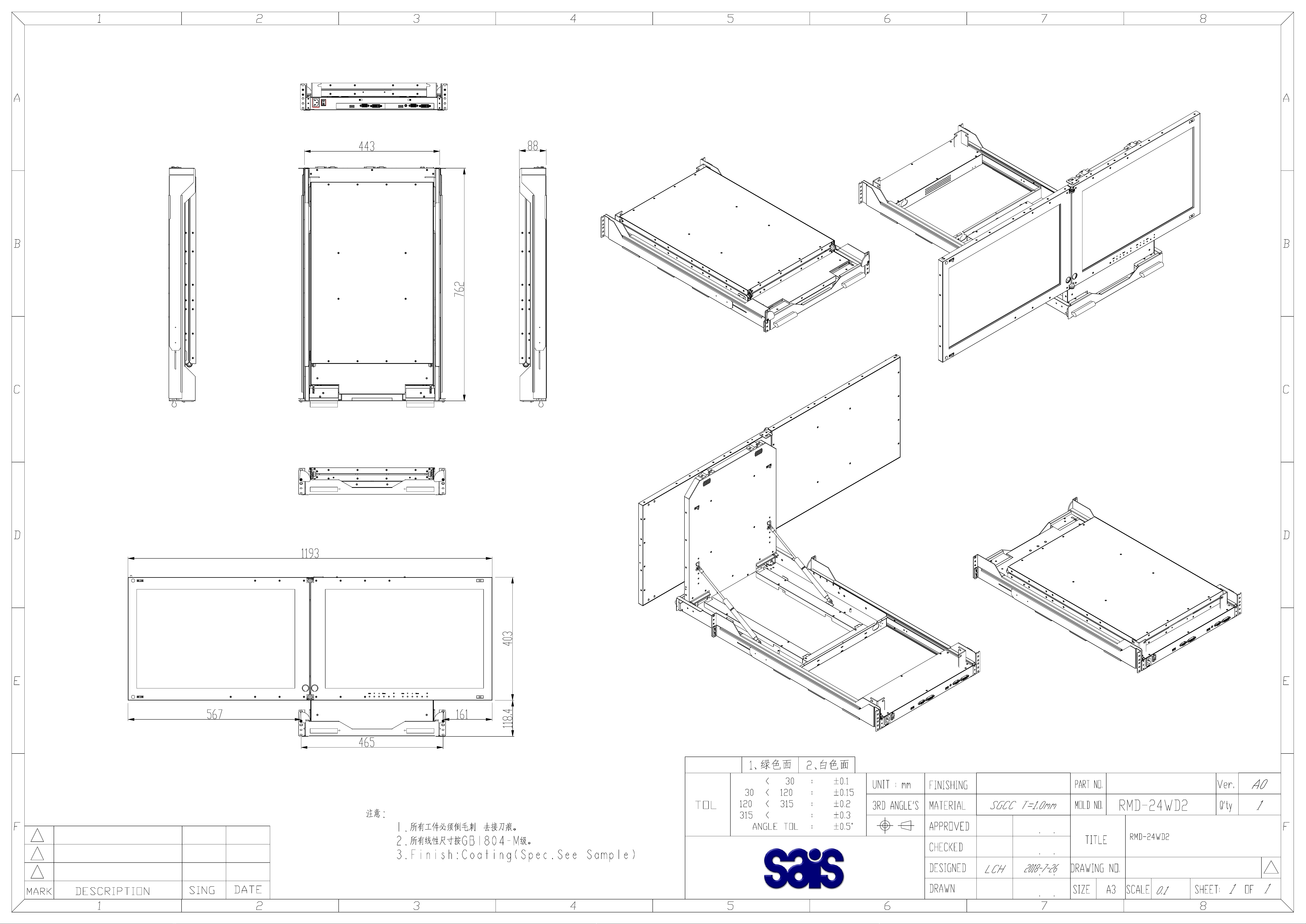

Physical Dimension (WxHxD)

443 x 88 x 762 (mm)

Packing Dimension (WxHxD)

570 x 230 x 900 (mm)

Net Weight / Gross Weight

28 / 35 (KGs)

Certification and Approvals

CE / FCC / RoHs

Features

•2U foldable dual 23.8”or 24.1”widescreen LCD display Drawer

•Dual DVI & VGA Port

•native 1920 x 1080 FHD resolution (for 23.8”)

•native 1920 x 1200 WUXGA Ultra high resolution (for 24.1”)

•Build in 2x 2 watts speakers

•Independent front osd control buttons to optimized display

Input Signals:

DVI-D

Dual DVI-D 24Pin Connector (Female)

VGA

Dual D-SUB 15Pin Connector (Female)

Audio

1x 3.5” Jack

Power Input

Standard IEC Inlet

Touch-USB ( option )

Dual USB A Type connector

Touch-RS232 ( option )

Dual D-SUB 9P connector ( Female )

User Controls Interface:

Power ON / OFF via Front Button

Power Mode Status LED indicator

OSD ( On Screen Display ) Buttons

Rear of RMD-24W-D2/RMD-24WU-D2

Option

•Composite video input

•HDMI or Display port input

•3G / HD / SD-SDI broadcast grade input

•DC 9~36 V power input

•AR Hardness glass

•Touch screen

AC Power Input

Standard IEC Type Power Cord with Internal Power

adapter, 100-240V AC Input

Wide Range DC Power

Input ( option )

Screw Type Terminal Block with internal

wide Range DC 9-36V power module

Power Specifications :

LCD Characteristics :

Model NO.

RMD-24W-D2

RMD-24WU-D2

Screen Size

Dual 23.8”

Dual 24.1”

Backlight Type

LED

Native Resolution

1920 x 1080

1920 x 1200

Contrast Ratio

1000:1

Brightness ( cd/m2 )

250

300

View Angles ( H/V )

178/178

Pixel Size ( HxV ) mm

0.2745x0.2745

0.27x0.27

Max. Color

16.7M

MTBF ( Hrs. )

50,000

30,000

BAT A6 Domaine de St Paul - 102 route de Limours - 78470 ST REMY LES CHEVREUSE

Tel : 09 54 16 23 53 - Fax : 09 59 16 23 53 - [email protected] - www.sacasa.info

歿轝曁

100~240V

50~60Hz

OFF

VGA DVI VGA DVI

Audio

Unlock Unlock

- 1 -

RMD-24W-D2/RMD-24WU-D2

Rack Mount Dual LCD Display Drawer

1.8 Meter VGA cable

- 2 -

This manual, covering various aspects of the equipment such as installation and setup,

which will help you make full use of this LCD Drawer. Please read this manual

carefully, install and operate the equipment according to the manual to avoid damage.

Product package includes following items:

1 * Dual screen LCD drawer;

1 * Rack installation bracket ( one pair )

1 * USER’S manual (CD)

Please check items above. If any item is missing or damaged, please contact your dealer

promptly.

2 * 1.8 Meter DVI cable2 *

1.8 Meter Audio cable

1 *

1 * AC Power Cord

- 3 -

Table of Contents

1 Introduction …………………………………………………………………………-4-

1.1Overview…………………………………………………………………...…. -4-

1.2 Functions & Features…………………………………… ……………...…..-4-

1.3 Hardware Requirement……………………………………………..….……-4-

1.3.1 Host Requirement………………………………………………....… -4-

1.3.2 Cables…………………………………………………………...….… -4-

1.4 Product Specifications………………………………………………..….…..-5-

1.5 LCD Specifications………………………………………………….…..……-5-

1.6 Front View………………………………………………………….…..……. -6-

1.7 Rear View……………………………………………………………..….…...-7-

2 Installation……………………………………………………………………...……-8-

2.1 Rack Installation……………………………………………………………… -8-

2.3 Standard Installation……………….………………………………….…… -10-

2.4 LCD OSD Menu Setup………………………………………………..….… -11-

3 Certificates………………………………………………………………..….….… -12-

2.2 Operation…..................…………….………………………………….…… -9-

- 4 -

(1) DVI, VGA graphic card

Note: the max. resolution of the integrated LCD display is 1920x1200. Make sure the

resolution of any connected computer does note exceed this resolution.

1.3.2 Cables

(1) 2x DB-15 VGA cable male to male

(3) 1x Audio Cable

(2) 2x DVI-D Cable male to male

1 Introduction

1.1 Overview

RMD-24W(U)-D2 integrates with 2 x LCD display and in a drawer type worktable

and provides a convenient space-saving display mode.

With a graphic card, screen can be cloned or extended to each screen; or can display

independently. With screen extended function, people can be multi-tasking in different

screens.

1.2 Function & Features

RMD-24W(U)-D2 is 2U height, supported resolutionup to 1920 x 1200. It can be

installed into 19 inch rack cabinet . No need to install additional software or hardware.

1.3 Hardware Requirement

1.3.1 Hosts Requirement:

- 5 -

1.4 Product Specifications

443 x 88 x 762 mm

Model RMD-24W-D2

Brightness 250cd/m2

Contrast 1000:1

Angle of visibility 178°(H),178°(V)

Color display 16.7M

DVI-D

VGA HD-15 female connector

Local Control

Terminal

Power supply

Housing Metal housing

Weight 28Kg

Dimension(W x H x D)

24 pin DVI-D female connector

(Master)

DVI-D

VGA HD-15 female connector

Local Control

Terminal 24 pin DVI-D female connector

(Slave)

Audio 3.5mm stereo jack

Video resolution 1920 x 1080 (native)

support up to 1920 x 1200

100-240V AC 50/60Hz via IEC Type power cord

RMD-24WU-D2

300cd/m2

1000:1

178°(H),178°(V)

16.7M

1920 x 1200 (native)

- 6 -

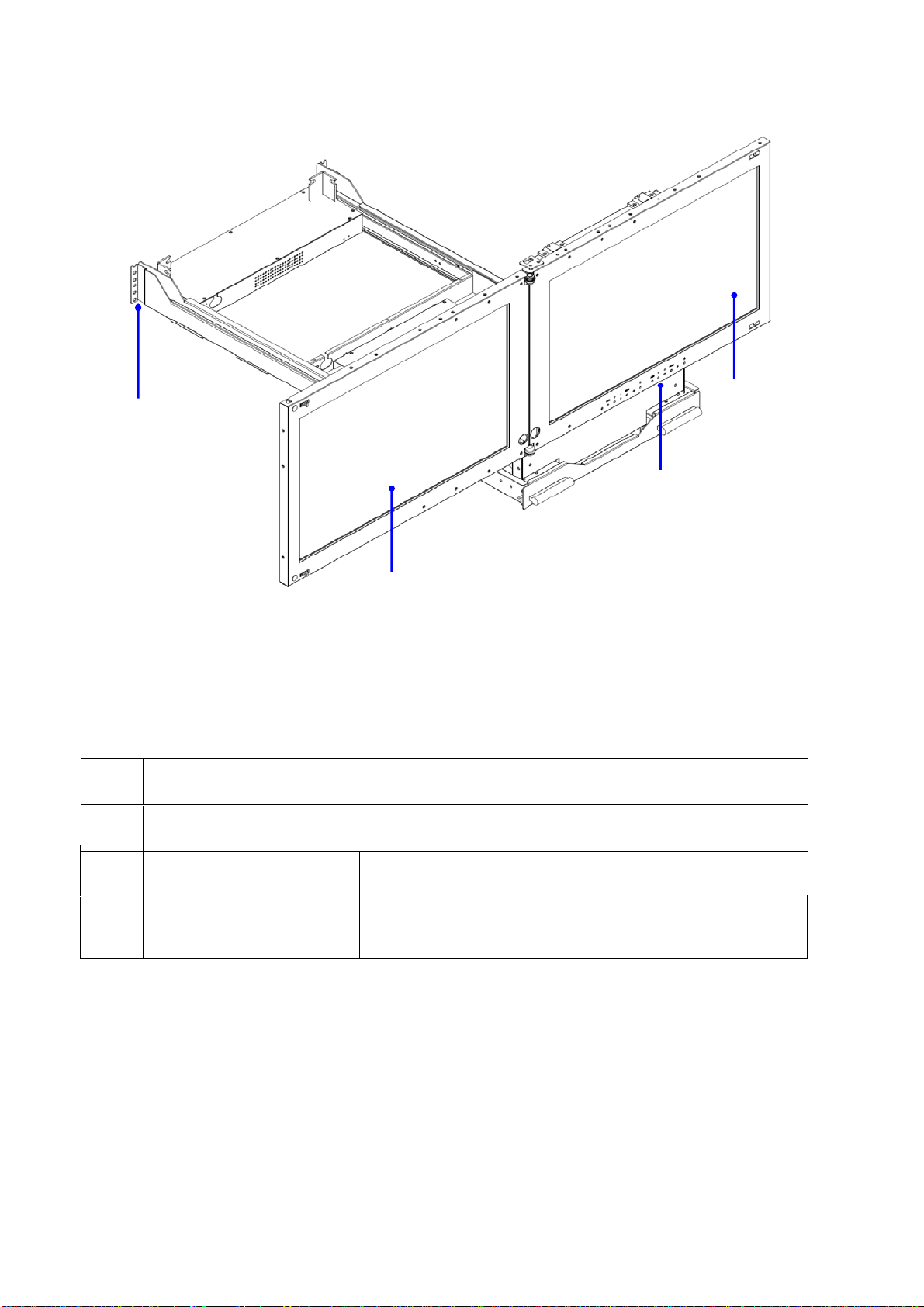

1.6 Front View

NO Part Function

Description

1 LCD

3 LCD OSD button

2 Mounting bracket Install into rack cabinet

LCD button to control Screen Display position and

image setting.

display
