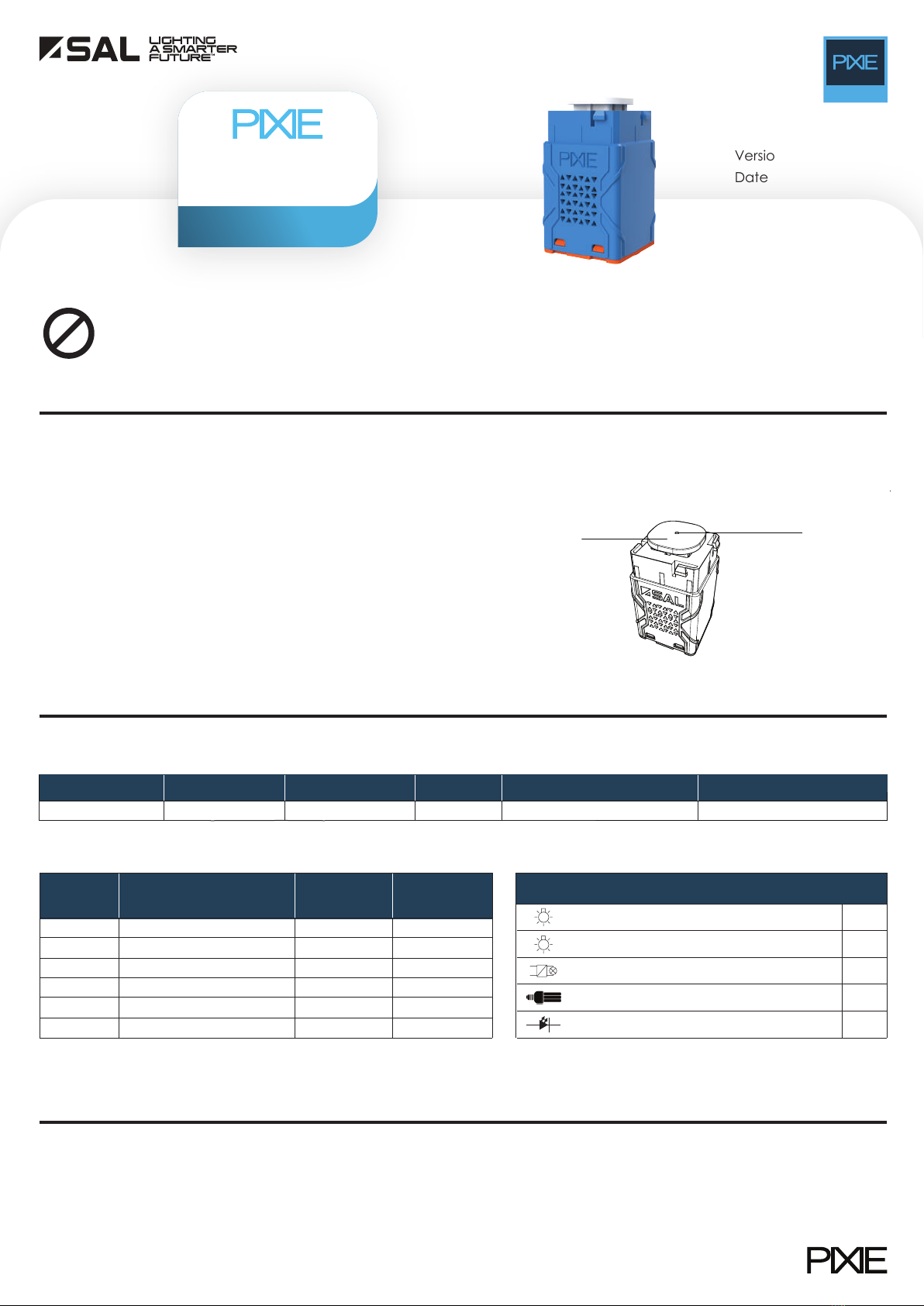

SWL600BTAM

Smart Switch G3

Quick Start Guide

Version

Date

2.0

22/06/2023

1. Foreword

IMPORTANT: IN THE INTEREST OF PRODUCT PERFORMANCE AND SAFETY PLEASE READ THESE GUIDE AND WARRANTY INSTRUCTIONS BEFORE INSTALLING THE PRODUCT.

2. Product Introduction

PIXIE Smart Switch G3 is the third generation push button smart switch,

that toggles the ON/OFF status of the load via a single press.

2.1 Product Features

• Fits most branded switch plates

• Fits 1 to 6 gang wall plate installation

• Over temperature protection, overload protection, short circuit

protection

• Complies with Australian and New Zealand Standard: AS/NZS

60669.2.1

• Smart functions via phone/tablet with the SAL PIXIE or PIXIE PLUS APP

• Multiway control - When pairing multiple PIXIE multifunction control

device (e.g. SMF/BTAS) with the same smart Switch, multiway-way

control is achieved

• LED indicator illuminates at high brightness when the switch is on, and

faint when the switch is off, allowing the user to identify the button in the

dark

• LED indicator can be enabled and disabled through the Apps

2.2 The package includes

• PIXIE Smart Switch G3 * 1

• Extra key caps * 2

• Silicon spacer * 1

• Load correction capacitor * 1

• Quick Start Guide * 1

2.3 Product illustration*

3. Specifications

3.1 Basic specifications

3.2 Load rating 3.3 Load compatibility

4. Installation and Wiring

DIY

*All drawings shown are for illustration purpose only, actual product may vary due

to product enhancement.

Installation process

• Make sure the key cap compatibility (pry and replace the default key

cap if necessary)

• Check the load rating and confirm the load compatibility

• Turn OFF the mains electricity supply before commencing installation

• Connect the switch according to the wiring diagram

• Turn ON the mains electricity supply, wait for 10 seconds, then test the

switch operation by pressing the switch button.

LED indicator

Default key cap

(Interchangeable)

Compatible Loads

240V halogen lamp

CFL

Incandescent lamp Yes

Yes

Low voltage halogen with electronic transformer

LED fixture

No. of switch Resistive load

(Incandescent/High voltage

halogen lamp)

Capacitive load

(e.g. LED, CFL)

Inductive load

(e.g. exhaust

fan)

1600W 400VA

250VA

200VA

120VA

100VA

80VA

2500W

3500W

4300W 150VA

150VA

100VA

80VA

60VA

5300W

6200W

*Subject to the load’s electrical characteristics, the load may require the inclusion of a load correction capacitor given in the product carton

Model No. Input (V)/(Hz)

Dimension L x W x H (mm) Wireless

Bluetooth Mesh Technology

SWL600BTAM 240/50 9*/600W Blue 42 x 24 x 24

ColourMin / Max loads

MASTER

SAL products are designed in accordance with all mandatory International and Australian Standards, which require installation in accordance with AS/NZS3000

by a qualified installer and regular cleaning and maintenance of the equipment. Products are sold in accordance with the following instructions and SAL

standard terms and conditions of sale, available via www.sal.net.au.

Loads with poor electrical performance will apply additional destructive impact to the switch, beyond its rated capabilities, irrespective of power consumption. This

can result on both a shortened lifespan and irreversible damage to this device. This device is not compatible with device below this minimum specification.

-Power Factor < 0.7

-In-rush current > 50A

Caution/Notice

NSW | ACT

QLD

VICT | TAS | SA | NT

SAL National Pty Ltd, 40 Biloela Street Villawood NSW 2163

SAL National Pty Ltd, 36 Whitelaw Place Richlands QLD 4077

SAL National Pty Ltd, 46-48 Keys Road Moorabbin Victoria 3189

SAL National Pty Ltd, 29 Beringarra Av Malaga WA 6090

| P # 02 9723 3099

| P # 07 3879 5999

| P # 03 9532 3168

| P # 08 9248 7458

5. Operation

6. How to download App

Scan QR code or go to App store (IOS) or Google Play (Android) to download the free PIXIE app

to your smart phone.

• IOS: Requires IOS 6.0 or later. Compatible with iPhone, iPad and iPad touch

• Android: Requires Android 4.4 or above, devices must support Bluetooth 4.0 Specifications

above are for reference only and may vary without prior notice.

7. Warranty

In accordance with SAL’s standard terms and conditions of sale, SAL warrant this product to be free from defects in materials and or workmanship for a period as stated

below for goods not subject to incorrect installation, maintenance, operation, mishandling, environmental, unauthorised modifications or electrical operating conditions

outside the nominated product specification as detailed in these installation instructions. The benefits to you given by this warranty are in addition to other rights and

remedies you have under law. Our goods come with guarantees that cannot be excluded under the Australian Consumer Law. You are entitled to a replacement or refund

for a major failure and compensation for any other reasonably foreseeable loss or damage. You are also entitled to have the goods repaired or replaced if the goods fail

to be of acceptable quality and the failure does not amount to a major failure.

Warranty term – Residential usage (12) months, Commercial usage (12) months

8. Scan QR code to access full product information

Step #3 - Upon review of your claim and if the product is required to be returned to SAL for technical evaluation, then at the owners expense the product must be

returned to SAL as per the above nominated locations.

Step #4 - Pending the evaluation, the claim will be validated resulting in the product being repaired or replaced with the same or best equivalent product at the

discretion of SAL, or rejected if the product fault was found to be caused by conditions beyond the responsibility of SAL warranty obligations. Consideration of installation,

product removal, return freight and or testing fees are not the responsibility of SAL.

ON/OFF Switch

A quick tap of the button wil turn the load (typically lights) ON or OFF

Multiway control and pairing

The PIXIE smart switch G3 can work with PIXIE secondary device (e.g. SMF/BTAS,

S2W/BTAS and SMRM/BTAS) to achieve multiway control, a pairing process is

required to setup the functionality. Please follow below pairing steps.

1, Turn off the SWL600BTAM switch.

2, Quickly press the button of SWL600BTAM 4 consecutive times, make sure the LED

indicator is flashing in blue and white.

3, Quickly press the button of SMF/BTAS, S2W/BTAS or SMRM/BTAS 4 consecutive

times within 30s. When the LED indicator flashes twice and then remains lit for 2s, the

pairing is successful.

Note: If the SWL600BTAM changes HOME setup in the App or reset to factory, the

pairing process will need to be repeated.

MASTER

Operation

1 Click Toggle the ON/OFF status of the load Static brightness as

programed via the App

Enter pairing mode, this mode stays 30s Quickly flash in blue and

white for 30s

Flash in blue and white

3s then stay lit for 2s

Reset all the settings to factory

4 Clicks

9 Clicks

Function Description LED Indicator

7.1 How to make a claim?

Step #1 – Within 30 days of the fault discovery, please contact the original place of the SAL product purchase during standard (local) business hours, with the following
