Salter Brecknell 402 Bedienungsanleitung

Model 402

Coin Counting Scale

User Manual

POWER SUPPLY

The Salter Brecknell 402 is powered either by 6 - 1.5 V AA alkaline batteries (not included) or

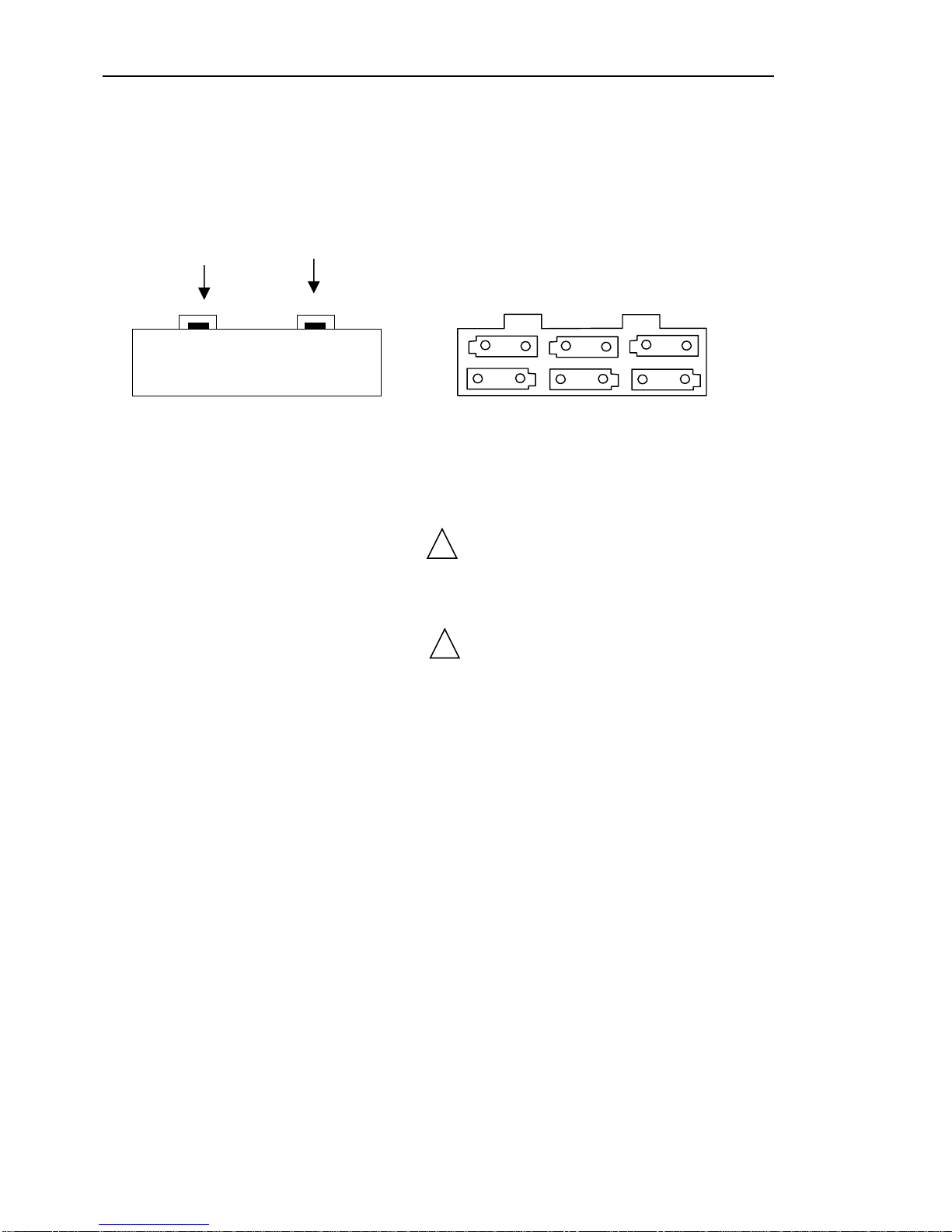

via the mains using a power adapter. To fit the batteries, remove the compartment cover on

the underside of the scale, place the 6 AA batteries in the spaces provided and engage the

cover clip.

The 9 V DC power adapter plugs directly into your AC outlet and into the DC plug socket

mounted on the rear of the scale. The Salter Brecknell 402 automatically switches off after 2

minutes if no weight change is detected.

!WARNING

Use only the AC adapter that comes with the scale. Other adapters may cause damage.

!CAUTION

Avoid installing the scale in areas of direct sunlight and high humidity. Also avoid drafts,

vibrations and dusty conditions.

Do not mix the type of batteries. Replace all batteries at the same time.

If the scale is not to be used for a long period of time, remove all batteries from the battery

compartment to avoid leakage that cause damage to the instrument.

To extend the life of your digital scale, do not drop items to be weighed onto the platform or

overload the scale beyond its rated capacity. Shock-loading and overloading may damage the

load cell and void the warranty. NOTICE:

This equipment has been tested and found to comply with the limits for a Class A digital

device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide

reasonable protection against harmful interference when the equipment is operated in a

commercial environment. This equipment generates, uses, and can radiate radio frequency

energy and, if not installed and used in accordance with the instructions manual, may cause

harmful interference to radio communications. Operation of this equipment in a residential

area is likely to cause harmful interference in which case the user will be required to correct

the interference at his/her own expense. 1

Push clips and

pull to remove

com

artment lid.

+-+-+ -

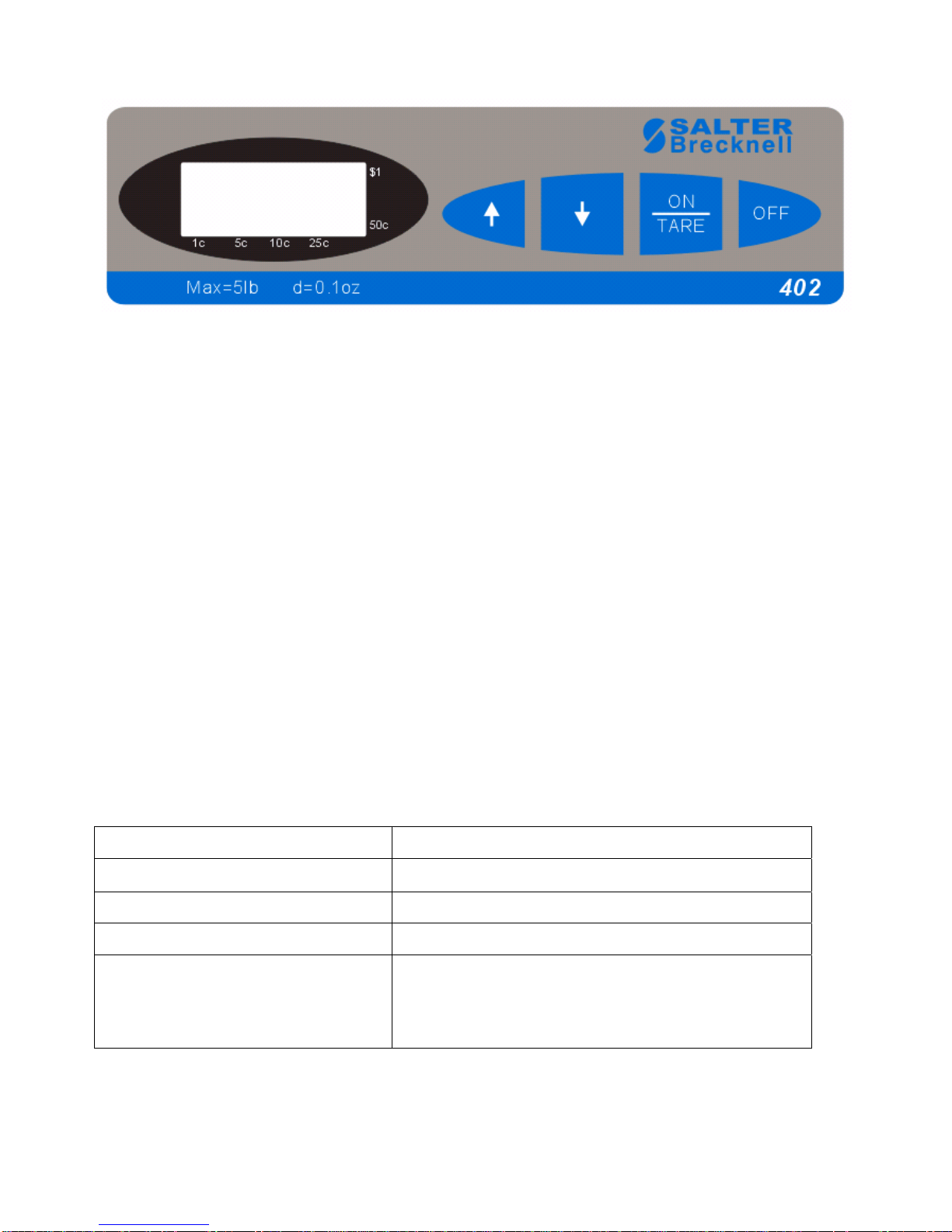

ON/TARE : Turns scale on, tares item on platter, and returns scale

to zero weight.

OFF : Turns scale off.

UP ARROW : Scrolls up through the display menu to select the

required denomination of coin or weighing mode.

DOWN ARROW : Scrolls down through the display menu to select the

required denomination of coin or weighing mode.

DISPLAY SCREEN : Displays weight / coin values.

Arrows along the bottom and to the right of the screen

show the current operating mode.

SPECIFICATION

Dimensions (scale): 8.25” x 8.25” x 2.0” (210mm x 210mm x 51mm)

Dimensions (weighing platform): 5.3” x 7.9” (135mm x 200mm)

Capacity / Resolution: 5 lb x 0.1 oz

Display method: 4 digit, 7 segment, 7 annunciator LCD display

Power: Adapter: 120 VAC, 60 Hz, 3 Watts input

9 VDC, 100 mA output

Batteries: 6 x 1.5 V AA Alkaline

MODES OF OPERATION

The following operating modes are available and can be selected by pressing the up/down

arrow TOGGLE key to select the various coin denominations and weighing mode.

Weighing Mode (no annunciators) 1¢ Coin Counting Mode

Displays the weight in lb/oz units.

5¢ Coin Counting Mode 10¢ Coin Counting Mode

25¢ Coin Counting Mode 50¢ Coin Counting Mode

$1 Coin Counting Mode

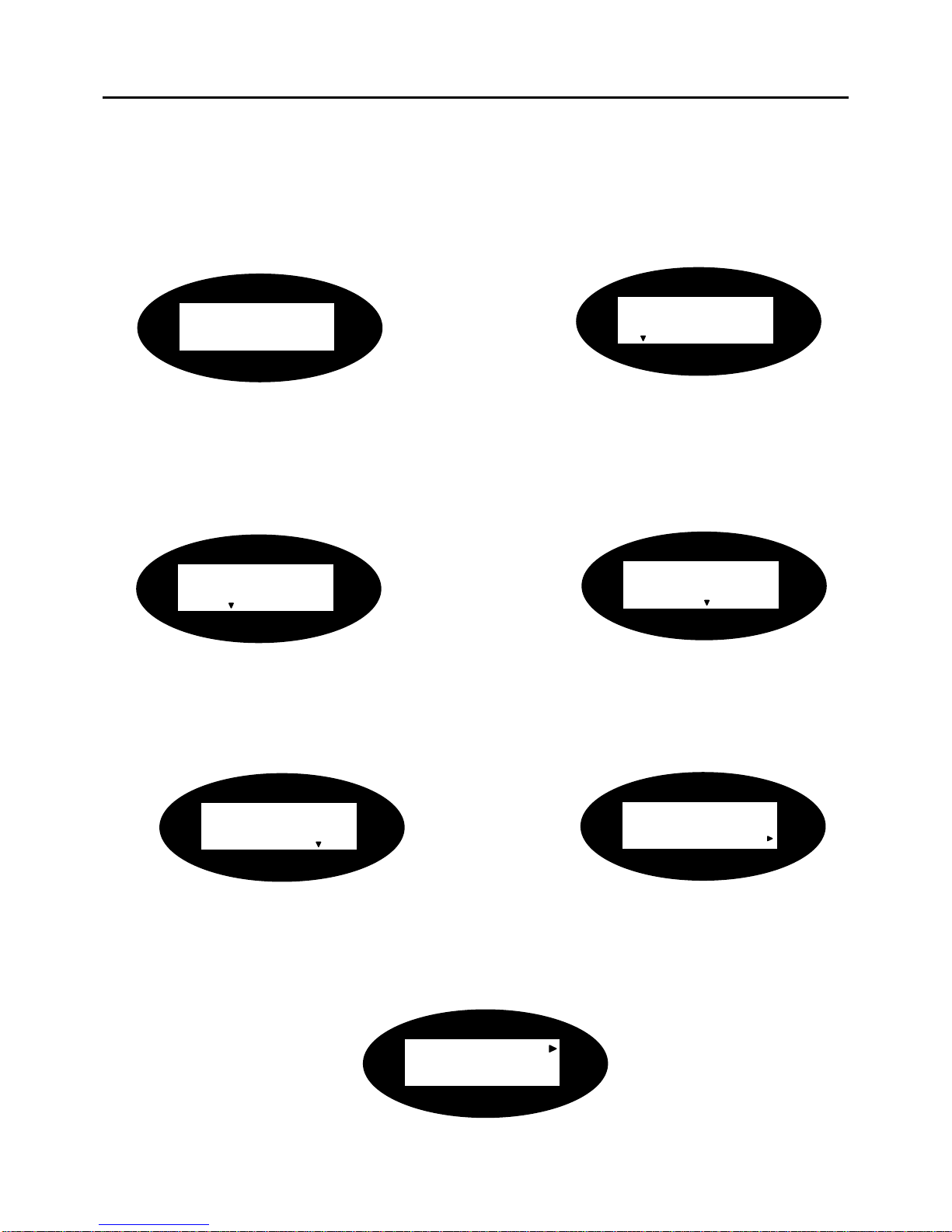

1c 5c 10c 25c

50c

1c 5c 10c 25c

50c

1c 5c 10c 25c

50c

1c 5c 10c 25c

50c

1c 5c 10c 25c

50c

1c 5c 10c 25c

50c

1c 5c 10c 25c

50c

When the Salter Brecknell 402 is initially switched on, the scale operation will default to

weighing mode. Weighing mode can also be selected by pressing the up/down arrow

TOGGLE keys, until no annunciator is displayed.

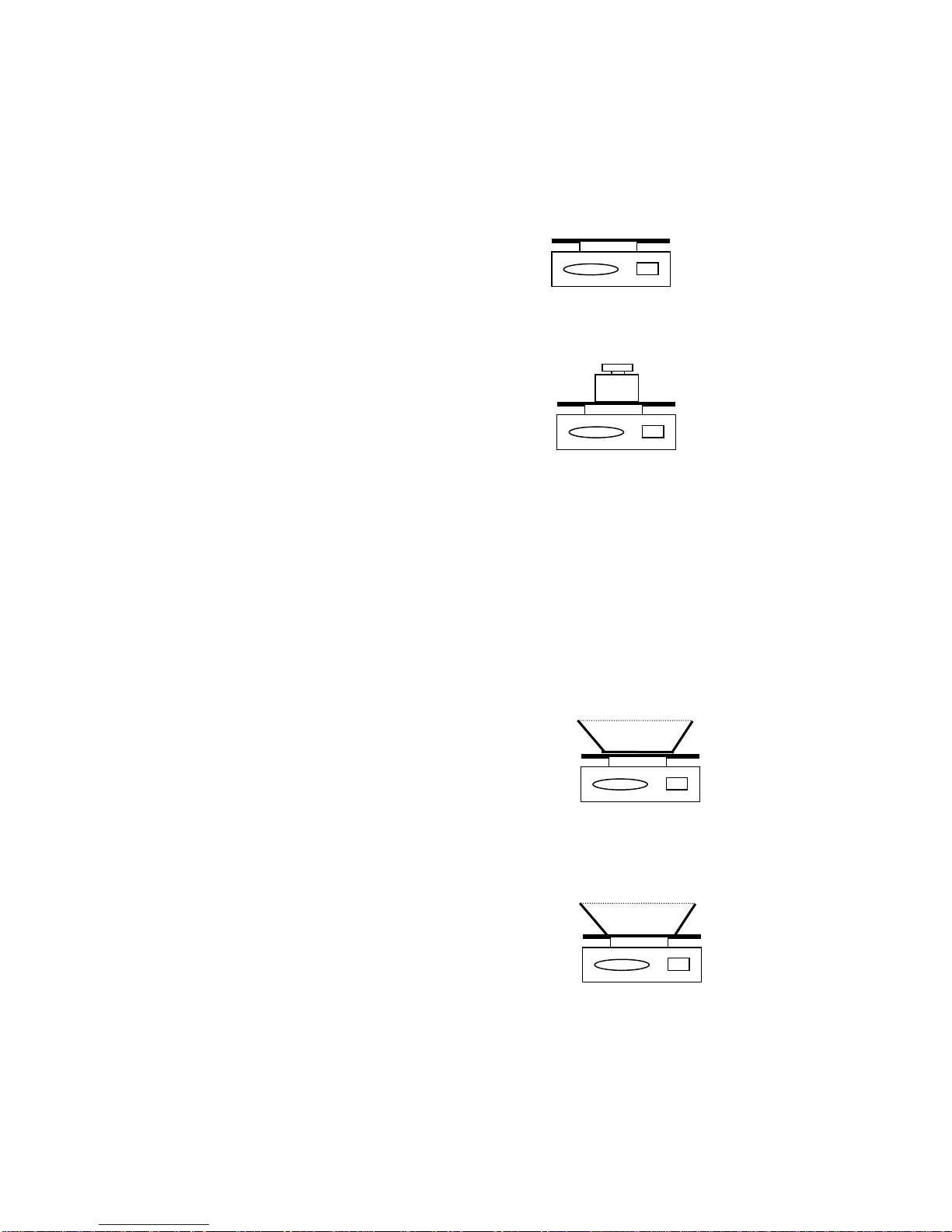

Press the ON/TARE key to

switch on the scale and/or

to zero the display.

Place weight onto scale.

The weight will be displayed

in lbs-oz.

CAUTION – To extend the life of your scale, do not drop items to be weighed onto the

platform or overload the scale beyond its rated capacity. Shock-loading and overloading may

damage the scale and void the warranty.

ENTERING A TARE WEIGHT

Place item(s) to be tared onto

the scale.

Press ON/TARE Key.

The tare function operates in all coin counting modes.

1lb

CURRENCY CHANGE INSTRUCTION AND INFORMATION

The Salter Brecknell 402 currency information is contained in an EPROM module. This is a

pre-programmed memory device that is mounted on a plug in the printed circuit board. In the

event of a coin change, contact the Salter Brecknell Sales Department at the address

below for information regarding new EPROM modules.

The EPROM rate chip is positioned on the underside of the coin scale. Remove the lid by

pushing the catch and pulling upwards.

The EPROM is situated directly beneath the lid. To remove, gently ease the chip from socket.

When inserting a new chip, ensure that the replacement is installed the correct way into the

socket. Insert the chip into place by pushing down gently. Replace the compartment lid and

your coin scale will be ready for use.

Salter Brecknell Weighing Products

1000 Armstrong Drive

Fairmont, Minnesota 56031

Toll Free 800-637-0529 · Voice 507-238-8702 · Fax 507-238-8271

Email: [email protected]

www.salterbrecknell.com

September 2003

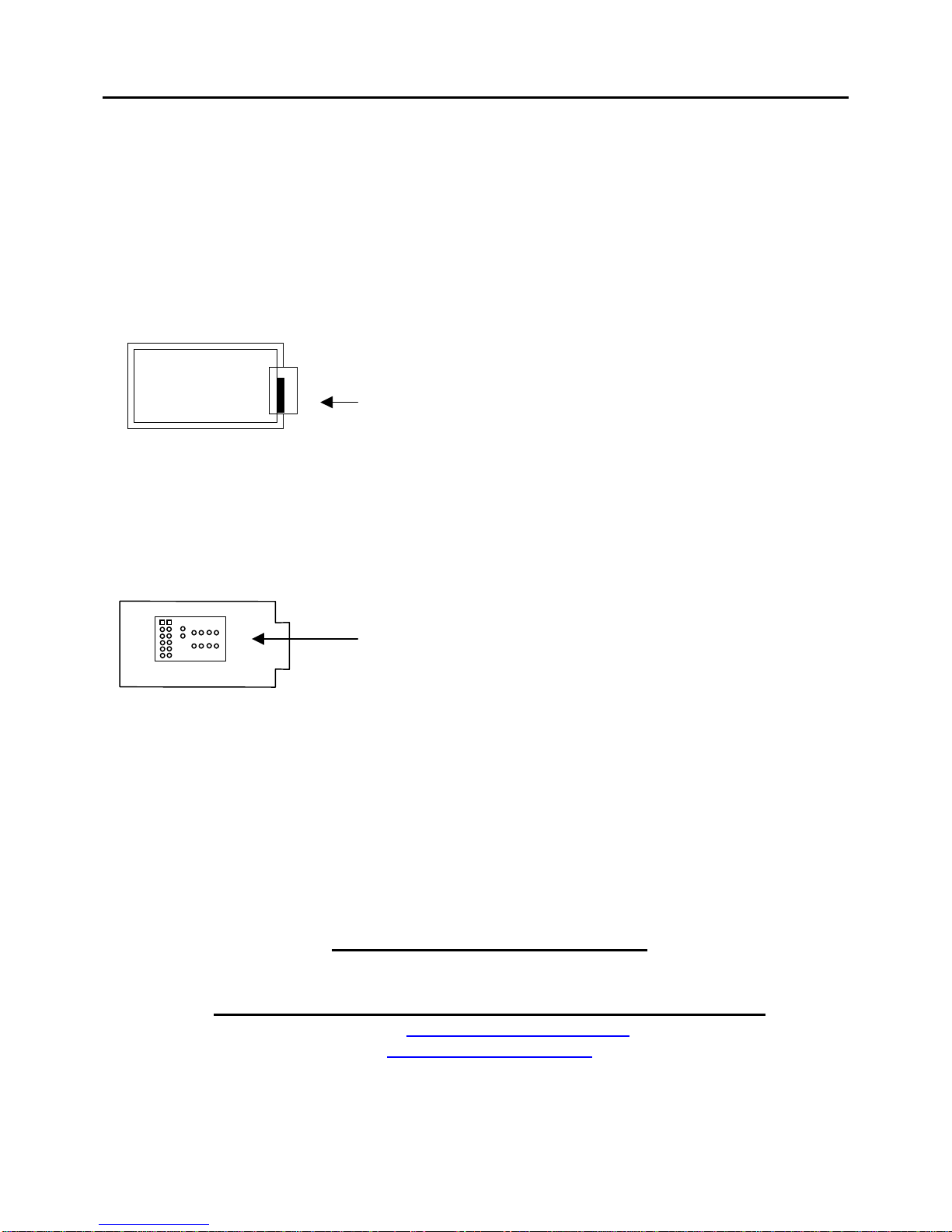

Pull EPROM gently

upwards to remove

chi

from sockets.

Push catch and

lift compartment

lid
