Introduction

Congratulations on purchasing the Samson Go Mic Mobile Wireless System. The Go

Mic Mobile is a dual wireless system designed to deliver professional quality audio

for mobile video. Pair and mix two transmitters to the GMM and turn your mobile

device into a complete video production studio. It is the ideal solution for mobile

journalists, ﬁlmmakers, videographers or anyone looking to add wireless audio to

their video projects.

The Go Mic Mobile includes all the cables needed to connect the Go Mic Mobile

Receiver (GMM) to a smartphone or digital camera (with an audio input). The Go

Mic Mobile will work with iOS, Android, Mac OS and Windows devices. The locking

mount arms enable the Go Mic Mobile receiver to mount directly onto the rear of a

smartphone out of the way of the phone’s lens. The arms can be removed to attach

the receiver to a tablet (using the included hook-and-loop strips) or afﬁx to a camera

using the included shoe mount adapter.

In these pages, you’ll ﬁnd a detailed description of the features of the Go Mic

Mobile wireless system, instructions for its setup and use, and speciﬁcations. If your

wireless system was purchased in the United States, you’ll also ﬁnd a registration

card enclosed—don’t forget to follow the instructions so that you can receive

technical support and so that we can send you updated information about this and

other Samson products in the future. Also, be sure to check out our website (www.

samsontech.com) for complete information about our full product line.

We recommend you keep the following records for reference, as well as a copy of your

sales receipt.

Transmitter & Receiver Serial number: _________________________________

Date of purchase: ___________________________________________________

If you have any questions or comments regarding the Go Mic Mobile Wireless

Microphone System or any other products from Samson, do not hesitate to contact us

at [email protected].

With proper care and maintenance, your Go Mic Mobile Wireless System will operate trouble-

free for many years. Should your Go Mic Mobile Wireless System ever require servicing, a

Return Authorization (RA) number must be obtained before shipping your unit to Samson.

Without this number, the unit will not be accepted. Please visit www.samsontech.com/ra for

an RA number prior to shipping your unit. Please retain the original packing materials and,

if possible, return the unit in its original carton. If your Go Mic Mobile Wireless System was

purchased outside of the United States, contact your local distributor for warranty details

and service information.

Go Mic Mobile

Charging the Go Mic Mobile Receiver Battery

Getting the most out of the rechargeable battery:

• Completely charge the batteries before ﬁrst use

• Fully charge the battery before it will be used.

• After the battery is charged, unplug the adapter from

the outlet.

• The optimal temperature range for using and

storing the battery is 50°F - 86°F (10°C - 30°C).

The battery performance and operation may

decrease in temperatures below 50°F (10°C).

• To extend the battery life, power off the Go Mic Mobile

receiver when not in use.

The Go Mic Mobile Receiver has an internal lithium-ion rechargeable battery. The

receiver is charged via the Mini USB jack located on the side of the receiver.

To charge the receiver, use the included USB charging cable and AC adapter.

Charging may also be done with 3rd party AC 5V adapters, or by connecting the units

to a standard computer USB port.

The total full charge time is 3 hours if you use a fast charger or a fast-charging

USB port (with a lightning symbol next to it), but if connected to a “standard

computer USB port” it will take 10 hours. The max run time from a full battery is

approximately 7–13 hours.

Note: The Go Mic Mobile receiver does not recharge from the Micro USB port, so

the battery level will decrease if plugged into a computer. If you want to power the

receiver while it is connected to a device, you will also need to connect the Mini USB

port to the computer or AC adapter.

Owner’s Manual

ENGLISH

FRANÇAISDEUTSCHEESPAÑOLITALIANOPOLSKI

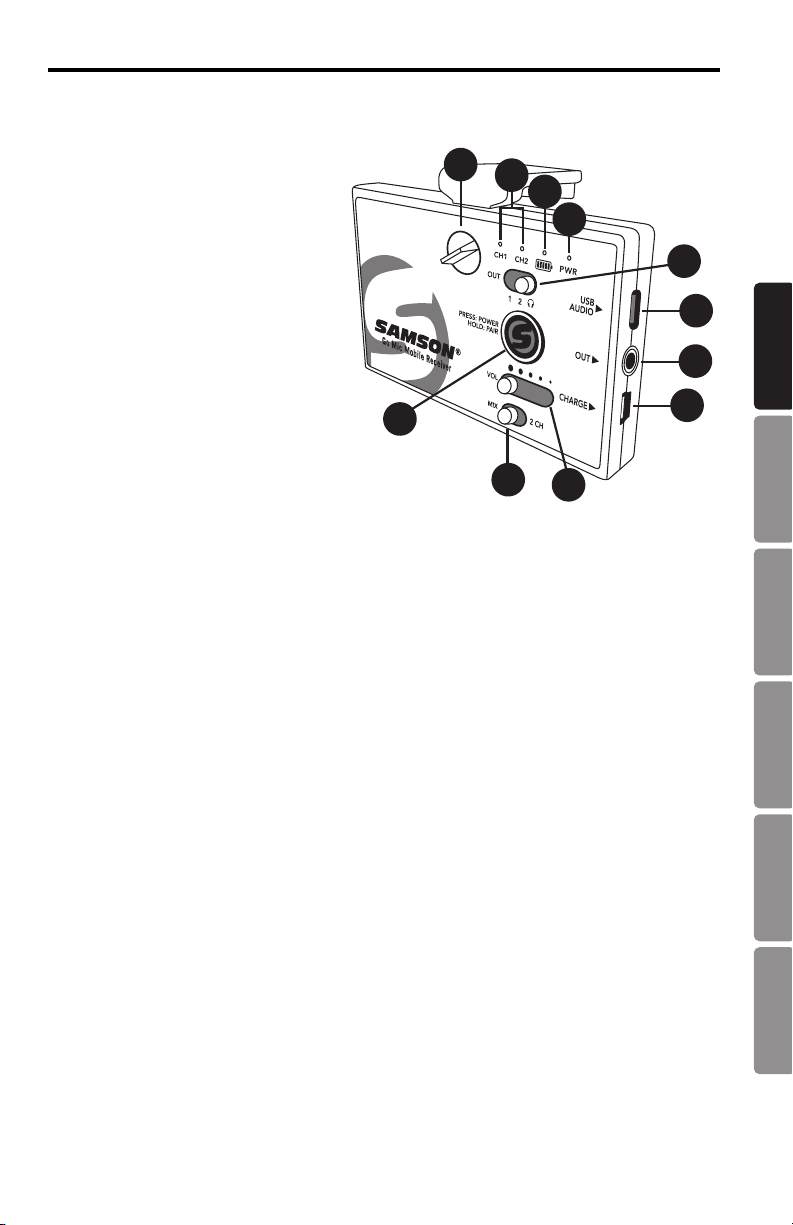

1. Power/Pair Switch - Press less

than 5 seconds to turn the unit

on or off. Press and hold for

more than 5 seconds to enter

pairing mode.

Note: The Go Mic Mobile

receiver and transmitter are pre-

paired from the factory.

2. Analog Output Select Switch - Sets

the wiring of the analog output.

The OUT 1 & 2 positions are for

connecting to a smartphone’s

TRRS headset input. The

Headphone/Line output is for

connecting the receiver to a

camera, mixer or headphones.

3. VOL Control - This slider sets the

level of the audio signal sent to the receiver’s digital and analog outputs.

4. MIX / 2 CH Switch - Sets the receiver audio output to either mixed mono or split

left and right.

5. CH 1 & CH 2 Indicators - When lit white, the LEDs indicate the receiver is paired

with a transmitter. When the transmitter input or the receiver output is clipped,

the LEDs flash red.

6. Battery Level Indicator - This indicator lights green when the battery is charged,

lights red when the battery is low, and orange when the battery is charging.

7. Power Indicator - This indicator lights green when the Go Mic Mobile Receiver is

powered on.

8. USB AUDIO Output - Use this output when connecting to a digital audio input.

9. OUT Jack - Use this 3.5mm jack when connecting to an analog input or

headphones.

10. USB CHARGE Port - Use this Mini USB jack to connect the Go Mic Mobile

Receiver to the included AC adapter to charge the receiver’s internal battery.

11. Lock Screw - Turn left to loosen the screw and adjust the mounting arm. Turn

right to lock the mounting arm in place.

Go Mic Mobile Receiver (GMM) Callouts

Go Mic Mobile

12. Adjustable Mounting

Arm - This mounting arm

is adjustable to affix

the GMM Receiver to a

smartphone. To adjust,

loosen the Lock Screw

on the top of the GMM

Receiver. To fix the arm

in place, tighten the Lock

Screw.

Note: The Adjustable

Mounting Arm can be

removed by loosening

the Lock Screw, sliding

the arm to the closed

position, then unscrew the

Lock Screw completely

and remove. Now slide

the Mounting Arm out of

the GMM Receiver and

replace the Lock Screw.

13. Fixed Mounting Arm - This fixed mounting

arm is used to mount the GMM Receiver

to a smartphone. A 1/4”-20 adapter

is included to mount the GMM to a

standard camera tripod. To remove the

fixed mounting arm, unscrew the two

Phillips screws.

14. Cold Shoe Adapter - This removable shoe

mount adapter is used to affix the GMM

Receiver to a camera or mobile filming

case.

15. Hook and Loop Area - Use the included

self adhesive hook and loop pieces

to affix the GMM to a tablet. Before

attaching the GMM to a tablet, remove

the standard mounting arms and/or cold

shoe adapter.

Go Mic Mobile Receiver (GMM) Callouts

Owner’s Manual

ENGLISH

FRANÇAISDEUTSCHEESPAÑOLITALIANOPOLSKI

HXD2 Handheld Transmitter Callouts

1. Status Indicator - This LED displays

the operation mode.

2. Power/Pair Switch - Press <5 seconds

to turn the unit on or off. Press >5

seconds to enter pairing mode.

3. Battery Cover - Unscrew the battery

cover and slide down to open the

Go Mic Mobile Handheld battery

compartment.

4. Battery Holder - Open the battery

holder by pressing the tab and lifting

the cover. Insert two standard AA

(LR6) batteries here, being sure to

observe the plus and minus polarity

markings shown.

WARNING: Do not insert the batteries

backwards; doing so can cause

severe damage to the transmitter

and will void your warranty.

5. Input GAIN Control - This control

adjusts the transmitter input

sensitivity. This input sensitivity

control has been factory preset

to provide optimum level for the

particular microphone capsule

provided with the Go Mic Mobile

system and so we recommend that

this not be adjusted manually. If

necessary, however, you can use the

supplied plastic screwdriver to raise

or lower the input level.

6. Plastic Screwdriver - Used to adjust

the input GAIN control.

Go Mic Mobile

1. Input Connector - Connect the input device

via the mini-XLR connector. The PXD2 is

supplied with a lavalier microphone.

2. Status Indicator - This LED displays the

operation mode

3. Power/Pair Switch - Press <5 seconds to turn

the unit on or off. Press >5 seconds to enter

pairing mode.

4. Input GAIN Control - This control adjusts the

transmitter input sensitivity.

5. Battery Holder - Insert two standard AA (LR6)

batteries here, being sure to observe the plus

and minus polarity markings shown.

WARNING: Do not insert the batteries

backwards; doing so can cause severe

damage to the PXD2 and will void your

warranty.

6. Plastic Screwdriver - Used to adjust the input

GAIN control.

PXD2 Belt Pack Transmitter Callouts

12 3

Andere Handbücher für Go Mic

Inhaltsverzeichnis

Sprachen:

Andere Samson Mikrofonsystem Handbücher

Samson

Samson Airline 77 Bedienungsanleitung

Samson

Samson UHF Series One Bedienungsanleitung

Samson

Samson CT7 Bedienungsanleitung

Samson

Samson EXPEDITION XP40iw Bedienungsanleitung

Samson

Samson Stage v266 Bedienungsanleitung

Samson

Samson AIRLINE CR77 Bedienungsanleitung

Samson

Samson Stage XPD1 Bedienungsanleitung

Samson

Samson AirLine 77 AH1N Bedienungsanleitung

Samson

Samson DK705 Bedienungsanleitung

Samson

Samson CONCERT 88X Bedienungsanleitung

Samson

Samson AirLine Bedienungsanleitung

Samson

Samson VHF Micro VHF Micro TRUE DIVERSITY WIRELESS Bedienungsanleitung

Samson

Samson AirLine SYNTH AR300 Bedienungsanleitung

Samson

Samson AirLine Bedienungsanleitung

Samson

Samson CONCERT 88X Bedienungsanleitung

Samson

Samson UHF Series One Bedienungsanleitung

Samson

Samson Stage XPD1 Bedienungsanleitung

Samson

Samson AirLine 88 Series Bedienungsanleitung

Samson

Samson AirLine 77 AH7 Bedienungsanleitung

Samson

Samson VLX Bedienungsanleitung

Samson

Samson Concert UHF Bedienungsanleitung

Samson

Samson Concert88 Bedienungsanleitung

Samson

Samson AirLine Bedienungsanleitung

Samson

Samson Concert 77 Bedienungsanleitung

Beliebte Mikrofonsystem Handbücher anderer Marken

Paso

Paso R824 Bedienungsanleitung

Naxa

Naxa NAM-982 Bedienungsanleitung

Motorola

Motorola PMNN4461 Bedienungsanleitung

Xvive

Xvive U3 Bedienungsanleitung

Tekon

Tekon DUOS Bedienungsanleitung

Heyuan Intelligence

Heyuan Intelligence IOT-G2S-01 Bedienungsanleitung

Devine

Devine WMD-IE Bedienungsanleitung

LG LF-D7150 Bedienungsanleitung

GE S768DAV Bedienungsanleitung

LD U305 HBH 2 Bedienungsanleitung

Chainway

Chainway URA8 Bedienungsanleitung

ORATOR

ORATOR D860TD Bedienungsanleitung

Sennheiser

Sennheiser Evolution Wireless Digital EW-DX EM 2 Bedienungsanleitung

Alpha Technologies

Alpha Technologies RBMS Bedienungsanleitung

SWIT Electronics Co.,LTD.

SWIT Electronics Co.,LTD. CW-S150 Bedienungsanleitung

Shure

Shure UA844 Bedienungsanleitung

Panasonic

Panasonic SHFX70 - DVD HOME THEATER WIRELESS SYSTEM Bedienungsanleitung

Pyle

Pyle PDWM5000 Bedienungsanleitung
