Samson Mixpad 9 Bedienungsanleitung

• 9-channel stereo ultra-compact mixer.

• 3 balanced monophonic mic/line channels and 3

additional stereo channels.

• Independent CD/tape input; signal is routed via

channel EQ.

• Trim controls on mic input channels.

• 48 volt phantom power for mic input connectors.

• 2-band equalization on all channels.

• Constant level stereo panpot on each monophonic

channel.

• Left/right balance control on each stereo channel.

• 2 Aux sends (one pre-fade and one post-fade) on

each channel.

• 2 stereo Aux returns with front panel level controls.

• Front-panel stereo headphone output.

• Master peak and power LEDs.

• 2 balanced main outs.

• Optional battery power for convenience in ENG,

field broadcast and recording applications.

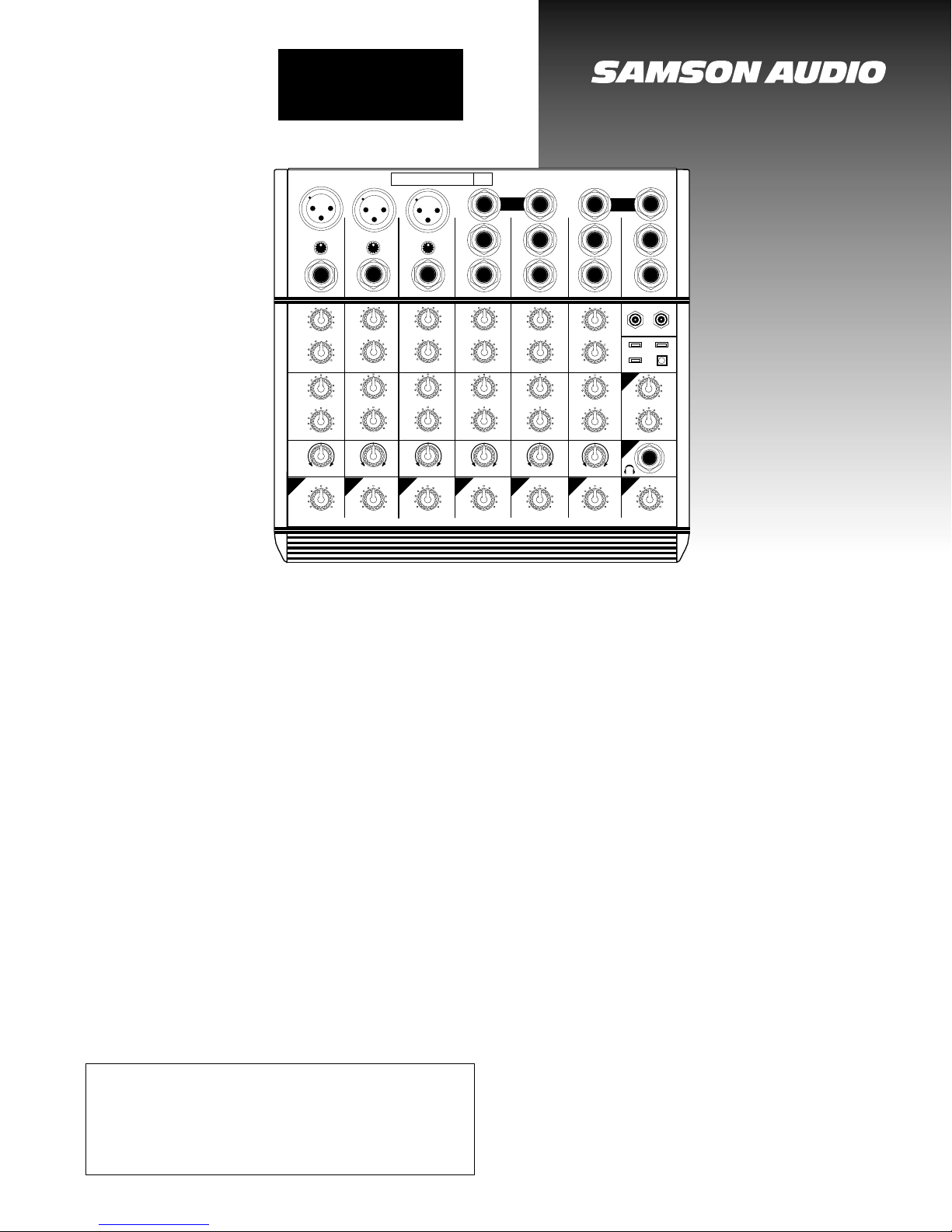

MIXPAD 9

ULTRA-COMPACT

MIXER

The ultra-compact MIXPAD 9 Mixer is a 9 input

stereo mic/line mixer in a very small package. Equipped

with 2-band equalization and pan/balance and level con-

trols on each channel, the MIXPAD 9 is an ideal device

for ENG, field recording, broadcasting and contracting

applications. It also features optional battery power, a

front-panel stereo headphone jack, 3 electronically bal-

anced mic/line inputs (XLR and 1/4″connectors), 3

stereo line inputs (1/4″connectors), a CD/tape input

(phono connectors), 48 volt phantom power, 2 Aux

sends and 2 stereo Aux returns (which have indepen-

dent level controls and so can be used as 4 mono Aux

returns), as well as a main level control and power and

peak LEDs.

Contact:

Samson Technologies Corp., P.O. Box 9031, Syosset, NY 11791-9031 •Phone: (516) 364-2244 •Fax: (516) 364-3888 •www.samsontech.com

SAMSON

LOW

HIGH+15-15

+15-15

+10

PAN

LEVEL

AUX 2

AUX1 PRE

LINE 1

PAN

LOW

HIGH+15-15

+15-15

+10

LEVEL

AUX 2

AUX1 PRE

LINE 1

TRIM -50

-10

MIC 1

LOW

HIGH+15-15

+15-15

+10

LEVEL

AUX 2

AUX1 PRE

LOW

HIGH+15-15

+15-15

+10

LEVEL

AUX 2

AUX1 PRE

AUX

SEND 1 AUX

SEND 2 RIGHT

OUTPUT

BALANCED

+4dBu

AUX

RETURN

1/2

AUX

RETURN

3/4

AUX RET. 3/4

AUX RET.1/2

+10

POWER

LEFT RIGHT

TAPE/CD

LOW

HIGH+15-15

+15-15

+10

PAN

LEVEL

AUX 2

AUX1 PRE

LINE 1

TRIM -50

-10

MIC 1

MAIN LEVEL

BALANCE BALANCE

TRIM -50

-10

MIC 1

LEFT RIGHT

+10

MIXPADPAD

LOW

HIGH+15-15

+15-15

+10

LEVEL

AUX 2

AUX1 PRE

LEFT

BALANCE

123 456789

MONOMONO MONO

+10

ARCHITECT’S & ENGINEER’S

SPECIFICATION

The mixer shall be 9 in/2 out and shall incorporate 3

monophonic and 3 stereo line input channels, including 3

microphone channels. Microphone inputs shall be on XLR-

type connectors, monophonic line inputs shall be on bal-

anced 1/4′′ Tip-Ring-Sleeve phone connectors, and stereo

line inputs shall be on 1/4′′ phone connectors. An indepen-

dent stereo line-level CD/tape input (routed to channels 8-

9) shall be on phono connectors. Each channel shall have 2

Aux sends, 2-band equalization and a level control. In addi-

tion, monophonic channels shall have a stereo panpot and

stereo channels shall have a left/right balance control.

Microphone inputs (on channels 1-6) shall have an input

trim control.

The mixer shall provide main outputs on balanced

1/4′′ Tip-Ring-Sleeve phone connectors, effects outputs on

1/4′′ phone connectors, and a headphone output on a 1/4′′

Tip-Ring-Sleeve phone connector. 2 stereo effects returns

shall be provided on 1/4′′ phone connectors, and each

shall have an independent level control. The mixer shall be

powered either from provided mains adapter or from

optional battery pack. The unit shall be of an ultra-compact

type.The mixer shall have residual noise of 95 dB, THD less

than 0.01%, and frequency response of ±3 dB from 10 Hz

to 50 kHz. Dimensions shall be 9.4″(239 mm) wide, 9″

(228 mm) deep and 2.3″(58 mm) high. Weight shall be 5.5

lb. (2.5 kg). The mixer shall carry a three-year warranty.

The mixer shall be a SAMSON MIXPAD 9.

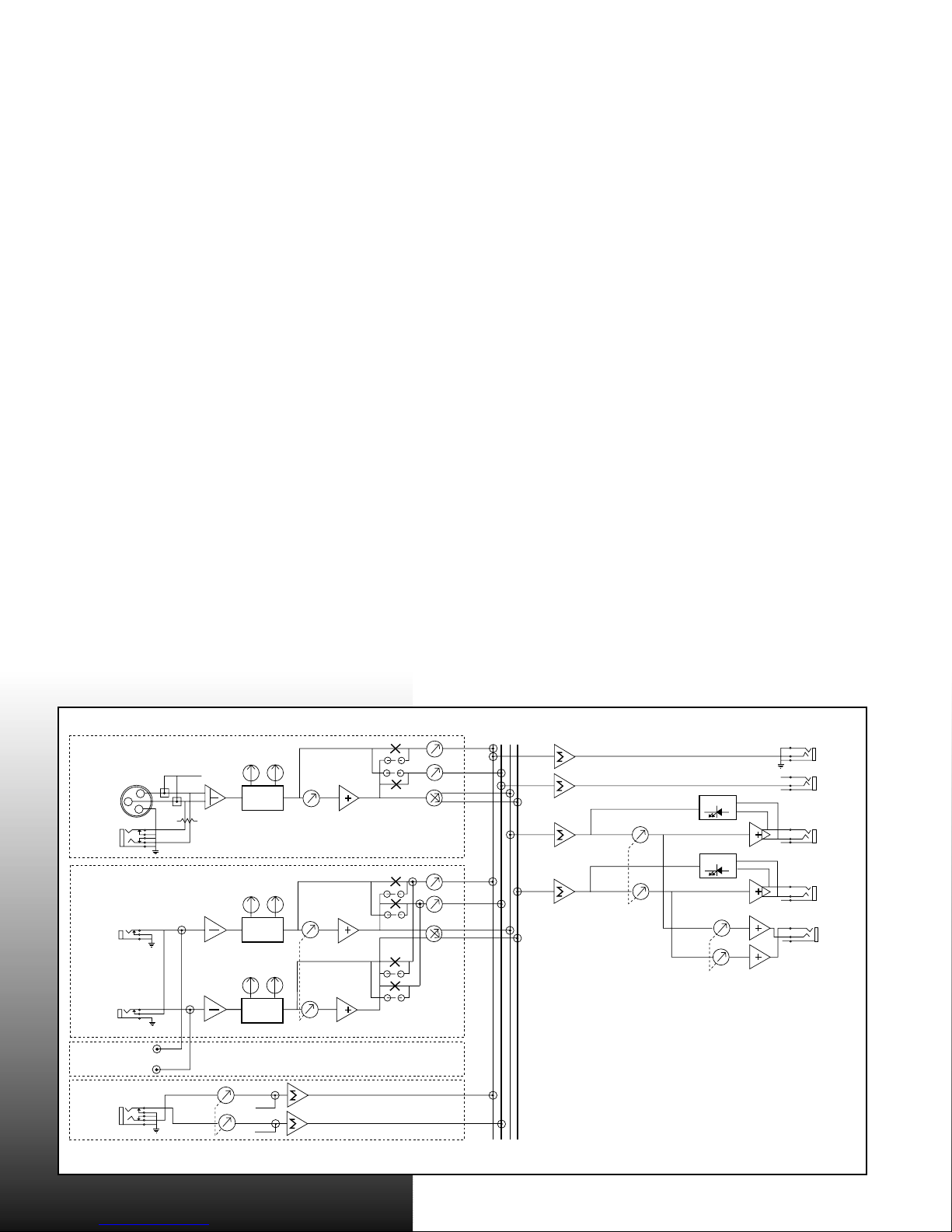

PEAK

DETECTOR

PEAK

DETECTOR

AUX 1

UNBALANCED

Zout = .1k

+4dbu

AUX 2

UNBALANCED

Zout = .1k

+4dbu

MAIN L

BALANCED

Zout = .1k

+4dbu

MAIN R

BALANCED

Zout = .1k

+4dbu

PHONES

UNBALANCED

Zout = .15k

150mW

+10dB

-10db

+10db

HEADPHONE

+4db

-10dbu

-10db

0dbu

0db

+14db

AUX 1

AUX 2

LEFT

RIGHT

-10dbu

0dbu

AUX 1

-10db

AUX 2

-10db

PAN

-3db

mid

PRE/POST

+10db

0dbu

-10dbu

-10db

Level

LOW HIGH

0dbu 2 BAND EQ

+/-15db

(NON-INV)

0dbu

PAD

-20db

+30db

MIC PRE

(LINE)

+42VDC

MIC INPUT

BALANCED

XLR

Zin = 1k5

LINE INPUT

BALANCED

TRS

Zin = 10k

CHANNELS 1-3

MONO TYPES

MAIN

PRE/POST AUX 1

AUX 2

BAL

-10db

0db

mid

0dbu

+10db

-10dbu

-10db

-10dbu

-10db

Level

0dbu

+10db

2 BAND EQ

+/-15db

(NON-INV)

2 BAND EQ

+/-15db

(NON-INV)

0dbu

LOW HIGH

0dbu

AUX 3

AUX 4

LINE INPUT

UNBALANCED

Zin = 10k

(ODD)

LINE INPUT

UNBALANCED

Zin = 10k

(EVEN)

CHANNELS 4-9

STEREO TYPES

TAPE IN

AUX RETURNS 1-4

STEREO TYPES

AUX RTN 1/2

UNBALANCED

TRS

Zin = 10k

AUX RTN 1/2

-10db

(PARALLEL TO 8-9)

MIXPAD 9 SPECIFICATIONS

CHANNEL section

Total harmonic distortion (with 30 kHz LPF): < 0.01%

Residual noise (with 30 kHz LPF, VR min):

L/R main: 95 dB

Aux send 1/2: 85 dB

Frequency response (±3 dB): 10 Hz to 50 kHz

Maximum voltage gain:

Mic to main: 74 dB

Line to main (mono ch): 54 dB

Line/Tape to main (stereo ch): 34 dB

Aux return to main: 20 dB

Crosstalk (1 kHz):

Channel vs. channel: 70 dB

Input vs. output: 75 dB

EIN (“A”filter on, input shorted): Mic:-128 dB

Line: -111 dB

Maximum input level (1 kHz, ± 3dB):

Mic input (mono ch): +22 dBu

Line input (stereo ch): +7 dBu

Headphone output level (600 Ωloaded): 100 mW

Peak LED sensitivity (before clipping): 3 dB ±2 dB

EQUALIZATION

10 kHz High (shelving): ±15 dB

100 Hz Low (shelving): ±15 dB

GENERAL

Dimensions: 9.4″(w) x 9″(d) x 2.3″(h)

239 mm (w) x 228 (d) x 58 (h)

Weight: 5.5 lb. / 2.5 kg.
