Samsung AHT18F1MBA Bedienungsanleitung

E A

DB68-01197A(6)

OWNER’S

INSTRUCTIONS

AHT24F1ME

AHT24F1MB

AHT18F1ME

AHT20F1MB

AHT24F1MEB

AHT24F1MBA

AHT18F1MEA

AHT18F1MEB

AHT19F1MEB

AHT18F1MBB

AHT18F1MBC

AHT20F1MBA

WINDOW-TYPE

ROOM AIR CONDITIONER

( Cool and Heat )

E-2

The manufacturer does not assume responsibility for accidents or injury

caused by an incorrectly installed air conditioner. If you are unsure about

installation, contact an installation specialist.

CCAA

AAUU

UUTT

TTII

IIOO

OONN

The following safety precautions must be taken when using your air conditioner.

Safety Precautions

1 The unit must be plugged into an independent circuit.

The air conditioner must be installed in accordance with national wiring regulations and

safety regulations wherever applicable.

2 Some installation locations may require installation of a short circuit breaker or grounding.

4 MAKE sure that the unit is correctly ventilated at all times :

do NOT place clothing or other materials over it.

5 NEVER spill any kind of liquid into the unit. Should this happen, unplug the unit and contact

an authorized service center.

6 Do NOT insert anything between the air outlet blades because the inner fan may be damaged

and could cause injury. Keep children away from the unit.

7 Do NOT place any obstacles in front of the unit.

8 Users of this product are cautioned not to attempt repairs.

Instead, they are requested to directly contact a designated service center or the outlet

at which the product was purchased.

9 Do not use an extension cord with this product.

10 The appliance is not intended for use by young children without supervision ;

young children should be supervised to ensure that they do not play with the appliance.

11 Never store or ship the air conditioner upside down or sideways to avoid damage to the

compressor.

3 If the supply cord is damaged, it must be replaced by a special cord or assembly available

from the manufacturer or its service agent.

E-3

Contents

◆PREPARING YOUR AIR CONDITIONER

■Safety Precautions ......................................................................................... 2

■Air Conditioning Unit - Main Parts and Control Panel .................................... 4

■Getting Started ............................................................................................... 5

◆OPERATING YOUR AIR CONDITIONER

■Heating Your Room ........................................................................................ 6

■Cooling Your Room ........................................................................................ 7

■Airing Your Room ........................................................................................... 8

■Switching the Air Conditioner Off .................................................................... 8

■Adjusting the Air Flow Direction Horizontally .................................................. 9

■Adjusting the Air Flow Direction Vertically ...................................................... 9

◆RECOMMENDATIONS FOR USE

■Operating Recommendation ........................................................................... 10

■Temperature and Humidity Ranges ................................................................ 10

■Cleaning Your Air Conditioner ........................................................................ 11

■Solving Common Problems ............................................................................ 12

■Technical Specifications ................................................................................. 12

◆METHOD OFINSTALLATION ................................................................................. 13

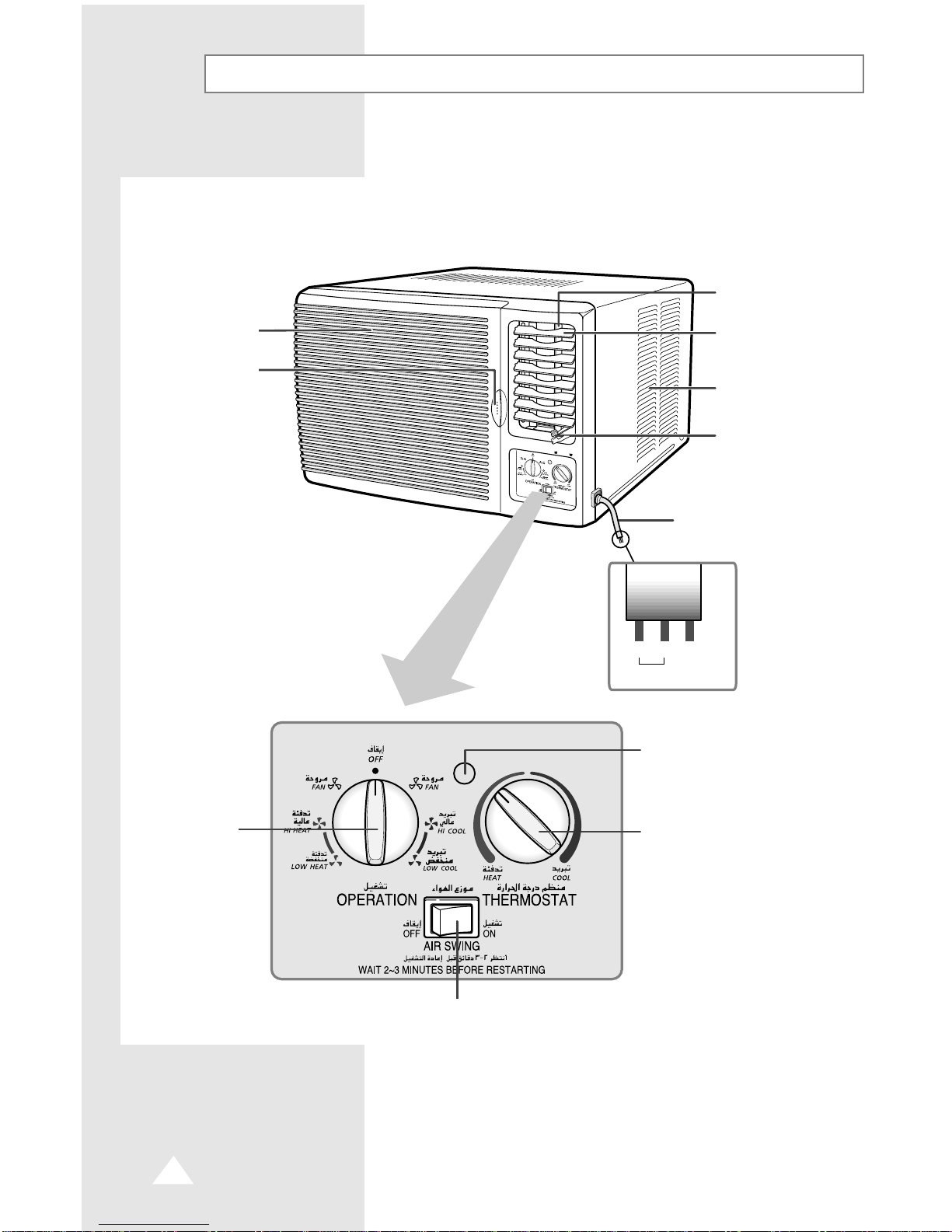

Air Conditioning Unit - Main Parts and Control Panel

E-4

Ventilation lever

Outer air flow blades

(up/down orientation)

Inner air flow blades

(right/left orientation)

Air inlet (Outside)

Air inlet(Inside)

Air filter(Inside)

❄The design and shape are subject to

change, depending on the model.

Power Cable

❈ Power cable connection

should be committed to

an installation engineer.

BLUE BROWN

YELLOW/GREEN

Main Power Earth

Temperature

control dial

Cooling lamp

Operating mode

selection dial

Air flow blade swing switch

Getting Started

E-5

You have just purchased a window-type room air conditioner and it has been installed

by your installation specialist.

Your Owner’s Instructions contain much valuable information on using your air conditioner.

Please take the time to read them as they will help you take full advantage of the unit’s features.

The booklet is organized as follows.

◆The illustration on page 4 shows the air conditioning unit;

it indicates the location and purpose of the main parts and controls on the unit.

◆ In the main part of the document, you will find a series of step-by-step

procedures for each function available.

The illustrations in the step-by-step procedures use four different symbols:

PRESS PUSH IMPORTANT NOTE

☛

➢

E-6

27˚C ~ 23˚C

29˚C ~

27C 23˚C ~

18˚C

Heating Your Room

Select the operating mode and fan speed.

To Heat your room Set the operating mode

with a... selection dial to...

High fan speed HI HEAT

Low fan speed LOW HEAT

Result: ◆

The air conditioner starts up in Heat mode.

◆

The fan starts up at the speed selected.

You can change modes at any time.

You must select the HEAT mode if you wish to higher the temperature

in your room. You can also set the fan speed.

To adjust the temperature, turn the temperature control dial

to the red position. (Left side)

Result: The air conditioner is started heating, if room temperautre is lower

than selected temperature.

To control the direction of the air flow, refer to page 9.

➢

E-7

Select the operating mode and fan speed.

To cool your room Set the operating mode

with a... selection dial to...

High fan speed HI COOL

Low fan speed LOW COOL

Result: ◆

The air conditioner starts up in Cool mode.

◆

The fan starts up at the speed selected.

You can change modes at any time.

You must select the Cool mode if you wish to lower the temperature

in your room. You can also set the fan speed.

To control the direction of the air flow, refer to page 9.

To adjust the temperature, turn the temperature control dial

to the blue position.(Right side)

Result: The air conditioner is started cooling as turn on the

cooling lamp, if room temperature is higher than selected

temperature.

➢

27˚C ~ 23˚C

29˚C ~

27C 23˚C ~

18˚C

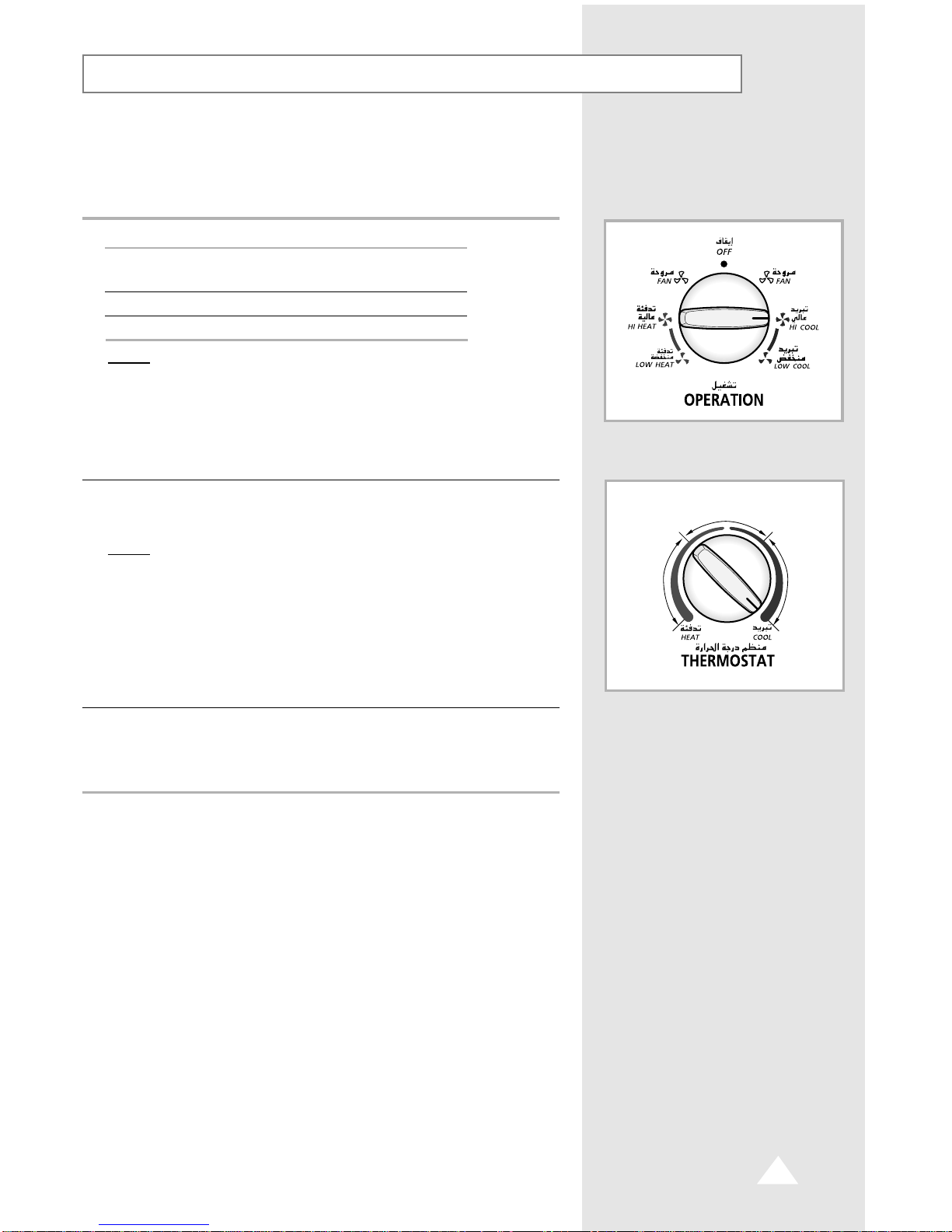

Cooling Your Room

E-8

Airing Your Room

Switching the Air Conditioner Off

To switch the unit off, simply set the operating mode selection dial

to the OFF position.

Result: The air conditioner stops operating.

If the atmosphere in your room is stale, you can air it using

the Fan feature and if necessary, evacuate the stale air outside.

You can switch the air conditioner off whenever you want.

Set the operating mode selection dial to the FAN position.

Result: ◆

The air conditioner starts up in Fan mode.

Note: ◆

The left, right " (FAN)" have it's same function.

To control the direction of the air flow, refer to page 9.

If you wish to evacuate stale air outside, push the ventilation lever on the front

of the unit to the right and the open position ( ).

Result:

The air inside the room circulates and stale air is evacuated outside.

Otherwise, push the ventilation lever to the left and the closed position ( ).

Result:

The air simply circulates inside the room.

E-9

Adjusting the Air Flow Direction Horizontally

Adjusting the Air Flow Direction Vertically

Depending on the position of the unit in your room, you can adjust the

orientation of the inner air flow blades on the right-hand side of the

unit, thus increasing the efficiency of the air conditioner.

To stop the blades moving left and right, set the air flow blade swing switch

to the OFF position.

To stop the blades in a specific position and orient the air flow in the

corresponding direction, simply set the switch to the OFF position

when the blades are in the desired position.

Set the air flow blade swing switch to the ON position.

Result:

The inner blades swing automatically left and right.

Again depending on the position of the unit in your room, you can

adjust the orientation of the outer air flow blades on the right-hand

side of the unit.

RECOMMENDATION When...

Cooling

Adjust the blades to face...

Upwards.

Adjust the air flow blades to the desired position, by pushing them

upwards or downwards.

If you orient the air flow blades downwards and the unit operates

in Cool mode for long periods of time, dew may:

◆

Form on the surface of the blades

◆

Drip from the blades

➢

Operating Recommendation

If the air conditioner is used at... Then...

Higher temperature The automatic protection feature may be triggered

and the air conditioner stopped.

Lower temperature A water leakage or some other malfunction may happen

if the heat exchanger freezes.

Higher humidity levels Water may condense on and drip from the surface of the unit

if it is used for long periods.

The following table indicates the temperature and humidity ranges,

within which the air conditioner can be used.

Mode Outdoor

Temperature Indoor

Temperature Indoor Humidity

Heating 0°C to 21°C approx. 28°C or less -

Cooling 21°C to 54°C approx. 21°C to 32°C approx. 80% or less

Here are a few recommendations that you should follow when using

your air conditioner.

Topic Recommendation

If a power failure occurs when the air conditioner is operating,

the unit is switched off. When the power returns,

the air conditioner starts up again automatically.

Power failure

The air conditioner circulates warm air to heat your room;

as a result, some time will be required after starting

the air conditioner to warm the entire room. If necessary,

set the air conditioner going a short time before you wish

to use the room.

Warm air

circulation

Temperature and Humidity Ranges

E-10
