Air conditioner

•Thank you for purchasing this Samsung air conditioner.

•Before operating this unit, please read this manual carefully and retain it for future reference.

Cover_GREE_AFRICA.indd 1 2019-10-25 오후 3:14:38

User manual/Installation manual

AR**B*HGAWK***

Content

Operation Notices

Precautions............................................................................................................1

Parts Name............................................................................................................6

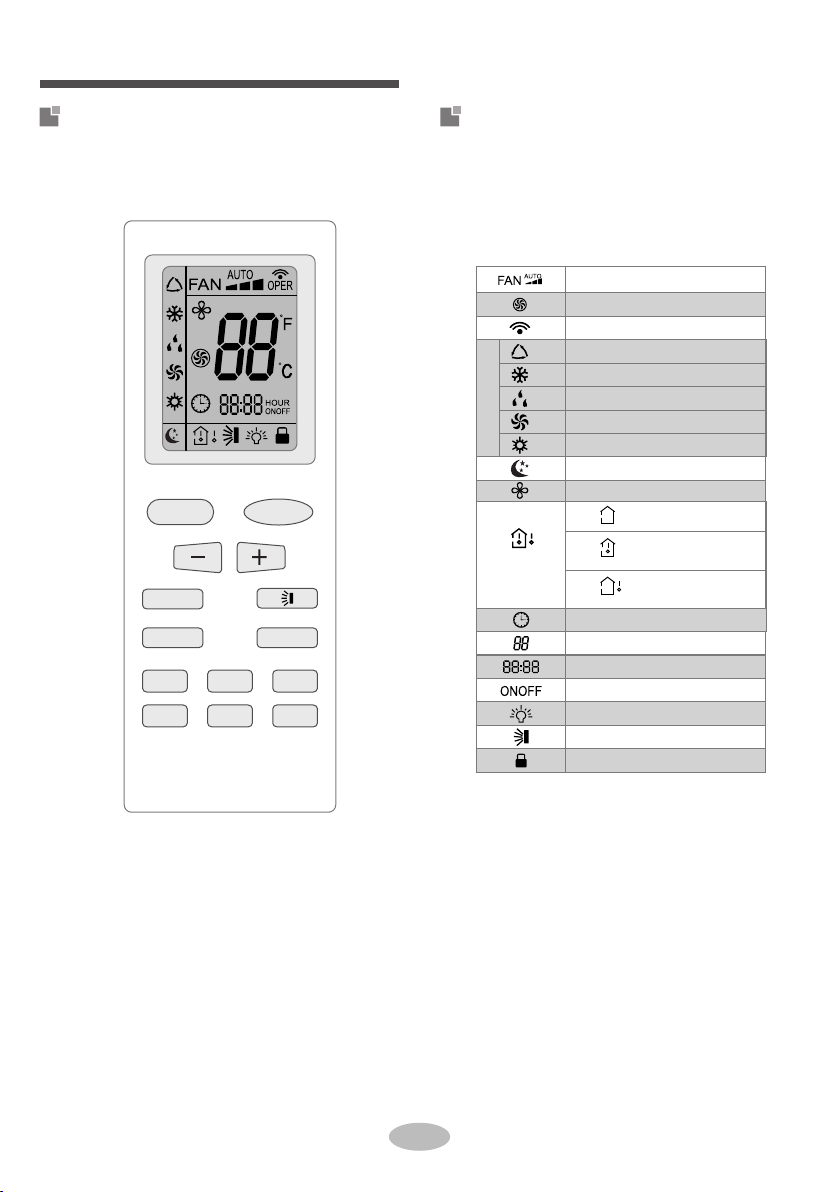

Screen Operation Guide

Buttons on remote controller .................................................................................7

Introduction for icons on display screen ................................................................7

Introduction for buttons on remote controller.........................................................8

Function introduction for combination buttons.....................................................10

Maintenance

Cleaning and Maintenance..................................................................................11

Check items before maintenance........................................................................12

Installation Notice

Installation dimension diagram............................................................................13

Selection of installation location ..........................................................................14

Requirements for electrical connection ...............................................................14

Safety precautions for installing and relocating the unit ......................................13

Accessories..........................................................................................................15

Installation

Installation of indoor unit......................................................................................16

Installation of outdoor unit ...................................................................................19

Test and operation

Test operation......................................................................................................21

Attachment .........................................................................22

Pipe expanding method

Configuration of connection pipe

.......................................................................................22

Tools for installation ............................................................................................13

Air switch capacity ...............................................................................................14

Explanation of Symbols

WARNING

CAUTION

NOTICE

1.Damage the product due to improper use or misuse of the product;

2.Alter, change, maintain or use the product with other equipment without abiding

by the instruction manual of manufacturer;

3.After verification, the defect of product is directly caused by corrosive gas;

4.After verification, the defects are due to improper handling during transportation

of product;

5.Operate, repair, maintain the unit without abiding by instruction manual or related

regulations;

6.After verification, the problem or dispute is caused by the quality specification or

performance of parts and components that produced by other manufacturers;

7.The damage is caused by natural calamities, unsuitable installation

environment or force majeure.

Exception Clauses

Manufacturer will bear no responsibilities when personal injury or property loss is

caused by the following reasons.

This symbol indicates the possibility of death or serious injury.

This symbol indicates the possibility of injury or damage to

property.

Indicates important but not hazard-related

information, used

to indicate risk of property damage.

Installation of the air conditioner, move or maintain the air conditioner, please

contact dealer or local service center to conduct an inspection first. Air

conditioner must be installed, moved or maintained by appointed installer/

contractor. Otherwise, it may cause serious damage or personal injury or death.

When refrigerant leaks or requires discharge during installation, maintenance, or

disassembly, it should be handled by certified professionals or otherwise in

compliance with local laws and regulations.

This appliance is not intended for use by persons (including children) with

reduced physical, sensory or mental capabilities or lack of experience and

knowledge, unless they have been given supervision or instruction concerning

use of the appliance by a person responsible for their safety.

Children should be supervised to ensure that they do not play with the appliance.

Safety precautions

Installation

WARNING

Installation or maintenance

must be performed by qua-

lified professionals.

The appliance shall be in-

stalled in accordance with

national wiring regulations.

According tothe local safe-

ty regulations, use quali-

fied power supply circuit

and circuit breaker.

All wires of indoor unit and

outdoor unit should be con-

nected by a professional.

Be sure to cut off the power

supply before proceeding

any work related to elec-

tricity and safety.

Make sure the power supp-

ly matches with the require-

ment of air conditioner.

Unstable power supply or

incorrect wiring may result

in electric shock, fire haza-

rd or malfunction. Please

install proper power supply

cables before using the air

conditioner.

The grounding resistance

should comply with nation-

al electric safety regula-

tions.

Air Conditioner should be

properly grounded. Inco-

rrect grounding may cause

electric shock.

Do not put through the

power before finishing in-

stallation.

Do install the circuit brea-

ker. If not, it may cause

malfunction.

An all-pole disconnection

switch having a contact se-

paration of at least 3mm in

all poles should be conne-

cted in fixed wiring.

Circuit breaker should be

included magnet buckle

and heating buckle func-

tion. It can protect the

overload and circuit-short.

Safety precautions

Installation

CAUTION

Instructions for installation

and use of this product are

provided by the manufac-

turer.

Select a location which is

out of reach for children

and far away from animals

or plants. If it is unavoid-

able, please add the fence

for safety purpose.

The indoor unit should be

installed close tothe wall.

Don't use unqualified pow-

er cord.

If the length of power con-

nection wire is insufficient,

please contact the supplier

for a new one.

The appliance must be po-

sitioned sothat the plug is

accessible.

For the air conditioner with

plug, the plug should be re-

achable after finishing in-

stallation.

For the air conditioner with-

out plug, a circuit breaker

must be installed in the

line.

The yellow-green wire in

air conditioner is ground-

ing wire, which can't be us-

ed for other purposes.

The air conditioner is the

first class electric applian-

ce. It must be properly gro-

under with specialized gr-

ounding device by a pro-

fessional. Please make

sure it is always ground-

ed effectively, otherwise it

may cause electric shock.

The temperature of refri-

gerant circuit will be high,

please keep the interconn-

ection cable away from the

copper tube.

Safety precautions

Operation

and Maintenance

WARNING

This appliance can be used

by children aged from 8

years and above and per-

sons with reduced physi-

cal, sensory or mental ca-

pabilities or lack of expe-

rience and knowledge if

they have been given su-

pervision or instruction con-

cerning use of the applian-

ce in a safe way and un-

derstand the hazards in-

volved.

Children shall not play with

the appliance.

Cleaning and user main-

tenance shall not be made

by children without super-

vision.

If the supply cord is damag-

ed, it must be replaced by

the manufacturer, its ser-

vice agent or similarly qua-

lified persons in order to

avoid a hazard.

Do not connect air condi-

tioner to multi-purpose soc-

ket. Otherwise, it may cau-

se fire hazard.

Do disconnect power supp-

ly when cleaning air condi-

tioner. Otherwise, it may

cause electric shock.

Do not wash the air condi-

tioner with water to avoid

electric shock.

Do not spray water on in-

door unit. It may cause ele-

ctric shock or malfunction.

Do not repair air condition-

er by yourself. It may cause

electric shock or damage.

Please contact dealer when

you need to repair air con-

ditioner.

After removing the filter, do

not touch fins to avoid in-

jury.

Do not extend fingers or

objects into air inlet or air

outlet. It may cause person-

al injury or damage.

Safety precautions

Operation

and Maintenance

CAUTION

Do not spill water on the re-

mote controller, otherwise

the remote controller may

be broken.

Do not use fire or hair dry-

er to dry the filter to avoid

deformation or fire hazard.

Do not block air outlet or

air inlet. It may cause mal-

function.

Do not step on top panel of

outdoor unit, or put heavy

objects. It may cause dam-

age or personal injury.

When below phenomenon

occurs, please turn off air

conditioner and disconnect

power immediately, and

then contact the dealer or

qualified professionals for

service.

Power cord is overheat-

ing or damaged.

There’s abnormal sound

during operation.

Circuit breaker trips off

frequently.

Air conditioner gives off

burning smell.

Indoor unit is leaking.

CAUTION

Correct disposal of batteries in this product

This marking on the battery, manual or packaging indicates that the batteries in this product should not

be disposed of with other household waste at the end of their working life. Where marked, the chemical

symbols Hg, Cd or Pb indicate that the battery contains mercury, cadmium or lead above the reference

levels in EC Directive 2006/66.

Correct Disposal of This Product

(Waste Electrical & Electronic Equipment)

(Applicable in countries with separate collection systems)

This marking on the product, accessories or literature indicates that the product and its electronic

accessories (e.g. charger, headset, USB cable) should not be disposed of with other household waste

at the end of theirworking life. To prevent possible harm to the environment or human health from

uncontrolled waste disposal, please separate these items from other types of waste and recycle them

responsibly to promote the sustainable reuse of material resources.

Household users should contact either the retailer where they purchased this product, or their local

government office, for details of where and how they can take these items for environmentally safe

recycling.

Business users should contact their supplier and check the terms and conditions of the purchase

contract. This product and its electronic accessories should not be mixed with other commercial wastes

for disposal.

Safety precautions

●

Parts name

Indoor Unit Outdoor Unit

Display

NOTE

●

Actual product may be different from above graphics,

please refer to actual product.

This is the general introduction and the color of

indicator is only for reference. Please refer tothe

actual display.

Display content may be different from the actual.

Please refer to the actual display.

NOTE

aux. button

filterair inlet panel

horizontal louver

air outlet

■ If remote controller is lost or damaged, please

use aux. button to turn on or turn off the air

conditioner. The operation in details is as

below: As shown in the figure, open panel and

press aux. button to turn off the air conditioner.

When the air conditioner is turned on, it will

operate under auto mode.

air inlet

air outlet

heating

indicator temp.

indicator

cooling

indicator power

indicator receiver

window

drying

indicator display

WARNING

Use insulated object to press the auto button

ON/OFF MODE

X-FAN

TURBO

TEMP

TIMER OFF

SLEEP LIGHT

FAN

CLOCK

TIMER ON

Set temperature

X-FAN function

Set temp.

temp.

Outdoor ambient

Indoor ambient

temp.

Sleep mode

Clock

Auto mode

Set time

TIMER ON / TIMER OFF

Cool mode

Dry mode

Fan mode

Light

Up & down swing

Child lock

Send signal

Turbo mode

Heat mode

Operation mode

Set fan speed

Temp.

display type

Introduction for icons on display

screen

Buttons on remote controller

Operation and introduction of

remote controller

Inhaltsverzeichnis

Andere Samsung Klimaanlage Handbücher

Samsung

Samsung IAST24P6GBDXAP Bedienungsanleitung

Samsung

Samsung MXD-E32K300A Bedienungsanleitung

Samsung

Samsung AC RXAD G Series Bedienungsanleitung

Samsung

Samsung ARJ series Bedienungsanleitung

Samsung

Samsung AC180JNHPKH/AR Bedienungsanleitung

Samsung

Samsung CH052EAM Bedienungsanleitung

Samsung

Samsung AR MSSP Series Leitfaden

Samsung

Samsung AQV09EWAN Bedienungsanleitung

Samsung

Samsung AQ12PGGE Bedienungsanleitung

Samsung

Samsung AR36BSHUMGMNCV Bedienungsanleitung

Samsung

Samsung DC42GTVA Bedienungsanleitung

Samsung

Samsung AW069AB Bedienungsanleitung

Samsung

Samsung AR AY5Y Series Bedienungsanleitung

Samsung

Samsung Mini 4 Way Cassette Type Bedienungsanleitung

Samsung

Samsung MH080FX*A4 series Bedienungsanleitung

Samsung

Samsung AQ NS Series Bedienungsanleitung

Samsung

Samsung AC BXAP G Series Bedienungsanleitung

Samsung

Samsung MIM-H03U Leitfaden

Samsung

Samsung AS070VE Bedienungsanleitung

Samsung

Samsung AMF12C2B/XAP Bedienungsanleitung

Samsung

Samsung MH050FXCA2A Bedienungsanleitung

Samsung

Samsung AR HPFS Series Bedienungsanleitung

Samsung

Samsung AC KNZDCH/AA Series Bedienungsanleitung

Samsung

Samsung AJ009JNNDCH FJM series Bedienungsanleitung

Beliebte Klimaanlage Handbücher anderer Marken

Spheros

Spheros CC 355 Bedienungsanleitung

Bosch

Bosch Climate 5000 SCI 24 CAS/ OU- OUE Bedienungsanleitung

Panasonic

Panasonic CS-E12HKEW Bedienungsanleitung

nedis

nedis ACMB1WT7 Bedienungsanleitung

Daikin

Daikin FCFV50A Bedienungsanleitung

Fujitsu

Fujitsu Inverter ASBA30JFC Bedienungsanleitung

Toshiba

Toshiba RAS-M10SMUV-E Bedienungsanleitung

Daikin

Daikin FXLQ20MAVE Bedienungsanleitung

Hitachi

Hitachi RAS-E24CAK Bedienungsanleitung

CIAT

CIAT Magister 2 Series Leitfaden

Bestron

Bestron AAC6000 Bedienungsanleitung

Hisense

Hisense 7K Technisches Handbuch

Frigidaire

Frigidaire FFRE0533S1E0 Bedienungsanleitung

Frigidaire

Frigidaire CRA073PU11 Betriebsanleitung

Soleus Air

Soleus Air GB-PAC-08E4 Bedienungsanleitung

McQuay

McQuay MCK020A Bedienungsanleitung

Webasto

Webasto Frigo Top 25 DS Bedienungsanleitung

Frigidaire

Frigidaire FAZ12ES2A Bedienungsanleitung
