Samsung AVXDB*022** Bedienungsanleitung

ENGLISH

ESPAÑOLFRANÇAISITALIANODEUTSCH

INSTALLATION

MANUAL

Duct Type Series

Built-in duct : AVXDB



Slim duct : AVXDS



DB98-24113A(3)SE F I D

Air Conditioner

AVXDB_E_24113.indd 35 2006-07-04 ｿﾀﾀ・11:33:13

E-2

Contents

■ Safety Precautions ............................................................................................................ 3

■ Accessories ............................................................................................................................ 6

■ Selecting the Installation Location ....................................................................... 7

■ Indoor Unit Installation ................................................................................................. 13

■ Purging the Unit ................................................................................................................ 14

■ Connecting the Refrigerant Pipe ........................................................................... 15

■ Cutting/Flaring the Pipes ............................................................................................. 16

■ Performing Leak Test & Insulation ......................................................................... 17

■ Drain pipe and Drain hose Installation .............................................................. 19

■ Wiring Work .......................................................................................................................... 24

■ Increasing Fan Speed ..................................................................................................... 27

■ Indoor Unit Setting .......................................................................................................... 29

■ Additional Functions ...................................................................................................... 30

■ Final Checks and User Tips .......................................................................................... 31

■ Troubleshooting ................................................................................................................ 32

AVXDB_E_24113.indd 2 2006-07-04 ｿﾀﾀ・11:33:13

E-3

ENGLISH

WARNING

• Risk of electric shock can cause injury or death. • Disconnect all remote

electric power supplies before servicing, installing or cleaning.

• Installation must be done by the manufacturer or service agent or a

similar qualified person in order to avoid a hazard.

INSTALLING THE UNIT

 The unit should not be installed by the user. Ask the dealer or

authorized company to install the units.

 If the unit is installed improperly, water leakage, electric shock or fire

may result.

 Mount with the lowest moving parts at least 2.5 m above the ﬂoor or

grade level. (If applicable)

 The manufacturer does not assume responsibility for accidents or

injury caused by an incorrectly installed air conditioner. If you are

unsure about installation, contact an installation specialist.

 When installing the built-in type air conditioner, keep all electrical

cables such as the power cable and the connection cord in pipe, ducts,

cable channels e.t.c to protect them against liquids, outside impacts

and so on.

 This appliance is not accessible to the general public. This appliance

should be installed according to the provided installation instruction.

 When installing the air conditioner in a small room, the measure not to

exceed the dangerous density is needed.

- When refrigerant leaks and exceeds the dangerous density,

suffocation may occur.

 If any gas or impurities except R410A refrigerant come into the

refrigerant pipe, serious problem may occur and it may cause injury.

 Use only rated accessories and install the air conditioner with rated

equipments.

- If you dont’t use the rated accessories, the air conditioner may

drop from its place, water may leak or electric shock or fire may occur.

 Ventilate your room when refrigerant gas leaks during installation.

- Toxic gas may generate when refrigerant gas contacts with heat.

Safety Precautions

The following safety precautions must be taken when using your air conditioner.

AVXDB_E_24113A-1.indd 3 2006-01-04 ¿ÀÈÄ 4:31:21

E-4

Safety Precautions (Continued)

POWER SUPPLY LINE OR CIRCUIT BREAKER

 If the power cable of this air conditioner is damaged, it must be

replaced by service agent or similarly qualiﬁed persons in order to

avoid a hazard.

 The unit must be plugged into an independent circuit if applicable or

connect the power cable to the auxiliary circuit breaker. An all pole

disconnection from the power supply must be incorporated in

the fixed wiring with a contact opening of >3mm.

 The air conditioner must be installed in accordance with national

wiring regulations and safety regulations wherever applicable.

 The electric work must be done by service agent or similarly qualiﬁed

persons according to national wiring regulations and use only rated

cable.

- If the capacity of the power cable is insufficient or electric work

is not properly completed, electric shock or fire may occur.

 Install the cables with supplied cables firmly. Fix them securely so

that external force is not exerted to the terminal board.

- If the connection or fixing is incomplete, heat generation,

electric shock or fire may occur.

 Connect the power cable between the indoor and outdoor unit

properly so that the electrical component box cover is not get loosen

and attach the cover securely.

- If the the cover is attached incompletely, heat generation,

electric shock or fire of the terminal board may occur.

AVXDB_E_24113A-1.indd 4 2006-01-04 ¿ÀÈÄ 4:31:21

E-5

ENGLISH

Safety Precautions (Continued)



Make sure that you earth the cables.

- Do not connect the earth wire to the gas pipe, water pipe, lighting

rod or telephone wire. If earthing is not complete, electric shock or

fire may occur.



Install the circuit breaker.

- If the circuit breaker is not installed, electric shock or fire may occur.



Make sure that the condensed water dripping from the drain hose

runs out properly and safely.



Install the power cable and communication cable of the indoor and

outdoor unit at least 1m away from the electric appliance.



Install the indoor unit away from lighting apparatus using the ballast.

- If you use the wireless remote control, reception error may occur

due to the ballast of the lighting apparatus.



Do not install the air conditioner in following places.

- Place where there is mineral oil or arsenic acid

Resin parts flame and the accessories may drop or water may leak.

The capacity of the heat exchanger may reduce or the air conditioner

may be out of order.

- The place where corrosive gas such as sulfurous acid gas generates

from the vent pipe or air outlet

The copper pipe or connection pipe may corrode and refrigerant

may leak.

- The place where there is a machine that generates electromagnetic

waves

The air conditioner may not operate normally due to control

system.

- The place where there is a danger of existing combustible gas,

carbon fiber or flammable dust

The place where thinner or gasoline is handled

Gas may leak and it may cause fire.

AVXDB_E_24113A-1.indd 5 2006-01-04 ¿ÀÈÄ 4:31:21

E-6

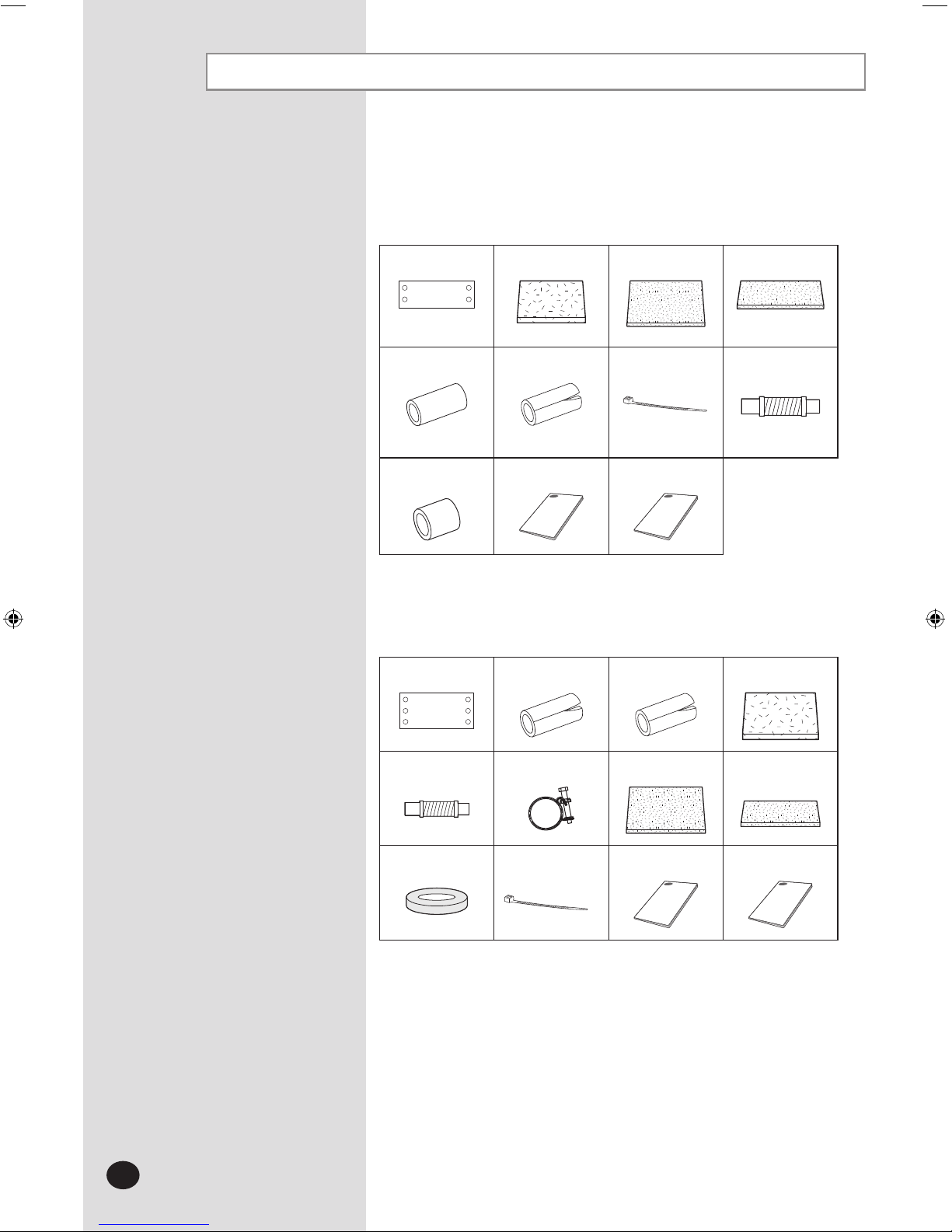

Accessories

Pattern sheet Insulation A Insulation B Insulation C

Flexible hose Flexible hose clamp Insulation D Insulation cover E

Grommet Cable tie User's manual Installation manual

The following accessories are supplied with the indoor unit.

The type and quantity may differ depending on the specifications.

AVXDB

Pattern sheet Insulation cover drain Insulation Insulation cover band

Insulation pipe Insulation drain hose Cable-tie Flexible hose

Insulation drain sub User's manual Installation manual

AVXDS

AVXDB_E_24113A-1.indd 6 2006-01-04 ¿ÀÈÄ 4:31:23

E-7

ENGLISH

Selecting the Installation Location

ENGLISH

Indoor Unit

 There must be no obstacles near the air inlet and outlet.

 Install the indoor unit on a ceiling that can support its weight.

 Maintain sufficient clearance around the indoor unit.

 Make sure that the water dripping from the drain hose runs away

correctly and safely.

 The indoor unit must be installed in this way, that they are out of public

access. (Not touchable by the users)

 After connecting a chamber, insulate the connection part between the

indoor unit and the chamber with t10 or thicker insulation. Otherwise,

there can be air leak or dew from the connection part.

 Rigid wall without vibration.

 Where it is not exposed to direct sunshine.

 Where the air filter can be removed and cleaned easily.

Space Requirements for Indoor Unit

You must have 5mm or more space between the ceiling and the bottom of indoor unit.

Otherwise, the noise from the vibration of indoor unit may bother the user.

When the ceiling is under construction, the hole for check-up must be made to take service,

clean and repair the unit.

Inhaling from the back : more than 1500mm X 600mm

Inhaling from the bottom : more than 1500mm X 800mm

(Refer to page 10~12)

5mm

or more

5mm

or more

1500mm or more

The following accessories are supplied with the indoor unit.

The type and quantity may differ depending on the specifications.

5mm

or more

AVXDB

AVXDS

small size : 650mm x 533mm or more

large size : 1120mm x 533mm or more (A space for repair and service)

AVXDB_E_24113A-1.indd 7 2006-01-04 ¿ÀÈÄ 4:31:23

E-8

Selecting the Installation Location (Continued)

Unit : mm

No. Name Description

1 Liquid pipe connection ø6.35

(1/4”)

2 Gas pipe connection ø12.70

(1/2”)

3 Drain pipe connection (Option drain pump)

VP25 (OD

ø32, ID ø25)

4 Interunit wiring port

Power wiring port

6 Drain pipe connection

VP25 (OD

ø32, ID ø25)

7 Air filter

8 Hook

3/8”

or M10

Dimension of the indoor unit

AVXDB022/028/036

AVXDB_E_24113A-1.indd 8 2006-01-04 ¿ÀÈÄ 4:31:24

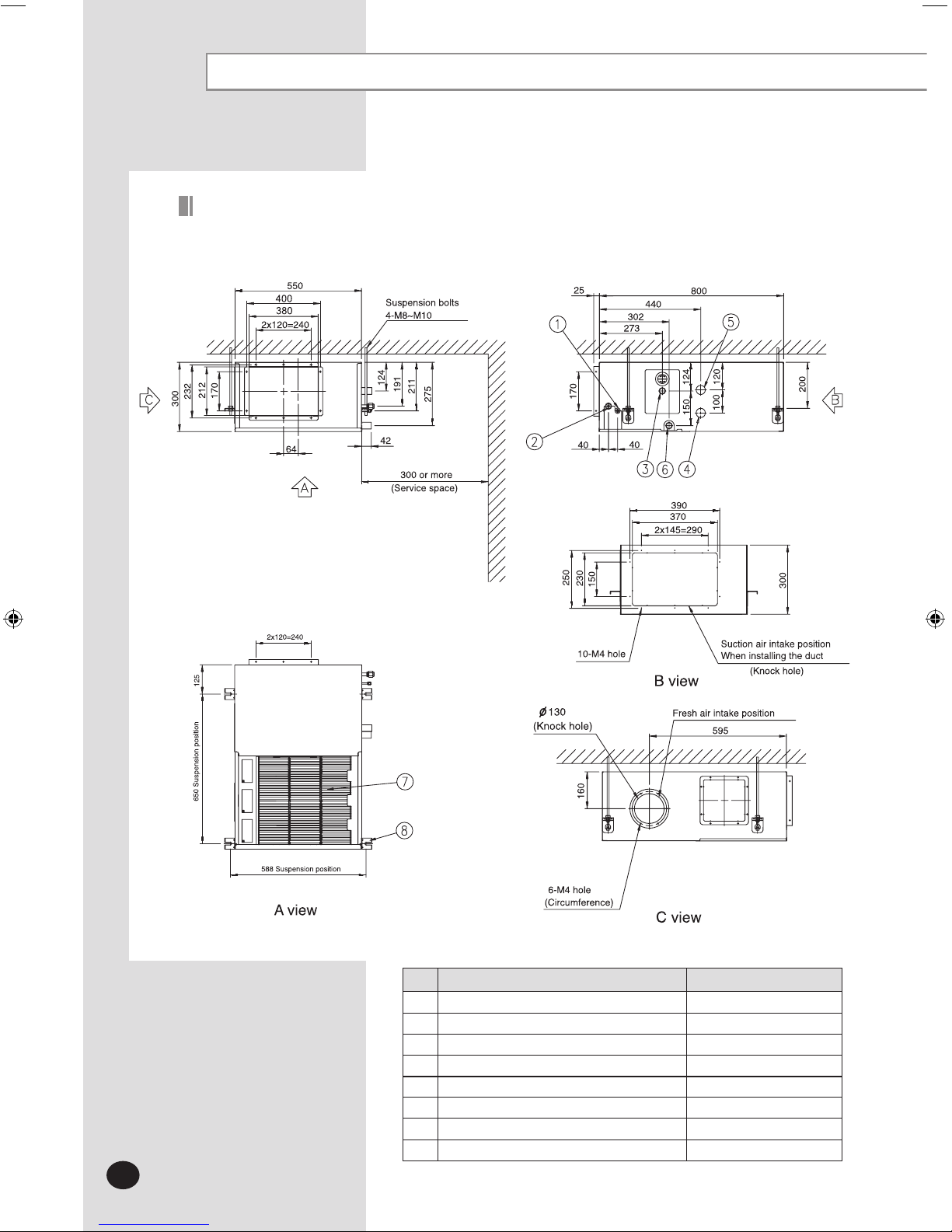

E-9

ENGLISH

Selecting the Installation Location (Continued)

No. Name Description

1 Liquid pipe connection 056: ø6.35

(1/4”)

071: ø9.52

(3/8”)

2 Gas pipe connection 056: ø12.70

(1/2”)

071: ø15.88

(5/8”)

3 Drain pipe connection (Option drain pump)

VP25 (OD

ø32, ID ø25)

4 Interunit wiring port

Power wiring port

6 Drain pipe connection

VP25 (OD

ø32, ID ø25)

7 Air filter

8 Hook

3/8”

or M10

Unit : mm

AVXDB056/071

AVXDB_E_24113.indd 9 2006-02-17 ¿ÀÈÄ 1:16:18

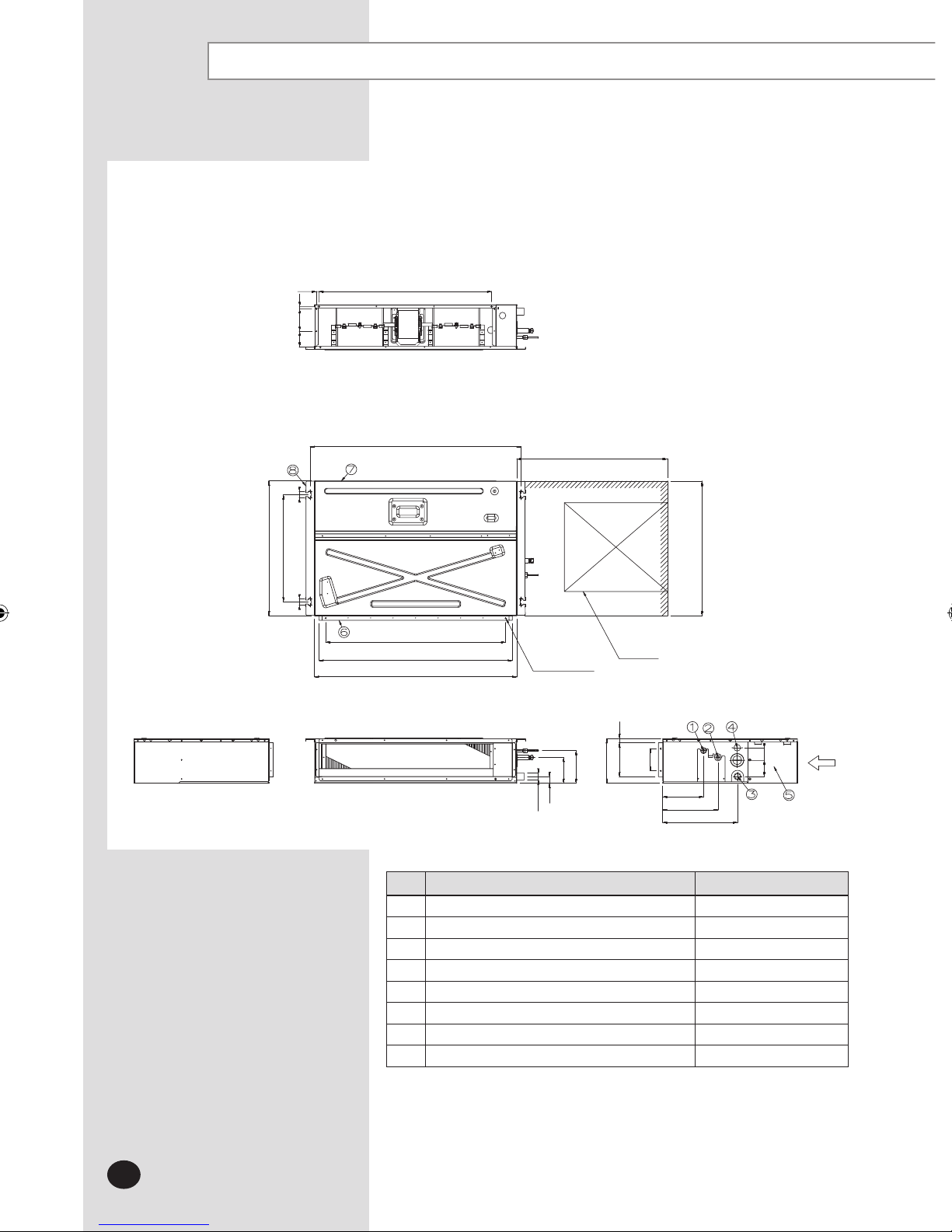

E-10

Selecting the Installation Location (Continued)

AVXDS022/028/036

Unit : mm

11.9 3256=768

71 100 10

938.4 Suspension position

1000 or more

Service space

600

477 Suspension position

8100=800

860 Air outlet duct flange

900

Inspection hole

22-ø3.2 Hole

28 28

All around

Discharge side Suction side

199

151.6

100

182

246

333

72.5 55

OD32

30.5 115.5

145.5

No. Name Description

1 Liquid pipe connection ø6.35

(1/4”)

2 Gas pipe connection ø12.70

(1/2”)

3 Drain pipe connection

VP25 (OD

ø32, ID ø25)

4 Drain pipe connection (Option drain pump)

VP25 (OD

ø32, ID ø25)

Power supply/Communication connection

6 Power supply connection

7 Air discharge grille flange

8 Hook

3/8”

or M10

AVXDB_E_24113.indd 10 2006-07-04 ｿﾀﾀ・11:33:14

Dieses Handbuch passt für folgende Modelle

Inhaltsverzeichnis

Andere Samsung Klimaanlage Handbücher

Samsung

Samsung AS18BPAN Bedienungsanleitung

Samsung

Samsung AJ FBMDEC Series Leitfaden

Samsung

Samsung AW1291L Bedienungsanleitung

Samsung

Samsung AC MN4PKH Series Bedienungsanleitung

Samsung

Samsung CH052EAM Bedienungsanleitung

Samsung

Samsung UH052EAMC Bedienungsanleitung

Samsung

Samsung AM JXVHGH Series Bedienungsanleitung

Samsung

Samsung AC FB4DEH Series Bedienungsanleitung

Samsung

Samsung P2SMA Bedienungsanleitung

Samsung

Samsung AWT12FBDDBKXTL Bedienungsanleitung

Samsung

Samsung AVMXC023B1A-GB Bedienungsanleitung

Samsung

Samsung AJ TNLDEG Series Bedienungsanleitung

Samsung

Samsung AVXWVH022EE Bedienungsanleitung

Samsung

Samsung AC BNNDCH Series Bedienungsanleitung

Samsung

Samsung APC503QG Bedienungsanleitung

Samsung

Samsung AVMKH020CA0 Bedienungsanleitung

Samsung

Samsung Smart A/C application Bedienungsanleitung

Samsung

Samsung AVXTFH071EE Bedienungsanleitung

Samsung

Samsung AC***MN4PKH Series Bedienungsanleitung

Samsung

Samsung AQ30C2BC Bedienungsanleitung

Samsung

Samsung AR7000 Bedienungsanleitung

Samsung

Samsung AQV09EWAN Bedienungsanleitung

Samsung

Samsung MCM-A300N Bedienungsanleitung

Samsung

Samsung EH052EAMC Bedienungsanleitung

Beliebte Klimaanlage Handbücher anderer Marken

Spheros

Spheros CC 355 Bedienungsanleitung

Bosch

Bosch Climate 5000 SCI 24 CAS/ OU- OUE Bedienungsanleitung

Panasonic

Panasonic CS-E12HKEW Bedienungsanleitung

nedis

nedis ACMB1WT7 Bedienungsanleitung

Daikin

Daikin FCFV50A Bedienungsanleitung

Fujitsu

Fujitsu Inverter ASBA30JFC Bedienungsanleitung

Toshiba

Toshiba RAS-M10SMUV-E Bedienungsanleitung

Daikin

Daikin FXLQ20MAVE Bedienungsanleitung

Hitachi

Hitachi RAS-E24CAK Bedienungsanleitung

CIAT

CIAT Magister 2 Series Leitfaden

Bestron

Bestron AAC6000 Bedienungsanleitung

Hisense

Hisense 7K Technisches Handbuch

Frigidaire

Frigidaire FFRE0533S1E0 Bedienungsanleitung

Frigidaire

Frigidaire CRA073PU11 Betriebsanleitung

Soleus Air

Soleus Air GB-PAC-08E4 Bedienungsanleitung

McQuay

McQuay MCK020A Bedienungsanleitung

Webasto

Webasto Frigo Top 25 DS Bedienungsanleitung

Frigidaire

Frigidaire FAZ12ES2A Bedienungsanleitung
