OWNER’S

INSTRUCTIONS

AW0690A

AW0790A

AW0890A

AW1090A

AW1290A

WINDOW-TYPE

ROOM AIR CONDITIONER

( Cool )

DB68-01927A(3)

The manufacturer does not assume responsibility for accidents or injury

caused by an incorrectly installed air conditioner. If you are unsure about

installation, contact an installation specialist.

CCAA

AAUU

UUTT

TTII

IIOO

OONN

The following safety precautions must be taken when using your air conditioner.

Safety Precautions

1 The unit must be plugged into an independent circuit.

The air conditioner must be installed in accordance with national wiring regulations and

safety regulations wherever applicable.

2 Some installation locations may require installation of a short circuit breaker or grounding.

4 MAKE sure that the unit is correctly ventilated at all times :

do NOT place clothing or other materials over it.

5 NEVER spill any kind of liquid into the unit. Should this happen, unplug the unit and contact

an authorized service center.

6 Do NOT insert anything between the air outlet blades because the inner fan may be damaged

and could cause injury. Keep children away from the unit.

7 Do NOT place any obstacles in front of the unit.

8 Users of this product are cautioned not to attempt repairs.

Instead, they are requested to directly contact a designated service center or the outlet

at which the product was purchased.

9 Do not use an extension cord with this product.

10 The appliance is not intended for use by young children without supervision ;

young children should be supervised to ensure that they do not play with the appliance.

11 Never store or ship the air conditioner upside down or sideways to avoid damage to the

compressor.

12 If the remote control will not be used for a long time, remove the batteries.

3 If the supply cord is damaged, it must be replaced by a special cord or assembly available

from the manufacturer or its service agent.

E-2

Contents

◆PREPARING YOUR AIR CONDITIONER

■Safety Precautions ......................................................................................... 2

■Description of Each Component .................................................................... 4

■Remote Control - Buttons .............................................................................. 5

■Getting Started ............................................................................................... 6

■Inserting the Remote Control Batteries .......................................................... 7

◆OPERATING YOUR AIR CONDITIONER

■Cooling Your Room ........................................................................................ 8

■Ventilating Your Room .................................................................................... 9

■Adjusting the Air Flow Direction Horizontally .................................................. 10

■Adjusting the Air Flow Direction Vertically ...................................................... 10

◆PROGRAMMING YOUR AIR CONDITIONER

■Setting the On Timer ...................................................................................... 11

■Setting the Off Timer ...................................................................................... 12

■Setting the Sleep Timer .................................................................................. 13

■Selecting Energy Saving mode ...................................................................... 14

◆RECOMMENDATIONS FOR USE

■Temperature and Humidity Ranges ................................................................ 15

■Cleaning Your Air Conditioner ........................................................................ 16

■Solving Common Problems ............................................................................ 17

■Technical Specifications ................................................................................. 17

E-3

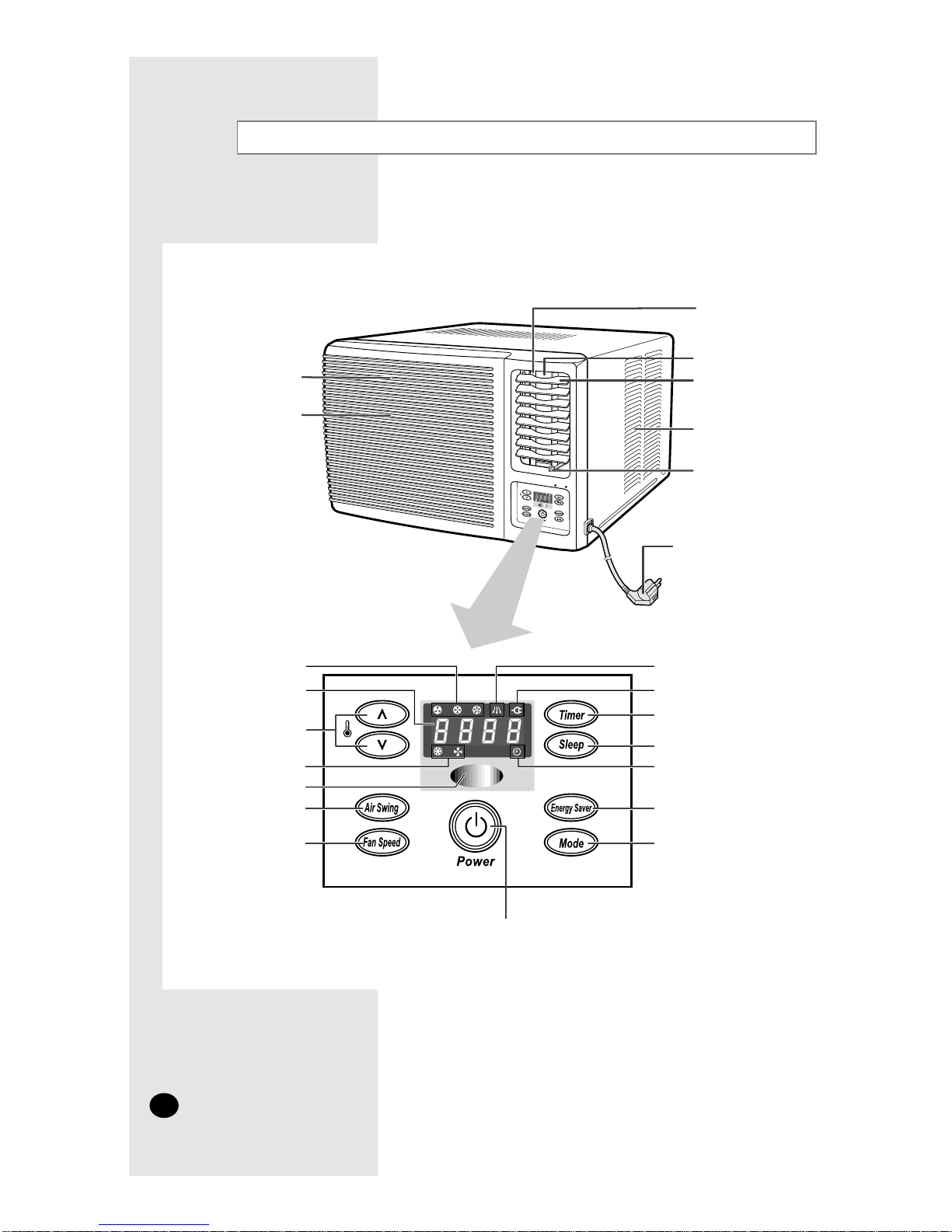

Description of Each Component

Air inlet (inside)

Air filter

(The air filter is

located inside)

Inner air flow blades

(right/left orientation)

Air outlet

Outer air flow blades

(up/down orientation)

Air inlet (Outside)

Ventilation lever

Power plug

(The type of the power

plug may differ, depending

on the local power supply.)

Fan speed indicators

(LOW, MED, HIGH)

Temperature/Timer

settings

Temperature adjustment

buttons

Operating mode indicators

(COOL, FAN)

Remote Control sensor

Air flow blade swing button

Fan speed adjustment

button

Air flow blade swing indicator

Energy Saver indicator

Sleep timer setting button

Timer indicator

Energy Saver button

ON/OFF button

Operating mode selection

button

(COOL, FAN)

Timer setting button

❄The design and shape are subject to

change, depending on the model.

E-4

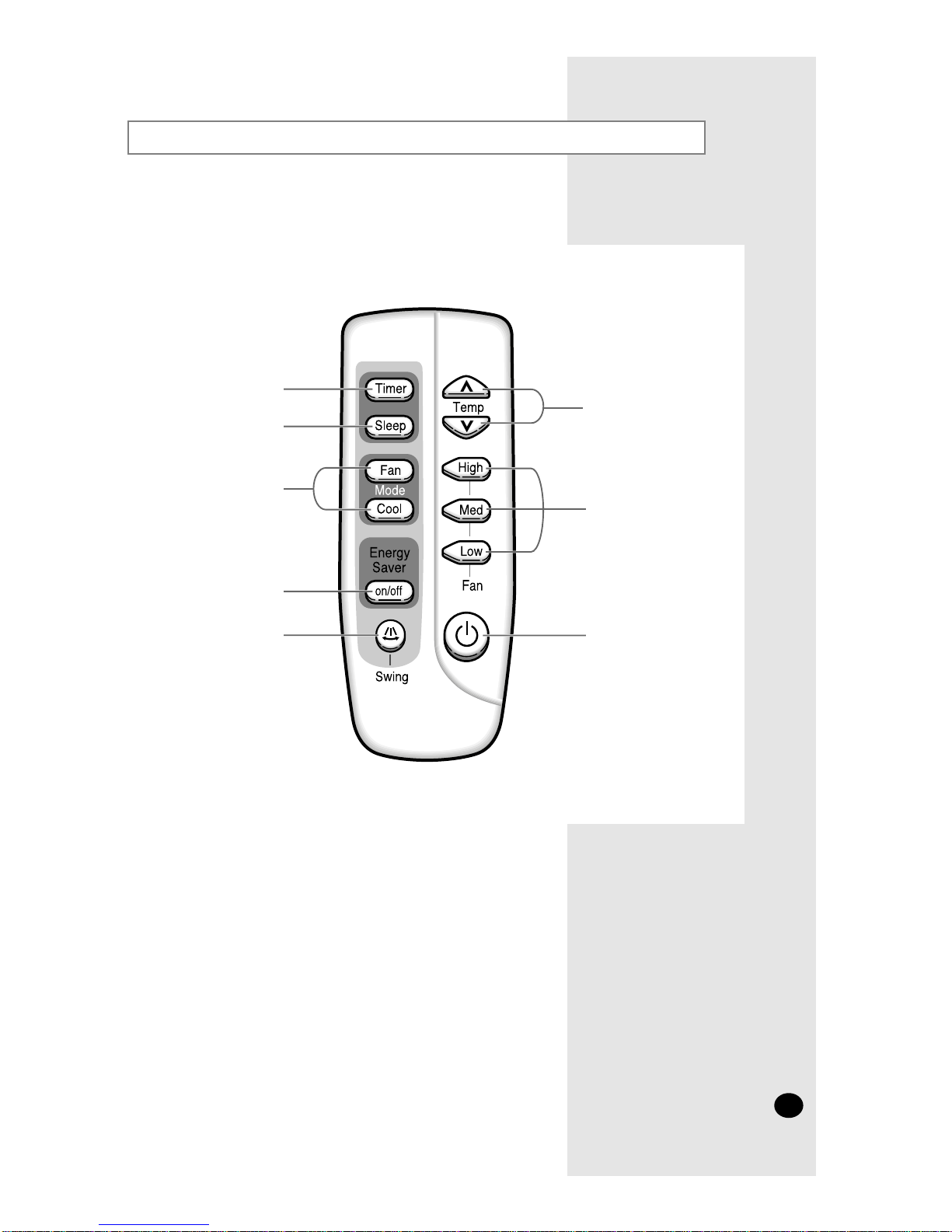

Remote Control - Buttons

Temperature adjustment

buttons

Fan speed

adjustment buttons

ON/OFF button

Timer setting button

Sleep timer setting button

Operating mode

selection buttons

Energy Saver button

Air flow blade swing button

E-5

Getting Started

IMPORTANT NOTE

You have just purchased a Samsung window-type room air conditioner which should be installed

following your installation manual.

Your Owner’s Instructions contain much valuable information on using your air conditioner.

Please take the time to read them as they will help you take full advantage of the unit’s features.

The booklet is organized as follows.

◆The following figures are shown on pages 4 and 5:

-Description of Each Component

-Remote control (buttons)

They will help you find the buttons and understand the symbols displayed.

◆In the main part of the document, you will find a series of step-by-step procedures for each

function available.

The illustrations in the step-by-step procedures use four different symbols:

☛

➢

PRESS PUSH

E-6

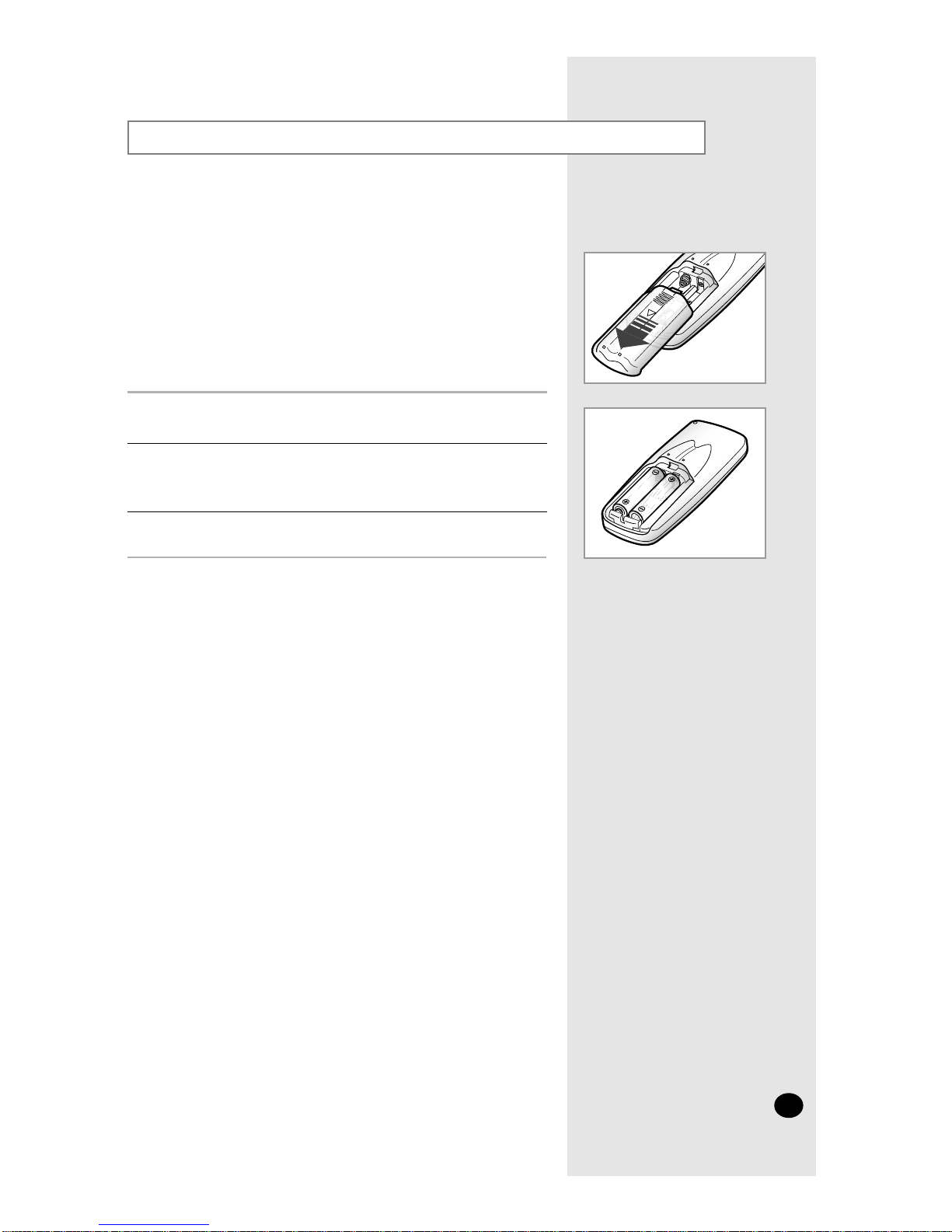

Inserting the Remote Control Batteries

Push the battery cover on the rear of the remote control with your thumb

in the direction of the arrow and remove it.

Insert the two batteries, taking care to respect the polarities :

◆+ on the battery with + on the remote control.

◆- on the battery with - on the remote control.

Close the cover by sliding it back until it clicks into place.

◆Use two AAA, LR03 1.5V batteries.

◆Do not use old batteries or different kinds of batteries together.

◆Batteries may be completely discharged after 12 months, even

if they have not actually been used.

You must insert or replace the remote control batteries when :

◆You purchase the air conditioner

◆The remote control does not work correctly

➢

E-7

Cooling Your Room

To adjust the temperature, press the Temperature buttons on the remote

control or unit one or more times until the desired temperature is displayed.

The temperature can be set between 64°F and 86°F.

Result:

◆

Each time you press the temperature buttons:

– The temperature is adjusted by 1°F and displayed on

the control panel

– The unit beeps

◆

The air conditioner starts cooling if the room temperature is

higher than the selected temperature.

Press the (On/Off) button.

Result: ◆ The air conditioner starts up in the mode selected when the

unit was last used.

◆ The unit beeps twice.

☛The air conditioner is fitted with a protection mechanism to prevent

the unit from being damaged when it is started immediately after

being:

◆ Plugged in

◆ Stopped

It will start up normally after three minutes.

If the COOL indicator is not lit on the unit:

◆

Press the COOL button on the remote control

◆

Press the Mode button on the unit one or more times until the COOL

indicator lights up

Result:

◆

The unit beeps each time you press the COOL/Mode button.

◆

The air conditioner starts up in the Cool mode.

➢

You can change modes at any time.

You must select the Cool mode if you wish to lower the temperature

in your room. You can also set the fan speed.

To set the fan speed:

◆

Press the HIGH, MED or LOW button on the remote control as desired.

◆

Press the Fan Speed button on the unit one or more times until the

desired Fan speed indicator lights up.

To control the direction of the air flow, refer to page 10.

Remote Control Control Panel

E-8

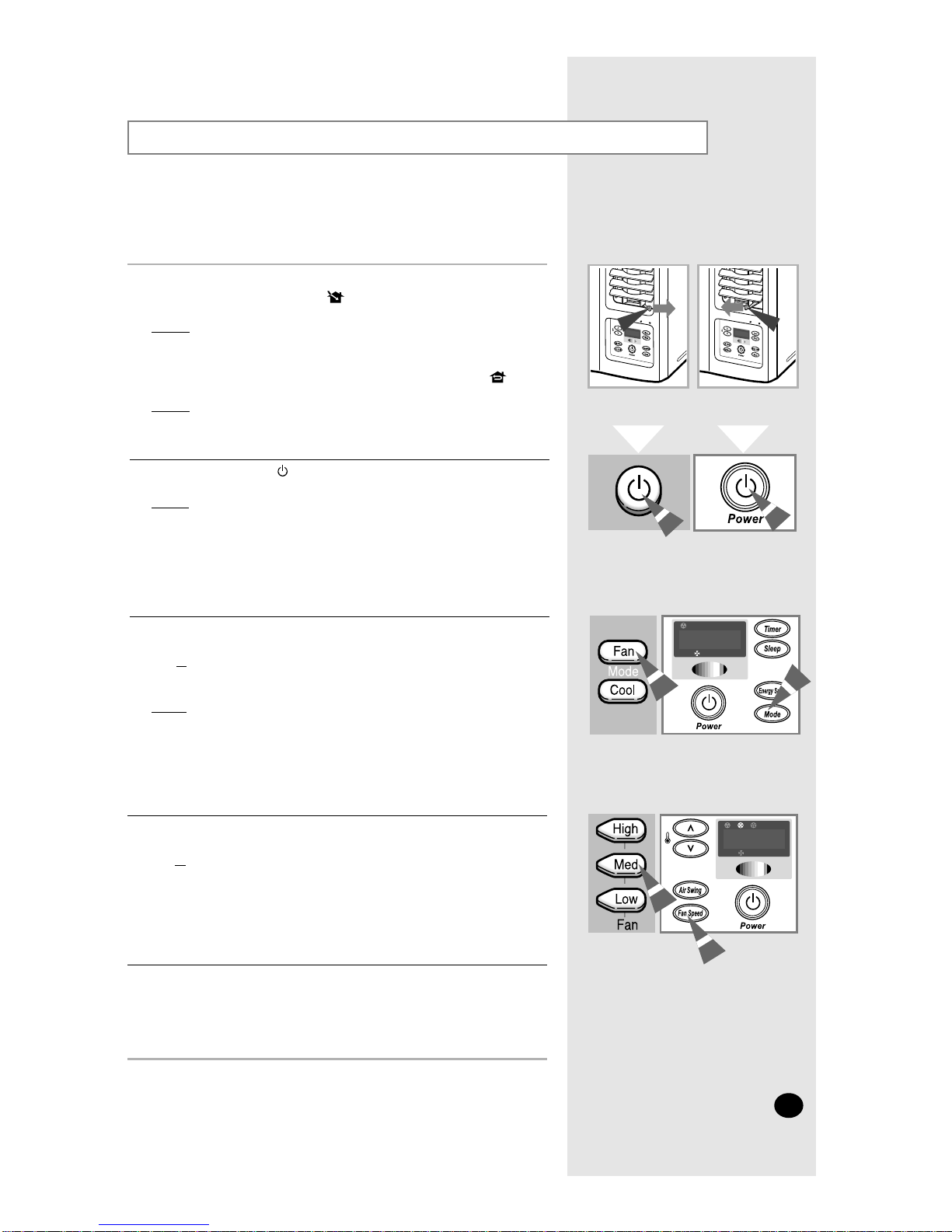

Ventilating Your Room

If the air in your room is stale, you can air the room using the Fan feature.

If necessary, press the (On/Off) button.

Result: ◆

The air conditioner starts up in the mode selected when

the unit was last used.

◆The unit beeps twice.

If you wish to discharge stale air, push the ventilation lever on the front of the

unit to the right and open position ( ).

Result: ◆

The air inside the room circulates and stale air is discharged

outside.

Otherwise, push the ventilation lever to the left and closed position ( ).

Result: ◆

The air simply circulates inside the room.

To set the fan speed:

◆

Press the HIGH, MED or LOW button on the remote control as desired.

◆

Press the Fan Speed button on the unit one or more times until the

desired Fan speed indicator lights up.

To control the direction of the air flow, refer to page 10.

If the FAN indicator is not lit on the unit:

◆ Press the FAN button on the remote control

◆ Press the Mode button on the unit one or more times until the FAN

indicator lights up

Result: ◆ The unit beeps each time you press the FAN/Mode button.

◆The air conditioner starts up in Fan mode.

➢

◆You can change modes at any time.

◆When the air conditioner is in the Fan mode, the temperature

cannot be set or displayed.

◆You cannot use Fan mode in the energy saving mode

Remote Control Control Panel

E-9

Adjusting the Air Flow Direction Horizontally

Press the Swing button on the remote control or unit.

Result: The inner blades swing automatically left and right.

➢In the Energy Saving mode, the blades may stop when the

compressor is off. For details on the Energy Saving mode, refer to

page 14.

To stop the blades moving left and right, press the Swing button again.

➢To stop the blades in a specific position and orient the air flow in

the corresponding direction, simply press the Swing button when

the blades are in the desired position.

Depending on the position of the unit in your room, you can adjust

the orientation of the inner air flow blades on the right-hand side of

the unit, thus increasing the efficiency of the air conditioner.

Adjusting the Air Flow Direction Vertically

The outer air flow blades can be adjusted to control the vertical air

flow direction.

RECOMMENDATION

Adjust the air flow blades to the desired position, by pushing them upwards or

downwards.

➢

If you orient the air flow blades downwards and the unit operates in the Cool

mode for long periods of time, dew may:

◆Form on the surface of the blades

◆Drip from the blades

When... Adjust the blades to face...

Cooling Upwards.

Remote Control Control Panel

E-10

Andere Handbücher für AW0690A

Dieses Handbuch passt für folgende Modelle

Andere Samsung Klimaanlage Handbücher

Samsung

Samsung DVM-PRO 2008 Bedienungsanleitung

Samsung

Samsung AJ Series Bedienungsanleitung

Samsung

Samsung AQ24A2RC Bedienungsanleitung

Samsung

Samsung ACC2400C Bedienungsanleitung

Samsung

Samsung AQV12VBAX Bedienungsanleitung

Samsung

Samsung AQV12F2VE Bedienungsanleitung

Samsung

Samsung AM KNTD Series Bedienungsanleitung

Samsung

Samsung AG AN4DKH Series Bedienungsanleitung

Samsung

Samsung DVM S ECO AM XMDG Series Bedienungsanleitung

Samsung

Samsung AW05N0 Series Bedienungsanleitung

Samsung

Samsung AW0801B Bedienungsanleitung

Samsung

Samsung AC BNZDCH Series Bedienungsanleitung

Samsung

Samsung AW0690 Bedienungsanleitung

Samsung

Samsung DC42GTVA Bedienungsanleitung

Samsung

Samsung AQV09FCN Bedienungsanleitung

Samsung

Samsung ASA07C5(6)ME Bedienungsanleitung

Samsung

Samsung AF28FSSDA Series Leitfaden

Samsung

Samsung AS09HPBN Installationsanleitung

Samsung

Samsung AW0500 Einrichtungshandbuch

Samsung

Samsung AW08N0 Series Bedienungsanleitung

Samsung

Samsung AJ TNJDCH Series Bedienungsanleitung

Samsung

Samsung APC4082EC Bedienungsanleitung

Samsung

Samsung AM007FN1DCH Series Bedienungsanleitung

Samsung

Samsung AVMXC023B1A-GB Bedienungsanleitung

Beliebte Klimaanlage Handbücher anderer Marken

Spheros

Spheros CC 355 Bedienungsanleitung

Bosch

Bosch Climate 5000 SCI 24 CAS/ OU- OUE Bedienungsanleitung

Panasonic

Panasonic CS-E12HKEW Bedienungsanleitung

nedis

nedis ACMB1WT7 Bedienungsanleitung

Daikin

Daikin FCFV50A Bedienungsanleitung

Fujitsu

Fujitsu Inverter ASBA30JFC Bedienungsanleitung

Toshiba

Toshiba RAS-M10SMUV-E Bedienungsanleitung

Daikin

Daikin FXLQ20MAVE Bedienungsanleitung

Hitachi

Hitachi RAS-E24CAK Bedienungsanleitung

CIAT

CIAT Magister 2 Series Leitfaden

Bestron

Bestron AAC6000 Bedienungsanleitung

Hisense

Hisense 7K Technisches Handbuch

Frigidaire

Frigidaire FFRE0533S1E0 Bedienungsanleitung

Frigidaire

Frigidaire CRA073PU11 Betriebsanleitung

Soleus Air

Soleus Air GB-PAC-08E4 Bedienungsanleitung

McQuay

McQuay MCK020A Bedienungsanleitung

Webasto

Webasto Frigo Top 25 DS Bedienungsanleitung

Frigidaire

Frigidaire FAZ12ES2A Bedienungsanleitung
