Samsung AW12FCDBC Bedienungsanleitung

DB98-23704A(2)

Window-type RoomAir Conditioner

(Cool)

E S

OWNER´S

INSTRUCTIONS

AW12FCDBC

AW24FCDBC

The following safety precautions must be taken when installing

and using your air conditioner.

Safety Precautions

1The air conditioner must be plugged into its own specific power source, which must be

installed in compliance with national wiring, earthing and safety regulations.

Depending on national regulations and your specific installation, you may need to install:

◆ A circuit breaker

For further information on electrical requirements, contact a professional electrician.

This device must be installed according to the national electrical rules.

2Make sure that the unit is correctly ventilated at all times;

do NOT place clothing or other materials over it.

4Do NOT insert anything between the air outlet blades, as it may damage the inner fan

and you may be hurt. Keep children away from the unit.

ALWAYS ensure that the power cable is in good condition.

If the power cord is damaged in any way, it must be replaced by the manufacturer or its service

agent or a similarly qualified person in order to avoid a hazard.

6Do NOT attempt to repair the unit yourself. If it is damaged in any way, contact:

◆ An authorized service center

◆ The dealer from whom you purchased the air conditioner.

7Do NOT place any blocking objects in front of the unit.

3NEVER spill liquids of any kind into the unit.

Should this happen, unplug the unit and contact your installation specialist.

8If the remote control will not be used for a long time, remove the batteries.

9Before throwing out the device, it is necessary to pull back the battery cells

and get rid of them safely.

E-2

The manufacturer does not assume responsibility for accidents or injury

caused by an incorrectly installed air conditioner. If you are unsure about

installation, contact an installation specialist.

CCAA

AAUU

UUTT

TTII

IIOO

OONN

Contents

◆PREPARING YOUR AIR CONDITIONER

■Safety Precautions ......................................................................................... 2

■Air Conditioning Unit - Main Parts, Buttons and Display ............................... 4

■Remote Control Buttons ................................................................................. 5

■Getting Started ............................................................................................... 6

■Inserting the Remote Control Batteries .......................................................... 7

◆OPERATING YOUR AIR CONDITIONER

■Cooling Your Room ........................................................................................ 8

■Airing Your Room ........................................................................................... 9

■Adjusting the Air Flow Direction Vertically ...................................................... 10

■

◆PROGRAMMING YOUR AIR CONDITIONER

■Setting the On Timer ...................................................................................... 11

■Setting the Off Timer ...................................................................................... 12

■

◆RECOMMENDATIONS FOR USE

■Operating Recommendation ........................................................................... 13

■Temperature and Humidity Ranges ................................................................ 13

■Cleaning Your Air Conditioner ........................................................................ 14

■Solving Common Problems ............................................................................ 15

■Technical Specifications ................................................................................. 16

◆INSTALLATION ......................................................................................................... 18

E-3

CCAA

AAUU

UUTT

TTII

IIOO

OONN

✴✴

" The high inrush current of the starting compressor motor can have adverse effects to

the operation of other equipment under unfavorable mains conditions. This equipment

does not comply with the relevant technical standards for the limitation of voltage

fluctuations and flicker."

Before connecting this equipment to the power supply system, please report to your

supply authority and obtain the consent.

Do not connect other electric appliances to the same supply lines.

Timer setting button

Remote control sensor

Timer indicator

Fan speed adjustment

button

Temperature/timer

settings

Temperature adjustment

buttons

On/Off button

Operating mode selection

button (COOL, FAN)

❄The design and shape are subject to change according to the model.

❄.If a power failure occurs when the air conditioner is operating, the unit is switched off

Then the power returns, the air conditioner starts up again automatically.

Air inlet (inside)

Air filter

(The air filter is

located inside)

Inner air flow blades

(right/left orientation)

Air outlet

Outer air flow blades

(up/down orientation)

Air inlet (outside)

Ventilation lever

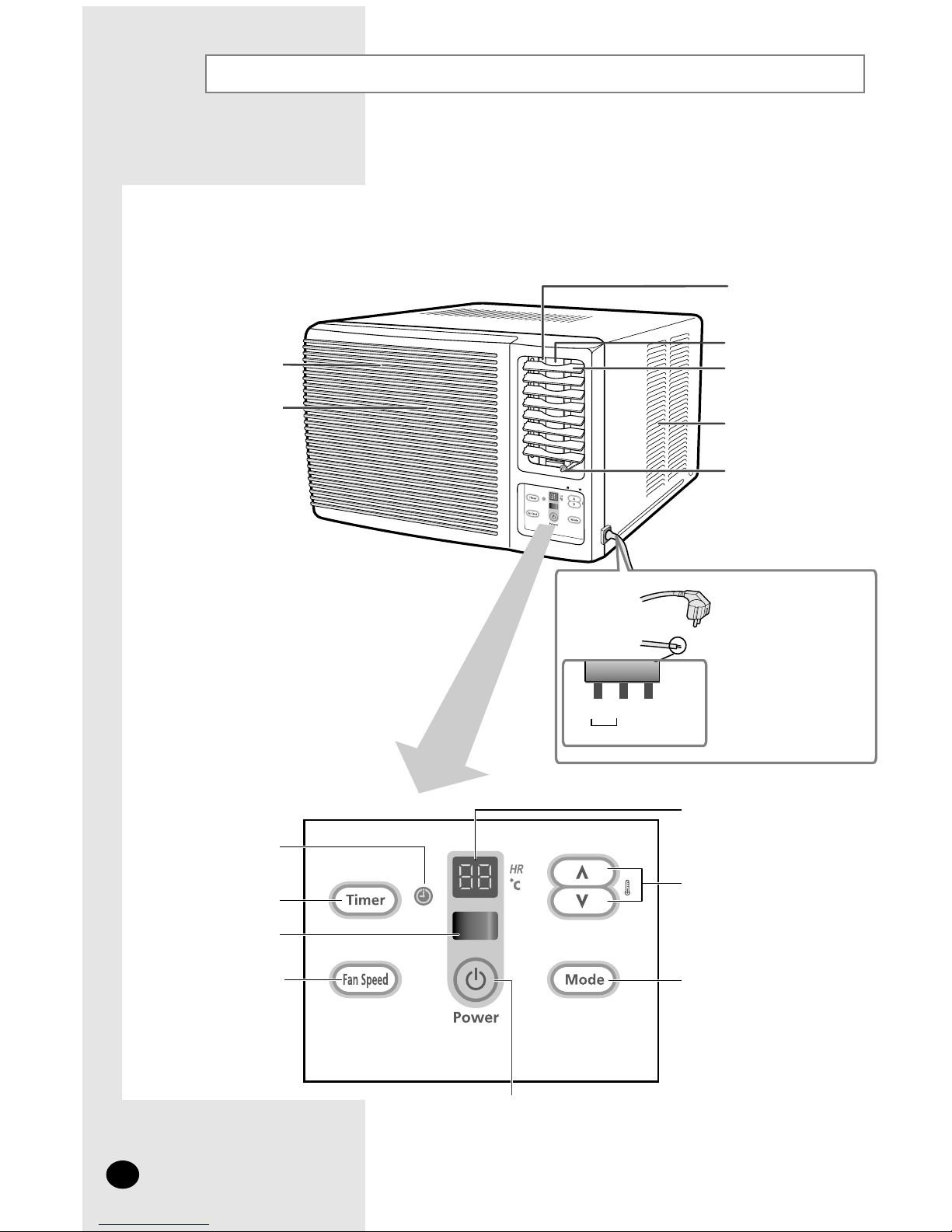

Air Conditioning Unit - Main Parts, Buttons and Display

E-4

The type of the power plug

may differ according to

athe type of local power

supply.

Power plug

Power cable

Power cable connection

should be commited to

an installation enginner.

Blue Brown Yellow/Green

Main power Hearth

◆The power plug may be not supplied

depending on the model

Remote Control - Buttons

E-5

Temperature adjustment

buttons

Fan speed

adjustment buttons

On/Offbutton

Timer setting button

Operating mode

selection buttons

Getting Started

You have just purchased a window-type room air conditioner and it has been installed by your

installation specialist.

Your Owner’s Instructions contain valuable information on using your air conditioner.

Please take the time to read them as they will help you take full advantage of the unit’s functions.

This Owner’s Instructions is just for using your air conditioner correctly.

Thus, the illustrations shown in this manual may not exactly match your air conditioners.

The booklet is organized as follows.

◆The following figures are shown on pages 4 and 5:

-Air conditioning unit (main parts, buttons and display)

-Remote control (buttons)

They will help you find the buttons and understand the symbols displayed.

◆In the main part of the document, you will find a series of step-by-step procedures for each

function available.

The illustrations in the step-by-step procedures use four different symbols:

Moreover, applicable, wherever the illustrations show the positions of the buttons on both the

remote control and the unit itself.

For the... The illustrations have a...

Remote control Gray background.

Example:

Unit itself White background.

Example:

PRESS PUSH IMPORTANT NOTE

☛

➢

E-6

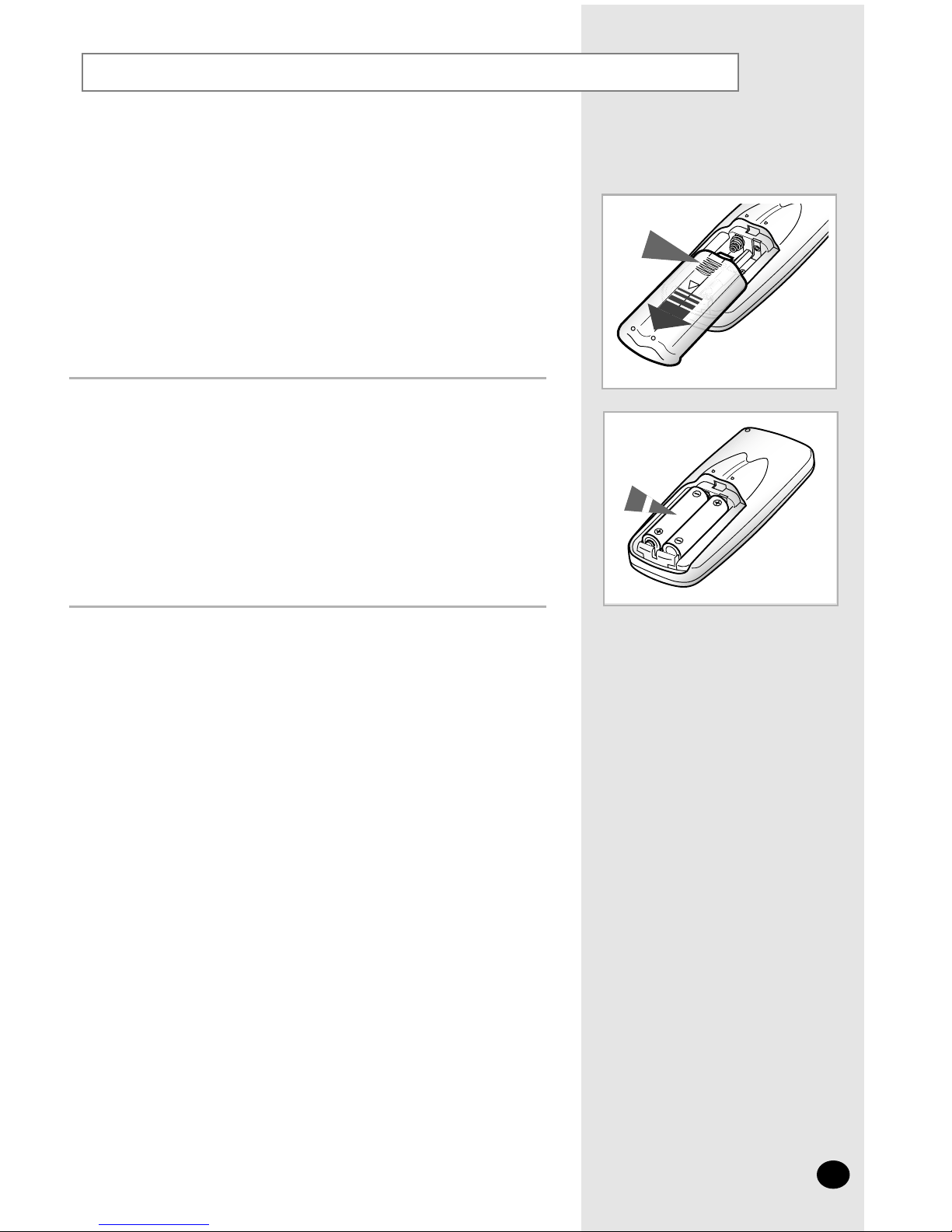

Inserting the Remote Control Batteries

You must insert or replace the remote control batteries when:

◆You purchase the air conditioner

◆The remote control does not work correctly

◆Use two AAA, LR03 1.5V batteries.

◆Do not use old batteries or

different kinds of batteries together.

◆Batteries may be completely discharged after 12 months,

even if they have not actually been used.

➢

E-7

Push the battery cover on the rear of the remote control with your thumb

in the direction of the arrow and remove it.

Insert the two batteries, taking care to respect the polarities :

◆+ on the battery with + on the remote control

◆-on the battery with -on the remote control

Close the cover by sliding it back until it clicks into place.

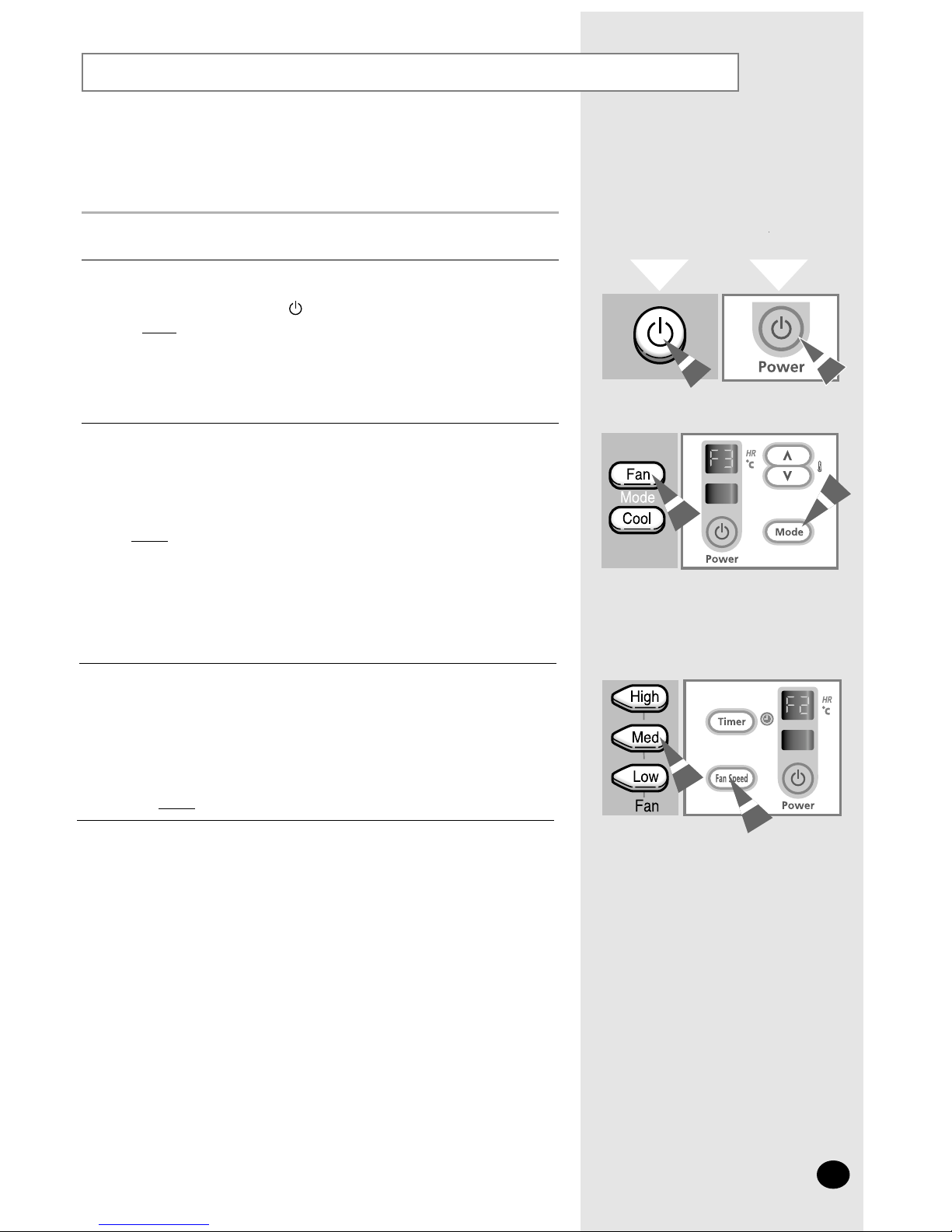

You must select the Cool mode if you wish to lower the temperature in your

room. You can also set the fan speed.

1If necessary, press the (On/Off) button.

Result:◆The operating mode indicator (COOL or FAN) on

the unit comes on.

◆The air conditioner starts up in the mode selected

when the unit was last used.

◆The unit beeps twice.

☛The air conditioner is fitted with a protection mechanism to prevent

the unit from being damaged when it is started immediately after

being:

◆Plugged in

◆Stopped

It will start up automatically after about three minutes.

If the COOL indicator is not lit up on the unit:

◆Press the COOL button on the remote control

◆Press the MODE button on the unit one or more times until the COOL

indicator lights up

Result:◆The unit beeps each time you press MODE.

◆The air conditioner starts up in Cool mode.

➢You can change modes at any time.

To adjust the temperature, press the Temperature button on the remote

control one or more times until the required temperature is displayed.

To adjust the temperature, press the Temperature button on the unit one

or more times until the required temperature is displayed.

Possible temperatures are between 18°C and 30°C .

Result:◆Each time you press the temperature buttons:

– The temperature is adjusted by 1°C and

displayed on the control panel

– The unit beeps

◆The air conditioner starts cooling if the room temperature is

higher than the selected temperature.

To set the fan speed

Cooling Your Room

Remote Control Control Panel

◆Press the HIGH, MED or LOW button on the remote control

E-8

it depends of your requirement

Press the Fan speed button on the unit until fan speed appears on the indicator

(F1, F2, F3)

Result: Each time you press a button, the unit beeps

5To control the direction of the air flow, refer to page 10.

Airing Your Room

E-9

If you wish to provide ventilation, you can use the Fan feature.

1 If necessary, press the(On/Off) button.

Result:

◆◆The air conditioner starts up in the mode selected

when the unit was last used.

◆The unit beeps twice.

If the FAN speed(F1,F2,F3) indicator is not lit up on the unit:

◆Press the FAN button on the remote control

◆Press the MODE button on the unit one or more times until the FAN

indicator lights up (F1, F2, F3)

Result:◆The unit beeps each time you press MODE.

◆The air conditioner starts up in Fan mode.

➢◆You can change modes at any time.

◆When the air conditioner is in Fan mode, the

temperature is not displayed; in this case, you do not

need to set the temperature.

To set the fan speed

Result: Each time you press a button, the unit beeps.4

4To control the direction of the air flow, refer to page 10.

◆Press the HIGH, MED or LOW button on the remote control

it depends of your requirement.

Press the Fan speed button on the unit until fan speed appears on the indicator

(F (F1, F2, F3)

Remote Control Control Panel

Adjusting the Air Flow Direction Vertically

Again depending on the position of the unit in your room, you can

adjust the orientation of the outer air flow blades on the right-hand

side of the unit.

RECOMMENDATION When... Adjust the blades to face...

Cooling Upwards.

Adjust the air flow blades to the desired position, by pushing them upwards or

downwards.

➢If you orient the air flow blades downwards and the unit operates in Cool mode

for a long period of time, dew may:

◆Form on the surface of the blades

◆Drip from the blades

E-10

Dieses Handbuch passt für folgende Modelle

Inhaltsverzeichnis

Andere Samsung Klimaanlage Handbücher

Samsung

Samsung AQV09J Series Bedienungsanleitung

Samsung

Samsung AC BXAP G Series Bedienungsanleitung

Samsung

Samsung AQT18PJG Series Bedienungsanleitung

Samsung

Samsung AC200KNHPKH Bedienungsanleitung

Samsung

Samsung AQV12PWAN Bedienungsanleitung

Samsung

Samsung MH FJEA series Bedienungsanleitung

Samsung

Samsung MH18VP2X Bedienungsanleitung

Samsung

Samsung AC TNMPEH Series Bedienungsanleitung

Samsung

Samsung AVXWPH022EA Bedienungsanleitung

Samsung

Samsung AM006JNFDCH/AA Bedienungsanleitung

Samsung

Samsung CH070EZM Bedienungsanleitung

Samsung

Samsung AWT24QPHBB Bedienungsanleitung

Samsung

Samsung IAST24P6GBDXAP Bedienungsanleitung

Samsung

Samsung MH14VA2 Bedienungsanleitung

Samsung

Samsung AG AN4DKH Series Bedienungsanleitung

Samsung

Samsung RC071DHXEA Leitfaden

Samsung

Samsung AM017NN1PEH Series Gebrauchsanweisung

Samsung

Samsung AF55JV1MAEE Bedienungsanleitung

Samsung

Samsung AR18HSFNBWKNEU Bedienungsanleitung

Samsung

Samsung AM NN1DEH Series Bedienungsanleitung

Samsung

Samsung AQV12F2VE Bedienungsanleitung

Samsung

Samsung AZ09AATEA Bedienungsanleitung

Samsung

Samsung KXWD Series Bedienungsanleitung

Samsung

Samsung AM AN1PCH Series Bedienungsanleitung

Beliebte Klimaanlage Handbücher anderer Marken

Spheros

Spheros CC 355 Bedienungsanleitung

Bosch

Bosch Climate 5000 SCI 24 CAS/ OU- OUE Bedienungsanleitung

Panasonic

Panasonic CS-E12HKEW Bedienungsanleitung

nedis

nedis ACMB1WT7 Bedienungsanleitung

Daikin

Daikin FCFV50A Bedienungsanleitung

Fujitsu

Fujitsu Inverter ASBA30JFC Bedienungsanleitung

Toshiba

Toshiba RAS-M10SMUV-E Bedienungsanleitung

Daikin

Daikin FXLQ20MAVE Bedienungsanleitung

Hitachi

Hitachi RAS-E24CAK Bedienungsanleitung

CIAT

CIAT Magister 2 Series Leitfaden

Bestron

Bestron AAC6000 Bedienungsanleitung

Hisense

Hisense 7K Technisches Handbuch

Frigidaire

Frigidaire FFRE0533S1E0 Bedienungsanleitung

Frigidaire

Frigidaire CRA073PU11 Betriebsanleitung

Soleus Air

Soleus Air GB-PAC-08E4 Bedienungsanleitung

McQuay

McQuay MCK020A Bedienungsanleitung

Webasto

Webasto Frigo Top 25 DS Bedienungsanleitung

Frigidaire

Frigidaire FAZ12ES2A Bedienungsanleitung
