AIR CONDITIONER CONTENTS

1. Precautions

2. Product Specifications

3. Installation and Operating

Instructions

4. Disassembly and Reassembly

5. Troubleshooting

6. Exploded Views and Parts List

7. Block Diagram

8. PCB Diagram

9. Wiring Diagram

10. Schematic Diagrams

(J)DB98-03455A(1)-cover 9/12/01 1:23 PM Page 1

ROOM AIR CONDITIONER

AZ09AATEA AZ12AADEA AZ18AAMEB

AZ09FATEA AZ12FADEA AZ18FAMEB

SERVICE Manual

1. Precautions

Samsung Electronics 1-1

1. Warning: Prior to repair, disconnect the

power cord from the circuit breaker.

2. Use proper parts: Use only exact

replacement parts. (Also, we recommend

replacing parts rather than repairing them.)

3. Use the proper tools: Use the proper tools

and test equipment, and know how to use

equipment may cause problems later-

intermittent contact, for example.

4. Power Cord: Prior to repair, check the

power cord and replace it if necessary.

5. Avoid using an extension cord, and avoid

tapping into a power cord. This practice

may result in malfunction or fire.

6. After completing repairs and reassembly,

check the insulation resistance.

Procedure: Prior to applying power, measure

the resistance between the power cord and the

ground terminal. The resistance must be

greater than 30 megohms.

7. Make sure that the grounds are adequate.

8. Make sure that the installation conditions

are satisfactory.

Relocate the unit if necessary.

9. Keep children away from the unit while it is

being repaired.

10. Be sure to clean the unit and its surrounding

area.

Fig. 1-1 Avoid Dangerous Contact

Fig. 1-2 No Tapping and No Extension Cords

Fig. 1-3 No Kids Nearby!

Fig. 1-4 Clean the Unit

(J)DB98-03455A(1)-1 9/12/01 1:24 PM Page 1-1

1-2 Samsung Electronics

(J)DB98-03455A(1)-1 9/12/01 1:24 PM Page 1-2

Notice : The symbol of model name

TYPE MODEL NAME

AAZ09FATEA AZ09AATEA

BAZ12FADEA AZ12AADEA

CAZ18FAMEB AZ18AAMEB

2.Product Specifications

2-1 Table

Item Unit of

Measure

AZ09AATEA

AZ09FATEA

AZ12AADEA

AZ12FADEA

AZ18AAMEB

AZ18FAMEB

Type WINDOW

Dimension:

(Width×Height×Depth) mm 520×345×515 600×394×595 660×425×730

Voltage Volt 220-240

Phase - SINGLE

Frequency Hz 50

Operation Current(C/H) A 4.2/3.9 5.9/5.3 9.4/7.8

Power Consumption(C/H) W 1010/930 1350/1210 2250/1800

Refrigerant Type FREON R22

Refrigerant Change g 540 700 1120

Capacity(C/H) BTU/h 8400/8400 11500/11500 17000/17300

EER(C/H) BTU/h.W 8.3/9.0 8.5/9.5 8.5/9.5

Net Weight Kg 35 45 59

Condenser Row 2×12 2×14 3×15

Condenser Fan Type Propeller Fan

Evaporator Row 2×12 2×14 2×16

Evaporator Fan Type Blower

Fan Motor MODEL YGN61-6C YGN60-6C YSK150-4L

Compressor(Rotary) MODEL 44B092JX1EF 48D129JU1EL 48B180JV2EH

Overload Protect - MRA12054-12008 MRA12074-12008 MRA12147-12007

Compressor Capacitor μF/VAC 35/450 30/450 40/450

Fan Motor Capacitor μF/VAC 3/450 3.5/450 6/450

Fan Speed RPM 1080/1040/1000 890/860/750 1030/980/930

Thermo Control - THERMISTOR

Air Swing MODEL M2LJ49ZV32 M2LJ49ZU32

Samsung Electronics 2-1

2-2 Samsung Electronics

2-2 Dimensions

2-2-1 Main Unit

2-2-2 Remote Control

Front view Side view

Temperature adjustment

buttons

Fan speed adjustment

buttons

ON/OFF button

Timer setting button

Sleep timer setting button

Operating mode

selection buttons

Air flow blade swing button

(J)DB98-03455A(1)-1 9/12/01 1:24 PM Page 2-2

Type A B C

A520 345 515

B600 394 595

C660 425 730

Samsung Electronics 3-1

3. Installation and Operating Instructions

3-1 Installation

1. Make sure that you install the unit in an area that

provides good ventilation.

The air conditioner must not be blocked by any

obstacle affecting the air flow near the air inlet and

air outlet.

2. Make sure that you install the unit in an area which

can endure the weight and vibration of the unit.

3. Make sure that you install the unit away from heat

or vapor.

4. Make sure that you install the unit in an area where

the cooled air can be evenly spread in a room.

5. Make sure that you install the unit in an area away

from TVs, audio units, cordless phones, fluorescent

lighting fixtures and other electrical appliances.

(obtain a clearance of at least one meter)

6. Make sure that you install the unit in an area which

provides easy drainage for condensed water.

7. Make sure that you install the unit in an area not

exposed to rain or direct sunlight.

(Install a separate sunblind if exposed to direct sun-

light.)

8. Do not install the unit in an area subjected to noise

or vibration amplification which may affect your

neighbor.

(Fix the unit firmly if mounted in a high place.)

*When selecting the area for installing the unit, be sure to obtain approval of the customer.

Caution:

Do not use the air conditioner in such areas as a greasy area(including machine oil),

saline area(sea side), or sulphuric area(hot spring). When using the air conditioner in these areas,

special maintenance is required. Contact your local dealer or our service center for advice.

(J)DB98-03455A(1)-1 9/12/01 1:24 PM Page 3-1

3-2 Samsung Electronics

3-2 Function Description

3-2-1 Cooling operation mode

The compressor is turned on and off according to the ambient temperature and set temperature.

1. Compressor on and off control

• Compressor on and off control according to the ambient temperature.

*The compressor is turned off when ambient temperature = set temperature

*The compressor is turned on when "ambient temperature = set temperature +1˚C"

2. Default value after power reset ➔set temperature = 24˚C(75˚F)

FAN SPEED = HIGH

3. Set temperature indicating (setting) range : 1˚C(1˚F) interval from 18˚C to 30˚C(64˚F to 86˚F).

3-2-2 Heating operation mode

The compressor is turned on and off according to the ambient temperature and set temperature.

1. Compressor on and off control

• Compressor on and off control according to the ambient temperature.

*The compressor is turned off when "ambient temperature = set temperature +1˚C"

*The compressor is turned on when "ambient temperature = set temperature -1˚C"

2. Default value after power reset ➔set temperature = 24˚C(75F˚)

FAN SPEED = HIGH

3. Set temperature indicating (setting) range : 1˚C(1˚F) interval from 16˚C to 30˚C(61˚F to 86˚F).

3-2-3 Fan operation mode

1. If "Fan operation mode" signal is received from remocon or panel.

➔ the compressor is immediately turned off and only fan motor is operated at set blowing speed.

➔ it changes such as "HIGH ➔MED ➔ LOW ➔ HIGH"( if Fan speed is selected).

2. The initial FAN speed is set to "HIGH".

3. The set temperature can not be indicated and set.

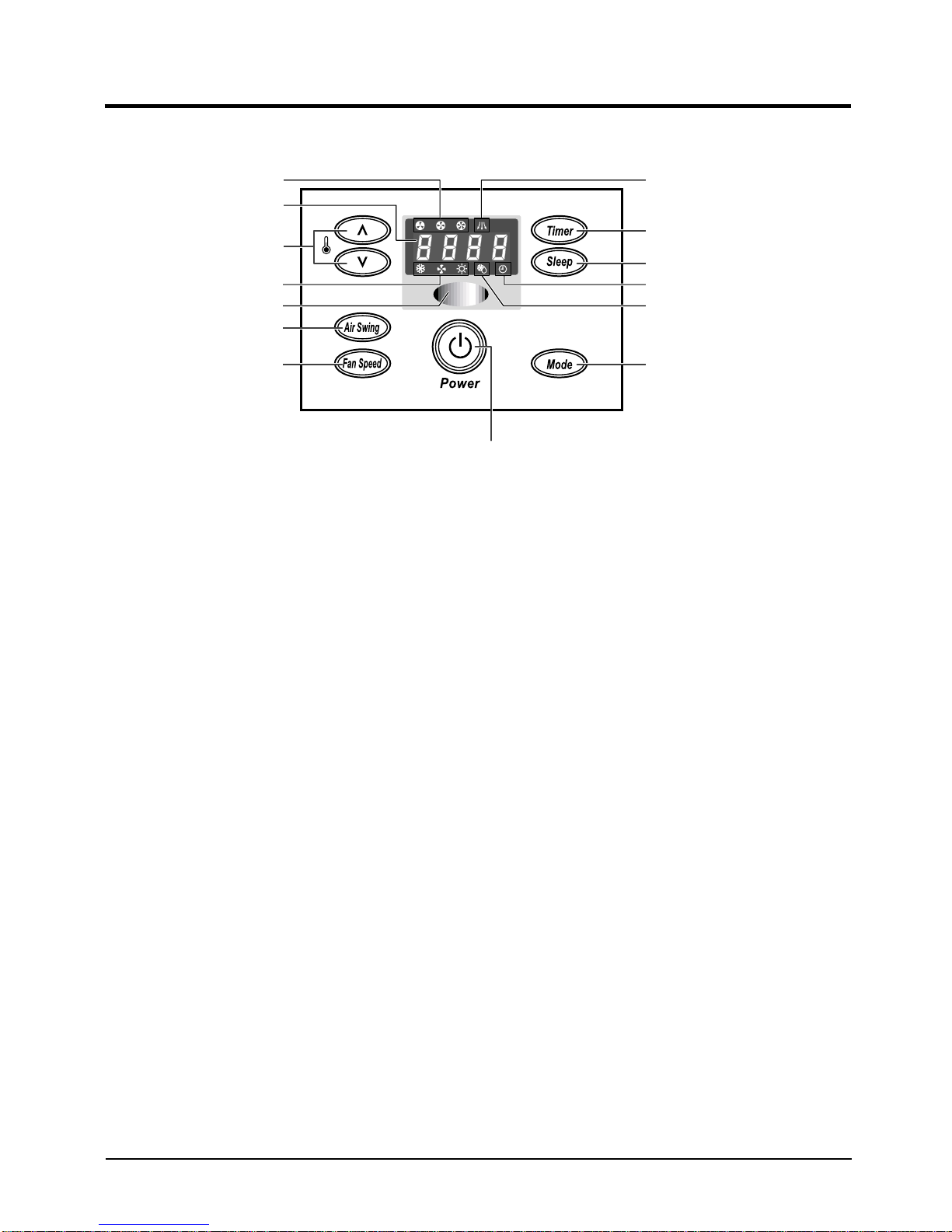

Fan speed indicators

(LOW, MED, HIGH)

Temperature/Timer

settings

Temperature adjustment

buttons

Operating mode indicators

(COOL, FAN, HEAT)

Remote Control sensor

Air flow blade swing button

Fan speed adjustment

button

Air flow blade swing indicator

Sleep timer setting button

Timer indicator

Deice indicator

ON/OFF button

Operating mode selection

button(COOL, FAN, HEAT)

Timer setting button

(J)DB98-03455A(1)-1 9/12/01 1:24 PM Page 3-2

Installation and Operating Instructions

Samsung Electronics 3-3

3-2-4 Sleep operation mode

1. Enable to sleep operation only when cooling operation.

2. First, 7-SEG LED displays “SLEEP” while 15 second, Second, 7-SEG LED display “8Hr”

And, automatically SET OFF after operated while 8 Hour.

3. In sleep operation, setting Temperature rise 1˚C after 1 Hour.

4. In ON TIMER operation, sleep operation is unavailable.

Key operational function Key Type

Operation start and stop MEMBRANE

POWER *First ON = operation start, second ON = operation stop KEY PAD

*Continuous operation is not available.

Operation mode change

MEMBRANE

*at every ON

KEY PAD

Mode - Selected as "COOL –> HEAT –> FAN (Default=COOL)

*If operation is OFF, it is considered as an invalid key.

*Continuous operation is not available.

*At every ON –> Selected as “HIGH –> MED –> LOW –> HIGH”(DEFAULT=HIGH). MEMBRANE

Fan speed *If operation is OFF, it is considered as an invalid key. KEY PAD

*Continuous operation is not available.

Currently displayed set temperature increase/decrease

*At every pressing, the set temperature is changed by 1˚C, (1˚F) (Cooling oepration.)

(increase(▲) : 18˚C -> 19˚C -> ... -> 29˚C -> 30˚C), (64˚F –> 65˚F –> ... –> 85˚F –> 86˚F).

Temperature (decrease(▼) : 24˚C -> 23˚C -> ... -> 19˚C -> 18˚C), (86˚F –> 84˚F –> ... –> 65˚F –> 64˚F). MEMBRANE

(▲,▼)*At every pressing, the set temperature is changed by 1˚C, (1˚F) (Heating oepration.) KEY PAD

(increase(▲) : 16˚C -> 17˚C -> ... -> 29˚C -> 30˚C), (61˚F –> 65˚F –> ... –> 85˚F –> 86˚F).

(decrease(▼) : 24˚C -> 23˚C -> ... -> 17˚C -> 16˚C), (86˚F –> 84˚F –> ... –> 62˚F –> 61˚F).

3-2-5 LED display indication in case of error detection

ERROR OPERATION

ROOM THERMISTOR

(OPEN or SHORT)

INDOOR PIPE THERMISTOR

(OPEN or SHORT)

OUTDOOR PIPE THERMISTOR

(OPEN or SHORT)

7-SEG

LED DISPLAY

E1 displayed

E5 displayed

E6 displayed

3-2-6 Panel key operation

Key discription

Key name

(J)DB98-03455A(1)-1 9/12/01 1:24 PM Page 3-3

Installation and Operating Instructions

3-4 Samsung Electronics

Key operational function Key Type

* In case of above situation, when “increase / decrease” key is pressed by remocon,

* warning sound is generated.

Temperature *If operation is OFF, it is considered as an invalid key. MEMBRANE

(▲,▼)*In case of “FAN” mode operation, it is considered as an invalid key. KEY PAD

*Continuous operation is available.

Air swing motor operation and stop. MEMBRANE

*Once ON Air swing motor operation. Another ON Air swing motor stop. KEY PAD

Air swing *Continuous operation is not available.

*In case of operation stop, when the fan motor is turned off it is considered as an invalid key.

Setting the on/off timer.

*Can set “OFF TIMERHOUR” if set is operation.

*Can set “ON TIMER HOUR” if set is not operation.

Timer *Once ON-standby setting TIMER : “- -” displayed. MEMBRANE

(ON/OFF) *In case of key pressing in status of standby setting ON/OFF TIMER. KEY PAD

(--Hr -> 1Hr -> 2Hr -> ... -> 23Hr -> 24Hr)

*In press TIMER key countinuosly operate such the lower part.

(--Hr -> 1Hr -> 2Hr -> ... -> 24Hr -> --Hr)

SLEEP mode on and off.

*Once ON = SLEEP mode on, Another ON = SLEEP mode off.

• Continuous operation is not available.

* In case of OFF TIMER mode, if press SLEEP mode then OFF TIMER Mode is canceled and

Sleep SLEEP Mode operates. MEMBRANE

* SLEEP Mode is not available in ON TIMER and FAN Mode. KEY PAD

* SLEEP Mode is available in cooling and heating operation mode.

Key discription

Key name

(J)DB98-03455A(1)-1 9/12/01 1:24 PM Page 3-4

Samsung Electronics 3-5

Installation and Operating Instructions

3-2-7 LED lamp operation specifications

LAMP name Operations specifications

COOL ( ) The mode is set to "COOL" –> ON

Others –> OFF

HEAT ( ) The mode is set to "HEAT" –> ON

Others –> OFF

FAN ( ) The fan speed is set to "FAN" –> ON

Others –> OFF

HIGH ( ) The fan speed is set to "HIGH" –> ON

Others –> OFF

MED ( ) The fan speed is set to "MED" –> ON

Others –> OFF

LOW ( ) The fan speed is set to "LOW" –> ON

Others –> OFF

TIMER ( ) The mode is set to "TIMER" –> ON

Others –> OFF

AIR SWING () The mode is set to "Air Swing" –> ON

Others –> OFF

DEICE () Until the "DEICE" operation is completed during heating operation –> ON

Others –> OFF

In case of set temperature display

-> NO. (1) 7–SEG LED DISPLAY indicates temperature of the tens digit

-> NO. (2) 7-SEG LED DISPLAY indicates temperature of the units digit

In case of time display

-> NO. (1) 7–SEG LED DISPLAY indicates time of the tens digit

-> NO. (2) 7–SEG LED DISPLAY indicates time of the units digit

In case of set temperature display

-> NO. (3) 7–SEG LED DISPLAY indicates temperature unit(˚)

-> NO. (4) 7-SEG LED DISPLAY indicates temperature unit(C), (F)

In case of time display

-> NO. (3) 7–SEG LED DISPLAY indicates time unit(H) of the tens digit

-> NO. (4) 7–SEG LED DISPLAY indicates time unit(r) of the units digit

First, 7–SEG LED DISPLAY "SLEEP"while 15 second,

Second, 7-SEG LED DISPLAY "8Hr"

(1) (2)

(3)

(1) (2) (3) (4)

(4)

(J)DB98-03455A(1)-1 9/12/01 1:24 PM Page 3-5

Andere Handbücher für AZ09AATEA

Dieses Handbuch passt für folgende Modelle

Inhaltsverzeichnis

Andere Samsung Klimaanlage Handbücher

Samsung

Samsung AQ09NSA Bedienungsanleitung

Samsung

Samsung DIGIMAX A6 Bedienungsanleitung

Samsung

Samsung AHT18P1HBA Bedienungsanleitung

Samsung

Samsung AZ09AATEA Bedienungsanleitung

Samsung

Samsung Am NN1 Series Bedienungsanleitung

Samsung

Samsung AM FN1DEH Series Bedienungsanleitung

Samsung

Samsung AWT18FAHBA Bedienungsanleitung

Samsung

Samsung AM FN2DEH Series Bedienungsanleitung

Samsung

Samsung AM007FN1DCH Series Bedienungsanleitung

Samsung

Samsung AJ052NBNDEH/SA Bedienungsanleitung

Samsung

Samsung AC180JNHPKH/AR Bedienungsanleitung

Samsung

Samsung AR BSHUMGM Series Bedienungsanleitung

Samsung

Samsung DH052EAM Bedienungsanleitung

Samsung

Samsung AM018KN4DCH Bedienungsanleitung

Samsung

Samsung AR09NXFSPWKNEE Bedienungsanleitung

Samsung

Samsung AR RXFP Series Bedienungsanleitung

Samsung

Samsung AC***JXADCH Series Bedienungsanleitung

Samsung

Samsung NS100SSXEA Bedienungsanleitung

Samsung

Samsung AW140CB Bedienungsanleitung

Samsung

Samsung EH035CAV Bedienungsanleitung

Samsung

Samsung AM JNHF Series Bedienungsanleitung

Samsung

Samsung AS10V Series Bedienungsanleitung

Samsung

Samsung AW070AA Bedienungsanleitung

Samsung

Samsung AQ18A1QE/B Bedienungsanleitung

Beliebte Klimaanlage Handbücher anderer Marken

Spheros

Spheros CC 355 Bedienungsanleitung

Bosch

Bosch Climate 5000 SCI 24 CAS/ OU- OUE Bedienungsanleitung

Panasonic

Panasonic CS-E12HKEW Bedienungsanleitung

nedis

nedis ACMB1WT7 Bedienungsanleitung

Daikin

Daikin FCFV50A Bedienungsanleitung

Fujitsu

Fujitsu Inverter ASBA30JFC Bedienungsanleitung

Toshiba

Toshiba RAS-M10SMUV-E Bedienungsanleitung

Daikin

Daikin FXLQ20MAVE Bedienungsanleitung

Hitachi

Hitachi RAS-E24CAK Bedienungsanleitung

CIAT

CIAT Magister 2 Series Leitfaden

Bestron

Bestron AAC6000 Bedienungsanleitung

Hisense

Hisense 7K Technisches Handbuch

Frigidaire

Frigidaire FFRE0533S1E0 Bedienungsanleitung

Frigidaire

Frigidaire CRA073PU11 Betriebsanleitung

Soleus Air

Soleus Air GB-PAC-08E4 Bedienungsanleitung

McQuay

McQuay MCK020A Bedienungsanleitung

Webasto

Webasto Frigo Top 25 DS Bedienungsanleitung

Frigidaire

Frigidaire FAZ12ES2A Bedienungsanleitung
