Samsung CC48FTVX Bedienungsanleitung

Samsung Electronics

11-1 Name of Each Part

11-1-1 Indoor Unit

Timer indicator

Remote control sensor

On/Off button

On/Off indicator

Fan indicator

Removing frost indicator

Filter Sign indicator

Air inlet

Air filter(under the grille)

Air flow blades(outlet)

11. Operating Instructions

11-1

Samsung Electronics 11-2

11-1-2 Outdoor Unit

Operating Instructions

CC48FTVX

Air Inlet(Rear)

Connection Valve

Air Outlet

CC24BTVX

Air Inlet(Rear)

Connection Valve

Air Outlet

Samsung Electronics

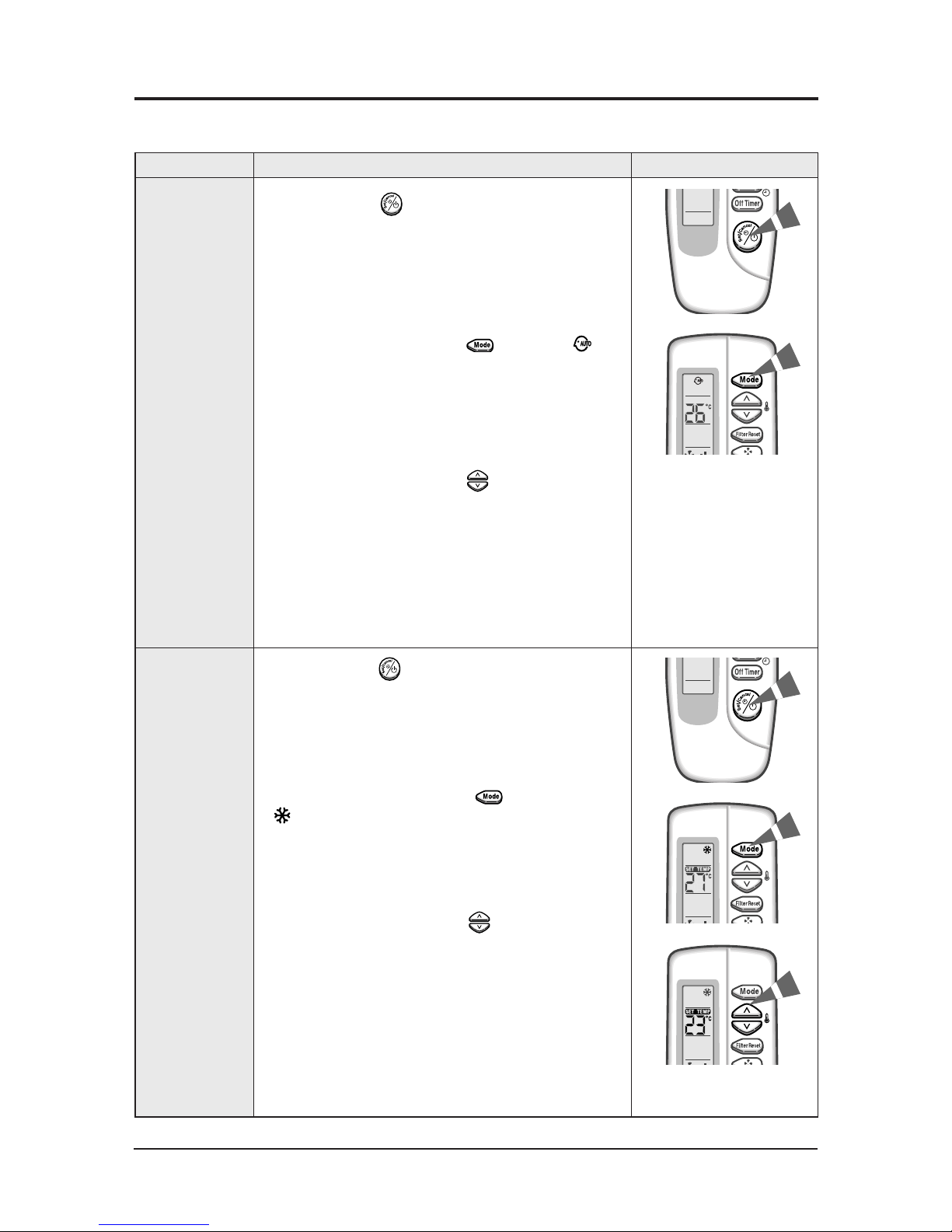

11-2 Main Function

11-2-1 Basic Function

Mode Explanation Remark

Selecting the

Automatic

Operating Mode

1. If necessary, press (On/Off) button.

2. To select the AUTO mode, press the button until is

displayed at the top of the wireless remote controller.

3. To adjust the temperature, press the buttons one or more

times until the required temperature is displayed.

Possible temperatures are between 18˚C and 30˚C inclusive.

Cooling Your Room 1. If necessary, press (On/Off) button.

2. To select the COOL mode, press the button until

is displayed at the top of the wireless remote controller.

3. To adjust the temperature, press the buttons one or more

times until the required temperature is displayed.

Possible temperatures are between 18˚C and 30˚C inclusive.

11-3

Samsung Electronics 11-4

Automatic(rotated :



 )

Low

Medium

High

Automatic (rotated :



)

Low

Medium

High

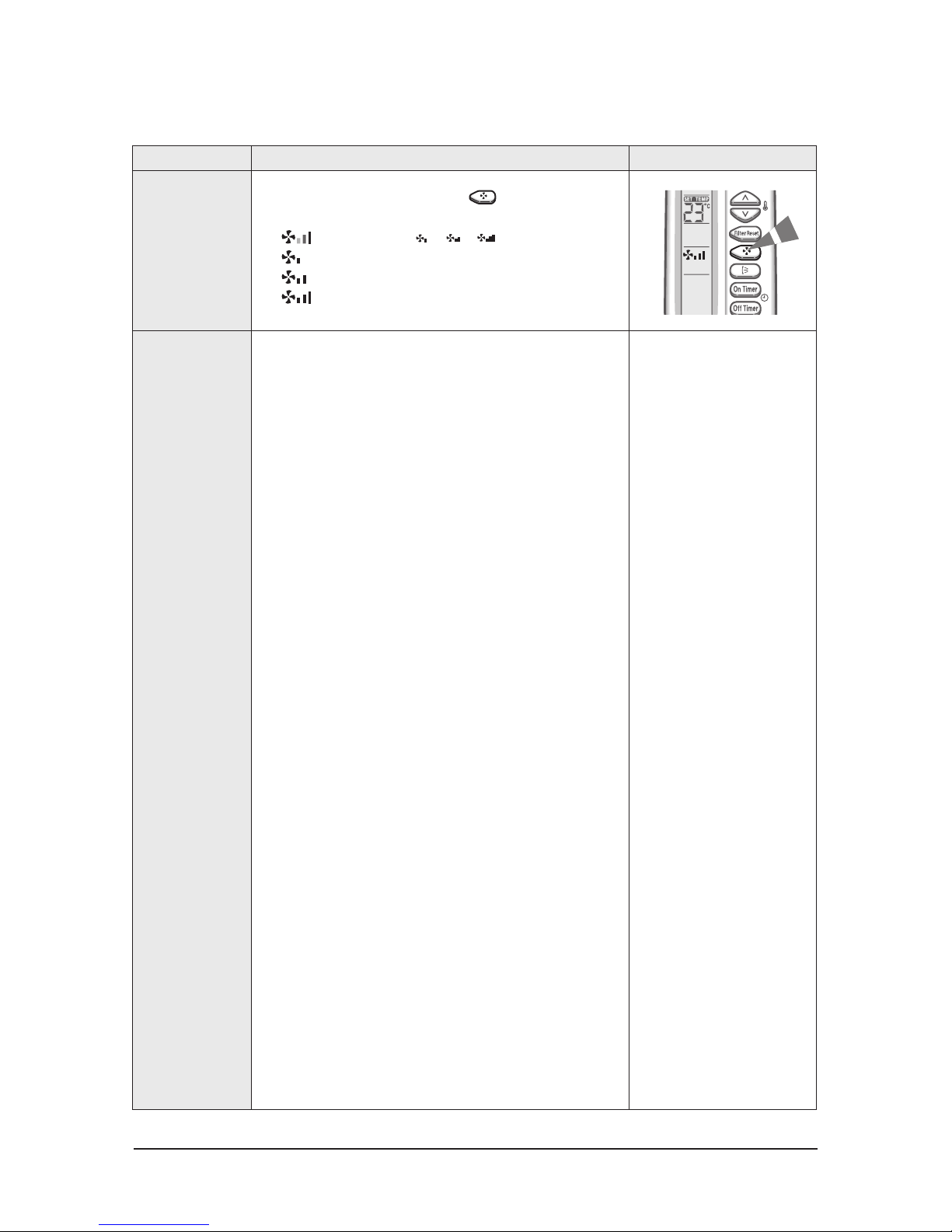

Mode Explanation Remark

Dry Mode 4. Select the fan speed by pressing the button one or

more times until the intended value is displayed :

Basic Function(cont.)

Operating Instructions

Samsung Electronics

Mode Explanation Remark

Removing Excess

Humidity

1. If necessary, press (On/Off) button.

2. To select the DRY mode, press the button until

is displayed at the top of the wireless remote controller.

3. To adjust the temperature, press the buttons one

or more times until the required temperature is displayed.

Possible temperatures are between 18˚C and 30˚C inclusive.

Airing Room 1. If necessary, press (On/Off) button.

2. To select the FAN mode, press the button until

is displayed at the top of the wireless remote controller.

3. Select the fan speed by pressing the button one or

more times until the intended value is displayed:

Low

Medium

High

11-5

Operating Instructions

Samsung Electronics 11-6

Operating Instructions

Mode Explanation Remark

Selecting the

Automatic

Operating Mode

1. If necessary, press (ON/OFF) button.

2. To select the AUTO mode, press the button until

is displayed at the top of the wired remote controller.

3. To adjust the temperature, press the buttons one

or more times until the required temperature is displayed.

Possible temperatures are between 18˚C and 30˚C inclusive.

Cooling Your Room 1. If necessary, press (ON/OFF) button.

2. To select the COOL mode, press the button until

is displayed at the top of the wired remote controller.

3. To adjust the temperature, press the buttons one

or more times until the required temperature is displayed.

Possible temperatures are between 18˚C and 30˚C inclusive.

11-2-2 Wired Remote Controller

Samsung Electronics

Mode Explanation Remark

Cooling Your Room 4. Select the fan speed by pressing the button one or

more times until the intended value is displayed :

Heating Your Room

(Except cooling only mod-

els)

1. If necessary, press (On/Off) button.

2. To select the HEAT mode, press the button until

is displayed at the top of the wireless remote controller.

3. To adjust the temperature, press the buttons one or

more times until the required temperature is displayed.

Possible temperatures are between 18˚C and 30˚C inclusive.

4. Select the fan speed by pressing the button one or

more times until the intended value is displayed :

Automatic(rotated :



)

Low

Medium

High

11-7

Operating Instructions

Automatic (rotated :



)

Low

Medium

High

Samsung Electronics 11-8

Operating Instructions

Mode Explanation Remark

Removing Excess

Humidity 1. If necessary, press (ON/OFF) button.

2. To select the DRY mode, press the button until

is displayed at the top of the wired remote controller.

3. To adjust the temperature, press the buttons one

or more times until the required temperature is displayed.

Possible temperatures are between 18˚C and 30˚C inclusive.

Airing Your Room 1. If necessary, press (ON/OFF) button.

2. To select the FAN mode, press the button until

is displayed at the top of the wired remote controller.

3. Select the fan speed by pressing the button one or more

times until the intended value is displayed:

Low

Medium

High

Samsung Electronics

Operating mode Mode selection button

Filter Reset button

Swing button

On Timer button

Off Timer button

On/Off & Timer Set/

Cancel button

Fan speed adjustment

button

Temperature adjustment

buttons

Temperature setting

Fan speed

Air flow direction

On Timer setting

Off Timer setting

Battery discharge indicator

11-3 Wireless Remote Control-Buttons and Display

Note : • After cleaning the air filter, press the button.

11-9

Samsung Electronics 11-10

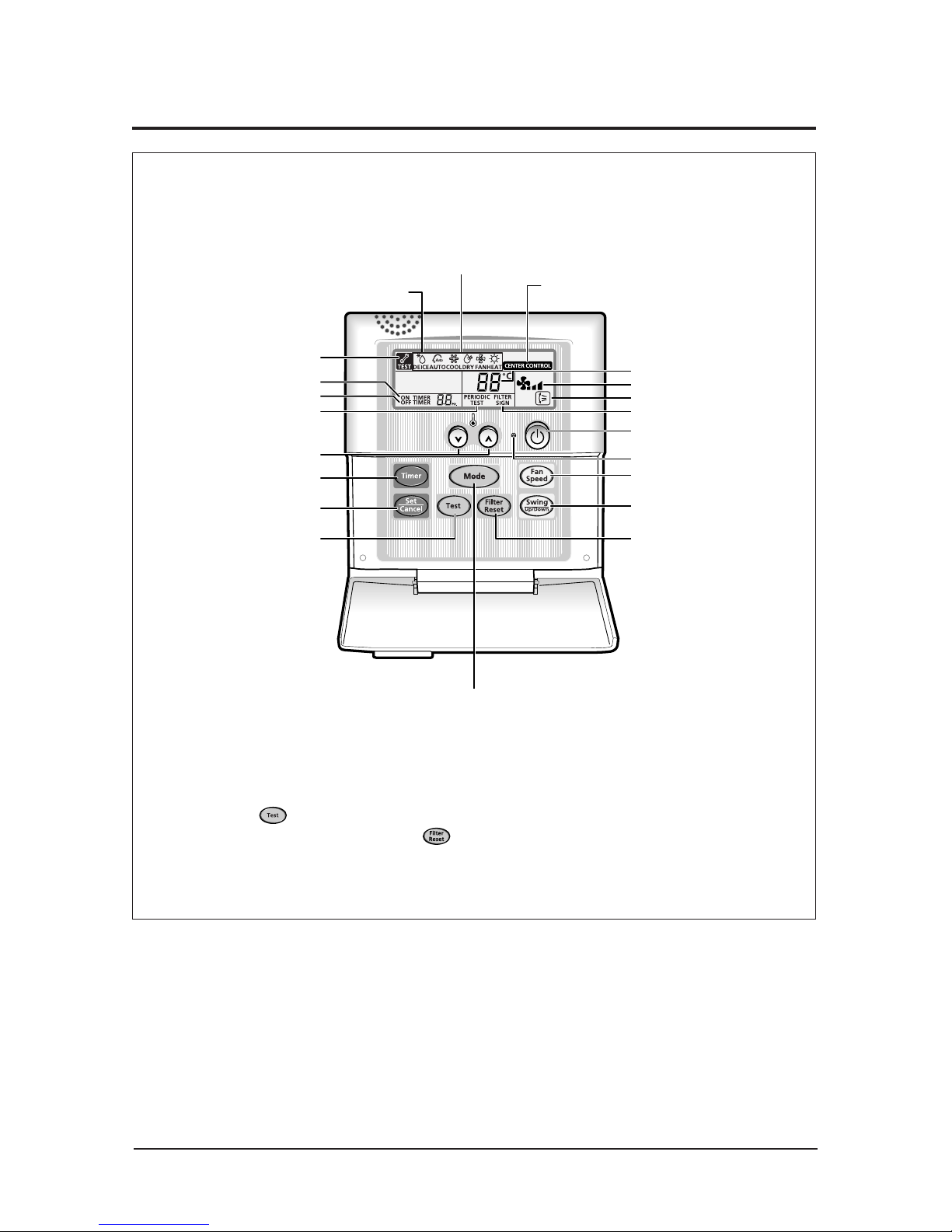

11-4 Wired Remote Controller-Buttons and Display

Mode selection button

Communication error indicator

On Timer setting

Off Timer setting

Test indicator

Timer button

Timer Set/Cancel button

Test button Filter Reset button

Temperature adjustment buttons

Removing frost indicator

Temperature setting

Fan speed

Air flow direction

Filter Sign indicator

On/Off button

Fan speed adjustment button

Swing button(Except Duct type)

On/Off indicator

Operating mode

Centralized controller indicator

(In case of installing the Centralized controller)

Note : • The button is for your installation specialist. You must not press it.

• After cleaning the air filter, press the button. Then the wired remote controller will display the

Filter Sign indicator when the time to clean the air filter.
