Model : Essential Type

VRF

Technical

Data Book

DVM S for Euro_ET

(R410A, 50Hz, HP)

History

Version Modification Date Remark

Ver. 1.0 Release DVM S Essential (R410A, 50Hz, HP) for Euro_ET TDB 16.12.19.

(1) Classification

AM DVM

(2) Capacity

x 1/10 HP (3 digits)

(3) Version

F2013

H2014

J2015

K2016

M2017

(4) Product Type

XOutdoor Unit

NIndoor Unit

(5) Feature 1

VInverter

MDVM S Eco

(6) Feature 2

AStandard + General Temp.+ Module

HHigh EER + Low Temp. + Module

GHigh EER + General Temp. + Module

DStandard + General Temp. + Non-Module

(7) Rating Voltage

E1Ø, 220~240V, 50Hz

G3Ø, 380~415V, 50Hz

N3Ø, 380~415V, 50/60Hz

(8) Mode

HHeat Pump

RHeat Recovery

Installation

Nomenclature

Outdoor Unit

Model Name

(1) (2) (3) (4) (5) (6) (7) (8) Buyer

Samsung’s VRF system air conditioners offer instant temperature control, user-friendly installation and advanced

functionality, along with smart power usage. Our flagship VRF-based Samsung DVM S is a highly innovative system

that adopts the new third-generation Samsung Scroll Compressor (SSC) technology with Dual Digital Inverter

DVM S provides world-class energy efficiency and the most powerful cooling and heating performance available on

the market. This ideal air conditioning system accomodates all variable environments, including large commercial

or residential buildings.

Samsung DVM S offers innovative features to benefit the indoor comfort as well operational coasts of the system

through technological advances such as:

The world’s largest capacity

Capacities of the outdoor units offer up to 30 HP rooftop space savings as well as

lowering the installations and transportation costs.

High seasonal energy efficiency

Samsung DVM S adopts a dual inverter scroll compressor that upgrades refrigerant

flow and the motor’s operating performance. It makes ESEER of DVM S is up to 8.00.

Superior Heating Performance &

Wide Operating Temperature Range with Flash injection

Increase refrigerant flow by 32%, extend heating operation range at -25°C, thanks to

Flash Injection technology, extended compressor reliability range and control

compression ratio.

Features & Benefits

Intelligent Defrosting Logic

DVM S Intelligent Defrost Control logic keeps the unit in the heating mode

for up to 40% longer through out the heating season compared to

conventional model by monitoring the air resistance through the heat

exchanger.

Optimised Heat Exchanger

Combination of optimised coil path and different types of fin design for upper and

lower parts of the condenser evens out the airflow profile to optimise the heat transfer

process.

Extended Piping Length Limits

Allows extended piping length of up to 220 m, and units will still give

a great performance overwide areas. With this technology,

installation is available with a maximum height level of 110 m, which

is equivalent to 20 stories (each story is considered 5 m high).

Smart management

Further improves system’s energy efficiency due to precise indoor

climate control. Web-based remote monitoring and management

system allows quick and easy HVAC control and breakdown alert.

Eurovent Certified Performance

Samsung DVM S had become the 1st VRF Product to be certified by

Eurovent, the European Committee of HVAC&R, in March 2014.

Features & Benefits

Contents

1. Combination Table 7

2. Specification 11

3. Electric Characteristics 23

4. Dimensional Drawing 24

5. Center of Gravity 26

6. Electrical Wiring Diagrams 28

7. Sound Data 30

8. Operation Range 35

9. Piping Diagram 37

10. Installation 41

11. Accessory 77

1. Combination Table

Outdoor Units

Essential

System Model Capacity of Single Unit (HP)

Capa Code No. of Modules 8HP 10HP 12HP 14HP 16HP 18HP 20HP 22HP 24HP 26HP 28HP 30HP

10HP AM100MXVDGH/ET 1 1

12HP AM120MXVDGH/ET 1 1

14HP AM140MXVDGH/ET 1 1

16HP AM160MXVDGH/ET 1 1

18HP AM180MXVDGH/ET 1 1

20HP AM200MXVDGH/ET 2 2

22HP AM220MXVDGH/ET 2 1 1

24HP AM240MXVDGH/ET 2 2

26HP AM260MXVDGH/ET 2 1 1

28HP AM280MXVDGH/ET 2 2

30HP AM300MXVDGH/ET 2 1 1

32HP AM320MXVDGH/ET 2 1 1

34HP AM340MXVDGH/ET 2 1 1

36HP AM360MXVDGH/ET 2 2

38HP AM380MXVDGH/ET 3 2 1

40HP AM400MXVDGH/ET 3 1 2

NOTE

• Ma

ke sure to use an indoor unit that is compatible with DVM S.

•Indoor units can be connected within the range indicated in following table.

•If the total capacity of the connected indoor units exceeds the indicated maximum capacity, cooling and heating

capacity of the indoor unit may decrease.

•Total capacit

y of the connected indoor units can be allowed from 50% to 130% of the total outdoor unit capacity.



You can connect maximum 64 indoor units to the outdoor unit. Maximum quantity of connectable indoor unit is set to 64

since outdoor unit only support up to 64 communication address. Indoor unit address can be

assigned from 0~63. If the indoor unit address was assigned from 64~79, E201 error will occur.



• In case of combining modules more than 90HP, please consult the manufacturerwhen connecting the indoor unit and

deciding on piping length in accordance with design of the building.

1. Combination Table

Model

Capacity (kW)

1.5 1.7 2.2 2.8 3.2 3.6 4.5 5.6 6.0 7.1 8.2 9.0 11.2 12.8 14.0 16.0

1Way

CST







2Way CST

4Way CST

360 CST

Floor

Standing Unit

4Way CST S

(600X600)

Duct S (MSP)

Slim Duct

MSP Duct

Ceiling

Console

Boracay

Boracay (with

EEV)

AR5000

AR5000 (with

EEV)

Indoor Units

1. Combination Table

Model

Capacity (kW)

6.0 7.1 8.2 9.0 11.2 12.8 14.0 16.0 18.0 22.0/

22.4 25.0 28.0 32.0 50.0 500

CMH

1000

CMH

HSP Duct

OAP Duct

Big Duct

PAC

Hydro Unit HE

Hydro Unit HT

ERV Plus

NOTE

•Make sure to use an indoor unit that is compatible with DVM S.

•If the total capacity of the connected indoor units exceeds the indicated maximum capacity, cooling and heating

capacity of the indoor unit may decrease.

•Total capacity of the connected indoor units can be allowed from 50% to 130% of the total outdoor unit capacity.



You can connect maximum 64 indoor units to the outdoor unit. Maximum quantity of connectable indoor unit is set to 64

since outdoor unit only support up to 64 communication address. Indoor unit address can be assigned from 0~63. If the

indoor unit address was assigned from 64~79, E201 errorwill occur.

Indoor Units

1. Combination Table

Essential

Capa

[HP] Model Name Model Capa

[HP] Model Name Model

AM100MXVDGH/ET

AM120MXVDGH/ET

AM140MXVDGH/ET

AM160MXVDGH/ET

AM180MXVDGH/ET

AM200MXVDGH/ET

AM220MXVDGH/ET

AM240MXVDGH/ET

AM260MXVDGH/ET

AM300MXVDGH/ET

AM280MXVDGH/ET

AM320MXVDGH/ET

AM340MXVDGH/ET

AM360MXVDGH/ET

38 AM380MXVDGH/ET

40 AM400MXVDGH/ET

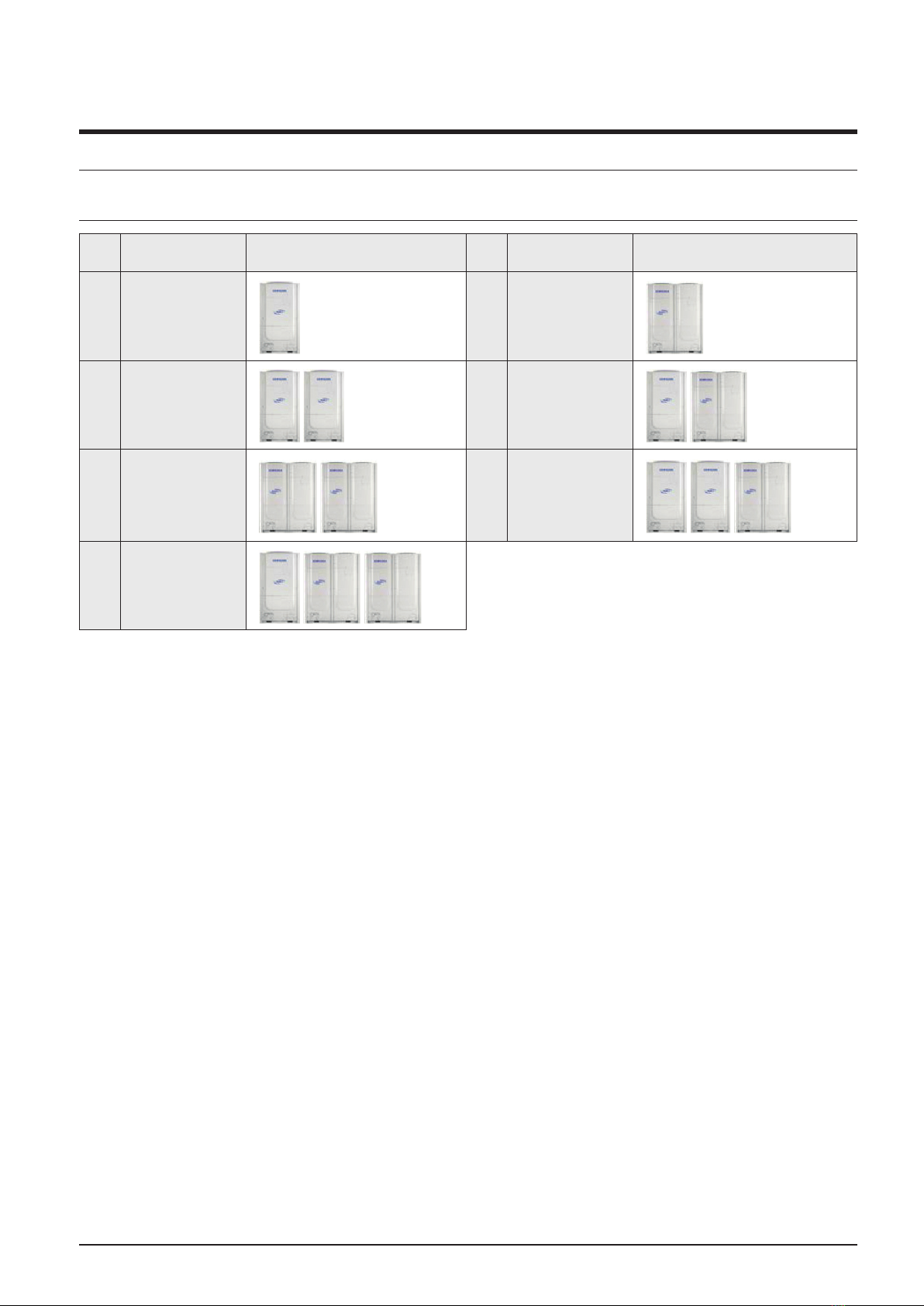

External Appearance
