E§§HNIKA
E S F I P A DB98-20338A(1)
D G R
7-day Scheduler
MWR-BS00
OWNER’S INSTRUCTIONS
MANUAL DE INSTRUCCIONES
MANUEL D’UTILISATION
ISTRUZIONI PER L’USO
MANUAL DE INSTRUÇÕES
GEBRAUCHSANWEISUNG
√¢∏°π∂™ Ã∏™∆∏
àçëíêìäñàü èéãúáéÇÄíÖãü
System Air Conditioner
Aire acondicionado sistemático
Climatiseur numérique multifonctionnel
Sistema Aria Condizionata
Sistema Ar Condicionado
Klimaanlage System
™‡ÛÙËÌ· ∫ÏÈÌ·ÙÈÛÌÔ‡
ëËÒÚÂÏÌ˚È ÇÓÁ‰Û¯Ì˚È äÓÌ‰Ë ËÓÌÂ
RUSSIAN ENGLISH
ESPAÑOL
FRANÇAIS
ITALIANO
PORTUGUÊS
DEUTSCH
Safety Precautions
◆Read this installation manual carefully before
installation and check whether the 7-day Scheduler
is installed properly.
◆Do not attempt to install or repair the 7-day Scheduler
by yourself.
◆Always consult an authorized service personnel
for repair.
◆When moving, consult an authorized service
personnel for disconnection and reinstallation of the
7-day Scheduler
.
◆Ensure that the wall is strong enough to support the
weight of the 7-day Scheduler.
◆The 7-day Scheduler must be installed with the rated
power supply.
◆The 7-day Scheduler must be installed according to
the national electrical rules by an installation specialist.
◆Consult an authorized installation center on how to
dispose the 7-day Scheduler.
WARNING
CAUTION
◆Do not use inflammable gases near the 7-day
Scheduler.
◆Do not install the 7-day Scheduler in a location where
it will come into contact with combustible gases,
machine oil, sulphide gas, etc.
◆Avoid a location where acid/alkali solution or special
spray is used.
◆Install the 7-day Scheduler in a location that is not
exposed to direct sunlight and where the temperature
range is between 0°C and 39°C.
◆Do not let water into the 7-day Scheduler.
◆Do not apply pressure to the cable. The cable may
break and cause fire.
◆Do not press the buttons with a sharp object.
◆Do not connect the power cable to the control terminal.
◆Ensure that the 7-day Scheduler does not affect other
electronic devices when installed in a hospital or other
particular places.
This installation manual explains how to install the 7-day Scheduler.
See the appropriate installation manual for other optional accessories.
E-2
Contents
◆
7-
DAY
S
CHEDULER AND
A
CCESSORIES
. . . . . . . . . . . . . . . . . . . . 4
◆
C
ONNECTING TO THE
W
IRED
R
EMOTE
C
ONTROL
. . . . . . . . . . . . 5
◆
C
ONNECTING TO THE
C
ENTRALIZED
C
ONTROLLER
. . . . . . . . . . . 6
◆
S
ETTING UP THE
O
PTION
S
WITCHES OF
THE
7-
DAY
S
CHEDULER
PCB
. . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
E-3
ENGLISH

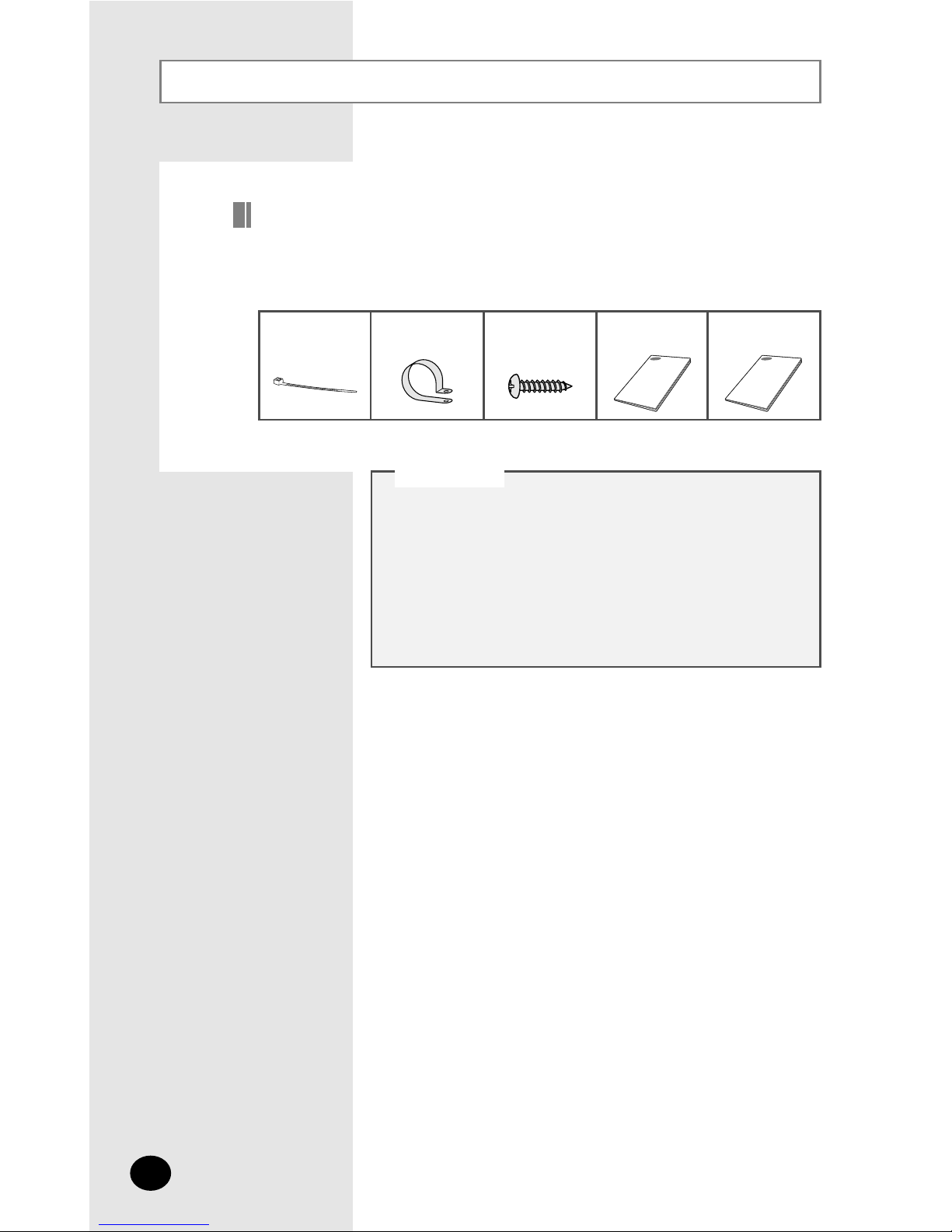

7-day Scheduler and Accessories
Accessories
Cable-tie (2) Cable clamp (2) M4x16 tapped
screw (4)
CC
CCAA
AAUU
UUTT
TTII
IIOO
OONN
NN
◆
The 7-day Scheduler must be installed by an
installation specialist.
◆
Ensure the main power is off before installing the
7-day Scheduler.
◆
All cables must be installed according to the national
wiring regulation and make sure the wires are
installed inside the wall to avoid user contact.
User’s manual (1) Installation
manual (1)
The following accessories are supplied with the 7-day Scheduler.
➢
The number of each accessory is indicated in parentheses.
E-4

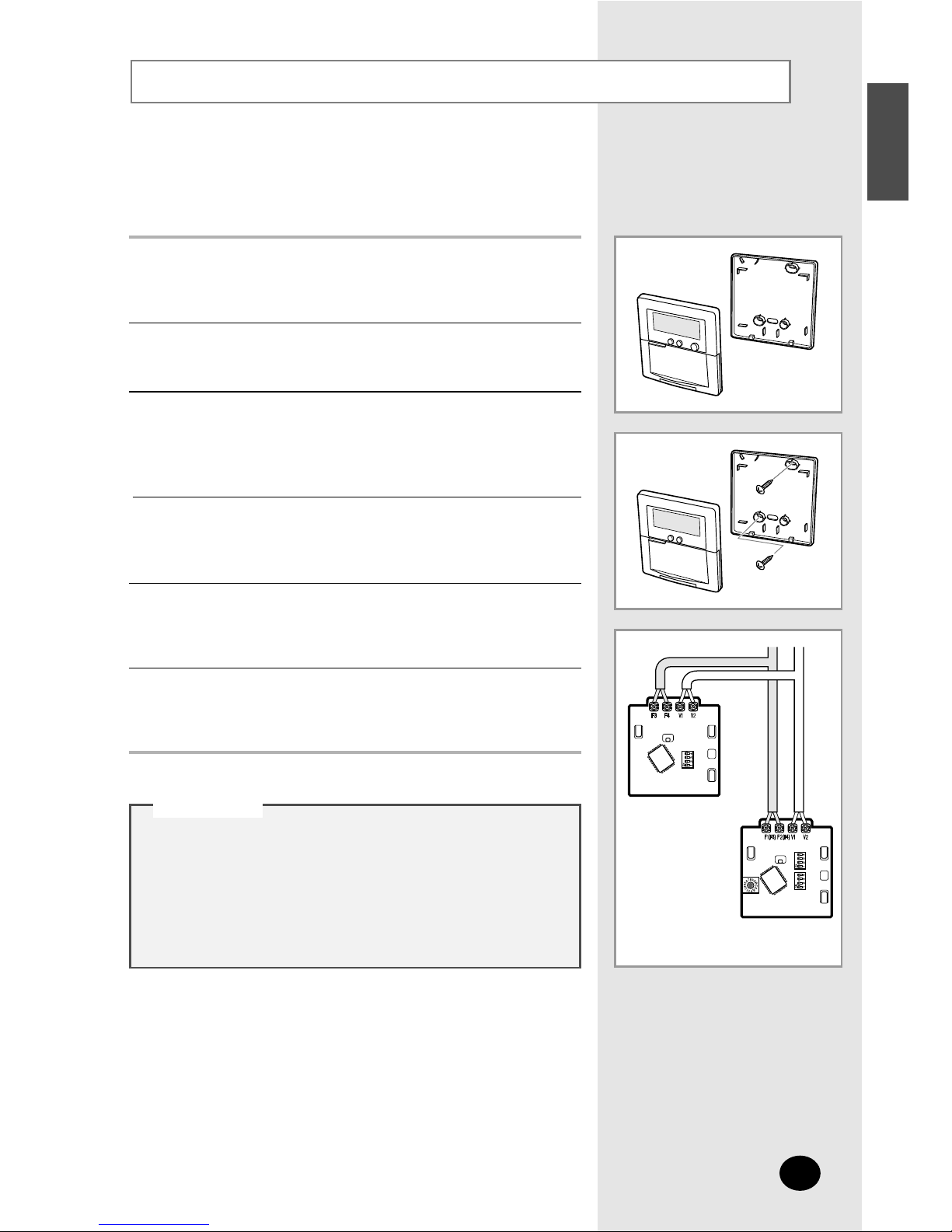

Connecting to the Wired Remote Control
Open the wired remote control by using the groove on
the top.
1
Open the 7-day Scheduler by using the groove on the
top.
2
Connect each 7-day Scheduler terminal V1, V2 to the
wired remote control terminal V1, V2.
5
Reassemble the 7-day Scheduler and the wired remote
control.
6
Secure the rear cover of the 7-day Scheduler on the
wall with 2 screws.
3
Connect each 7-day Scheduler terminal F3, F4 to the
wired remote control terminal F3, F4.
4
CC
CCAA
AAUU
UUTT
TTII
IIOO
OONN
NN
◆
The communication cable and the power cable
should be installed separately when installing the
7-day Scheduler and the wired remote control.
(Connecting the power cable to the communication
terminal will cause serious damage to the 7-day
Scheduler)
Wired remote
control
Wired remote
control
7-day
Scheduler
7-day
Scheduler
E-5
ENGLISH

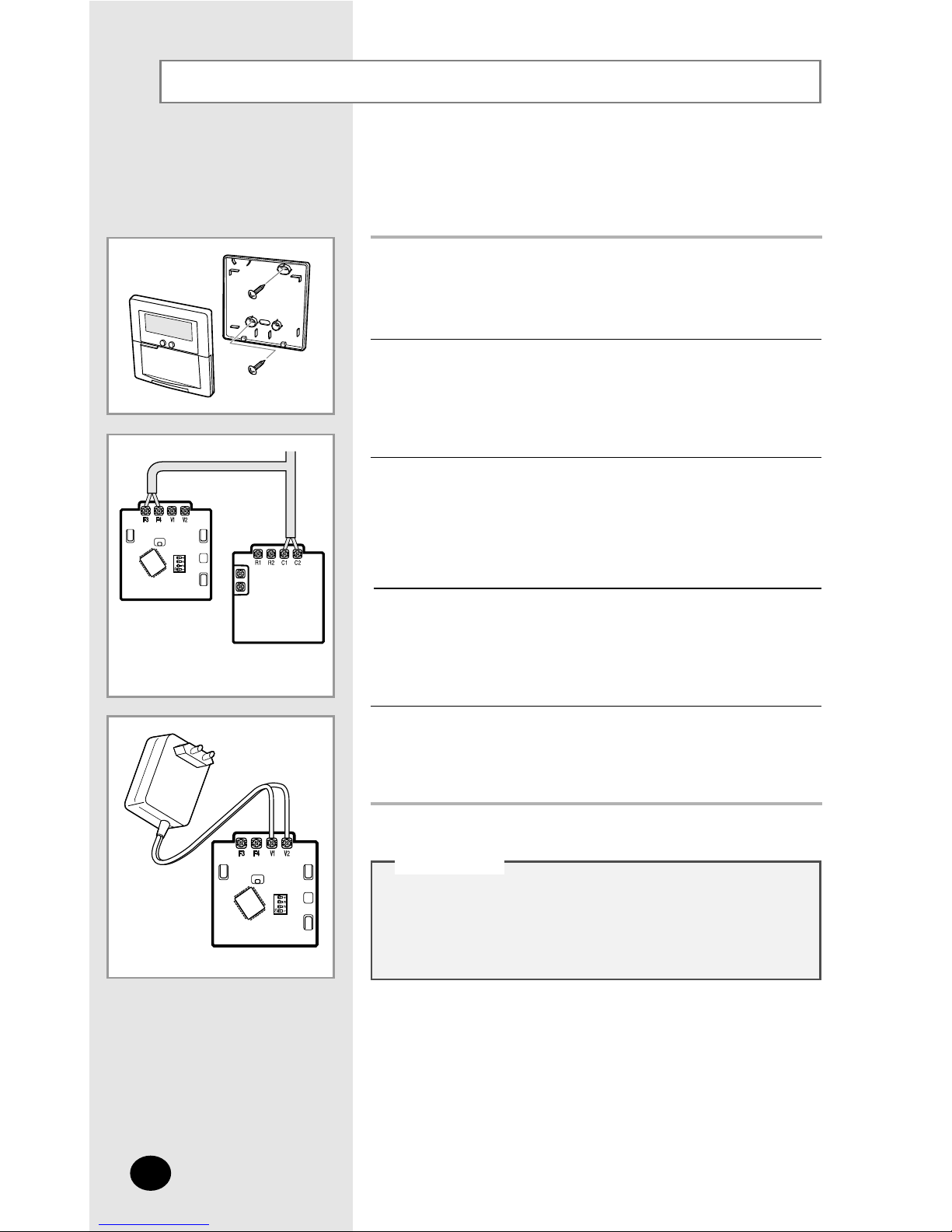

Open the 7-day Scheduler by using the groove on the top.
1
Secure the rear cover of the 7-day Scheduler on the
wall with 2 screws.
2
Reassemble the 7-day Scheduler.
5
Connect each 7-day Scheduler terminal F3, F4 to the
centralized controller terminal C1, C2.
3
Connect the 7-day Scheduler terminal V1, V2 using a
separate 12V adapter.
4
CC
CCAA
AAUU
UUTT
TTII
IIOO
OONN
NN
◆ The 7-day Scheduler can be used with the MCM-A201
centralized controller only. The 7-day Scheduler will
not function if used with the MCM-A200 centralized
controller.
Connecting to the Centralized Controller
7-day
Scheduler
12V adapter
7-day
Scheduler Centralized
controller
7-day Scheduler
E-6
CC
CCAA
AAUU
UUTT
TTII
IIOO
OONN
NN
◆ If SW2 is set to ON, only the On/Off button of the
wired remote control is disabled.

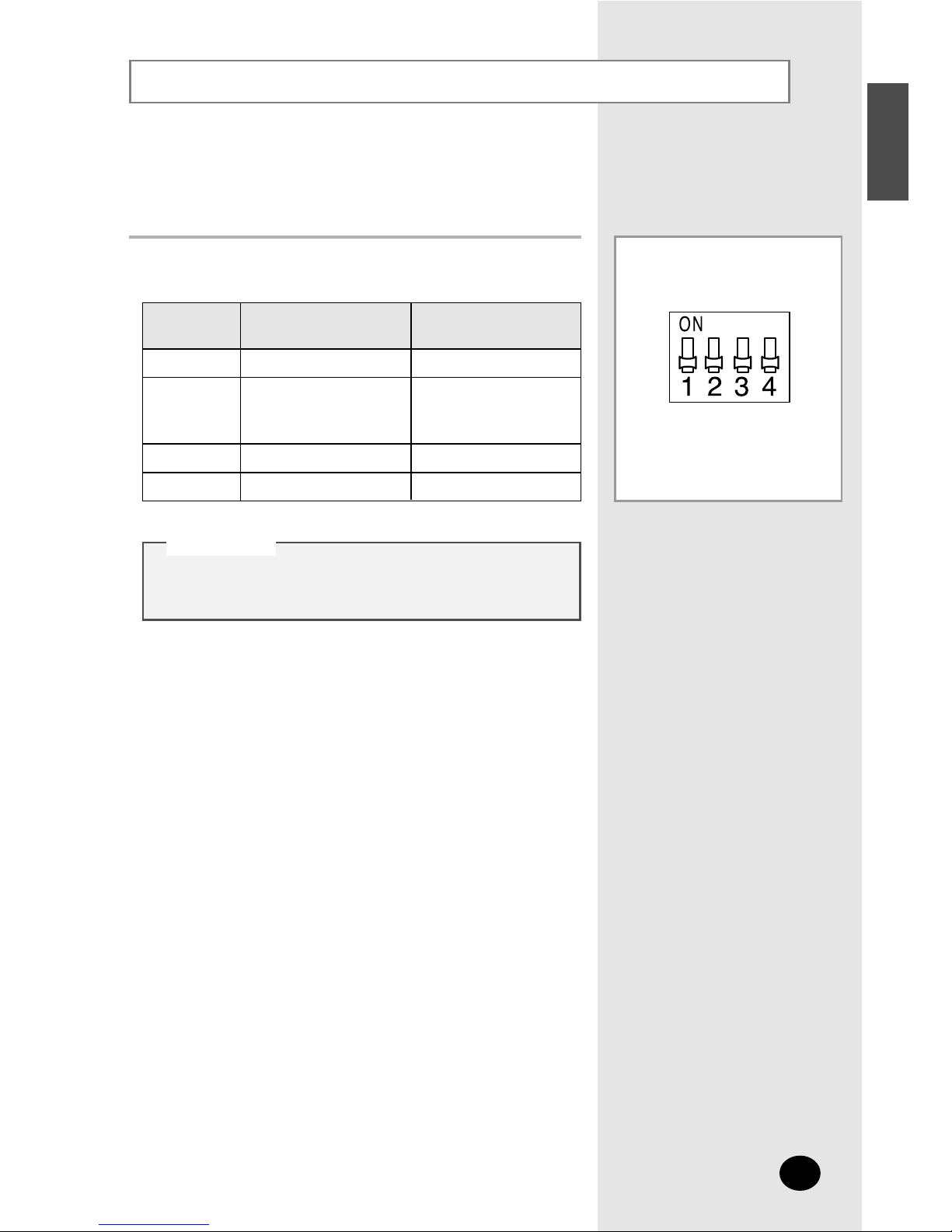

Setting up the Option Switches of the 7-day Scheduler PCB
◆
Assign the DIP switch of the 7-day Scheduler
according to the user's environment.
SW1
SW2
SW3
SW4
Enables the use of the
wired remote control
Disables of the [On/Off]
button on the wired remote
control
DIP switch
No. Switch OFF Switch ON
SW1 SW2 SW3 SW4
DS01
Default switch setting
E-7
ENGLISH
